| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_085T01_9000001868_12576cztM0_level2.evt | modeM0/AS1A04_085T01_9000001868_12576cztM0_level2_quad_clean.evt |
| Size (bytes) | 124,119,360 | 25,848,000 |
| Size | 118.4 MB | 24.7 MB |
| Events in quadrant A | 861,283 | 165,854 |
| Events in quadrant B | 922,141 | 173,053 |
| Events in quadrant C | 890,972 | 167,094 |
| Events in quadrant D | 972,996 | 158,054 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 32 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3607 | 1 |
| B | 0 | 3807 | 1 |
| C | 0 | 3671 | 1 |
| D | 0 | 3918 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1603 | 1 | 0.062383% |
| B | 1603 | 13 | 0.810979% |
| C | 1603 | 12 | 0.748596% |
| D | 1603 | 24 | 1.497193% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

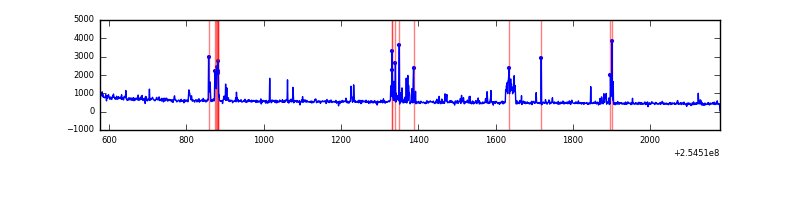

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1604 | 1604 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1604 | 1604 | 2 | 2 | 0.12% | 0.12% |  |
| C | 1604 | 1604 | 5 | 5 | 0.31% | 0.31% |  |
| D | 1604 | 1604 | 16 | 16 | 1.00% | 1.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 4647 | 94.52 | 221 | 216 | 46.9 |
| A | 9 | 143 | 4165 | 84.24 | 221 | 216 | 46.9 |
| A | 0 | 226 | 1958 | 37.16 | 221 | 216 | 46.9 |
| B | 3 | 209 | 12872 | 289.31 | 226 | 220 | 43.7 |
| B | 0 | 230 | 10650 | 238.5 | 226 | 220 | 43.7 |
| B | 3 | 64 | 8983 | 200.38 | 226 | 220 | 43.7 |
| C | 14 | 234 | 17916 | 337.68 | 223 | 225 | 52.4 |
| C | 13 | 61 | 1628 | 26.78 | 223 | 225 | 52.4 |
| C | 8 | 222 | 774 | 10.48 | 223 | 225 | 52.4 |
| D | 1 | 52 | 53311 | 987.23 | 219 | 213 | 53.8 |
| D | 10 | 157 | 47214 | 873.87 | 219 | 213 | 53.8 |
| D | 13 | 249 | 22993 | 423.54 | 219 | 213 | 53.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

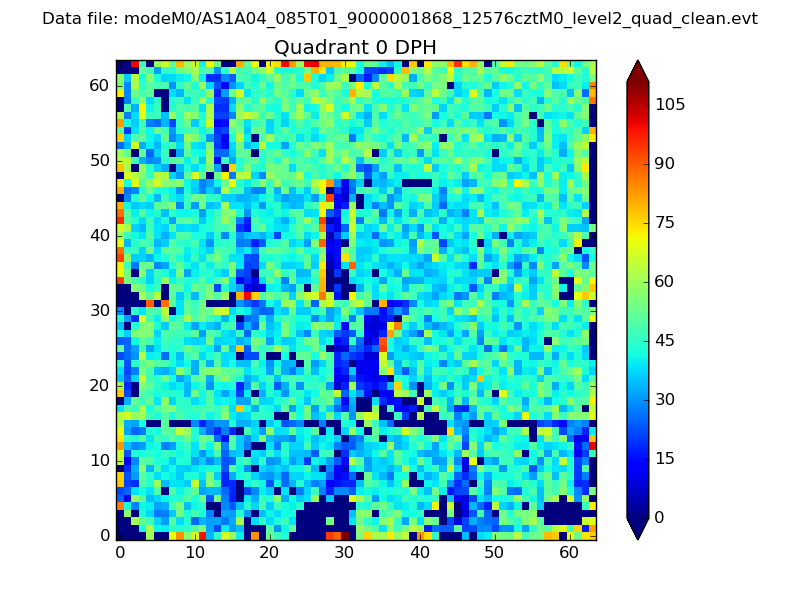

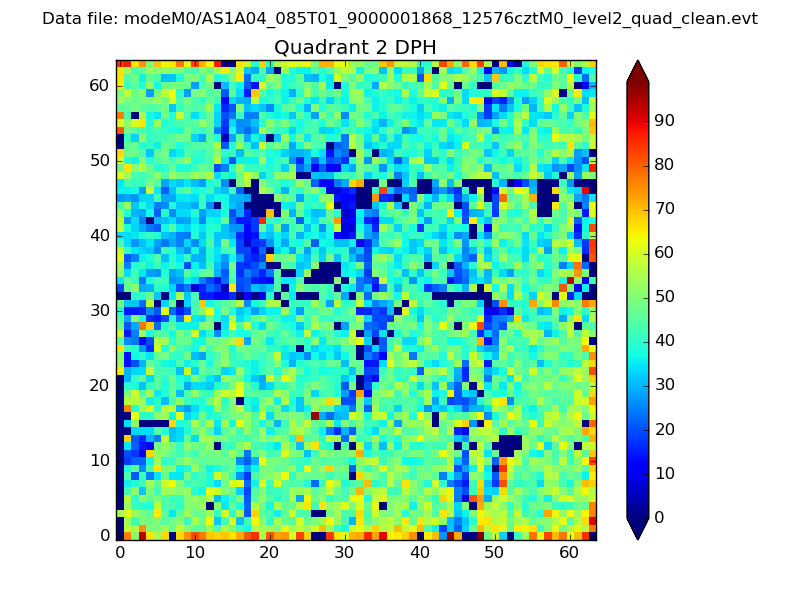

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

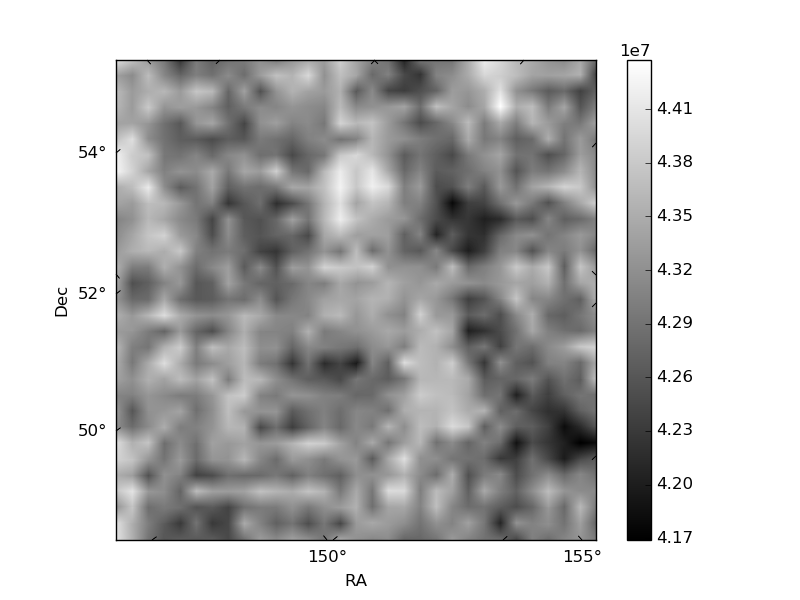

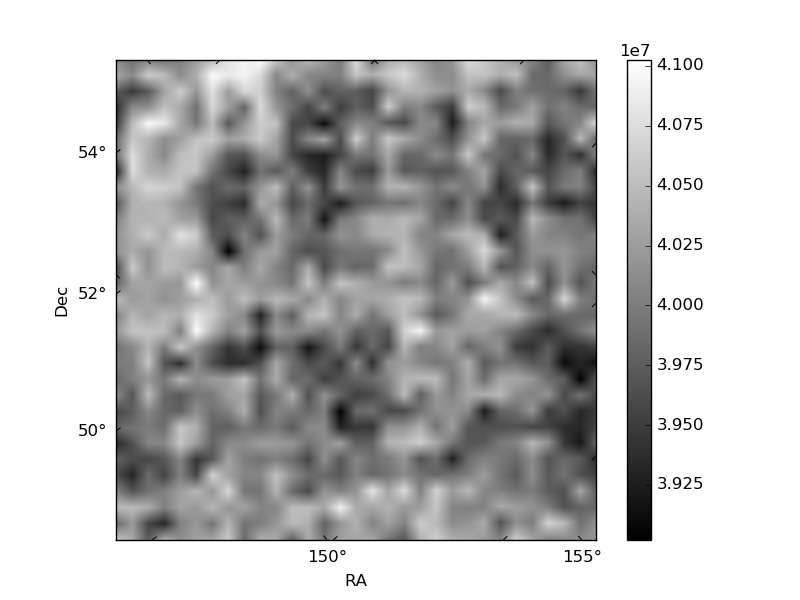

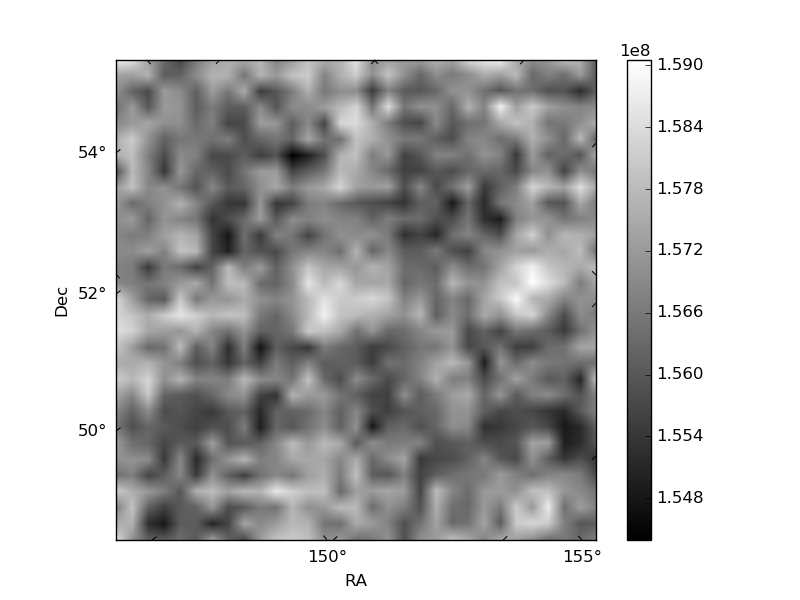

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

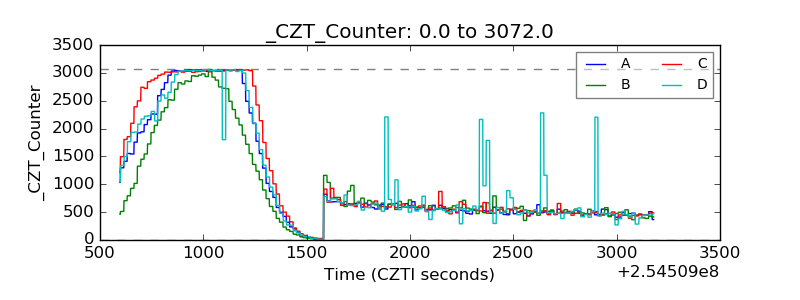

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
