| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T01_9000001874_12590cztM0_level2.evt | modeM0/AS1G08_071T01_9000001874_12590cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,987,520 | 83,517,120 |
| Size | 452.0 MB | 79.6 MB |
| Events in quadrant A | 3,273,460 | 527,987 |
| Events in quadrant B | 3,915,726 | 526,036 |
| Events in quadrant C | 3,116,285 | 535,406 |
| Events in quadrant D | 3,626,818 | 505,455 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13923 | 3 |
| B | 0 | 15945 | 2 |
| C | 0 | 13500 | 2 |
| D | 0 | 15079 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6222 | 59 | 0.948248% |
| B | 6222 | 286 | 4.596593% |
| C | 6222 | 44 | 0.707168% |
| D | 6222 | 233 | 3.744777% |

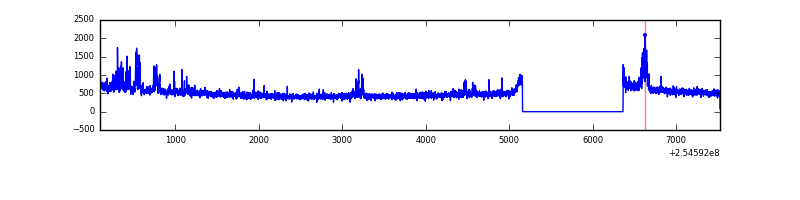

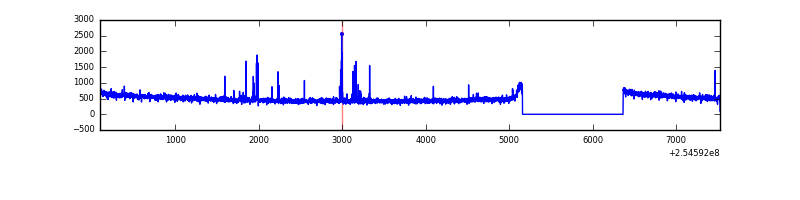

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7428 | 6223 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7428 | 6223 | 159 | 159 | 2.14% | 2.56% |  |
| C | 7428 | 6223 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7428 | 6223 | 169 | 169 | 2.28% | 2.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 112 | 205775 | 1287.63 | 786 | 770 | 159.2 |
| A | 12 | 189 | 40134 | 247.24 | 786 | 770 | 159.2 |
| A | 9 | 143 | 7320 | 41.14 | 786 | 770 | 159.2 |
| B | 4 | 239 | 585913 | 3954.16 | 780 | 763 | 148.0 |
| B | 3 | 64 | 103472 | 694.06 | 780 | 763 | 148.0 |
| B | 0 | 230 | 63037 | 420.82 | 780 | 763 | 148.0 |
| C | 15 | 208 | 69189 | 384.02 | 779 | 783 | 178.1 |
| C | 13 | 61 | 5661 | 27.38 | 779 | 783 | 178.1 |
| C | 5 | 96 | 3568 | 15.63 | 779 | 783 | 178.1 |
| D | 1 | 52 | 640872 | 3552.07 | 759 | 737 | 180.2 |
| D | 13 | 104 | 61927 | 339.54 | 759 | 737 | 180.2 |
| D | 13 | 249 | 25830 | 139.24 | 759 | 737 | 180.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

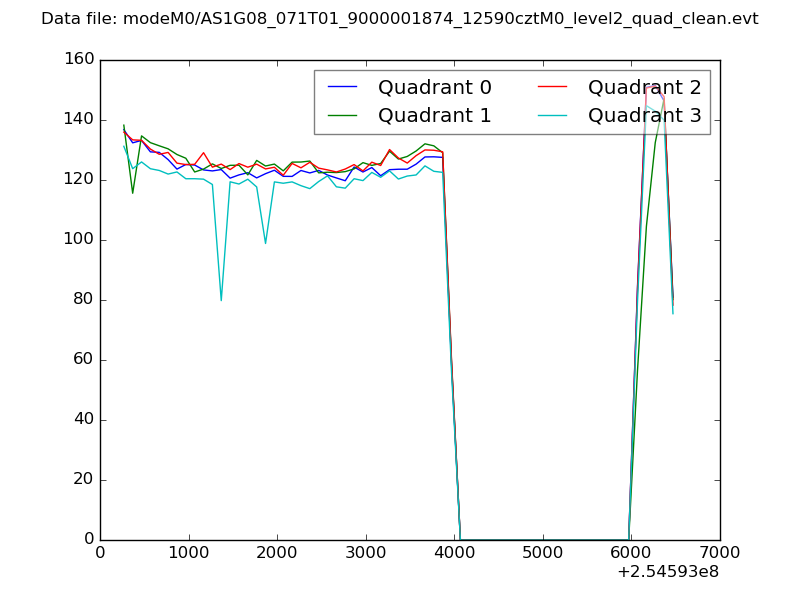

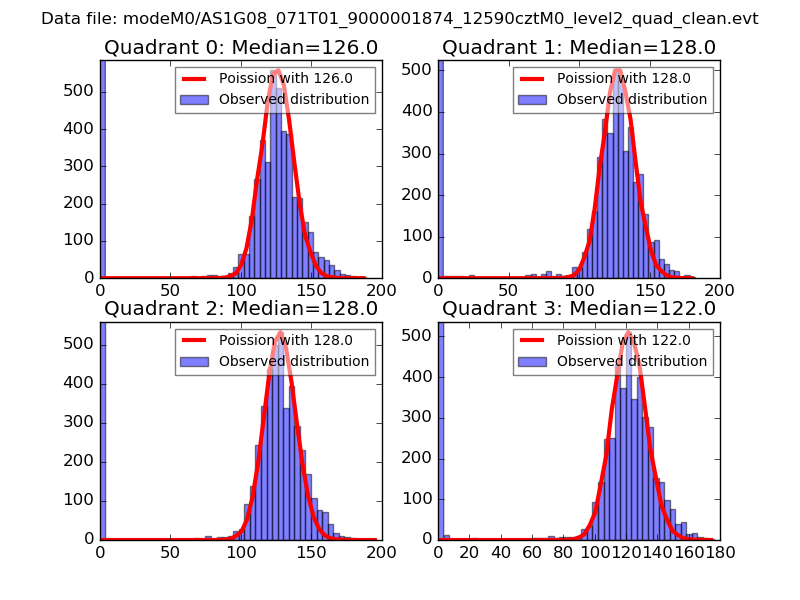

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

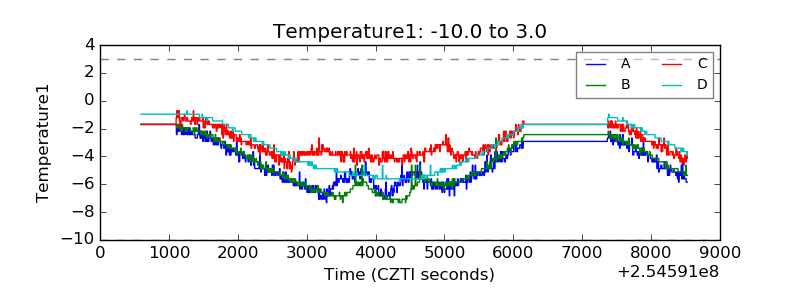

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

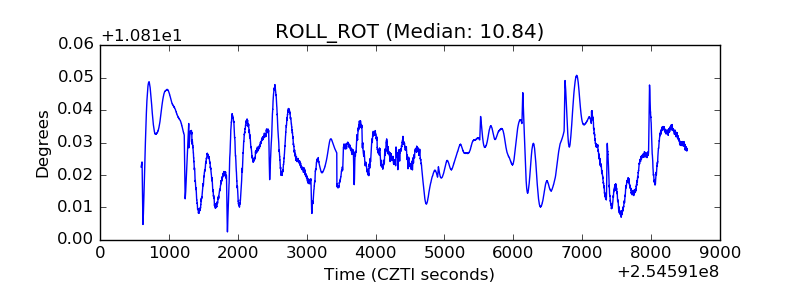

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
