| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T01_9000001874_12596cztM0_level2.evt | modeM0/AS1G08_071T01_9000001874_12596cztM0_level2_quad_clean.evt |
| Size (bytes) | 725,250,240 | 158,529,600 |
| Size | 691.7 MB | 151.2 MB |
| Events in quadrant A | 4,767,592 | 1,017,163 |
| Events in quadrant B | 5,321,717 | 1,037,688 |
| Events in quadrant C | 4,834,374 | 1,039,459 |
| Events in quadrant D | 6,323,455 | 975,152 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 262 | 44 |
| B | 0 | 262 | 42 |
| C | 0 | 262 | 46 |
| D | 0 | 262 | 44 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26536 | 4716 |
| B | 0 | 29406 | 6233 |
| C | 0 | 26952 | 4750 |
| D | 0 | 33642 | 6926 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10604 | 82 | 0.773293% |
| B | 10474 | 155 | 1.479855% |
| C | 10638 | 48 | 0.451213% |
| D | 10500 | 477 | 4.542857% |

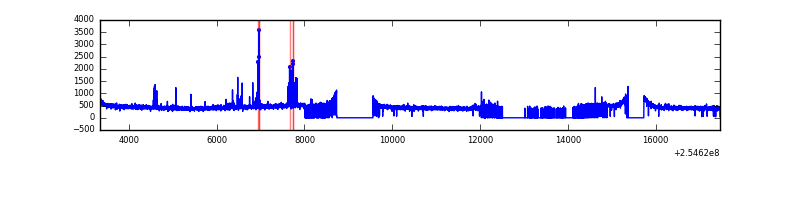

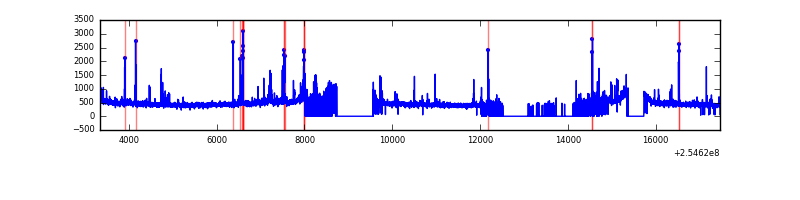

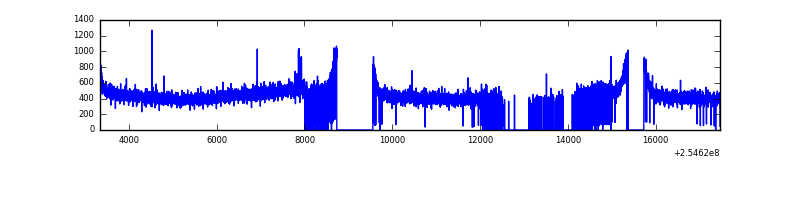

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

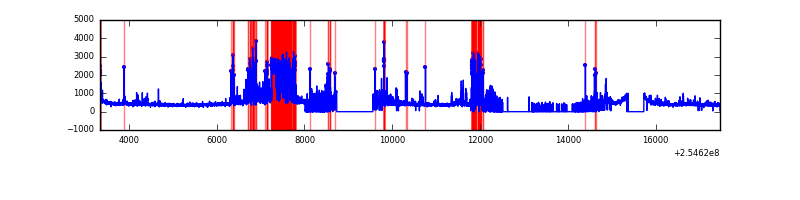

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14121 | 11076 | 0 | 0 | 0.00% | 0.00% |  |
| B | 14121 | 10906 | 20 | 20 | 0.14% | 0.18% |  |
| C | 14121 | 11100 | 6 | 6 | 0.04% | 0.05% |  |
| D | 14121 | 10909 | 417 | 417 | 2.95% | 3.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 24035 | 91.67 | 1230 | 1205 | 249.1 |
| A | 0 | 226 | 10883 | 38.86 | 1230 | 1205 | 249.1 |
| A | 15 | 239 | 9756 | 34.33 | 1230 | 1205 | 249.1 |
| B | 3 | 64 | 271674 | 1166.68 | 1219 | 1189 | 231.8 |
| B | 4 | 239 | 216876 | 930.32 | 1219 | 1189 | 231.8 |
| B | 0 | 214 | 42435 | 177.91 | 1219 | 1189 | 231.8 |
| C | 15 | 208 | 80667 | 285.05 | 1205 | 1209 | 278.8 |
| C | 14 | 234 | 56800 | 199.43 | 1205 | 1209 | 278.8 |
| C | 13 | 61 | 8865 | 27.47 | 1205 | 1209 | 278.8 |
| D | 1 | 52 | 1146067 | 4196.41 | 1144 | 1111 | 272.8 |
| D | 10 | 157 | 606002 | 2217.0 | 1144 | 1111 | 272.8 |
| D | 10 | 199 | 182679 | 665.47 | 1144 | 1111 | 272.8 |

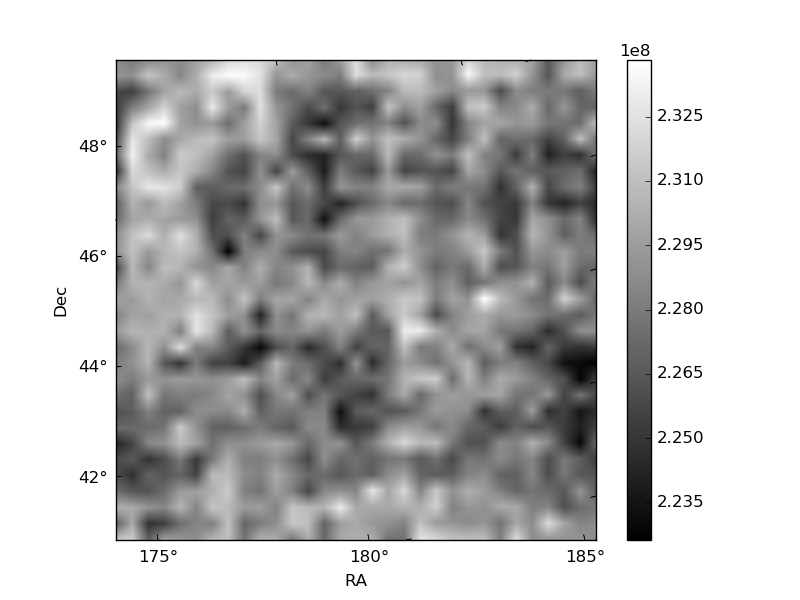

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

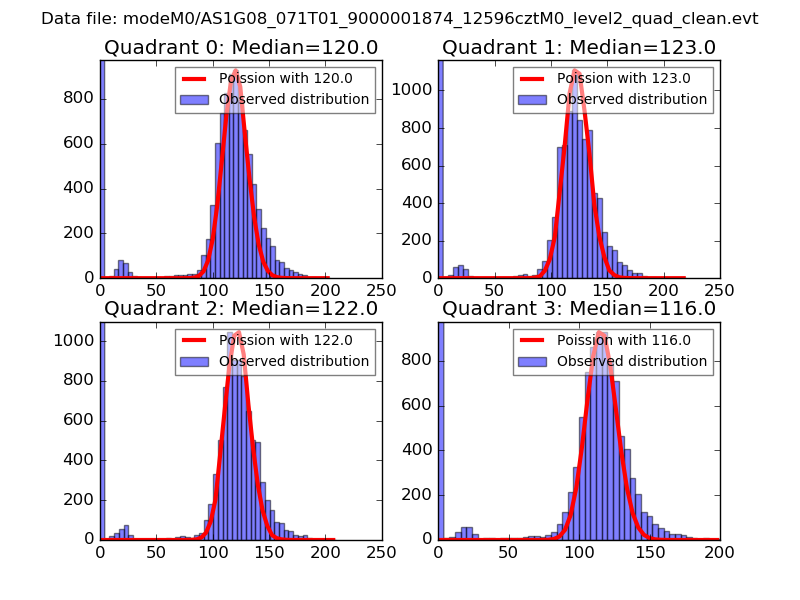

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

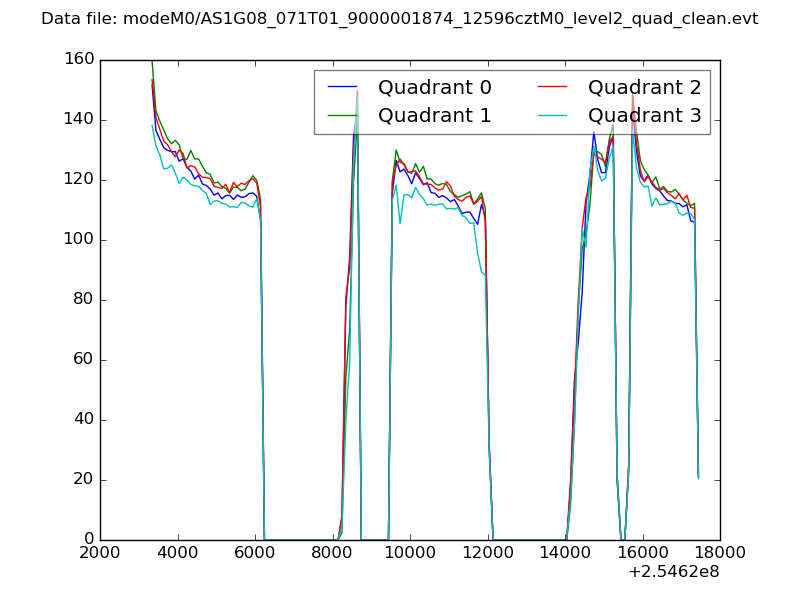

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

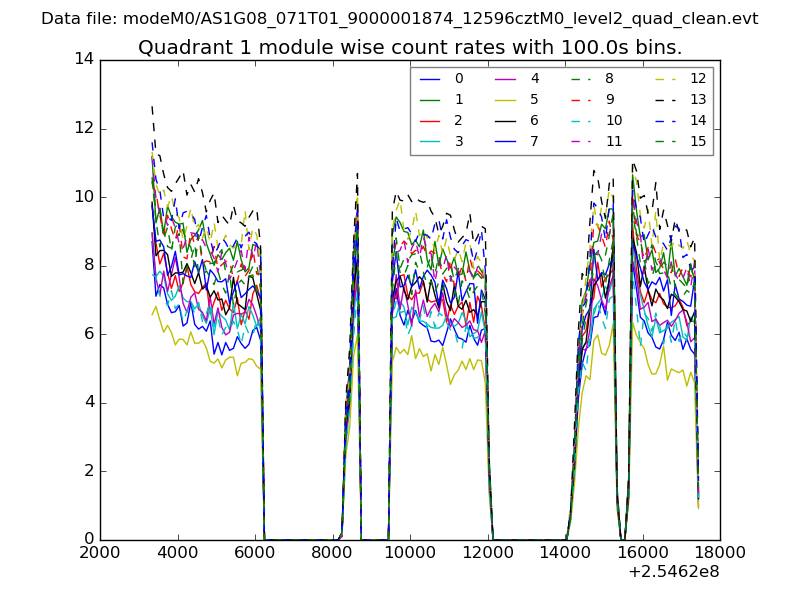

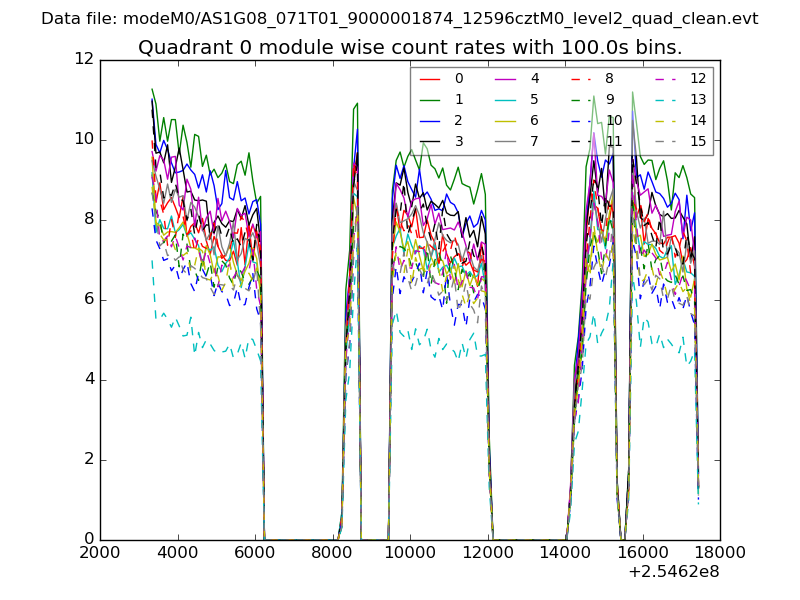

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

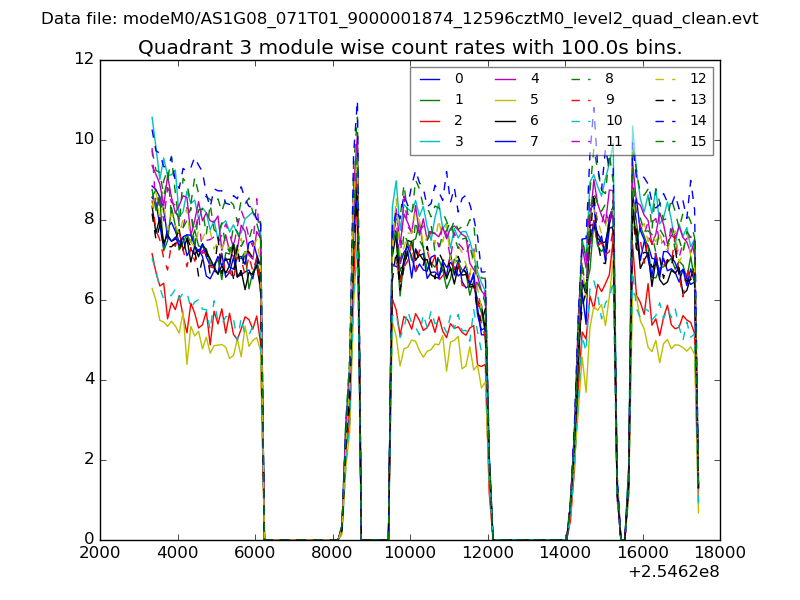

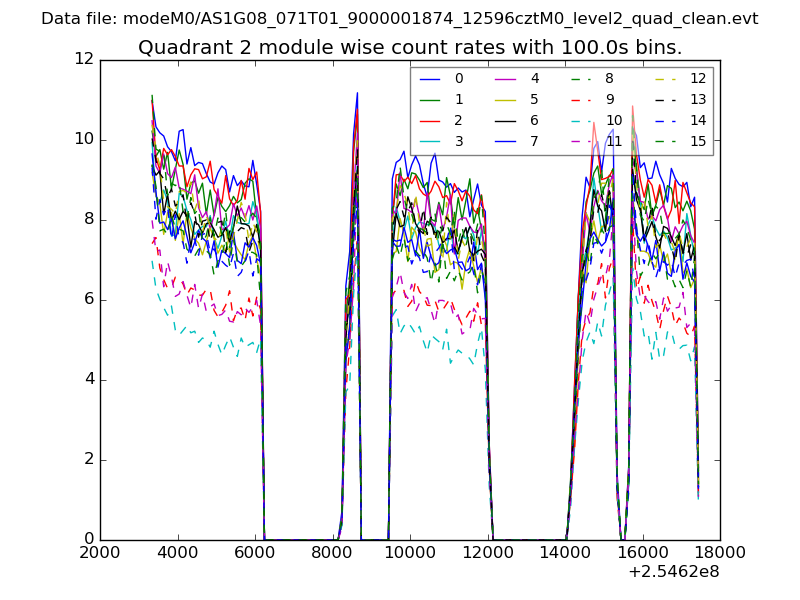

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

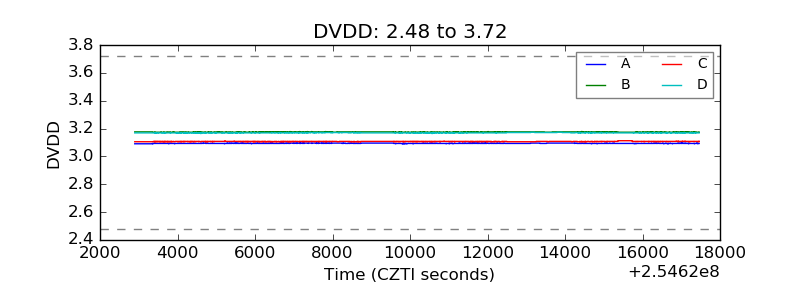

| D_VDD |  |

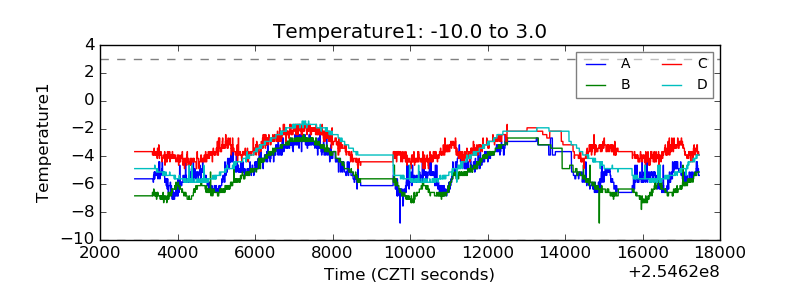

| Temperature 1 |  |

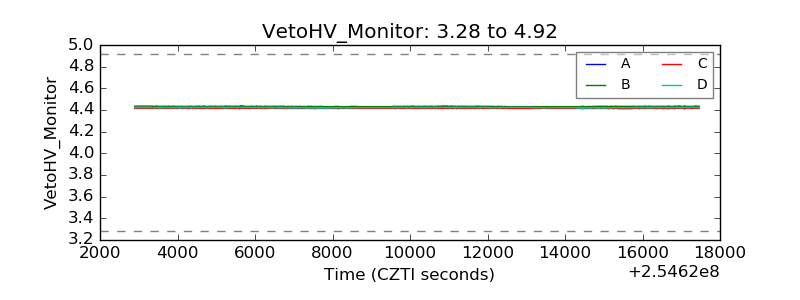

| Veto HV Monitor |  |
| Veto LLD |  |

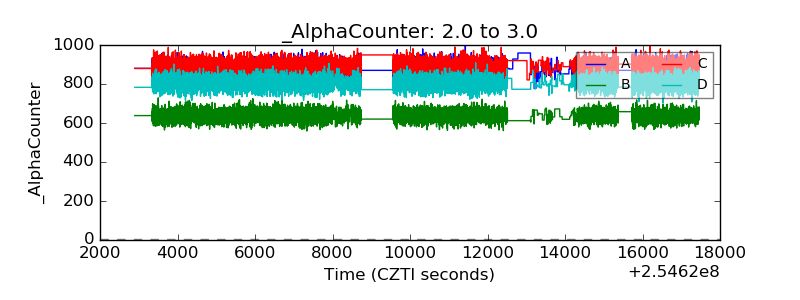

| Alpha Counter |  |

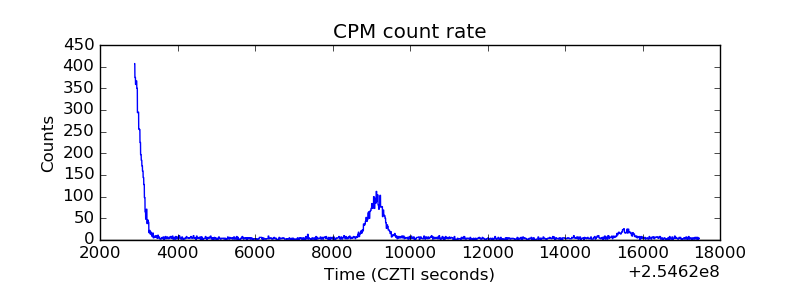

| _CPM_Rate |  |

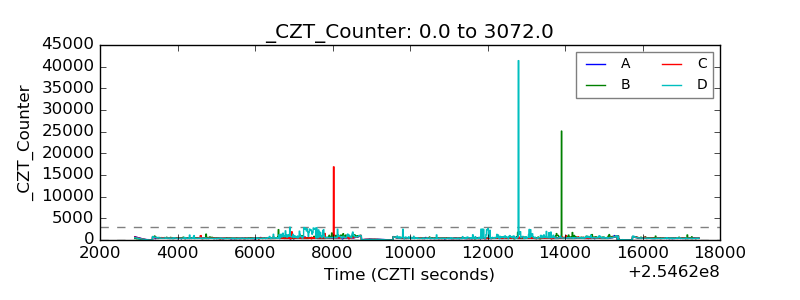

| CZT Counter |  |
| +2.5 Volts monitor |  |

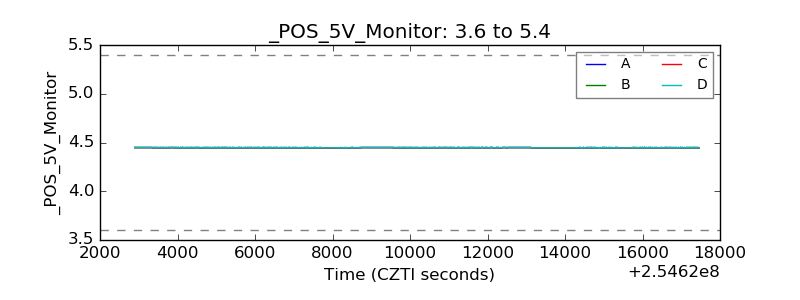

| +5 Volts monitor |  |

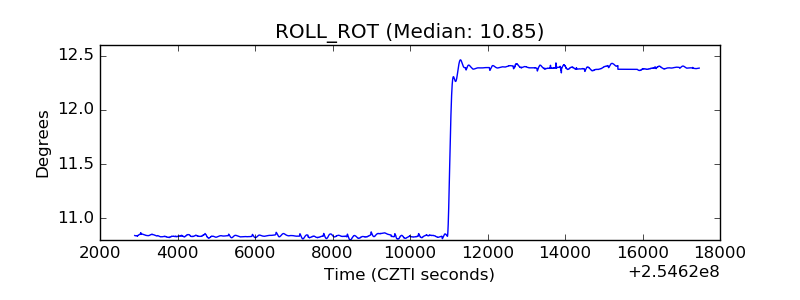

| _ROLL_ROT |  |
| _Roll_DEC |  |

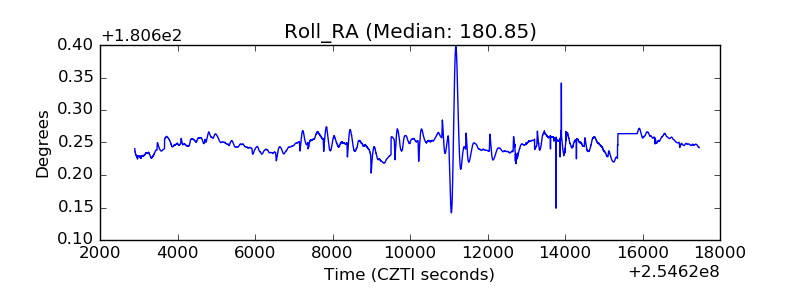

| _Roll_RA |  |

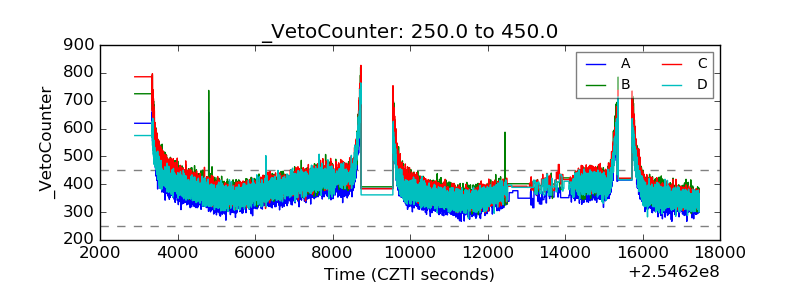

| Veto Counter |  |
