| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T01_9000001874_12600cztM0_level2.evt | modeM0/AS1G08_071T01_9000001874_12600cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,727,832,960 | 284,492,160 |
| Size | 1.6 GB | 271.3 MB |
| Events in quadrant A | 11,096,677 | 1,754,380 |
| Events in quadrant B | 14,340,639 | 1,765,754 |
| Events in quadrant C | 10,960,619 | 1,780,276 |
| Events in quadrant D | 14,297,967 | 1,653,956 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 488 | 0 |
| B | 0 | 488 | 0 |
| C | 0 | 488 | 0 |
| D | 0 | 488 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 49381 | 6 |
| B | 0 | 58308 | 2 |
| C | 0 | 49642 | 2 |
| D | 0 | 59573 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 24145 | 385 | 1.594533% |
| B | 24145 | 990 | 4.100228% |
| C | 24145 | 238 | 0.985711% |
| D | 24145 | 1108 | 4.588942% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

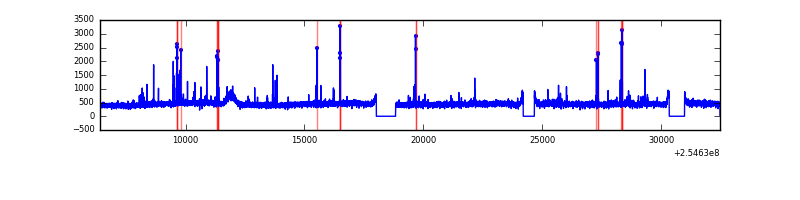

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 26072 | 24147 | 1 | 1 | 0.00% | 0.00% |  |
| B | 26072 | 24147 | 459 | 459 | 1.76% | 1.90% |  |
| C | 26072 | 24147 | 22 | 22 | 0.08% | 0.09% |  |
| D | 26072 | 24147 | 802 | 802 | 3.08% | 3.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 151909 | 259.22 | 2821 | 2751 | 575.4 |
| A | 8 | 15 | 43568 | 70.93 | 2821 | 2751 | 575.4 |
| A | 3 | 1 | 32942 | 52.47 | 2821 | 2751 | 575.4 |
| B | 4 | 239 | 1709843 | 3207.42 | 2795 | 2721 | 532.2 |
| B | 3 | 64 | 1275558 | 2391.47 | 2795 | 2721 | 532.2 |
| B | 0 | 214 | 123934 | 227.74 | 2795 | 2721 | 532.2 |
| C | 14 | 234 | 184538 | 287.94 | 2743 | 2753 | 631.3 |
| C | 15 | 208 | 77244 | 117.99 | 2743 | 2753 | 631.3 |
| C | 13 | 61 | 20027 | 27.36 | 2743 | 2753 | 631.3 |
| D | 1 | 52 | 2055385 | 3228.02 | 2674 | 2592 | 635.9 |
| D | 10 | 157 | 1545887 | 2426.83 | 2674 | 2592 | 635.9 |
| D | 10 | 199 | 218995 | 340.29 | 2674 | 2592 | 635.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

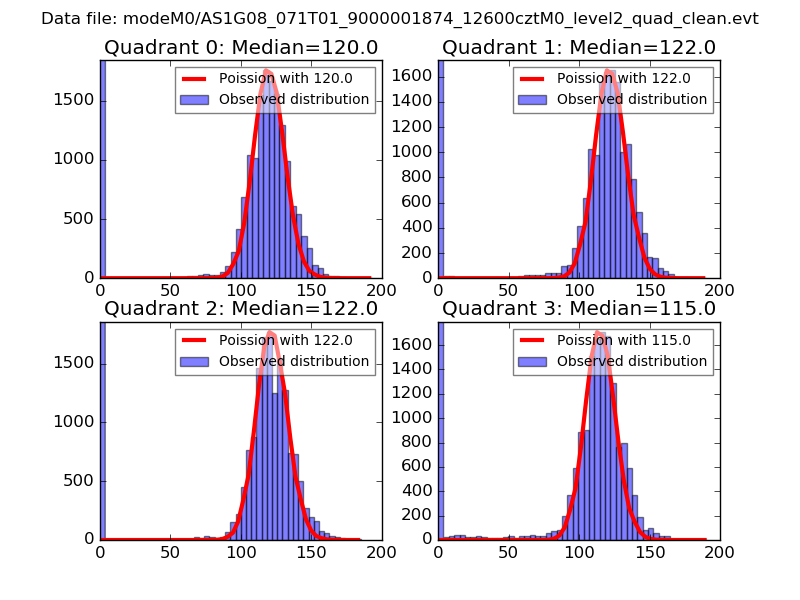

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

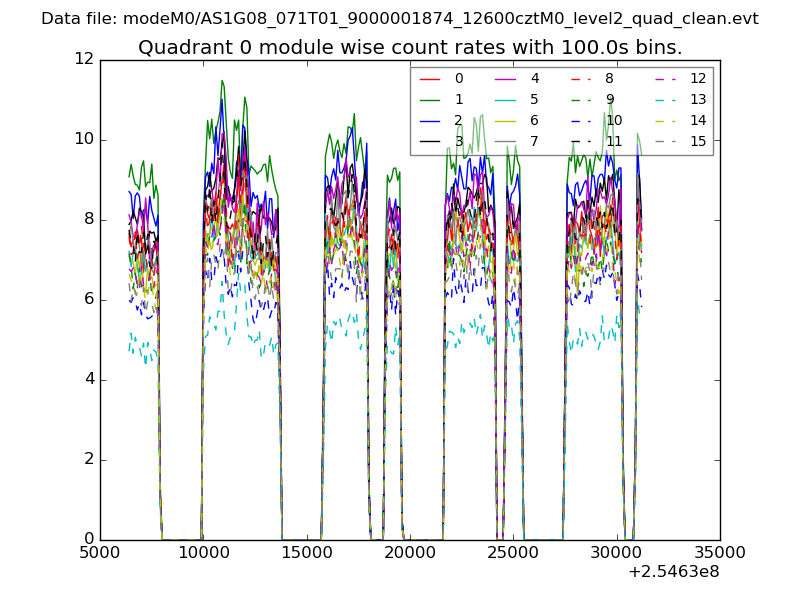

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

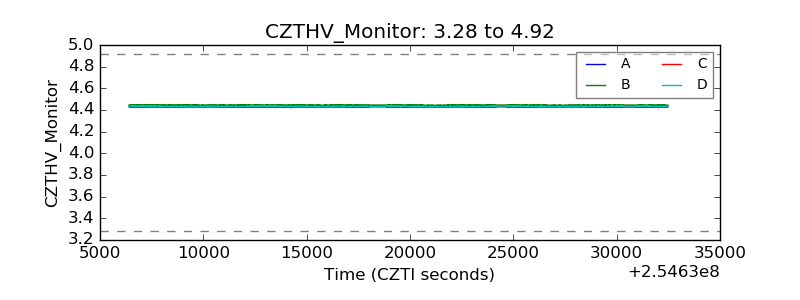

| CZT HV Monitor |  |
| D_VDD |  |

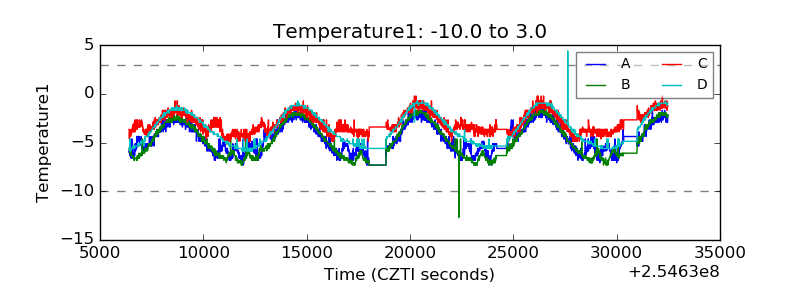

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

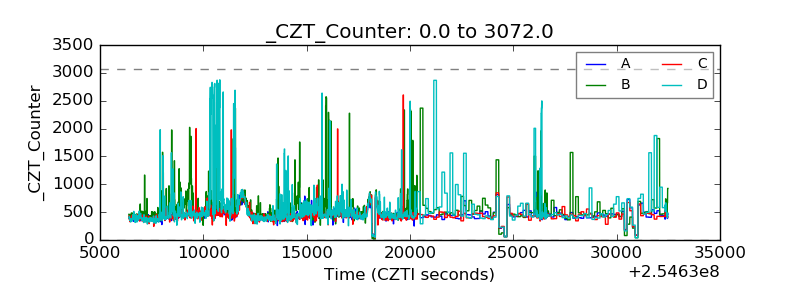

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

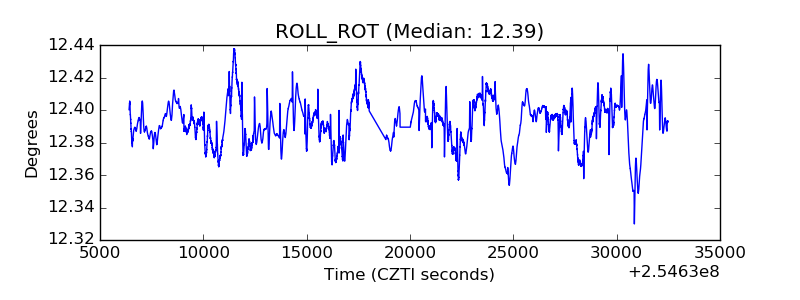

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

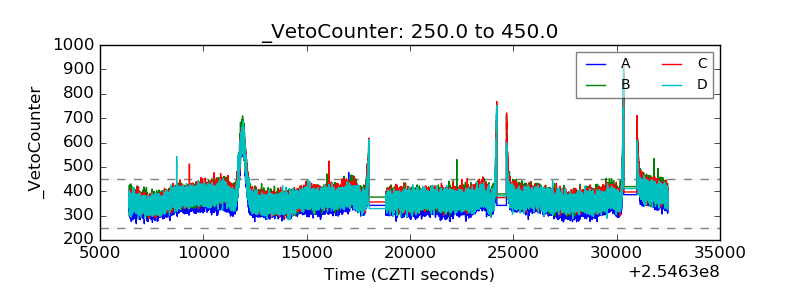

| Veto Counter |  |
