| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T01_9000001874_12602cztM0_level2.evt | modeM0/AS1G08_071T01_9000001874_12602cztM0_level2_quad_clean.evt |
| Size (bytes) | 571,625,280 | 66,654,720 |
| Size | 545.1 MB | 63.6 MB |
| Events in quadrant A | 3,156,827 | 402,797 |
| Events in quadrant B | 4,123,624 | 396,394 |
| Events in quadrant C | 3,627,904 | 403,252 |
| Events in quadrant D | 5,951,346 | 350,602 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13839 | 3 |
| B | 0 | 16629 | 2 |
| C | 0 | 15257 | 2 |
| D | 0 | 22236 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6676 | 64 | 0.958658% |
| B | 6676 | 318 | 4.763331% |
| C | 6676 | 185 | 2.771120% |
| D | 6676 | 1005 | 15.053925% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7687 | 6677 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7687 | 6677 | 203 | 203 | 2.64% | 3.04% |  |
| C | 7687 | 6677 | 121 | 121 | 1.57% | 1.81% |  |
| D | 7687 | 6677 | 868 | 868 | 11.29% | 13.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 15728 | 89.63 | 816 | 796 | 166.6 |
| A | 0 | 226 | 7412 | 39.71 | 816 | 796 | 166.6 |
| A | 13 | 248 | 6661 | 35.21 | 816 | 796 | 166.6 |
| B | 4 | 239 | 853539 | 5588.28 | 802 | 783 | 152.6 |
| B | 3 | 209 | 48261 | 311.13 | 802 | 783 | 152.6 |
| B | 3 | 64 | 37996 | 243.86 | 802 | 783 | 152.6 |
| C | 15 | 208 | 540452 | 2949.49 | 789 | 790 | 183.0 |
| C | 14 | 234 | 13505 | 69.49 | 789 | 790 | 183.0 |
| C | 13 | 61 | 5714 | 26.91 | 789 | 790 | 183.0 |
| D | 1 | 52 | 1755259 | 10085.85 | 722 | 700 | 174.0 |
| D | 10 | 157 | 1265197 | 7268.8 | 722 | 700 | 174.0 |
| D | 10 | 199 | 118509 | 677.21 | 722 | 700 | 174.0 |

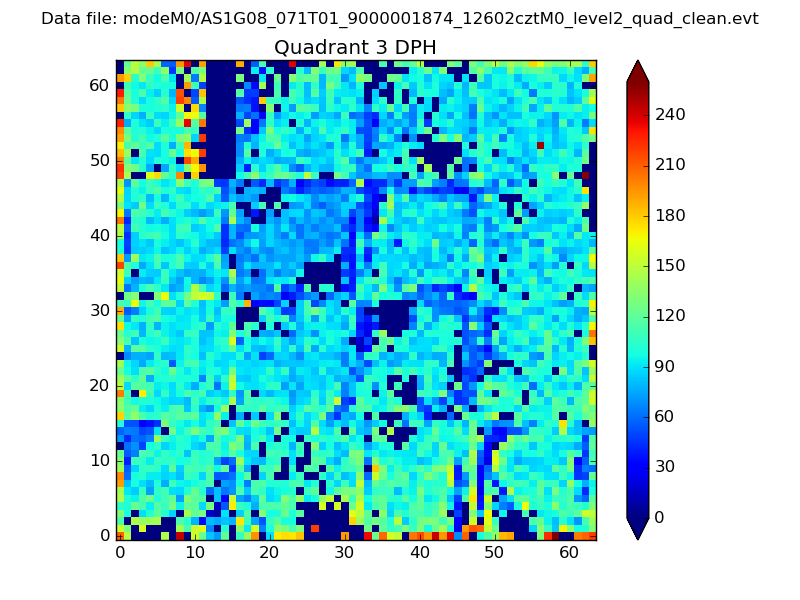

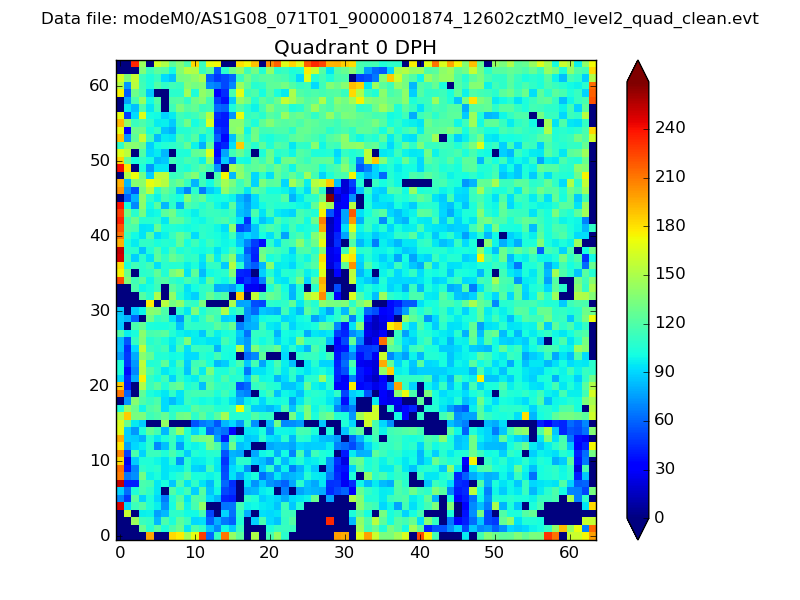

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

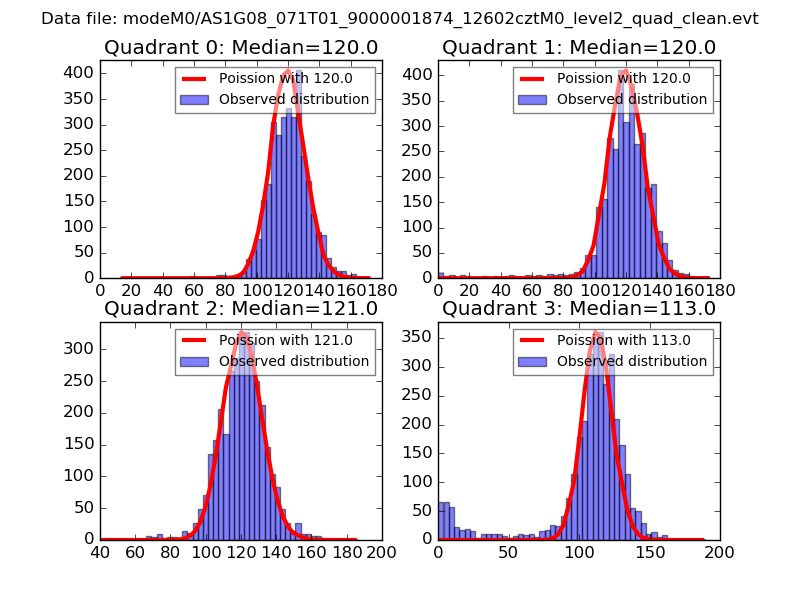

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

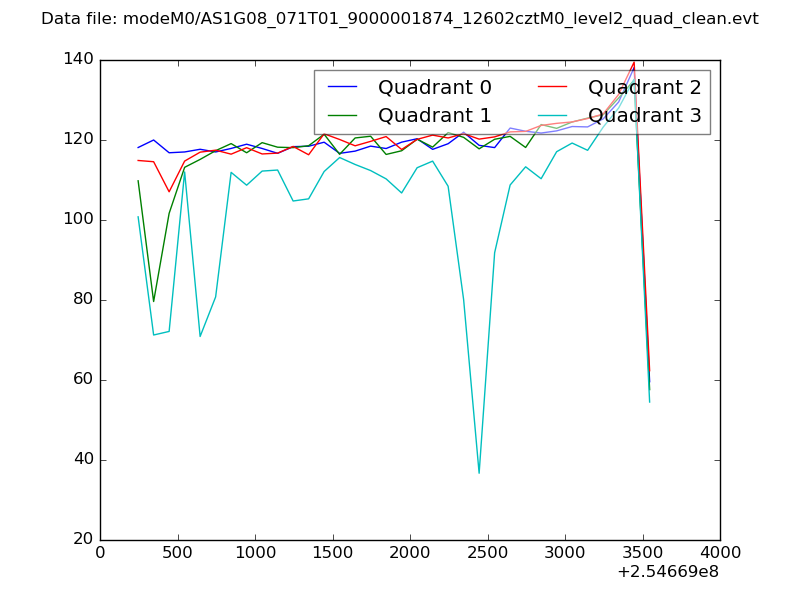

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

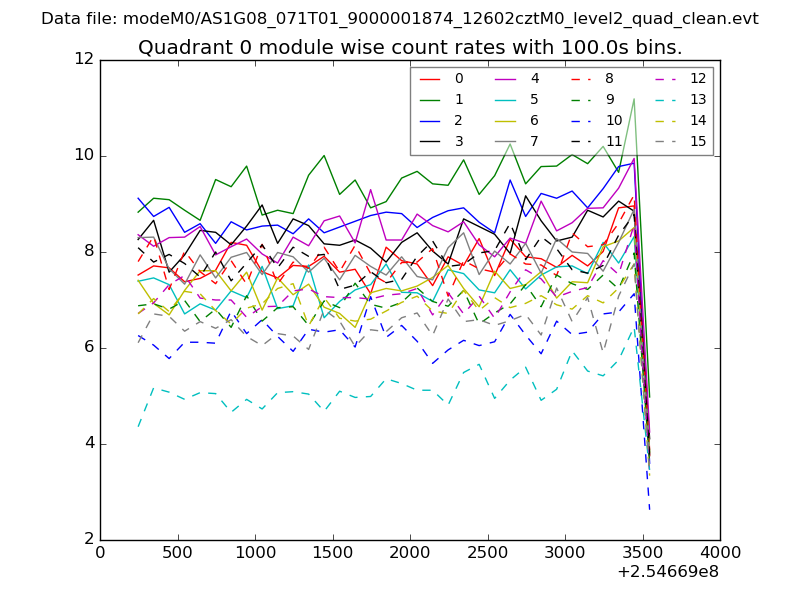

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

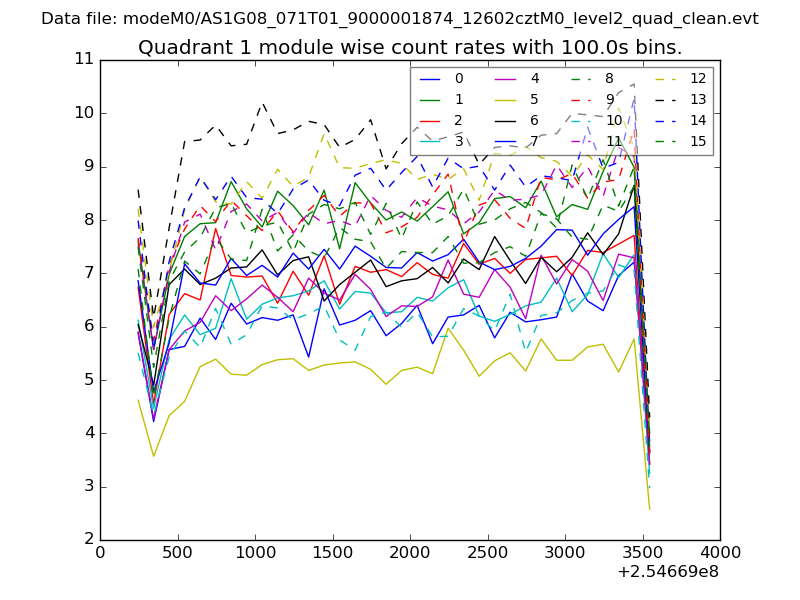

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
