| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T01_9000001874_12610cztM0_level2.evt | modeM0/AS1G08_071T01_9000001874_12610cztM0_level2_quad_clean.evt |
| Size (bytes) | 237,479,040 | 50,256,000 |
| Size | 226.5 MB | 47.9 MB |
| Events in quadrant A | 1,554,527 | 319,860 |
| Events in quadrant B | 1,846,669 | 323,914 |
| Events in quadrant C | 1,740,389 | 320,205 |
| Events in quadrant D | 1,804,458 | 303,857 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 90 | 16 |
| B | 0 | 90 | 16 |
| C | 0 | 90 | 22 |
| D | 0 | 89 | 13 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9231 | 1904 |
| B | 0 | 10585 | 2577 |
| C | 0 | 9846 | 1968 |
| D | 0 | 10233 | 2312 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 6 |
| B | 0 | 11 | 5 |
| C | 0 | 11 | 6 |
| D | 0 | 11 | 8 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3611 | 3 | 0.083079% |
| B | 3545 | 57 | 1.607898% |
| C | 3604 | 52 | 1.442841% |
| D | 3552 | 50 | 1.407658% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

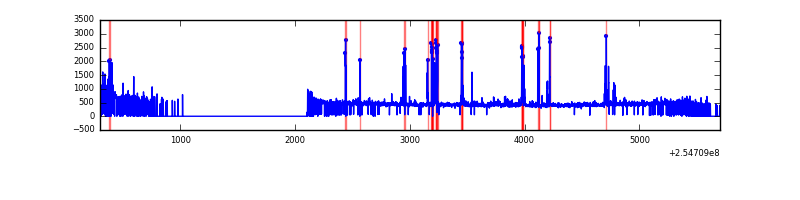

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5393 | 3881 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5401 | 3831 | 40 | 40 | 0.74% | 1.04% |  |
| C | 5362 | 3891 | 49 | 49 | 0.91% | 1.26% |  |
| D | 5366 | 3819 | 44 | 44 | 0.82% | 1.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 9535 | 111.29 | 399 | 390 | 82.2 |
| A | 12 | 189 | 7488 | 86.38 | 399 | 390 | 82.2 |
| A | 0 | 226 | 3452 | 37.26 | 399 | 390 | 82.2 |
| B | 4 | 239 | 226746 | 2977.0 | 392 | 384 | 76.0 |
| B | 0 | 85 | 52870 | 690.27 | 392 | 384 | 76.0 |
| B | 0 | 214 | 25099 | 325.04 | 392 | 384 | 76.0 |
| C | 15 | 208 | 233455 | 2563.73 | 386 | 388 | 90.9 |
| C | 13 | 61 | 2905 | 27.69 | 386 | 388 | 90.9 |
| C | 14 | 234 | 1105 | 7.89 | 386 | 388 | 90.9 |
| D | 1 | 52 | 195079 | 2168.94 | 373 | 363 | 89.8 |
| D | 10 | 199 | 102248 | 1134.89 | 373 | 363 | 89.8 |
| D | 13 | 249 | 50768 | 561.46 | 373 | 363 | 89.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

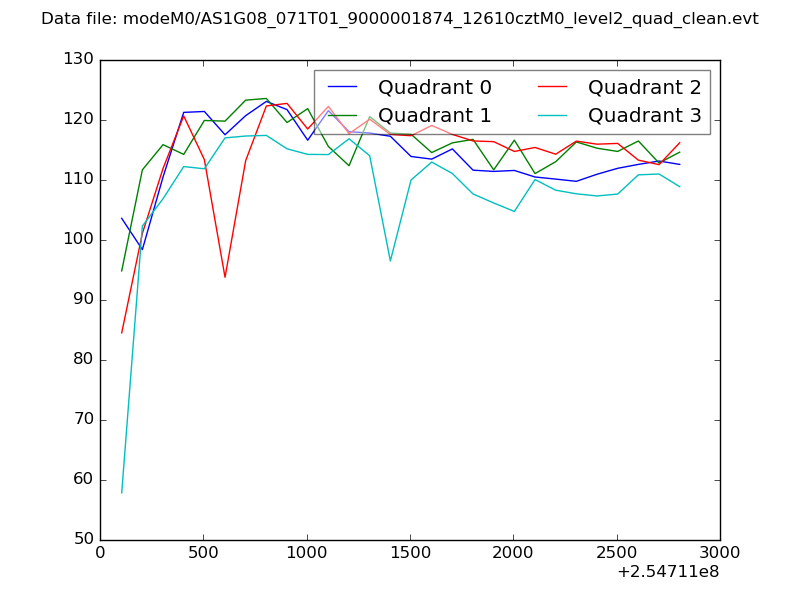

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

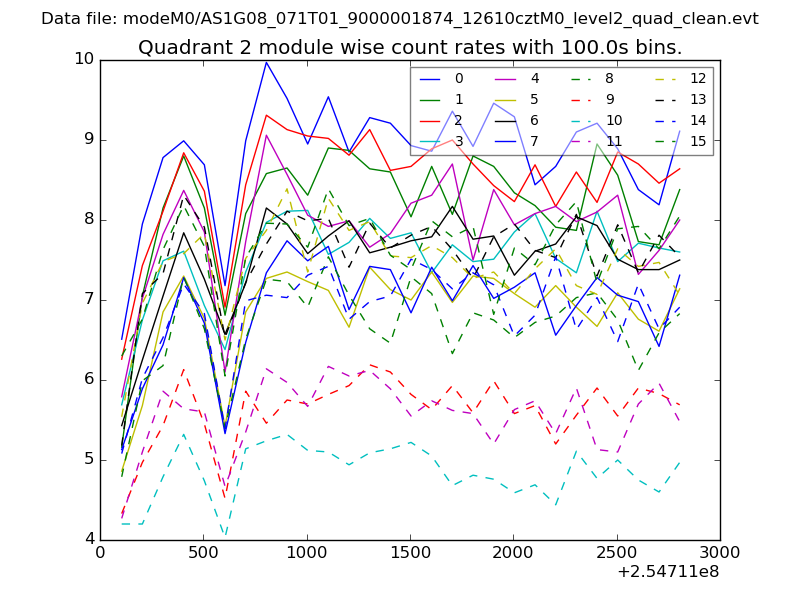

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

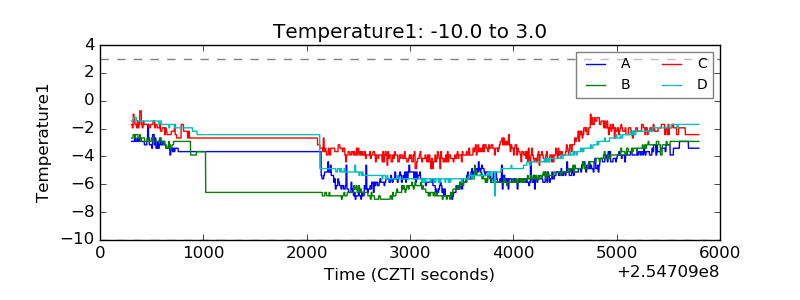

| Temperature 1 |  |

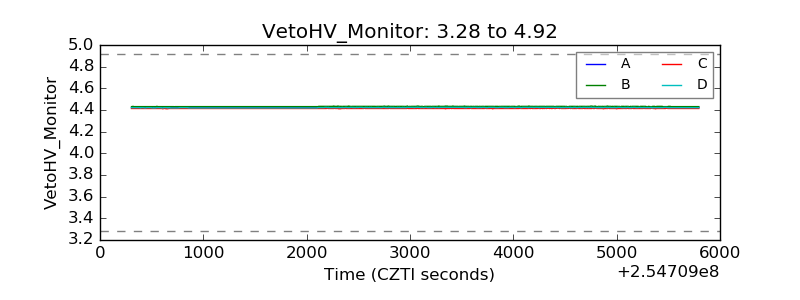

| Veto HV Monitor |  |
| Veto LLD |  |

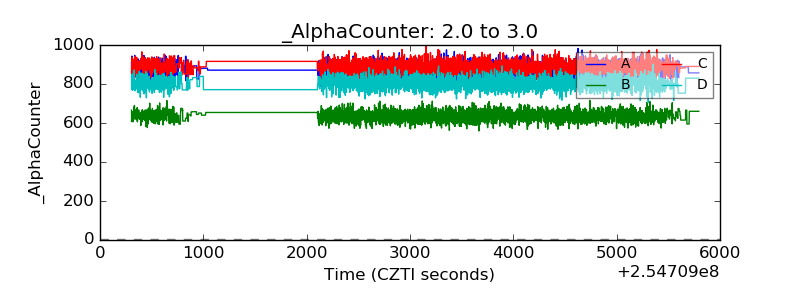

| Alpha Counter |  |

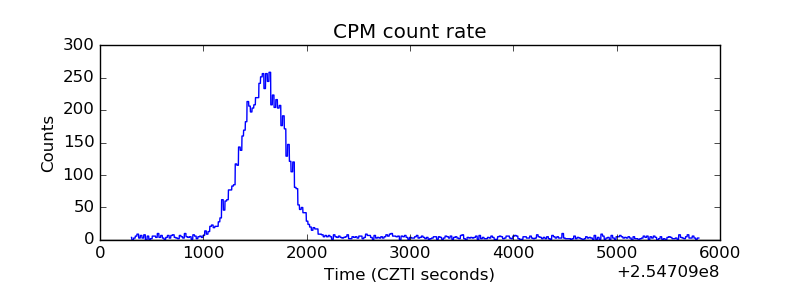

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
