| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T01_9000001874_12620cztM0_level2.evt | modeM0/AS1G08_071T01_9000001874_12620cztM0_level2_quad_clean.evt |
| Size (bytes) | 525,916,800 | 93,516,480 |
| Size | 501.6 MB | 89.2 MB |
| Events in quadrant A | 3,130,065 | 607,779 |
| Events in quadrant B | 4,483,469 | 582,803 |
| Events in quadrant C | 3,182,067 | 621,446 |
| Events in quadrant D | 4,708,192 | 583,863 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13464 | 3 |
| B | 0 | 17663 | 2 |
| C | 0 | 13653 | 2 |
| D | 0 | 18489 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6242 | 49 | 0.785005% |
| B | 6242 | 471 | 7.545658% |
| C | 6242 | 44 | 0.704902% |
| D | 6242 | 273 | 4.373598% |

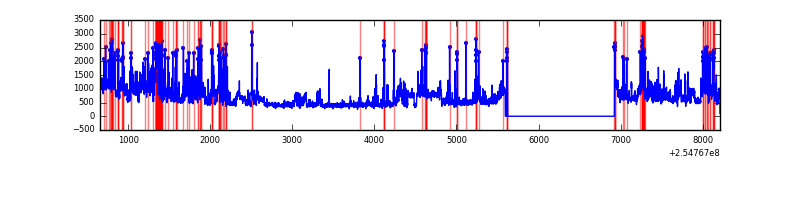

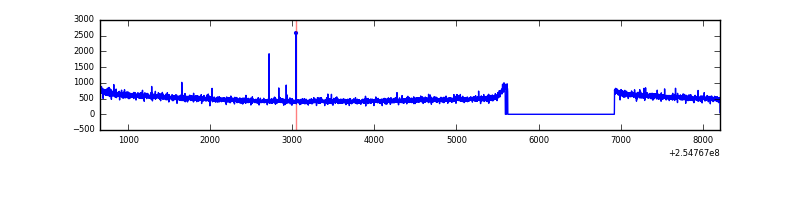

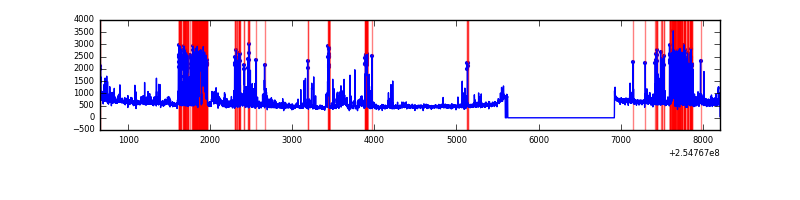

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

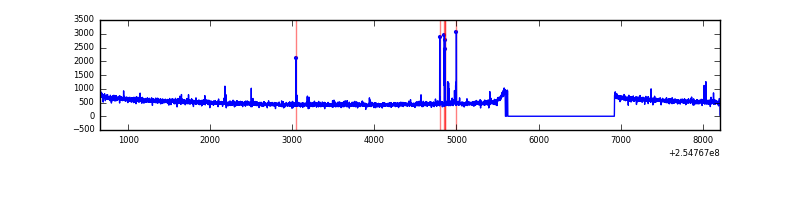

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7558 | 6244 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7558 | 6244 | 337 | 337 | 4.46% | 5.40% |  |
| C | 7558 | 6243 | 6 | 6 | 0.08% | 0.10% |  |
| D | 7558 | 6243 | 185 | 185 | 2.45% | 2.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 20712 | 123.92 | 805 | 788 | 160.8 |
| A | 3 | 1 | 8945 | 50.73 | 805 | 788 | 160.8 |
| A | 9 | 143 | 7837 | 43.84 | 805 | 788 | 160.8 |
| B | 4 | 239 | 980737 | 6656.49 | 784 | 765 | 147.2 |
| B | 0 | 85 | 262005 | 1774.48 | 784 | 765 | 147.2 |
| B | 11 | 51 | 107040 | 721.88 | 784 | 765 | 147.2 |
| C | 15 | 208 | 56836 | 304.83 | 801 | 805 | 183.8 |
| C | 13 | 61 | 5816 | 27.26 | 801 | 805 | 183.8 |
| C | 14 | 234 | 3178 | 12.91 | 801 | 805 | 183.8 |
| D | 1 | 52 | 849983 | 4544.8 | 780 | 759 | 186.9 |
| D | 10 | 157 | 761166 | 4069.48 | 780 | 759 | 186.9 |
| D | 13 | 104 | 57747 | 304.98 | 780 | 759 | 186.9 |

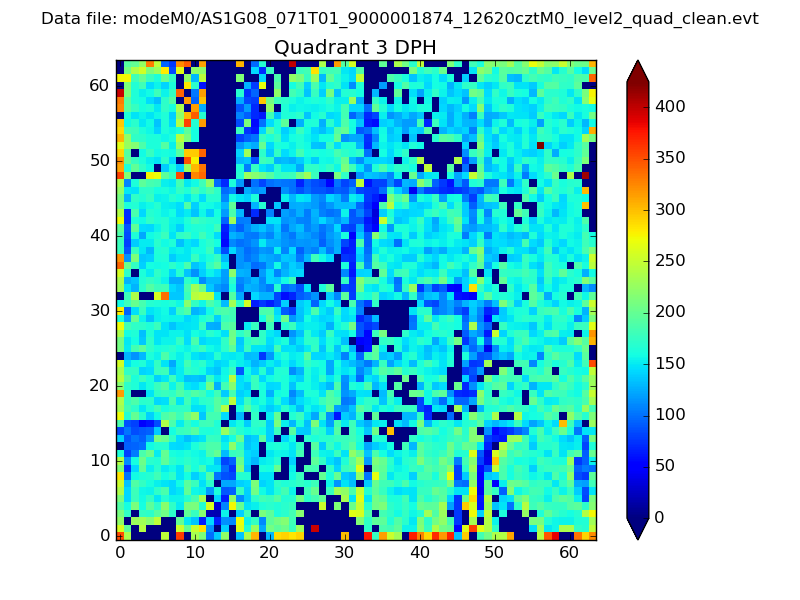

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

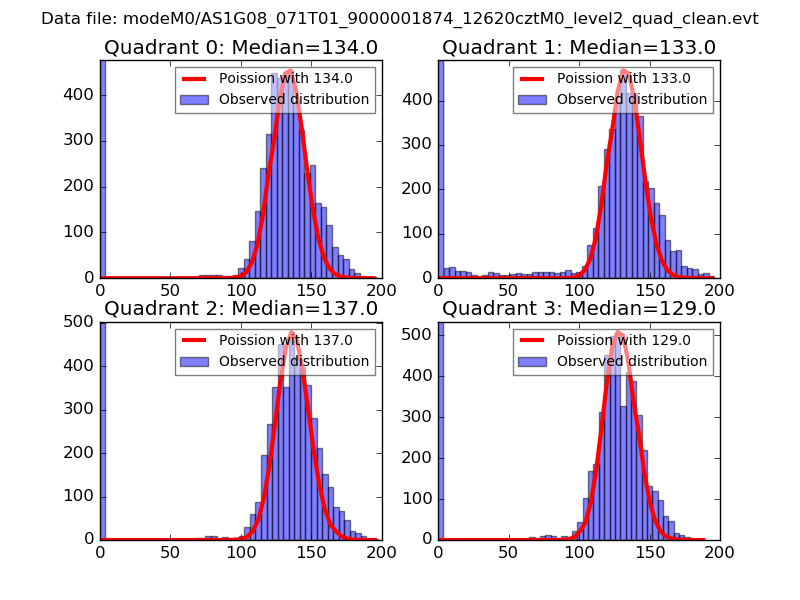

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

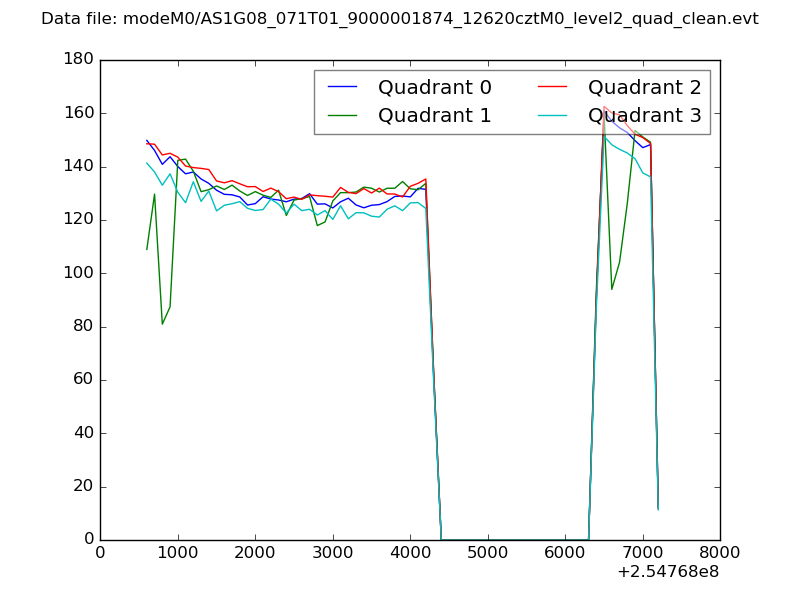

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

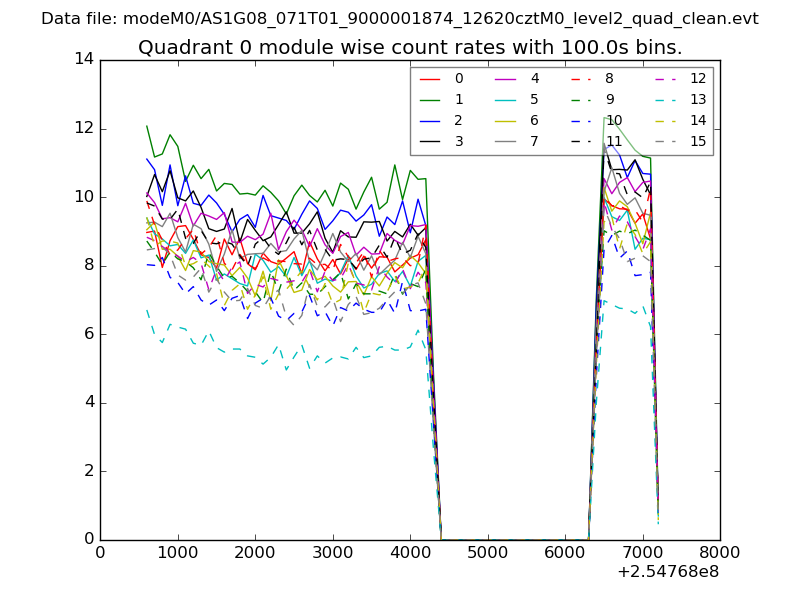

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

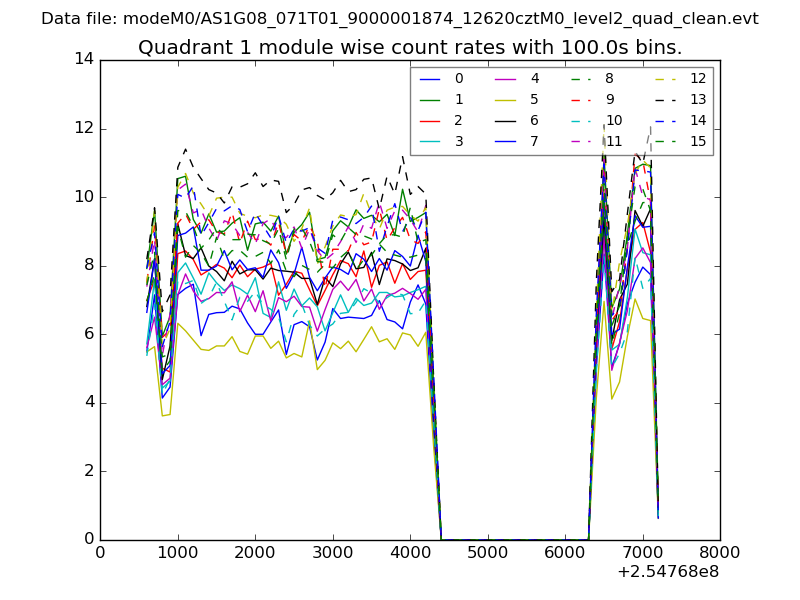

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

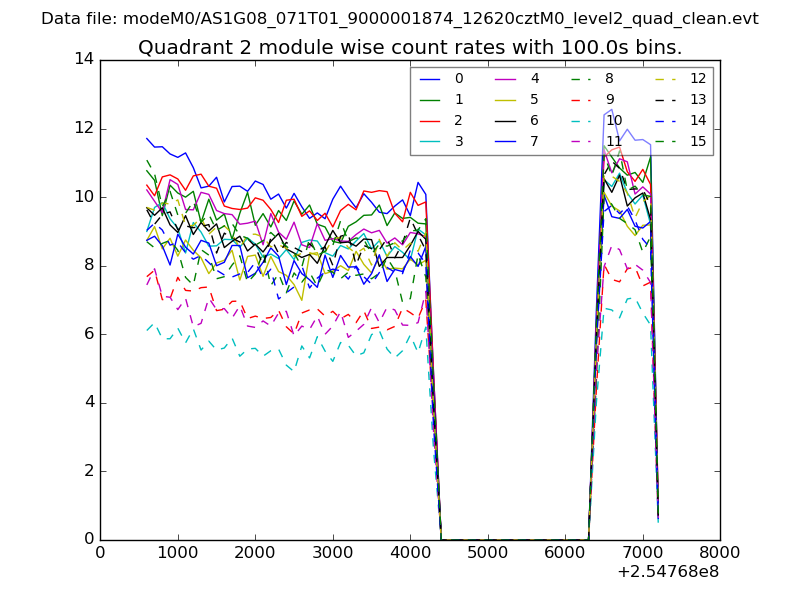

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

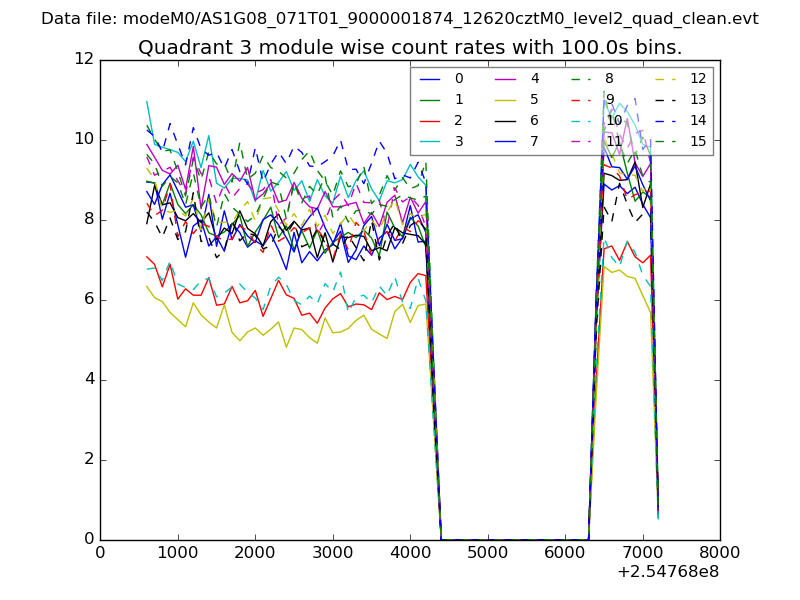

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

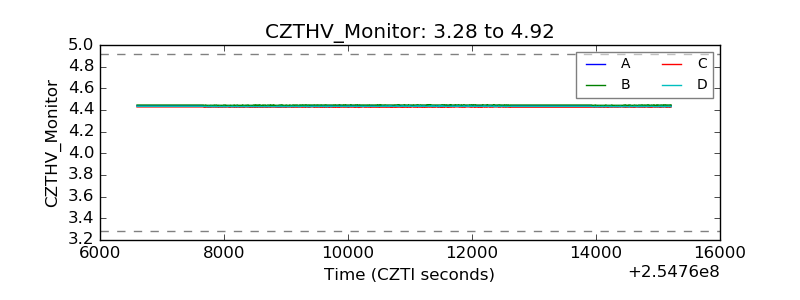

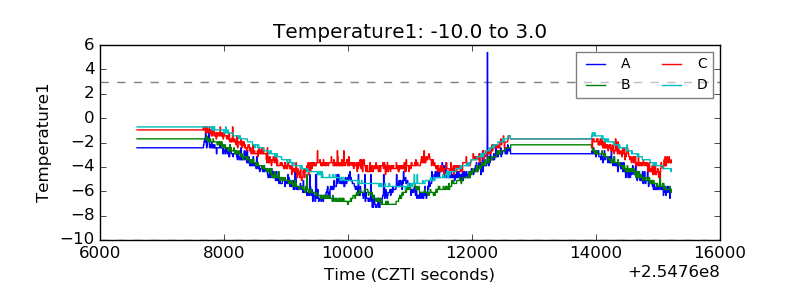

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

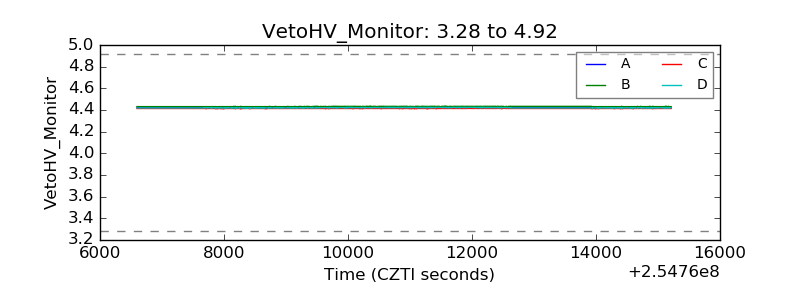

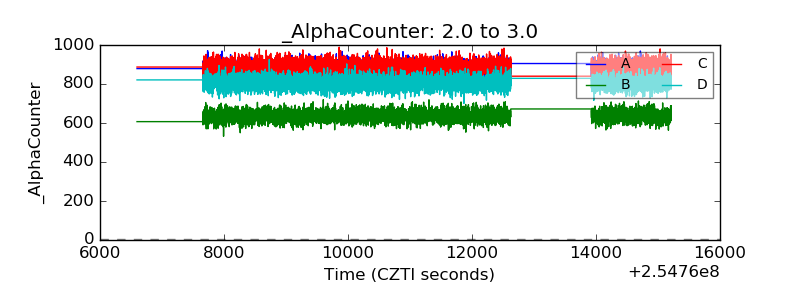

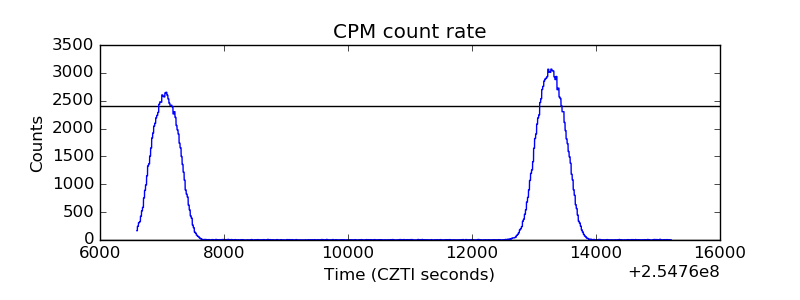

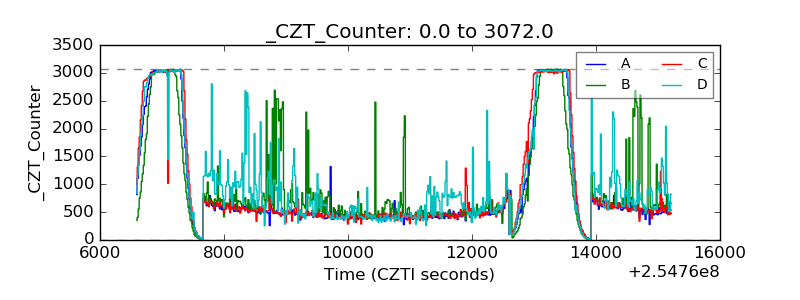

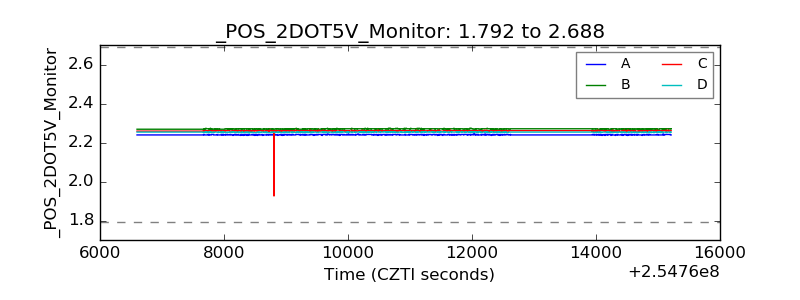

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

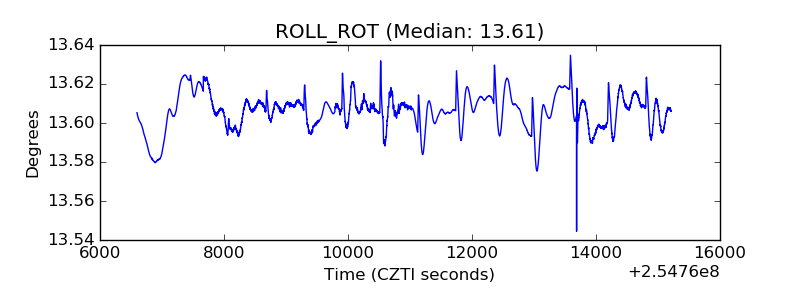

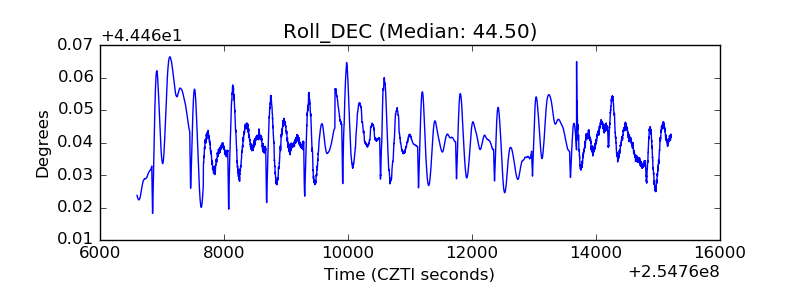

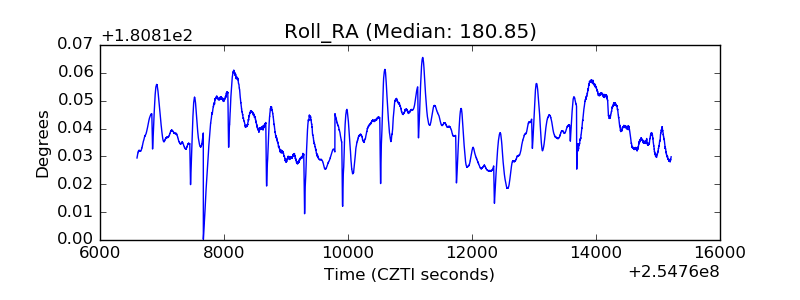

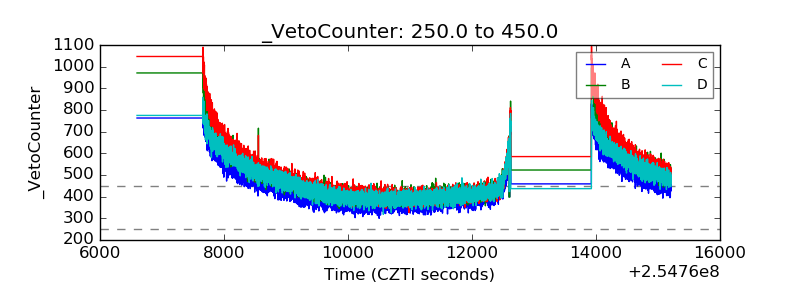

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
