| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T01_9000001874_12623cztM0_level2.evt | modeM0/AS1G08_071T01_9000001874_12623cztM0_level2_quad_clean.evt |
| Size (bytes) | 474,868,800 | 94,792,320 |
| Size | 452.9 MB | 90.4 MB |
| Events in quadrant A | 2,924,914 | 609,550 |
| Events in quadrant B | 3,496,350 | 622,291 |
| Events in quadrant C | 2,973,927 | 622,921 |
| Events in quadrant D | 4,558,938 | 576,727 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13101 | 3 |
| B | 0 | 14651 | 2 |
| C | 0 | 13182 | 2 |
| D | 0 | 18075 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6301 | 30 | 0.476115% |
| B | 6301 | 143 | 2.269481% |
| C | 6301 | 23 | 0.365021% |
| D | 6301 | 145 | 2.301222% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7467 | 6303 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7467 | 6302 | 52 | 52 | 0.70% | 0.83% |  |

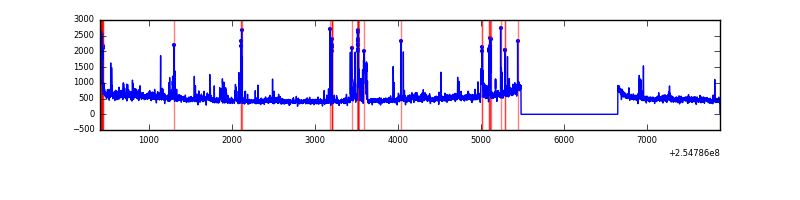

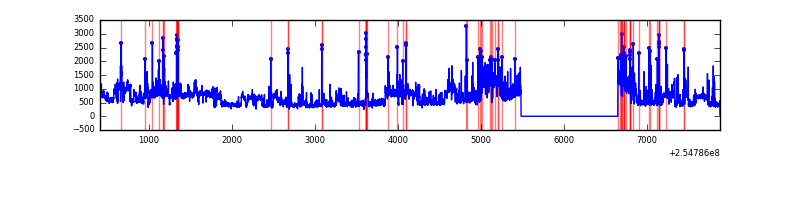

| C | 7467 | 6303 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7467 | 6303 | 76 | 76 | 1.02% | 1.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 25948 | 164.44 | 754 | 737 | 153.3 |
| A | 0 | 226 | 6732 | 39.1 | 754 | 737 | 153.3 |
| A | 12 | 194 | 5687 | 32.29 | 754 | 737 | 153.3 |
| B | 0 | 85 | 192238 | 1334.77 | 758 | 739 | 143.5 |
| B | 4 | 239 | 142410 | 987.46 | 758 | 739 | 143.5 |
| B | 11 | 51 | 102414 | 708.69 | 758 | 739 | 143.5 |
| C | 15 | 208 | 46910 | 268.49 | 746 | 751 | 171.9 |
| C | 14 | 234 | 16782 | 93.25 | 746 | 751 | 171.9 |
| C | 13 | 61 | 5434 | 27.24 | 746 | 751 | 171.9 |
| D | 10 | 157 | 1055944 | 5999.79 | 725 | 705 | 175.9 |
| D | 1 | 52 | 545129 | 3095.44 | 725 | 705 | 175.9 |
| D | 13 | 249 | 84024 | 473.73 | 725 | 705 | 175.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

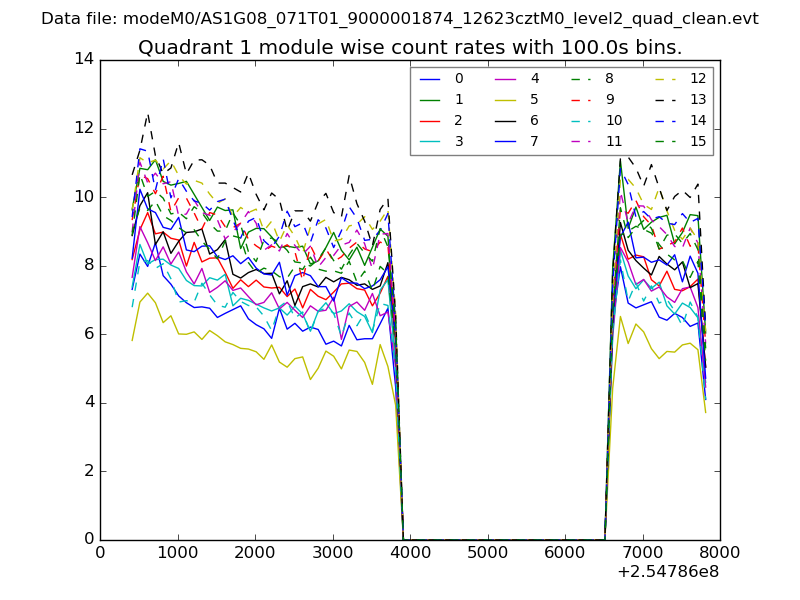

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

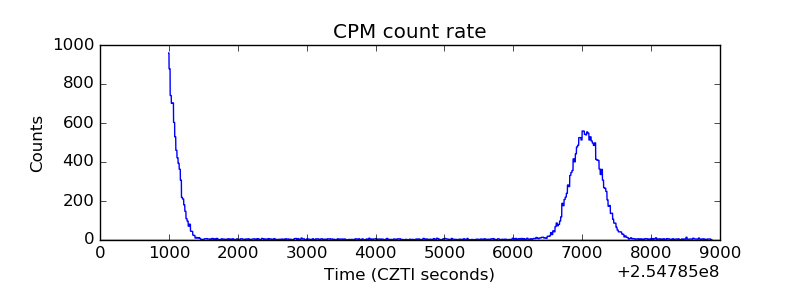

| _CPM_Rate |  |

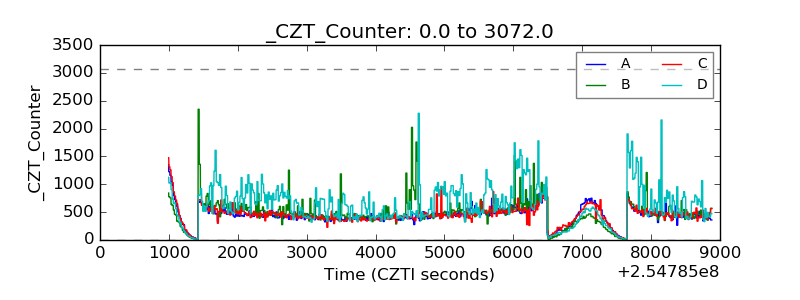

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

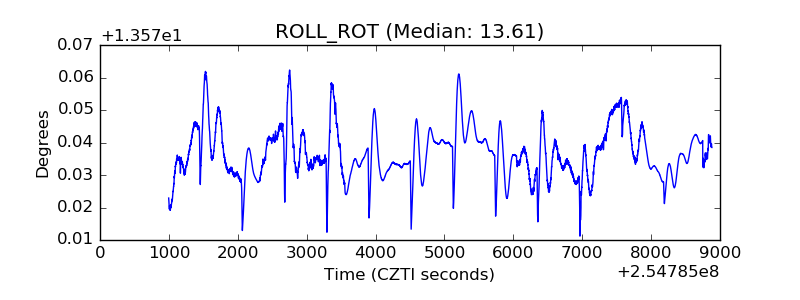

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

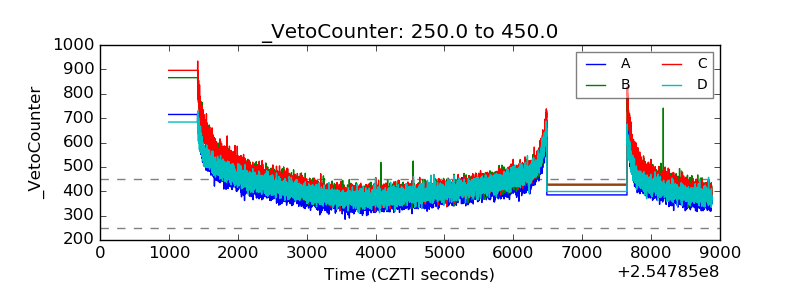

| Veto Counter |  |
