| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T01_9000001874_12630cztM0_level2.evt | modeM0/AS1G08_071T01_9000001874_12630cztM0_level2_quad_clean.evt |
| Size (bytes) | 537,122,880 | 70,248,960 |
| Size | 512.2 MB | 67.0 MB |
| Events in quadrant A | 3,260,663 | 414,682 |
| Events in quadrant B | 4,406,017 | 412,947 |
| Events in quadrant C | 3,203,536 | 418,780 |
| Events in quadrant D | 4,922,702 | 393,690 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14287 | 3 |
| B | 0 | 17542 | 2 |
| C | 0 | 14294 | 2 |
| D | 0 | 19493 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6985 | 68 | 0.973515% |
| B | 6985 | 296 | 4.237652% |
| C | 6985 | 45 | 0.644238% |
| D | 6985 | 239 | 3.421618% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7831 | 6986 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7831 | 6986 | 140 | 140 | 1.79% | 2.00% |  |
| C | 7831 | 6986 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7831 | 6986 | 134 | 134 | 1.71% | 1.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 22289 | 125.5 | 838 | 820 | 171.1 |
| A | 8 | 192 | 15366 | 85.03 | 838 | 820 | 171.1 |
| A | 0 | 226 | 7442 | 38.71 | 838 | 820 | 171.1 |
| B | 4 | 239 | 604798 | 3795.65 | 825 | 805 | 159.1 |
| B | 4 | 206 | 153534 | 959.79 | 825 | 805 | 159.1 |
| B | 11 | 51 | 147371 | 921.06 | 825 | 805 | 159.1 |
| C | 15 | 208 | 41244 | 214.99 | 810 | 814 | 188.1 |
| C | 13 | 61 | 5970 | 27.42 | 810 | 814 | 188.1 |
| C | 9 | 221 | 2513 | 9.03 | 810 | 814 | 188.1 |
| D | 1 | 52 | 762607 | 3912.5 | 800 | 777 | 194.7 |
| D | 10 | 157 | 680880 | 3492.78 | 800 | 777 | 194.7 |
| D | 2 | 14 | 214620 | 1098.23 | 800 | 777 | 194.7 |

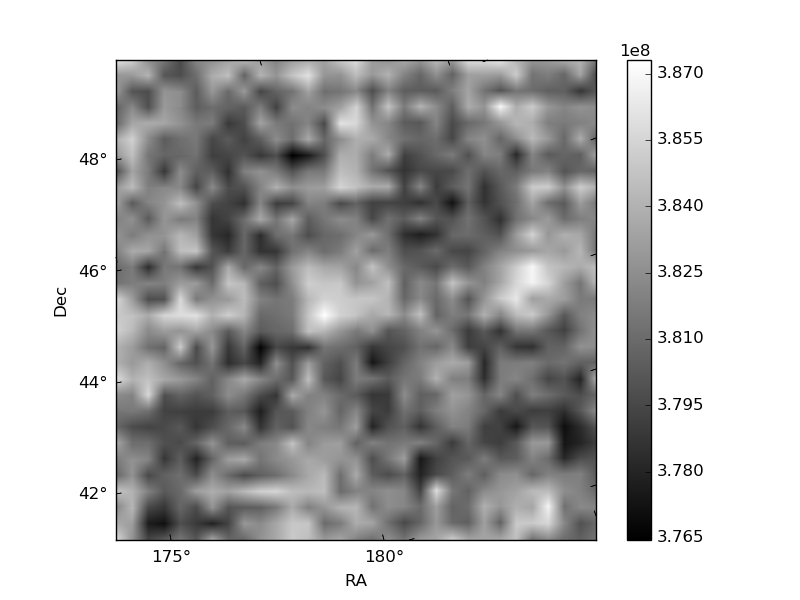

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

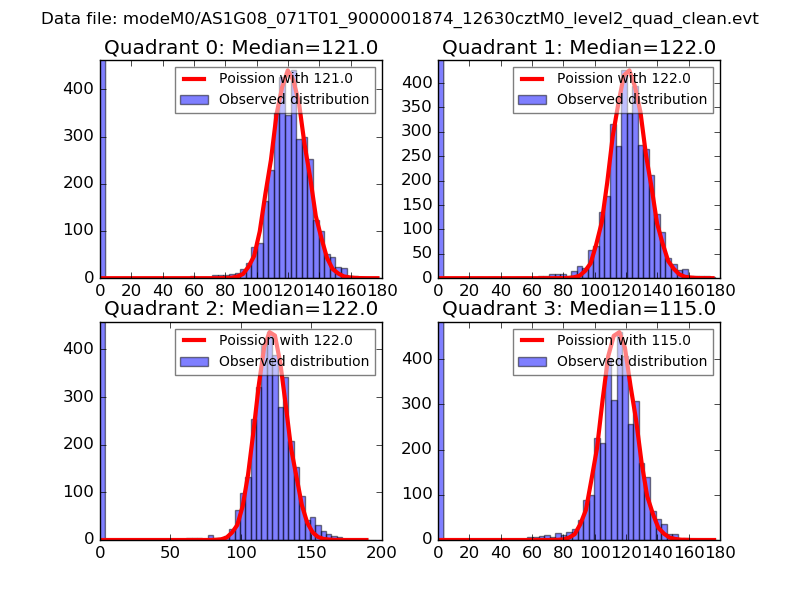

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

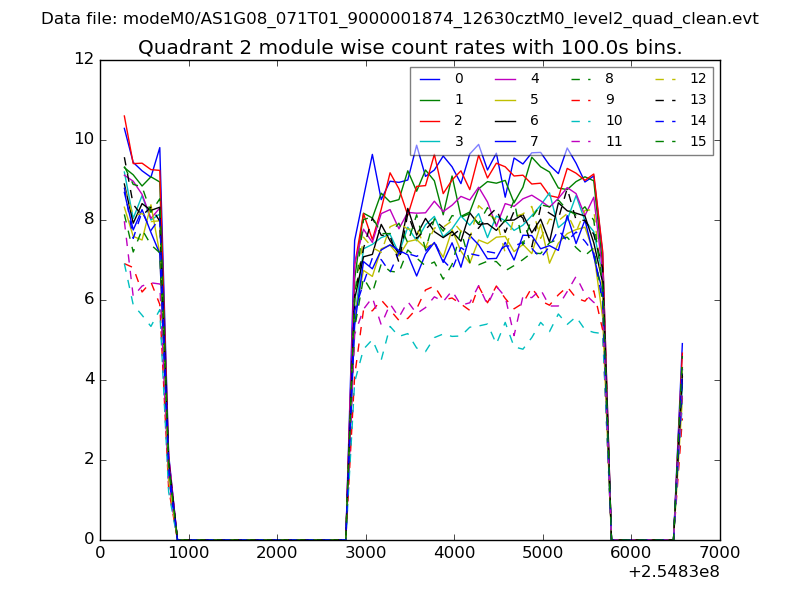

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

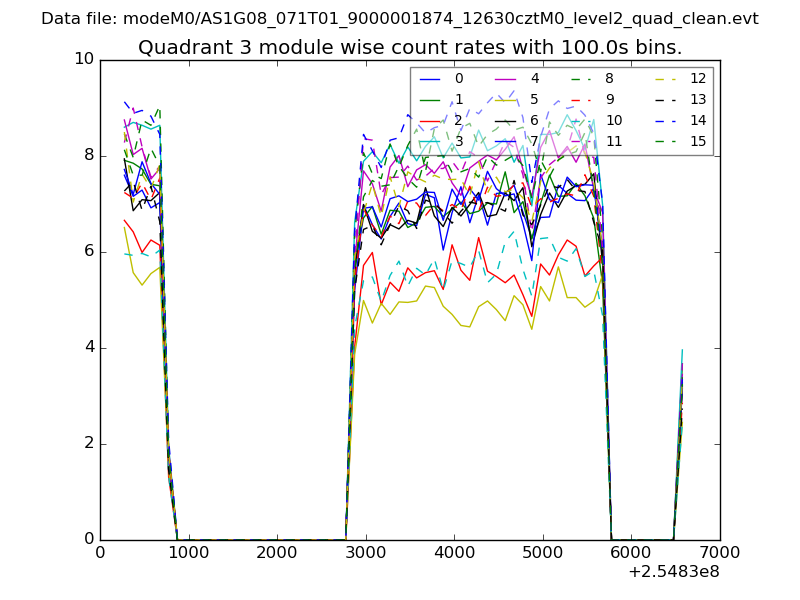

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

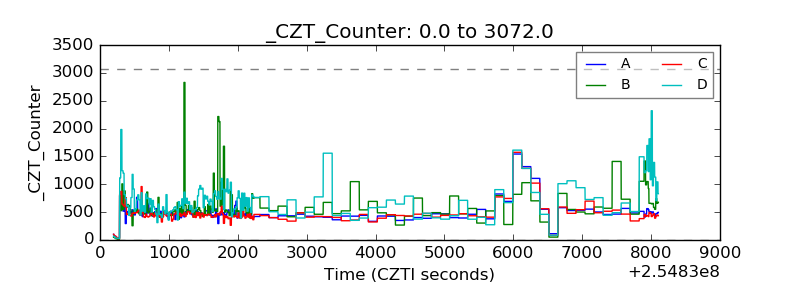

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

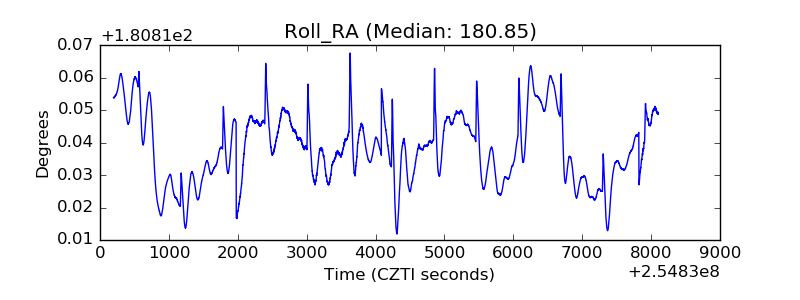

| _Roll_RA |  |

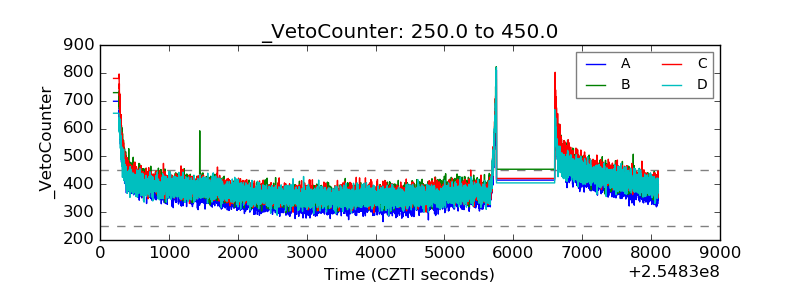

| Veto Counter |  |
