| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T01_9000001874_12631cztM0_level2.evt | modeM0/AS1G08_071T01_9000001874_12631cztM0_level2_quad_clean.evt |
| Size (bytes) | 544,645,440 | 65,557,440 |
| Size | 519.4 MB | 62.5 MB |
| Events in quadrant A | 3,166,029 | 384,730 |
| Events in quadrant B | 5,011,216 | 380,272 |
| Events in quadrant C | 3,306,468 | 386,416 |
| Events in quadrant D | 4,558,006 | 367,526 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13786 | 3 |
| B | 0 | 19415 | 2 |
| C | 0 | 14334 | 2 |
| D | 0 | 18203 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6686 | 53 | 0.792701% |
| B | 6686 | 416 | 6.221956% |
| C | 6686 | 59 | 0.882441% |
| D | 6686 | 147 | 2.198624% |

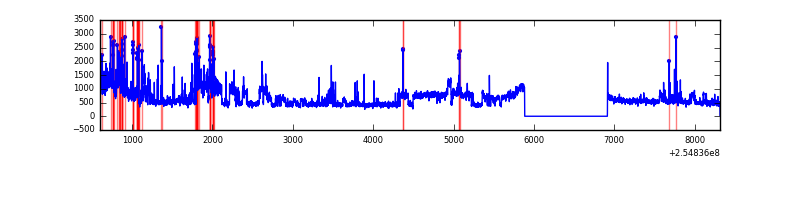

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7717 | 6687 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7717 | 6687 | 251 | 251 | 3.25% | 3.75% |  |
| C | 7717 | 6687 | 21 | 21 | 0.27% | 0.31% |  |
| D | 7717 | 6687 | 68 | 68 | 0.88% | 1.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 22968 | 133.83 | 814 | 795 | 165.7 |
| A | 8 | 192 | 10160 | 56.53 | 814 | 795 | 165.7 |
| A | 0 | 226 | 7146 | 38.33 | 814 | 795 | 165.7 |
| B | 4 | 239 | 918639 | 5963.93 | 798 | 777 | 153.9 |
| B | 4 | 206 | 647788 | 4204.04 | 798 | 777 | 153.9 |
| B | 11 | 51 | 122094 | 788.27 | 798 | 777 | 153.9 |
| C | 15 | 208 | 200718 | 1097.02 | 791 | 794 | 182.2 |
| C | 14 | 234 | 12181 | 62.48 | 791 | 794 | 182.2 |
| C | 3 | 254 | 7011 | 34.11 | 791 | 794 | 182.2 |
| D | 10 | 157 | 1001033 | 5236.02 | 784 | 760 | 191.0 |
| D | 1 | 52 | 448969 | 2346.19 | 784 | 760 | 191.0 |
| D | 13 | 104 | 69826 | 361.53 | 784 | 760 | 191.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

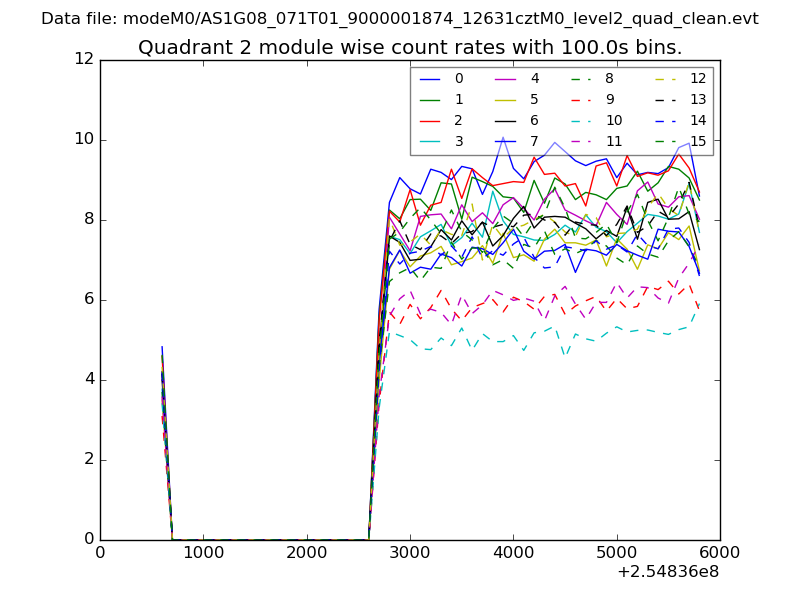

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

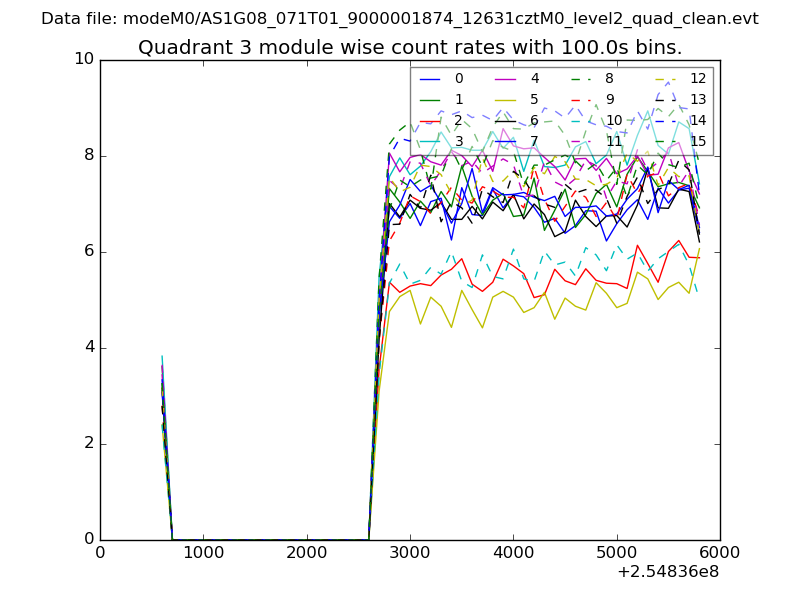

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

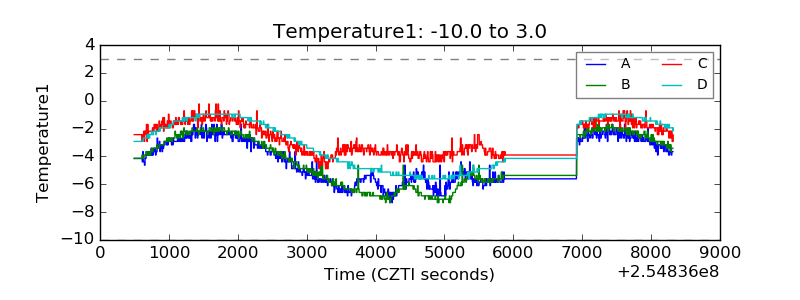

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

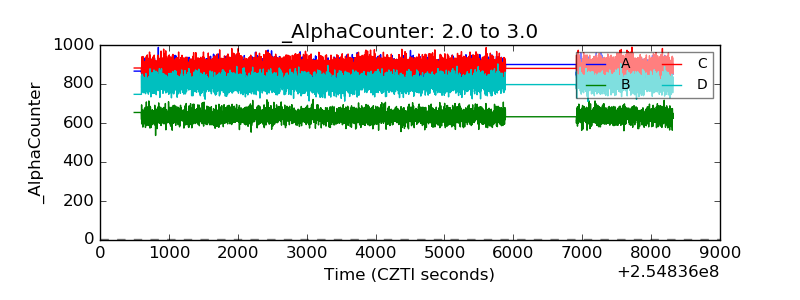

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

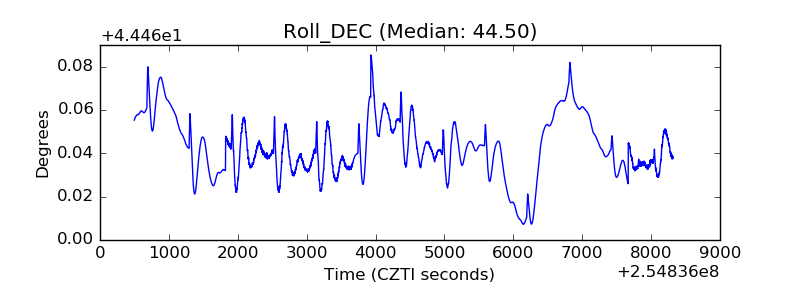

| _Roll_DEC |  |

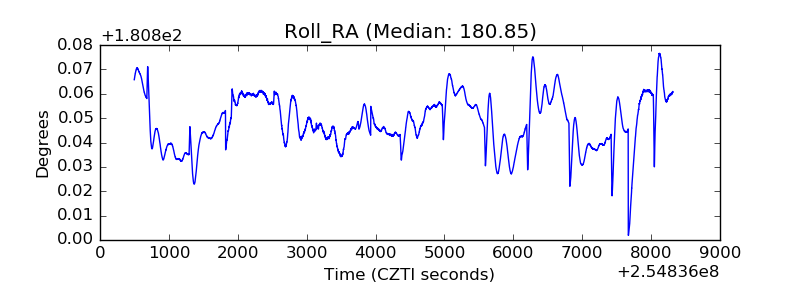

| _Roll_RA |  |

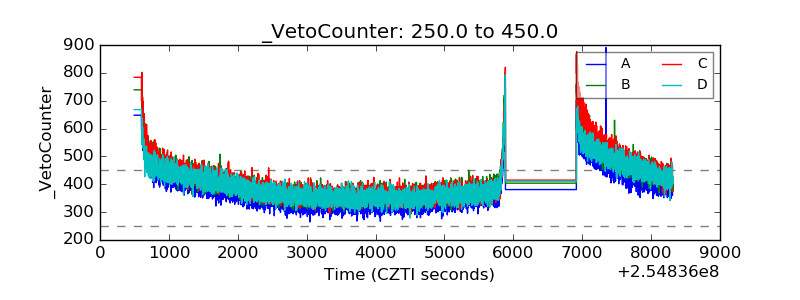

| Veto Counter |  |
