| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T01_9000001874_12634cztM0_level2.evt | modeM0/AS1G08_071T01_9000001874_12634cztM0_level2_quad_clean.evt |
| Size (bytes) | 580,357,440 | 82,756,800 |
| Size | 553.5 MB | 78.9 MB |
| Events in quadrant A | 3,084,177 | 527,544 |
| Events in quadrant B | 4,589,291 | 521,692 |
| Events in quadrant C | 3,186,496 | 533,868 |
| Events in quadrant D | 6,300,241 | 493,509 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13337 | 3 |
| B | 0 | 17888 | 2 |
| C | 0 | 13566 | 2 |
| D | 0 | 23282 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6152 | 59 | 0.959038% |
| B | 6152 | 336 | 5.461638% |
| C | 6152 | 61 | 0.991547% |
| D | 6152 | 580 | 9.427828% |

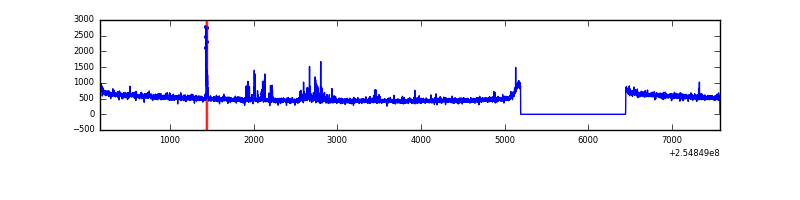

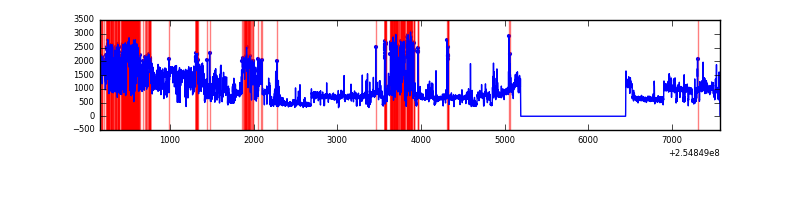

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7408 | 6153 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7407 | 6152 | 182 | 182 | 2.46% | 2.96% |  |
| C | 7408 | 6153 | 5 | 5 | 0.07% | 0.08% |  |
| D | 7408 | 6153 | 413 | 413 | 5.58% | 6.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 12339 | 72.56 | 793 | 778 | 159.3 |
| A | 9 | 143 | 12000 | 70.43 | 793 | 778 | 159.3 |
| A | 8 | 15 | 8189 | 46.51 | 793 | 778 | 159.3 |
| B | 4 | 239 | 782863 | 5307.91 | 788 | 772 | 147.3 |
| B | 4 | 206 | 284685 | 1926.87 | 788 | 772 | 147.3 |
| B | 4 | 81 | 161613 | 1091.6 | 788 | 772 | 147.3 |
| C | 15 | 208 | 85026 | 470.11 | 785 | 790 | 179.2 |
| C | 14 | 234 | 22352 | 120.33 | 785 | 790 | 179.2 |
| C | 8 | 128 | 10549 | 54.46 | 785 | 790 | 179.2 |
| D | 1 | 52 | 1976499 | 11117.66 | 751 | 733 | 177.7 |
| D | 10 | 157 | 1264594 | 7111.76 | 751 | 733 | 177.7 |
| D | 2 | 14 | 74548 | 415.36 | 751 | 733 | 177.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

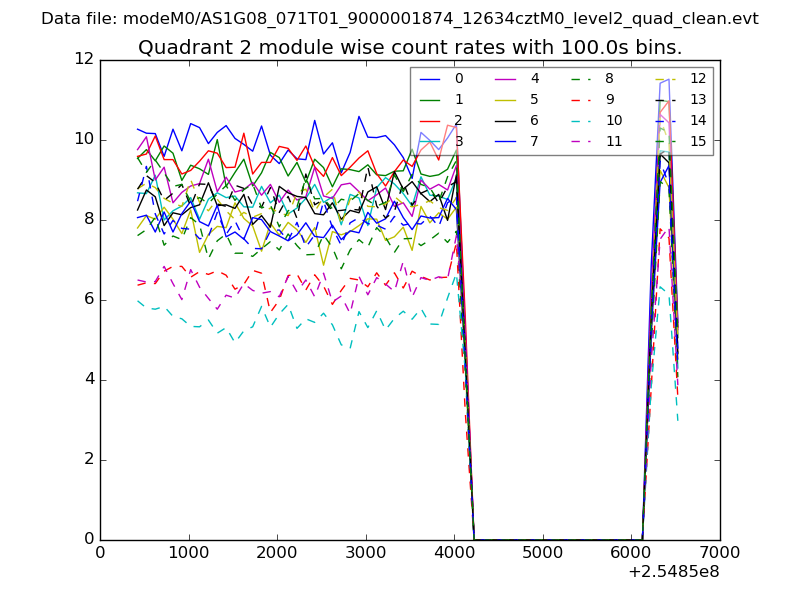

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

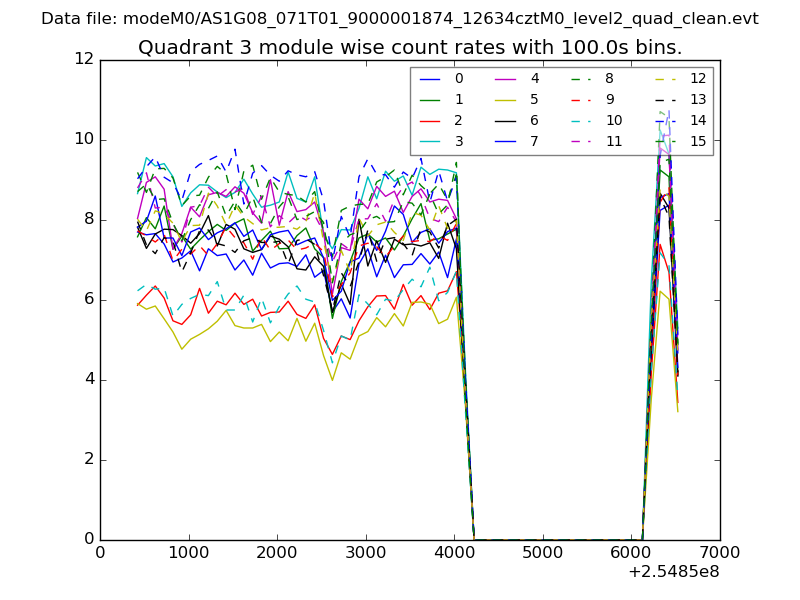

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

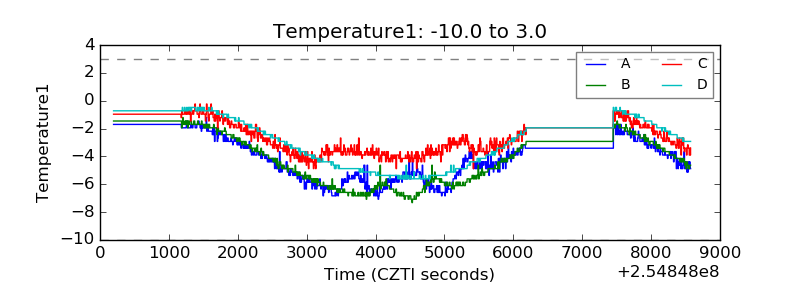

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

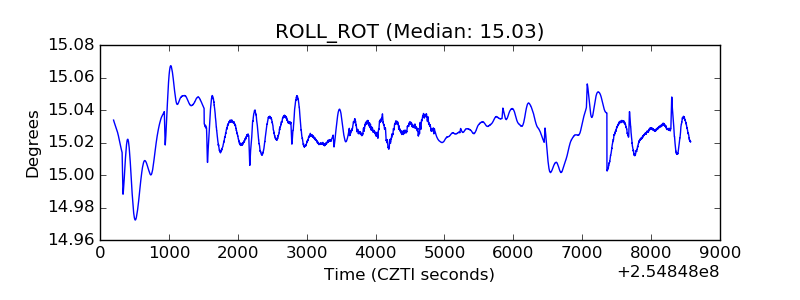

| _ROLL_ROT |  |

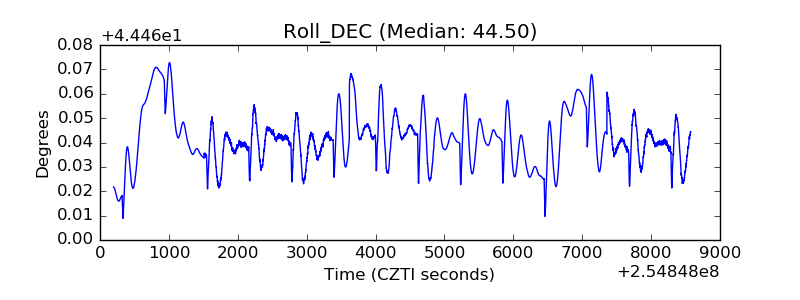

| _Roll_DEC |  |
| _Roll_RA |  |

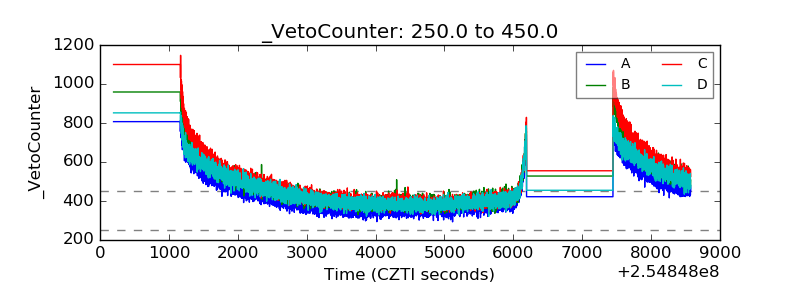

| Veto Counter |  |
