| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_174T01_9000001876_12707cztM0_level2.evt | modeM0/AS1A04_174T01_9000001876_12707cztM0_level2_quad_clean.evt |
| Size (bytes) | 549,740,160 | 105,384,960 |
| Size | 524.3 MB | 100.5 MB |
| Events in quadrant A | 3,073,789 | 745,430 |
| Events in quadrant B | 5,595,192 | 631,605 |
| Events in quadrant C | 3,125,177 | 720,883 |
| Events in quadrant D | 4,450,033 | 676,433 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12807 | 2 |
| B | 0 | 20478 | 1 |
| C | 0 | 12978 | 1 |
| D | 0 | 17111 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5972 | 129 | 2.160080% |
| B | 5972 | 1178 | 19.725385% |
| C | 5972 | 94 | 1.574012% |
| D | 5972 | 390 | 6.530476% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7168 | 5974 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7168 | 5974 | 864 | 864 | 12.05% | 14.46% |  |
| C | 7168 | 5974 | 5 | 5 | 0.07% | 0.08% |  |
| D | 7168 | 5974 | 340 | 340 | 4.74% | 5.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 24156 | 145.88 | 788 | 774 | 160.3 |
| A | 8 | 15 | 21410 | 128.75 | 788 | 774 | 160.3 |
| A | 0 | 226 | 6937 | 38.45 | 788 | 774 | 160.3 |
| B | 4 | 239 | 2761741 | 21054.27 | 696 | 681 | 131.1 |
| B | 4 | 81 | 30481 | 227.24 | 696 | 681 | 131.1 |
| B | 3 | 64 | 20920 | 154.33 | 696 | 681 | 131.1 |
| C | 15 | 208 | 188256 | 1088.91 | 752 | 761 | 172.2 |
| C | 13 | 61 | 5523 | 27.66 | 752 | 761 | 172.2 |
| C | 8 | 222 | 4260 | 20.32 | 752 | 761 | 172.2 |
| D | 1 | 52 | 1487991 | 8458.01 | 744 | 731 | 175.8 |
| D | 8 | 195 | 48368 | 270.91 | 744 | 731 | 175.8 |
| D | 13 | 104 | 43428 | 242.82 | 744 | 731 | 175.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

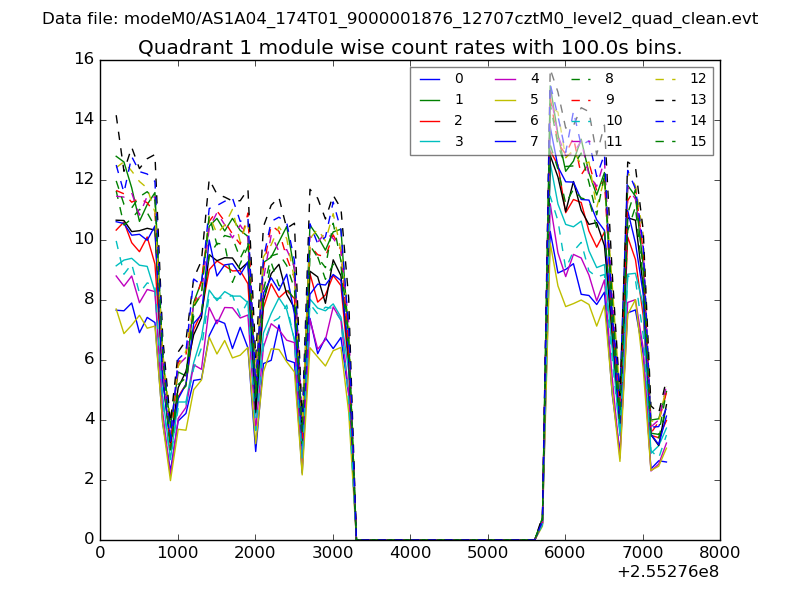

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

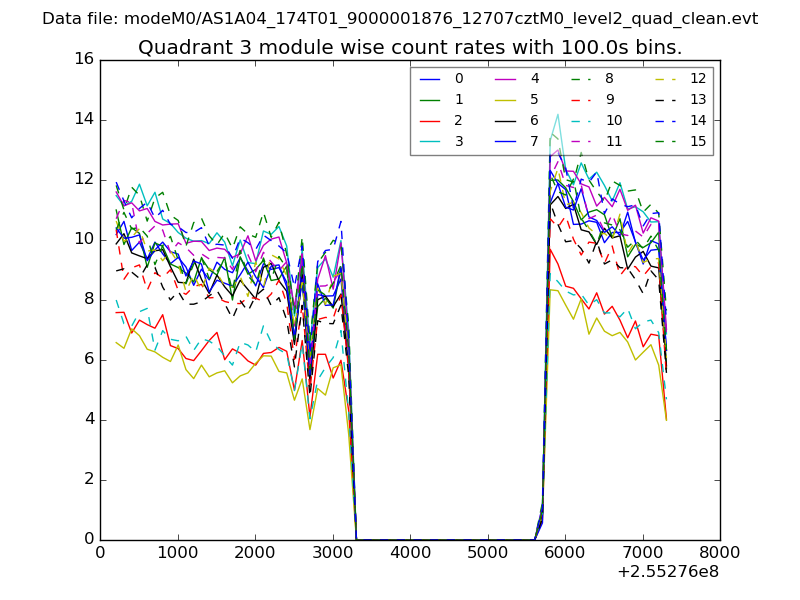

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

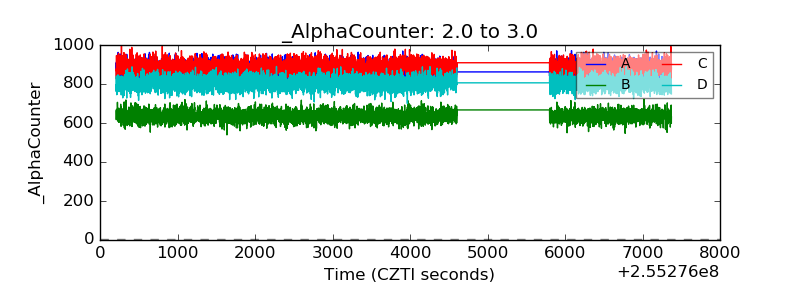

| Alpha Counter |  |
| _CPM_Rate |  |

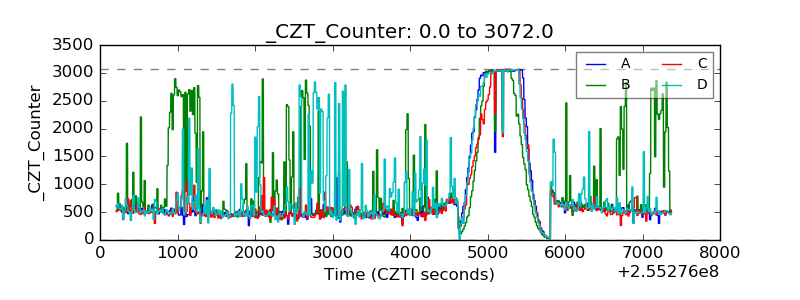

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

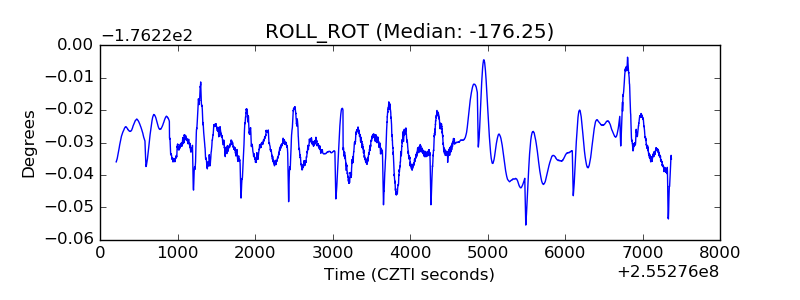

| _ROLL_ROT |  |

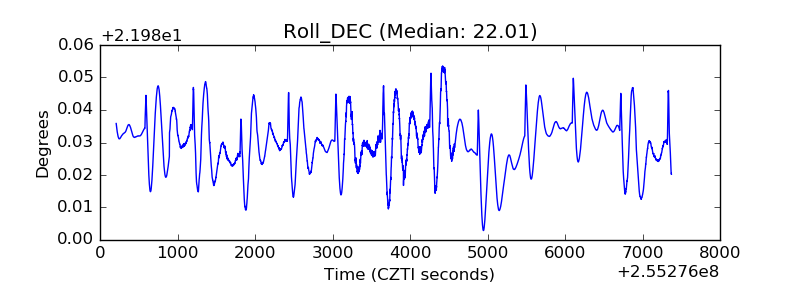

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
