| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_174T01_9000001876_12713cztM0_level2.evt | modeM0/AS1A04_174T01_9000001876_12713cztM0_level2_quad_clean.evt |
| Size (bytes) | 562,248,000 | 96,779,520 |
| Size | 536.2 MB | 92.3 MB |
| Events in quadrant A | 3,428,439 | 623,054 |
| Events in quadrant B | 4,910,535 | 587,621 |
| Events in quadrant C | 3,368,606 | 622,630 |
| Events in quadrant D | 4,822,247 | 586,391 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15072 | 2 |
| B | 0 | 19421 | 1 |
| C | 0 | 14964 | 1 |
| D | 0 | 19450 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7339 | 40 | 0.545033% |
| B | 7339 | 595 | 8.107372% |
| C | 7339 | 23 | 0.313394% |
| D | 7339 | 404 | 5.504837% |

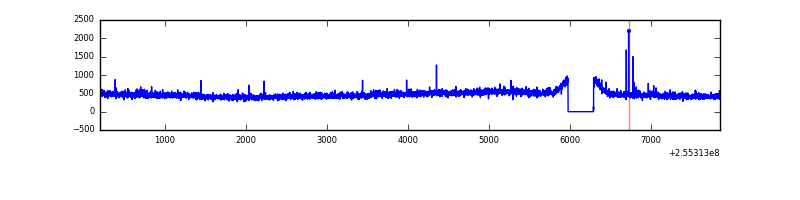

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7655 | 7341 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7655 | 7341 | 426 | 426 | 5.56% | 5.80% |  |
| C | 7655 | 7341 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7655 | 7341 | 389 | 389 | 5.08% | 5.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 27784 | 148.21 | 877 | 860 | 181.7 |
| A | 9 | 143 | 13124 | 67.51 | 877 | 860 | 181.7 |
| A | 12 | 189 | 10812 | 54.78 | 877 | 860 | 181.7 |
| B | 4 | 239 | 1477226 | 9025.36 | 847 | 826 | 163.6 |
| B | 4 | 81 | 49615 | 298.25 | 847 | 826 | 163.6 |
| B | 0 | 214 | 19179 | 112.19 | 847 | 826 | 163.6 |
| C | 8 | 128 | 13946 | 65.78 | 855 | 864 | 198.9 |
| C | 15 | 208 | 10383 | 47.86 | 855 | 864 | 198.9 |
| C | 8 | 112 | 6890 | 30.3 | 855 | 864 | 198.9 |
| D | 1 | 52 | 1230998 | 6169.9 | 826 | 806 | 199.4 |
| D | 13 | 104 | 222085 | 1109.8 | 826 | 806 | 199.4 |
| D | 10 | 199 | 108423 | 539.74 | 826 | 806 | 199.4 |

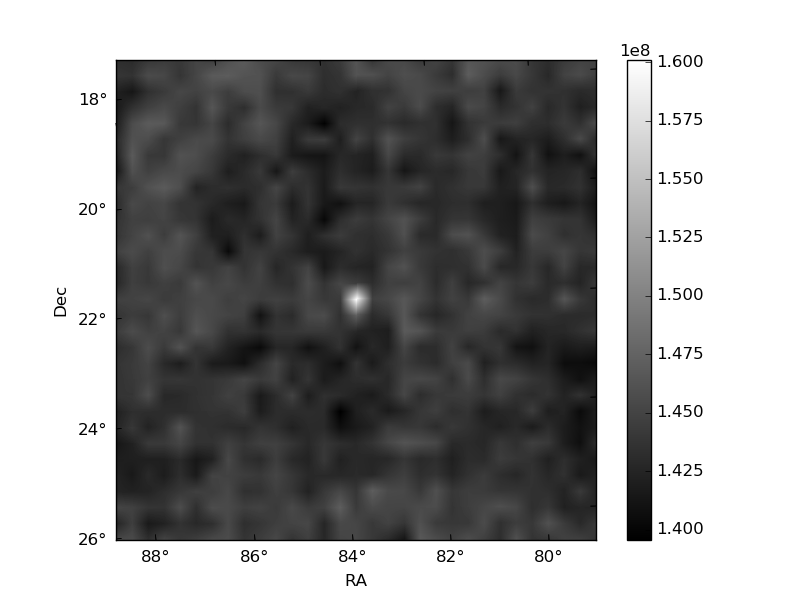

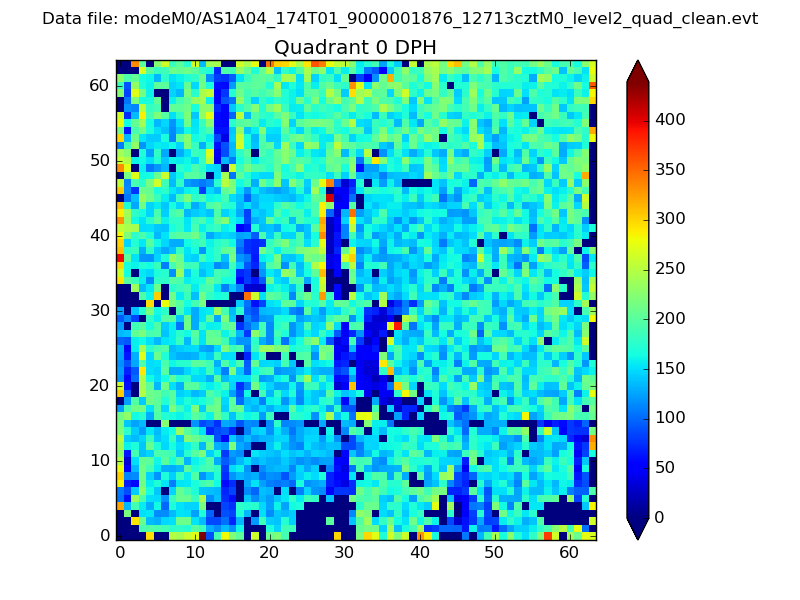

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

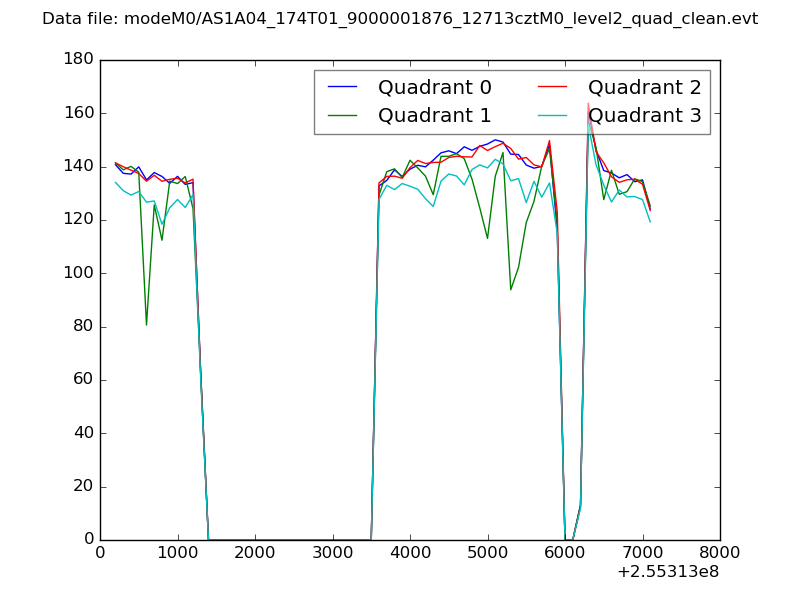

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

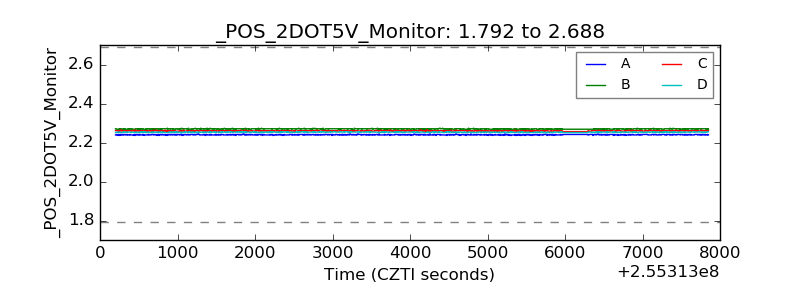

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

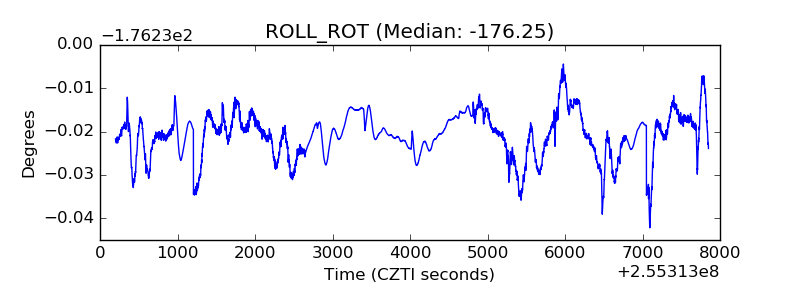

| _ROLL_ROT |  |

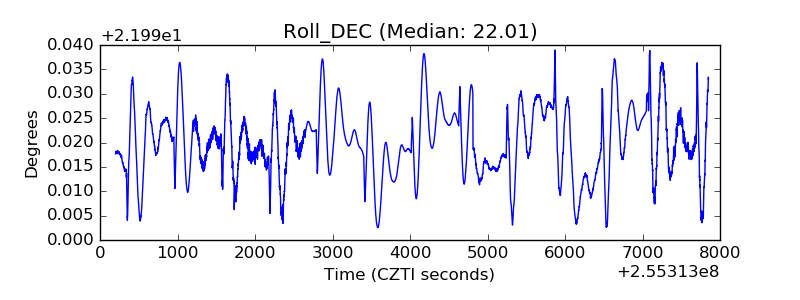

| _Roll_DEC |  |

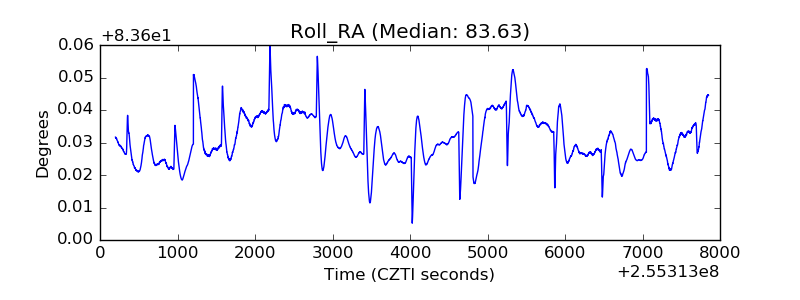

| _Roll_RA |  |
| Veto Counter |  |
