| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_174T01_9000001876_12720cztM0_level2.evt | modeM0/AS1A04_174T01_9000001876_12720cztM0_level2_quad_clean.evt |
| Size (bytes) | 513,279,360 | 98,124,480 |
| Size | 489.5 MB | 93.6 MB |
| Events in quadrant A | 3,393,725 | 660,777 |
| Events in quadrant B | 5,340,587 | 591,934 |
| Events in quadrant C | 3,103,388 | 650,285 |
| Events in quadrant D | 3,277,794 | 627,261 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13930 | 2 |
| B | 0 | 20311 | 1 |
| C | 0 | 13138 | 1 |
| D | 0 | 13736 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6323 | 85 | 1.344299% |
| B | 6323 | 871 | 13.775107% |
| C | 6323 | 57 | 0.901471% |
| D | 6323 | 68 | 1.075439% |

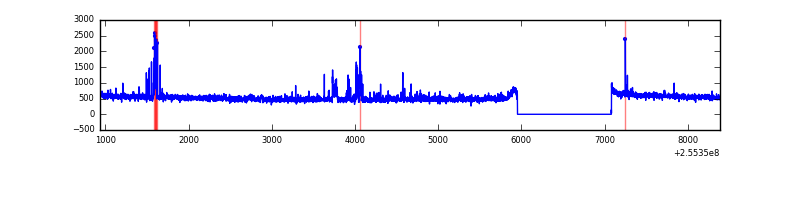

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7454 | 6325 | 8 | 8 | 0.11% | 0.13% |  |
| B | 7454 | 6325 | 553 | 553 | 7.42% | 8.74% |  |
| C | 7454 | 6325 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7454 | 6325 | 12 | 12 | 0.16% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 29 | 79697 | 468.43 | 826 | 808 | 168.4 |
| A | 15 | 239 | 63250 | 370.77 | 826 | 808 | 168.4 |
| A | 12 | 189 | 46823 | 273.23 | 826 | 808 | 168.4 |
| B | 4 | 239 | 1828183 | 12690.57 | 759 | 742 | 144.0 |
| B | 4 | 206 | 265117 | 1835.94 | 759 | 742 | 144.0 |
| B | 3 | 64 | 163989 | 1133.66 | 759 | 742 | 144.0 |
| C | 14 | 234 | 18411 | 97.05 | 788 | 797 | 181.5 |
| C | 15 | 208 | 13453 | 69.73 | 788 | 797 | 181.5 |
| C | 13 | 61 | 5702 | 27.03 | 788 | 797 | 181.5 |
| D | 1 | 52 | 127590 | 678.99 | 791 | 775 | 186.8 |
| D | 8 | 195 | 55798 | 294.6 | 791 | 775 | 186.8 |
| D | 10 | 199 | 29867 | 155.76 | 791 | 775 | 186.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

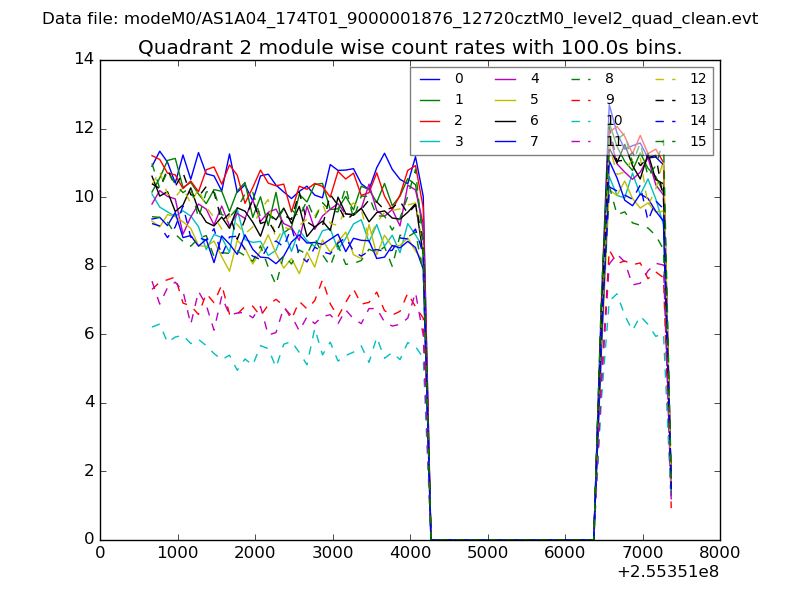

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

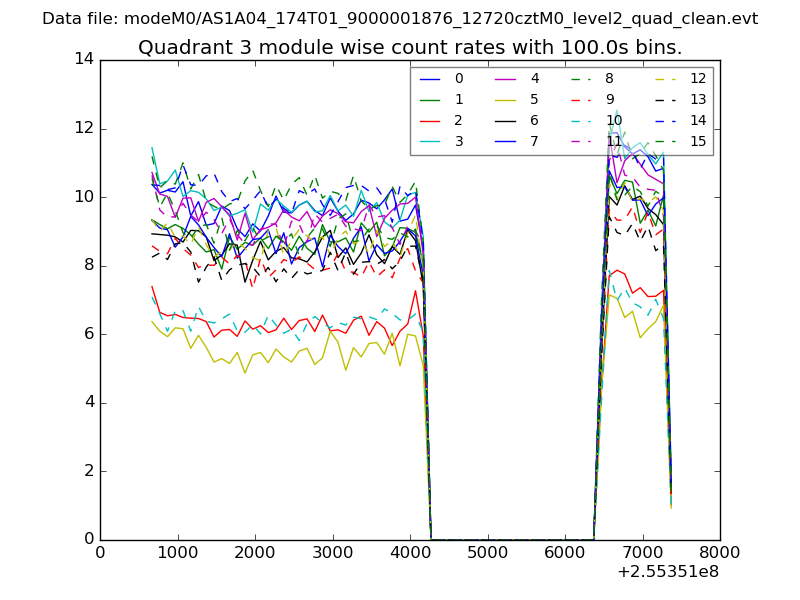

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

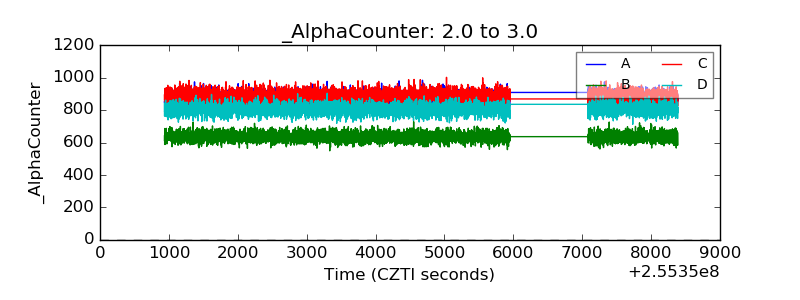

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

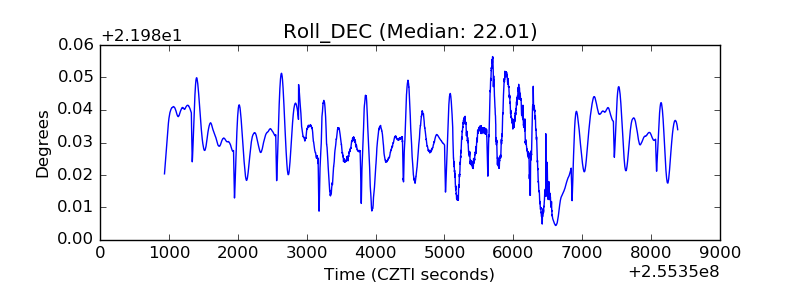

| _Roll_DEC |  |

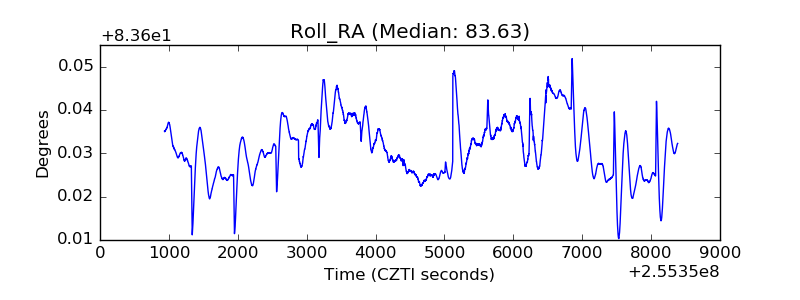

| _Roll_RA |  |

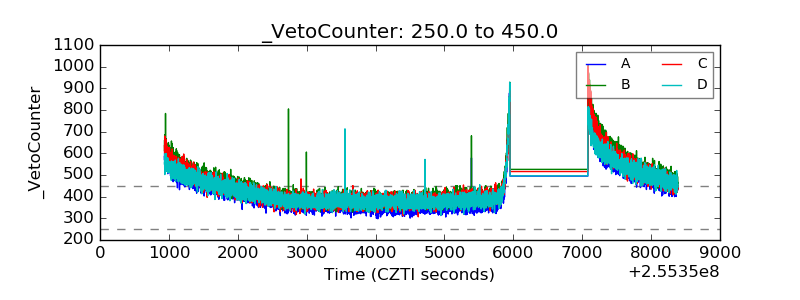

| Veto Counter |  |
