| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_174T01_9000001876_12721cztM0_level2.evt | modeM0/AS1A04_174T01_9000001876_12721cztM0_level2_quad_clean.evt |
| Size (bytes) | 523,537,920 | 110,004,480 |
| Size | 499.3 MB | 104.9 MB |
| Events in quadrant A | 3,526,049 | 763,925 |
| Events in quadrant B | 5,449,070 | 683,520 |
| Events in quadrant C | 3,200,740 | 744,283 |
| Events in quadrant D | 3,272,401 | 720,519 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14319 | 2 |
| B | 0 | 20360 | 1 |
| C | 0 | 13200 | 1 |
| D | 0 | 13541 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6001 | 89 | 1.483086% |
| B | 6001 | 913 | 15.214131% |
| C | 6001 | 62 | 1.033161% |
| D | 6001 | 99 | 1.649725% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

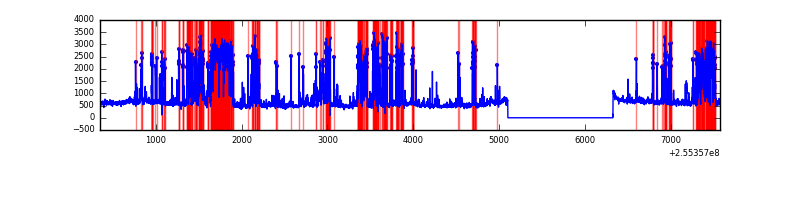

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7227 | 6003 | 19 | 19 | 0.26% | 0.32% |  |
| B | 7227 | 6003 | 691 | 691 | 9.56% | 11.51% |  |
| C | 7227 | 6003 | 23 | 23 | 0.32% | 0.38% |  |
| D | 7227 | 6003 | 41 | 41 | 0.57% | 0.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 234143 | 1441.21 | 801 | 788 | 161.9 |
| A | 8 | 15 | 76229 | 465.93 | 801 | 788 | 161.9 |
| A | 11 | 29 | 56045 | 341.27 | 801 | 788 | 161.9 |
| B | 4 | 239 | 2259943 | 16420.59 | 730 | 715 | 137.6 |
| B | 0 | 219 | 176677 | 1278.93 | 730 | 715 | 137.6 |
| B | 3 | 64 | 96744 | 697.96 | 730 | 715 | 137.6 |
| C | 15 | 208 | 218265 | 1241.38 | 761 | 769 | 175.2 |
| C | 14 | 234 | 15962 | 86.72 | 761 | 769 | 175.2 |
| C | 13 | 61 | 5384 | 26.34 | 761 | 769 | 175.2 |
| D | 13 | 104 | 170255 | 929.1 | 766 | 750 | 182.4 |
| D | 1 | 52 | 101445 | 551.93 | 766 | 750 | 182.4 |
| D | 9 | 85 | 36034 | 193.4 | 766 | 750 | 182.4 |

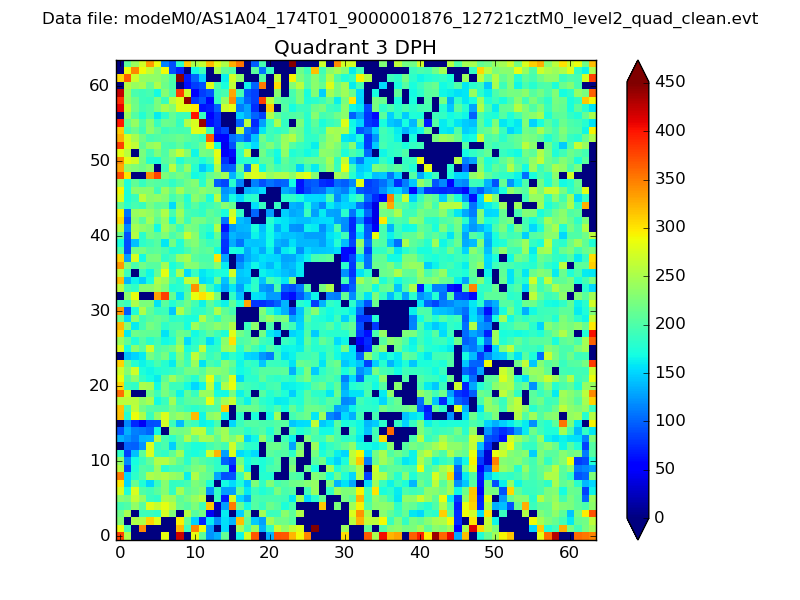

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

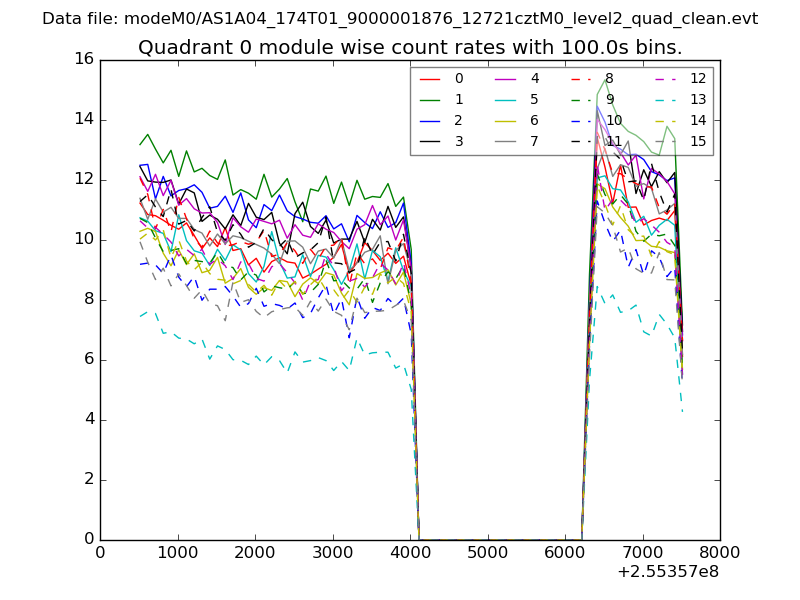

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

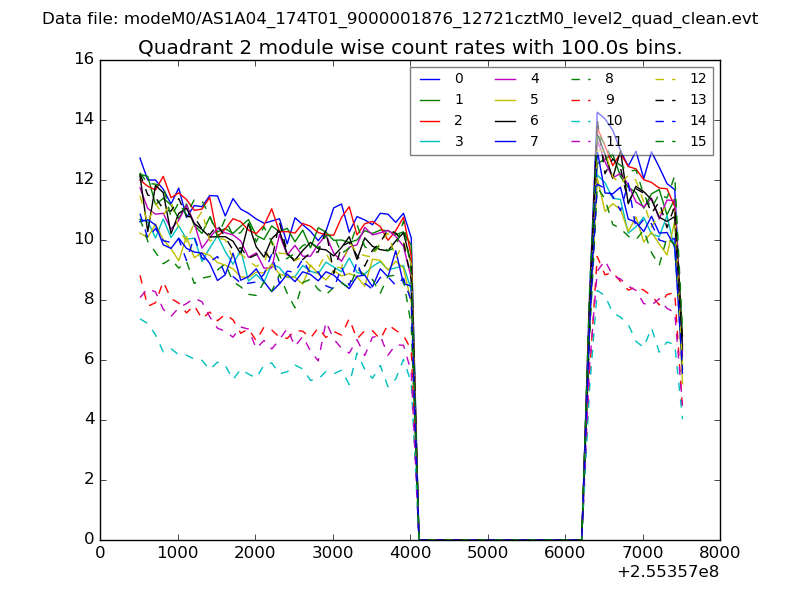

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

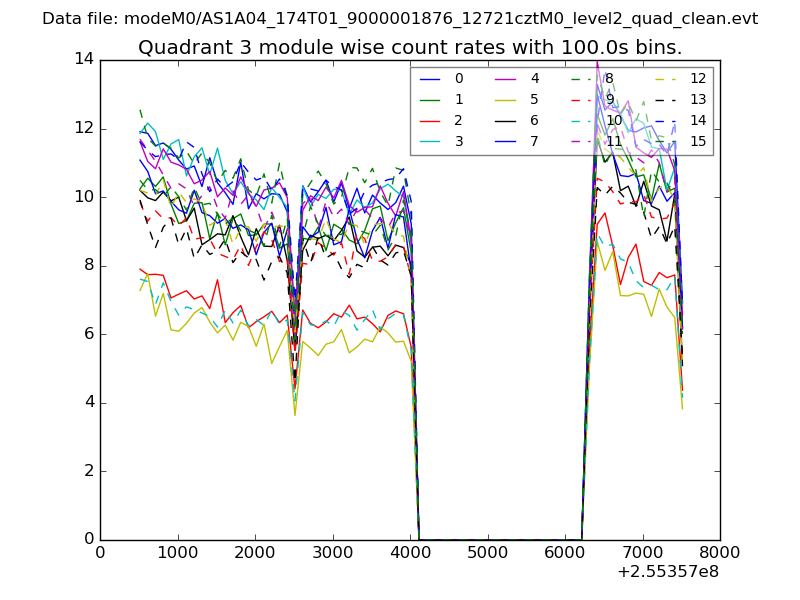

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

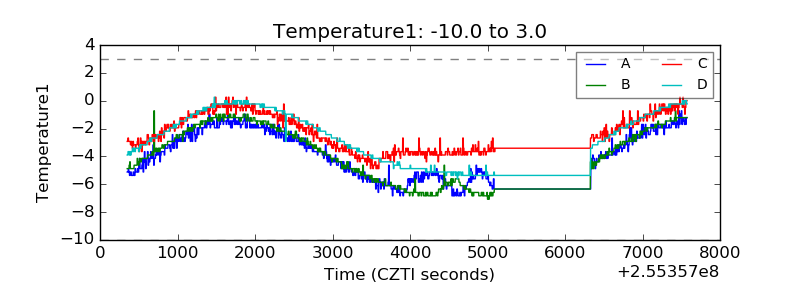

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

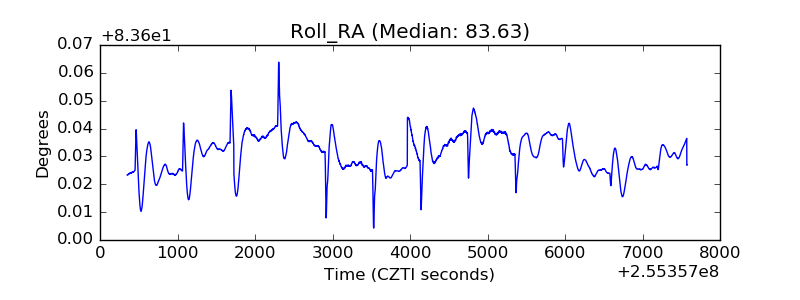

| _Roll_RA |  |

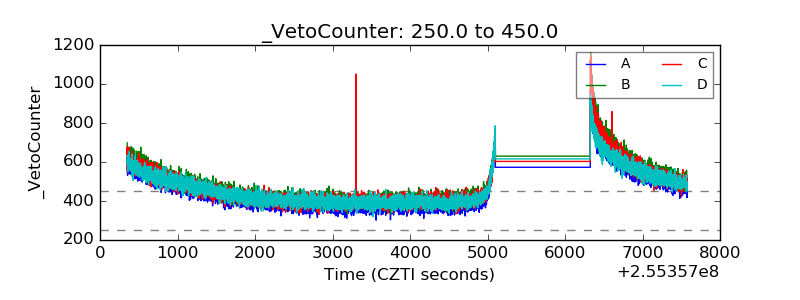

| Veto Counter |  |
