| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_130T04_9000001878_12723cztM0_level2.evt | modeM0/AS1A04_130T04_9000001878_12723cztM0_level2_quad_clean.evt |
| Size (bytes) | 213,940,800 | 29,917,440 |
| Size | 204.0 MB | 28.5 MB |
| Events in quadrant A | 2,012,182 | 185,304 |
| Events in quadrant B | 1,912,134 | 178,939 |
| Events in quadrant C | 1,198,310 | 193,274 |
| Events in quadrant D | 1,203,101 | 186,848 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7429 | 2 |
| B | 0 | 7098 | 1 |
| C | 0 | 4900 | 1 |
| D | 0 | 4940 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 46 | 0 |
| B | 0 | 46 | 0 |
| C | 0 | 46 | 0 |
| D | 0 | 46 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2230 | 350 | 15.695067% |
| B | 2230 | 402 | 18.026906% |
| C | 2230 | 66 | 2.959641% |
| D | 2230 | 66 | 2.959641% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

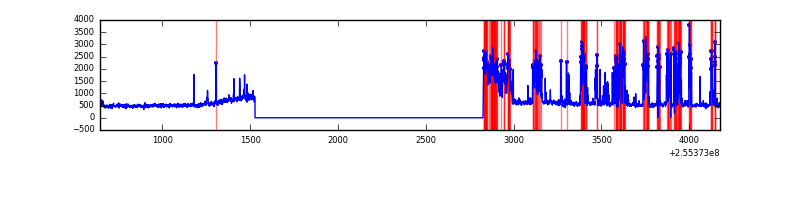

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3531 | 2233 | 148 | 148 | 4.19% | 6.63% |  |
| B | 3531 | 2233 | 200 | 200 | 5.66% | 8.96% |  |
| C | 3531 | 2233 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3531 | 2233 | 3 | 3 | 0.08% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 831671 | 13348.23 | 299 | 292 | 62.3 |
| A | 12 | 189 | 12306 | 192.88 | 299 | 292 | 62.3 |
| A | 8 | 15 | 11521 | 180.28 | 299 | 292 | 62.3 |
| B | 4 | 239 | 715388 | 12594.98 | 288 | 281 | 56.8 |
| B | 3 | 64 | 36957 | 645.96 | 288 | 281 | 56.8 |
| B | 4 | 81 | 6317 | 106.31 | 288 | 281 | 56.8 |
| C | 15 | 208 | 2316 | 27.83 | 306 | 306 | 72.2 |
| C | 13 | 61 | 2155 | 25.6 | 306 | 306 | 72.2 |
| C | 14 | 234 | 2153 | 25.57 | 306 | 306 | 72.2 |
| D | 1 | 52 | 17536 | 232.65 | 307 | 300 | 74.1 |
| D | 2 | 234 | 7433 | 96.28 | 307 | 300 | 74.1 |
| D | 10 | 199 | 7152 | 92.49 | 307 | 300 | 74.1 |

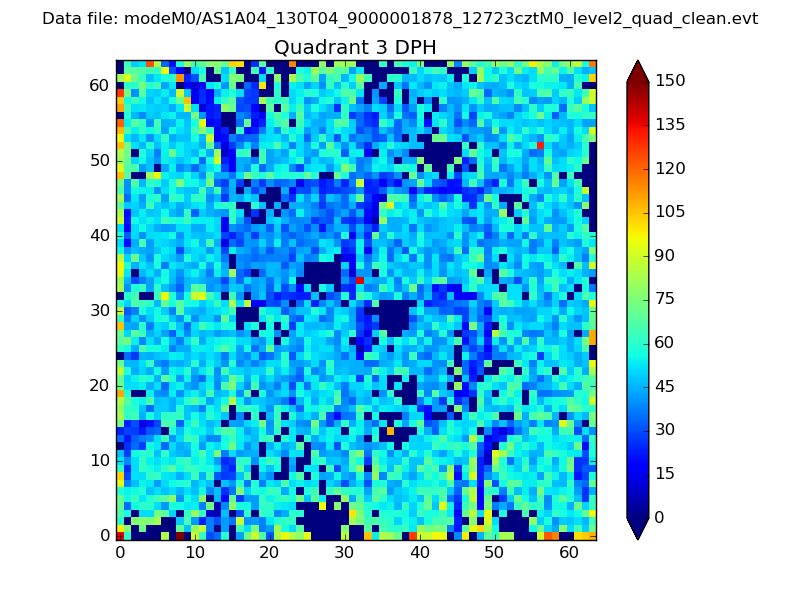

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

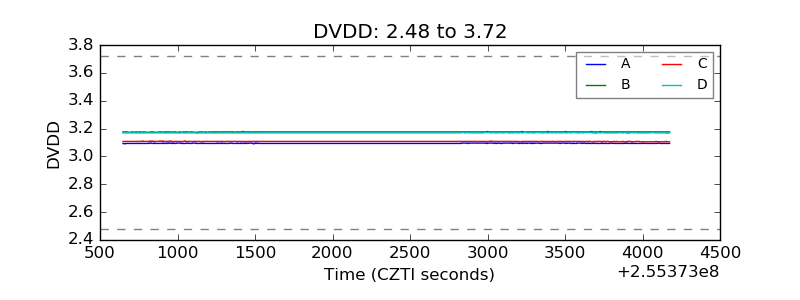

| D_VDD |  |

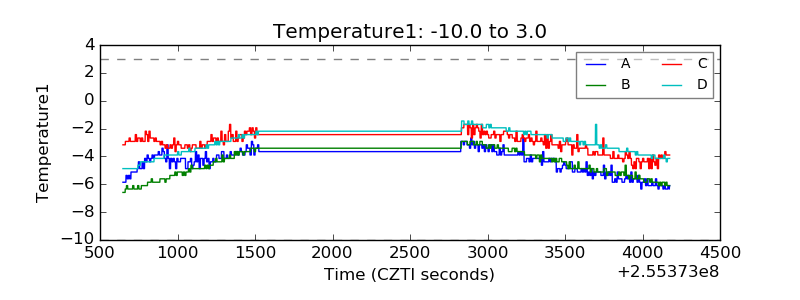

| Temperature 1 |  |

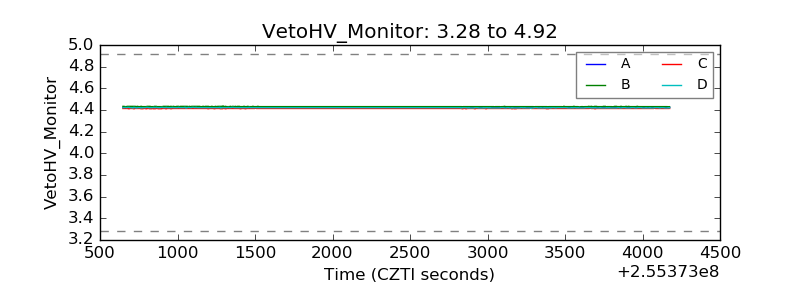

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

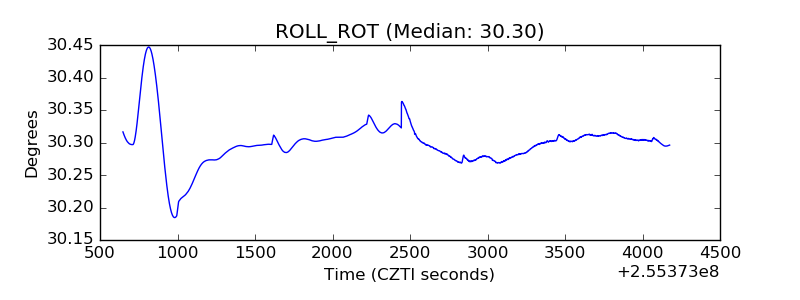

| _ROLL_ROT |  |
| _Roll_DEC |  |

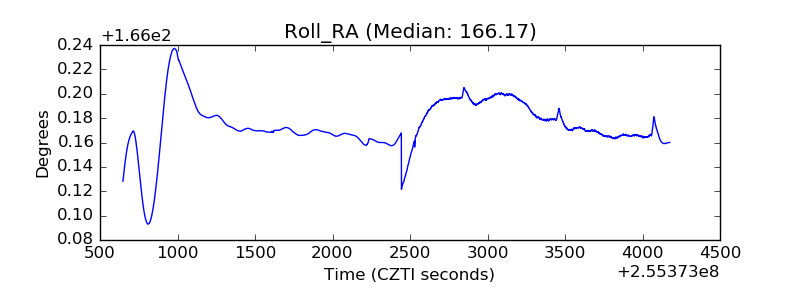

| _Roll_RA |  |

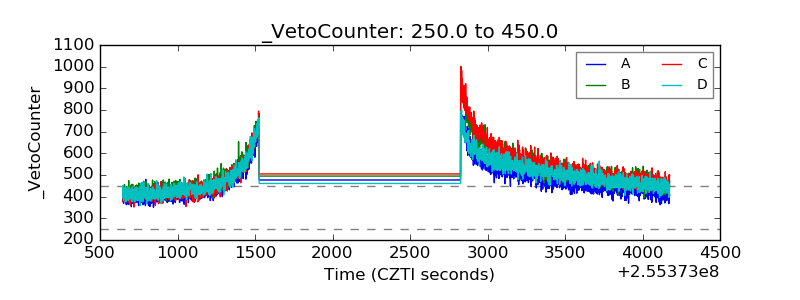

| Veto Counter |  |
