| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_130T04_9000001878_12725cztM0_level2.evt | modeM0/AS1A04_130T04_9000001878_12725cztM0_level2_quad_clean.evt |
| Size (bytes) | 526,789,440 | 99,178,560 |
| Size | 502.4 MB | 94.6 MB |
| Events in quadrant A | 4,583,558 | 640,604 |
| Events in quadrant B | 3,904,300 | 635,554 |
| Events in quadrant C | 3,049,277 | 645,666 |
| Events in quadrant D | 3,963,579 | 616,275 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18184 | 3 |
| B | 0 | 16007 | 2 |
| C | 0 | 13687 | 2 |
| D | 0 | 16641 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6674 | 427 | 6.397962% |
| B | 6674 | 296 | 4.435121% |
| C | 6674 | 15 | 0.224753% |
| D | 6674 | 234 | 3.506143% |

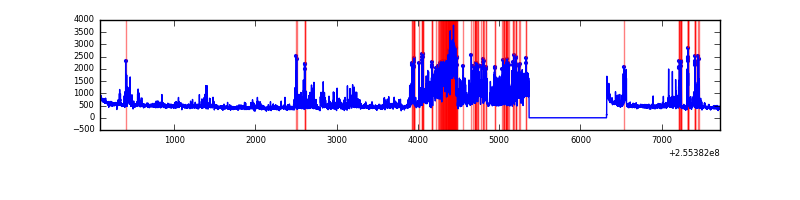

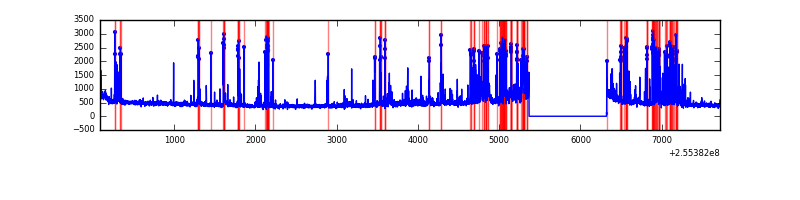

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7631 | 6677 | 190 | 190 | 2.49% | 2.85% |  |
| B | 7631 | 6677 | 168 | 168 | 2.20% | 2.52% |  |
| C | 7631 | 6677 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7631 | 6677 | 194 | 194 | 2.54% | 2.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 1543639 | 9823.66 | 774 | 757 | 157.1 |
| A | 12 | 189 | 41259 | 257.88 | 774 | 757 | 157.1 |
| A | 7 | 16 | 11183 | 66.38 | 774 | 757 | 157.1 |
| B | 4 | 239 | 728690 | 4946.36 | 778 | 758 | 147.2 |
| B | 0 | 214 | 67880 | 456.1 | 778 | 758 | 147.2 |
| B | 3 | 64 | 29311 | 194.02 | 778 | 758 | 147.2 |
| C | 9 | 221 | 8956 | 45.13 | 778 | 782 | 181.1 |
| C | 14 | 234 | 6819 | 33.33 | 778 | 782 | 181.1 |
| C | 13 | 61 | 5718 | 27.25 | 778 | 782 | 181.1 |
| D | 1 | 52 | 704773 | 3933.53 | 756 | 741 | 179.0 |
| D | 10 | 199 | 185416 | 1031.81 | 756 | 741 | 179.0 |
| D | 10 | 253 | 45072 | 247.68 | 756 | 741 | 179.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

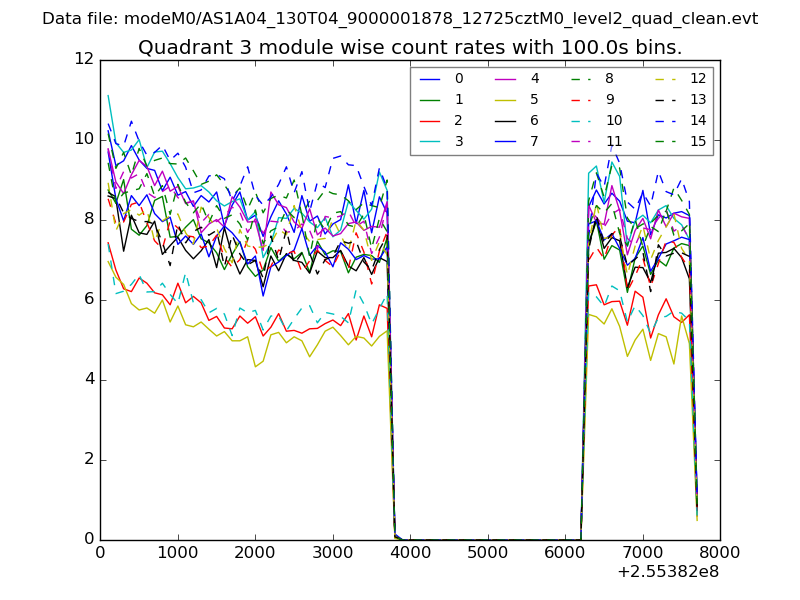

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

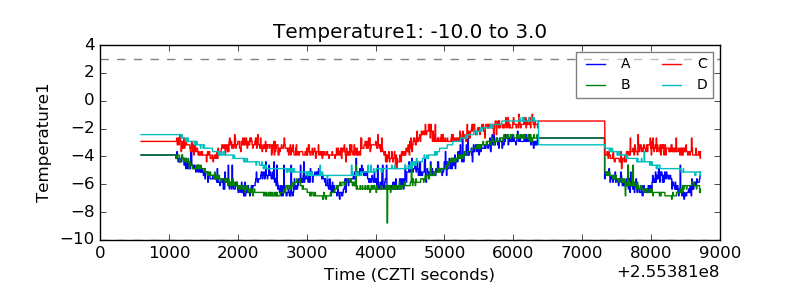

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

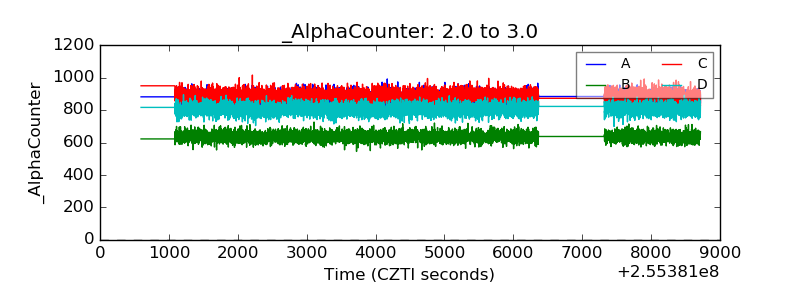

| Alpha Counter |  |

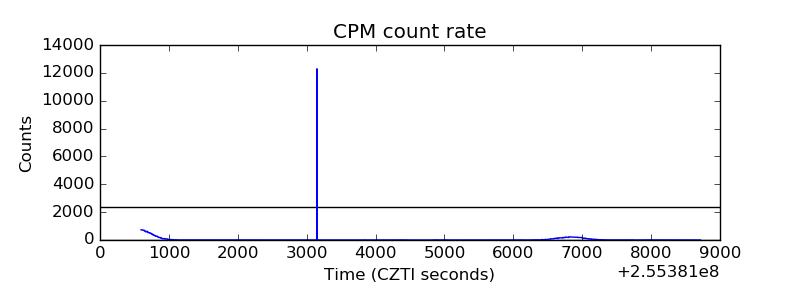

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

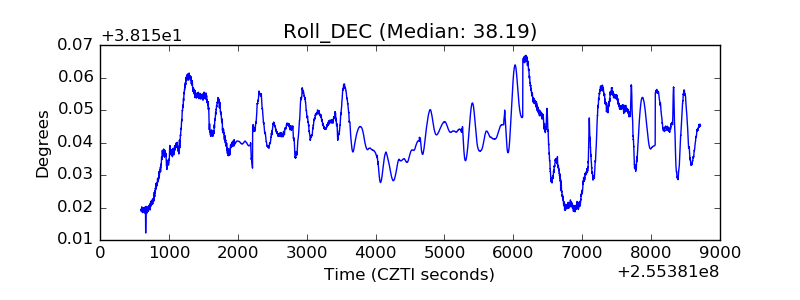

| _Roll_DEC |  |
| _Roll_RA |  |

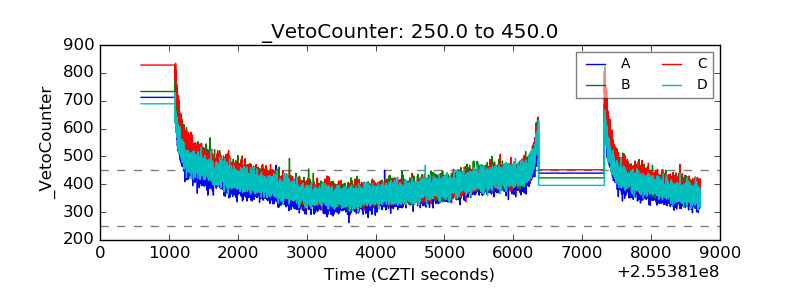

| Veto Counter |  |
