| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_021T01_9000001880_12734cztM0_level2.evt | modeM0/AS1G08_021T01_9000001880_12734cztM0_level2_quad_clean.evt |
| Size (bytes) | 566,092,800 | 78,341,760 |
| Size | 539.9 MB | 74.7 MB |
| Events in quadrant A | 3,203,376 | 499,856 |
| Events in quadrant B | 4,411,329 | 472,289 |
| Events in quadrant C | 3,007,987 | 496,378 |
| Events in quadrant D | 6,086,527 | 455,901 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13782 | 3 |
| B | 0 | 17222 | 2 |
| C | 0 | 13339 | 2 |
| D | 0 | 22458 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6416 | 76 | 1.184539% |
| B | 6416 | 535 | 8.338529% |
| C | 6416 | 46 | 0.716958% |
| D | 6416 | 806 | 12.562344% |

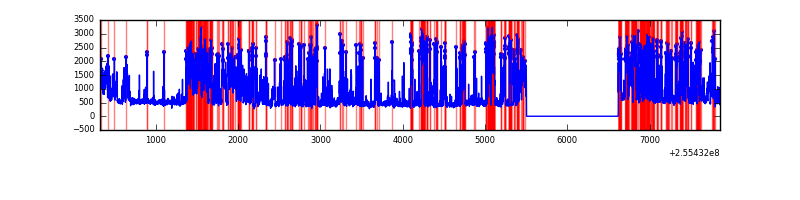

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7533 | 6419 | 24 | 24 | 0.32% | 0.37% |  |
| B | 7533 | 6419 | 425 | 425 | 5.64% | 6.62% |  |
| C | 7533 | 6419 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7533 | 6419 | 674 | 674 | 8.95% | 10.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 103767 | 651.5 | 784 | 769 | 158.1 |
| A | 3 | 0 | 31171 | 192.3 | 784 | 769 | 158.1 |
| A | 12 | 189 | 23628 | 144.59 | 784 | 769 | 158.1 |
| B | 4 | 239 | 1288136 | 9100.09 | 755 | 738 | 141.5 |
| B | 4 | 206 | 72289 | 505.76 | 755 | 738 | 141.5 |
| B | 0 | 214 | 36303 | 251.39 | 755 | 738 | 141.5 |
| C | 15 | 208 | 31380 | 174.65 | 763 | 768 | 175.3 |
| C | 13 | 61 | 5407 | 26.47 | 763 | 768 | 175.3 |
| C | 14 | 234 | 2173 | 8.02 | 763 | 768 | 175.3 |
| D | 1 | 52 | 2779400 | 16488.24 | 720 | 703 | 168.5 |
| D | 10 | 199 | 488207 | 2892.75 | 720 | 703 | 168.5 |
| D | 2 | 136 | 48896 | 285.97 | 720 | 703 | 168.5 |

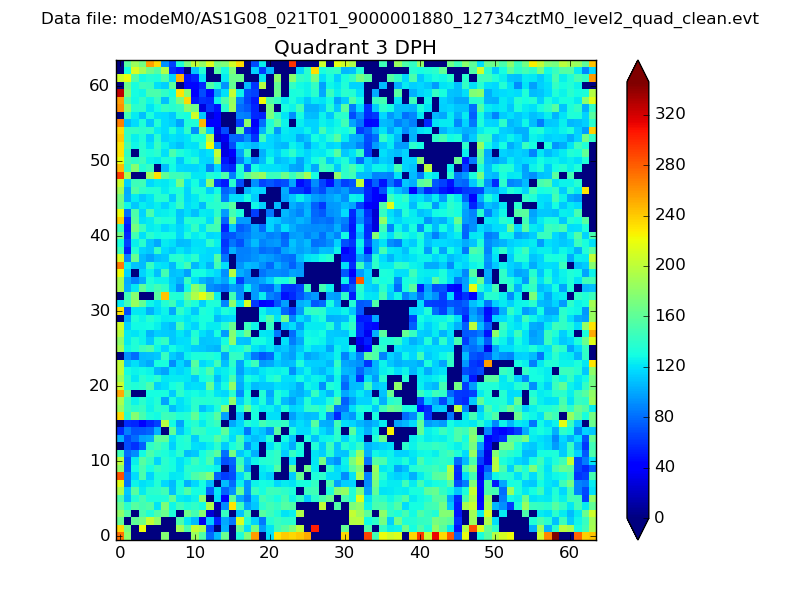

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

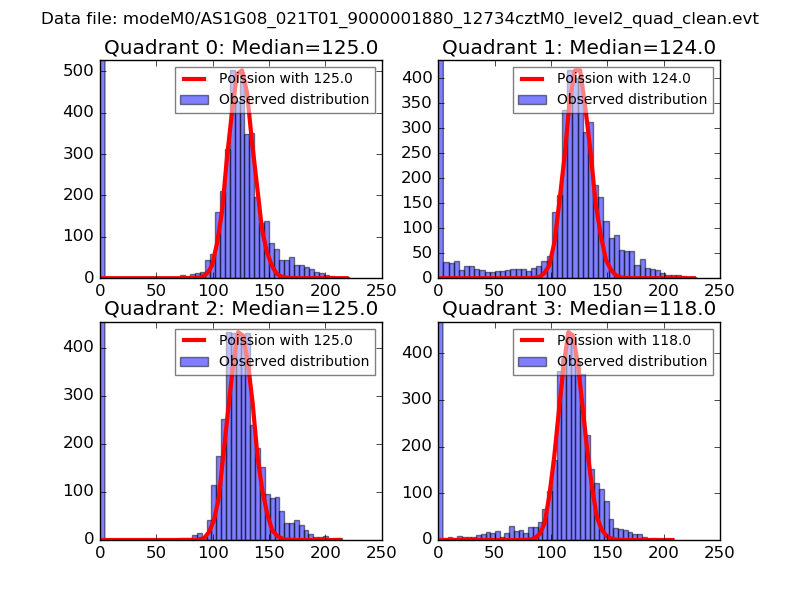

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

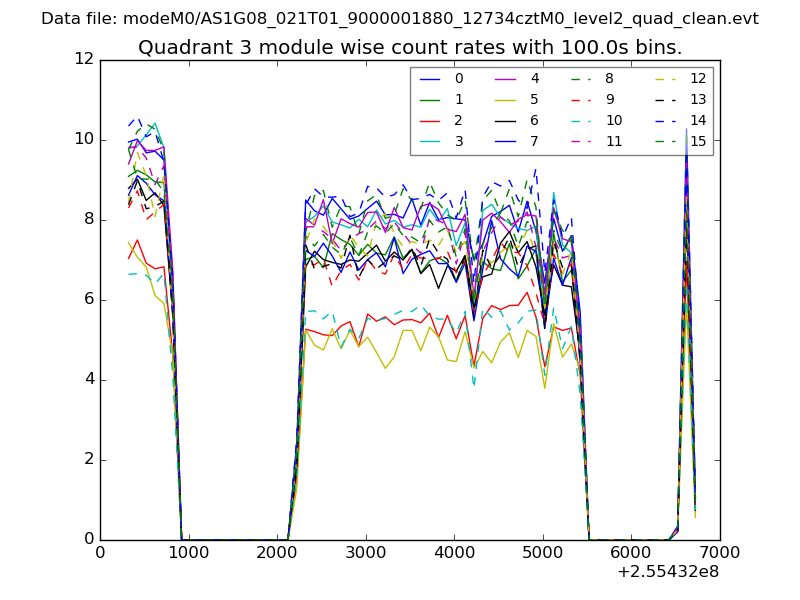

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

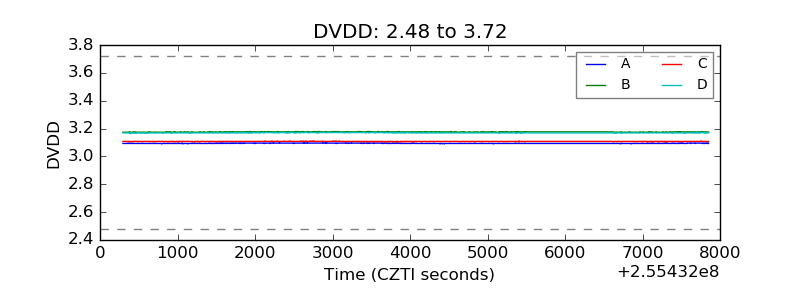

| D_VDD |  |

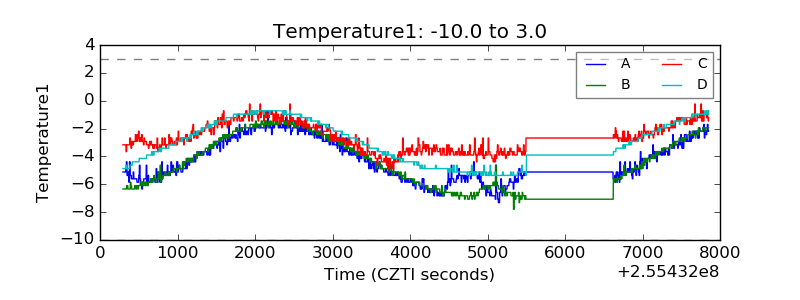

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

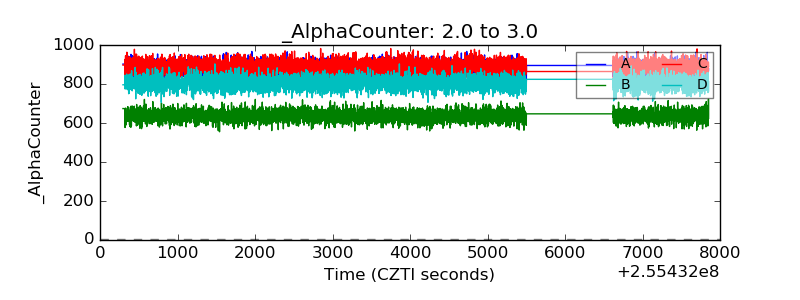

| Alpha Counter |  |

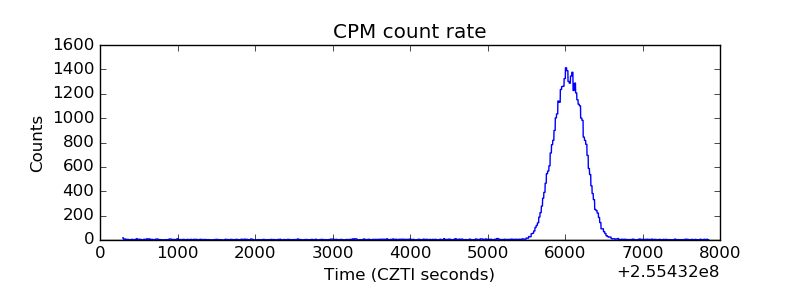

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
