| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_044T01_9000001882_12746cztM0_level2.evt | modeM0/AS1A04_044T01_9000001882_12746cztM0_level2_quad_clean.evt |
| Size (bytes) | 177,886,080 | 16,594,560 |
| Size | 169.6 MB | 15.8 MB |
| Events in quadrant A | 1,577,324 | 84,683 |
| Events in quadrant B | 1,247,848 | 89,644 |
| Events in quadrant C | 1,028,244 | 92,135 |
| Events in quadrant D | 1,393,852 | 87,804 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5926 | 2 |
| B | 0 | 4918 | 1 |
| C | 0 | 4255 | 1 |
| D | 0 | 5482 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42 | 0 |
| B | 0 | 42 | 0 |
| C | 0 | 42 | 0 |
| D | 0 | 42 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2031 | 120 | 5.908419% |
| B | 2031 | 110 | 5.416051% |
| C | 2031 | 33 | 1.624815% |
| D | 2031 | 68 | 3.348104% |

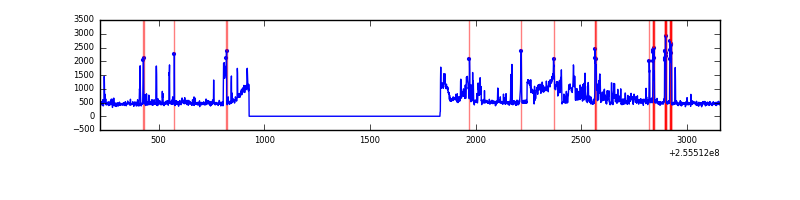

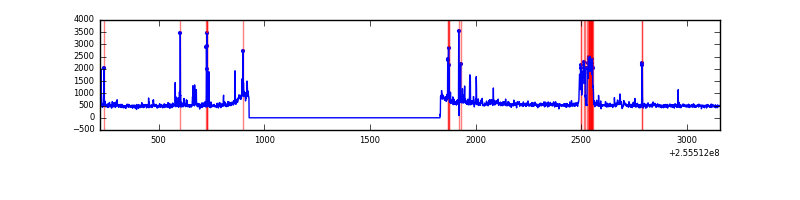

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2936 | 2032 | 54 | 54 | 1.84% | 2.66% |  |
| B | 2936 | 2032 | 37 | 37 | 1.26% | 1.82% |  |
| C | 2936 | 2032 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2936 | 2032 | 31 | 31 | 1.06% | 1.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 519460 | 9476.12 | 260 | 254 | 54.8 |
| A | 8 | 15 | 28386 | 513.44 | 260 | 254 | 54.8 |
| A | 12 | 189 | 21105 | 380.56 | 260 | 254 | 54.8 |
| B | 4 | 239 | 182789 | 3465.7 | 264 | 258 | 52.7 |
| B | 0 | 214 | 21587 | 404.97 | 264 | 258 | 52.7 |
| B | 12 | 111 | 6126 | 111.42 | 264 | 258 | 52.7 |
| C | 13 | 61 | 1976 | 26.96 | 263 | 265 | 63.5 |
| C | 3 | 202 | 705 | 6.93 | 263 | 265 | 63.5 |
| C | -1 | -1 | -1 | -1.0 | 263 | 265 | 63.5 |
| D | 1 | 52 | 349424 | 5400.98 | 257 | 250 | 64.7 |
| D | 13 | 170 | 60280 | 928.54 | 257 | 250 | 64.7 |
| D | 2 | 234 | 6173 | 91.62 | 257 | 250 | 64.7 |

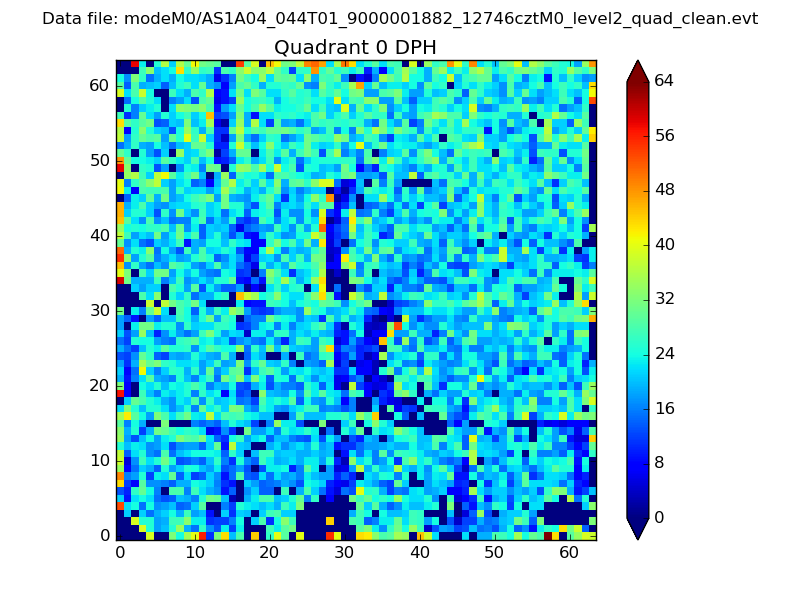

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

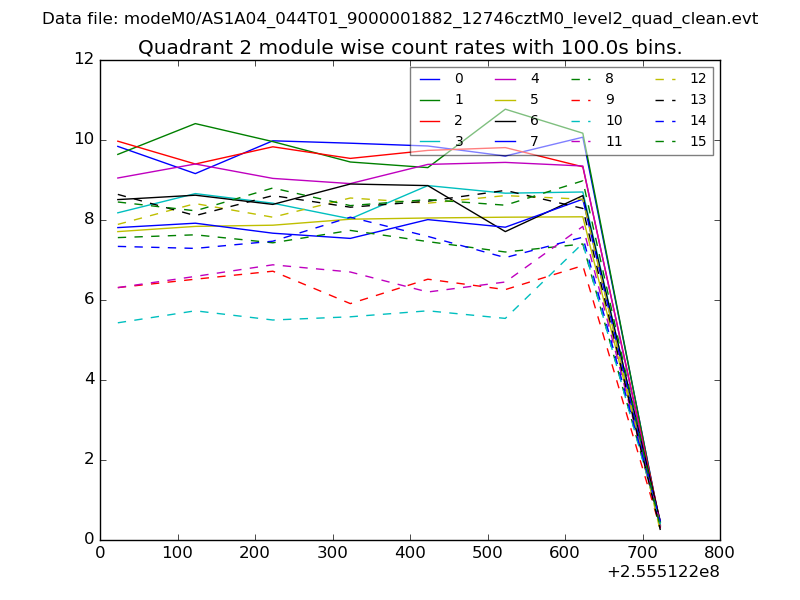

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

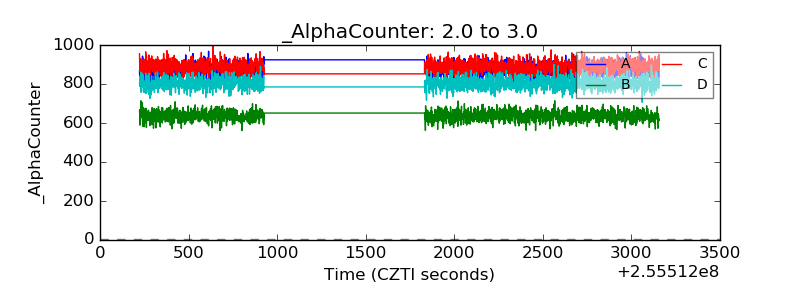

| Alpha Counter |  |

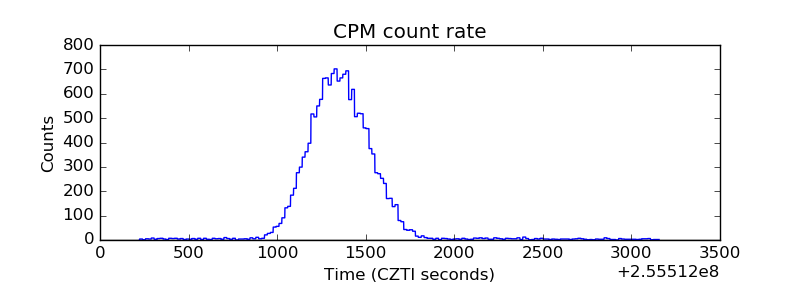

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

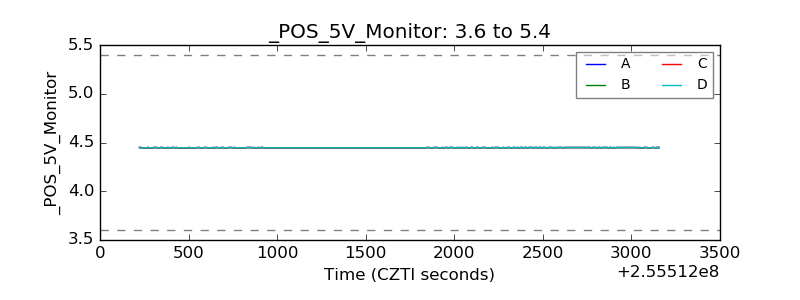

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
