| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_044T01_9000001882_12749cztM0_level2.evt | modeM0/AS1A04_044T01_9000001882_12749cztM0_level2_quad_clean.evt |
| Size (bytes) | 540,578,880 | 90,815,040 |
| Size | 515.5 MB | 86.6 MB |
| Events in quadrant A | 3,998,143 | 572,321 |
| Events in quadrant B | 4,524,075 | 559,090 |
| Events in quadrant C | 3,329,149 | 585,180 |
| Events in quadrant D | 4,057,545 | 558,131 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16213 | 3 |
| B | 0 | 17820 | 2 |
| C | 0 | 14362 | 2 |
| D | 0 | 16436 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6821 | 129 | 1.891218% |
| B | 6821 | 446 | 6.538631% |
| C | 6821 | 92 | 1.348776% |
| D | 6821 | 189 | 2.770855% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

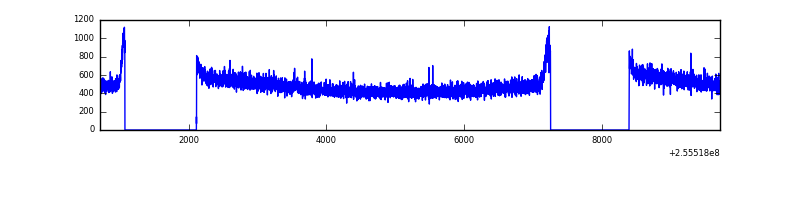

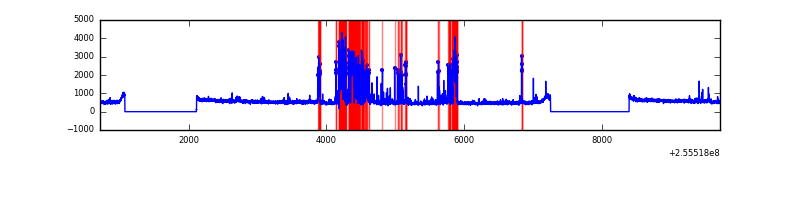

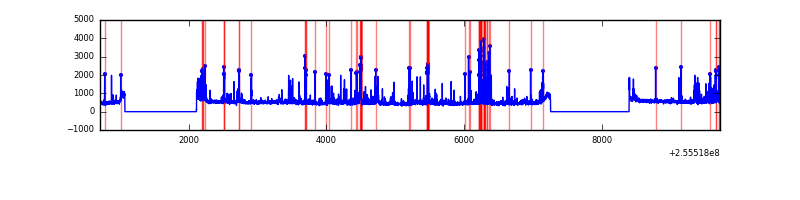

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9002 | 6823 | 2 | 2 | 0.02% | 0.03% |  |
| B | 9002 | 6823 | 290 | 290 | 3.22% | 4.25% |  |
| C | 9002 | 6823 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9002 | 6823 | 87 | 87 | 0.97% | 1.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 243349 | 1358.16 | 881 | 863 | 178.5 |
| A | 0 | 23 | 167843 | 935.25 | 881 | 863 | 178.5 |
| A | 8 | 15 | 107914 | 599.59 | 881 | 863 | 178.5 |
| B | 4 | 239 | 899761 | 5443.14 | 861 | 841 | 165.1 |
| B | 3 | 64 | 64432 | 385.06 | 861 | 841 | 165.1 |
| B | 0 | 214 | 47960 | 285.31 | 861 | 841 | 165.1 |
| C | 13 | 61 | 6192 | 26.92 | 854 | 859 | 198.1 |
| C | 3 | 202 | 2077 | 6.15 | 854 | 859 | 198.1 |
| C | -1 | -1 | -1 | -1.0 | 854 | 859 | 198.1 |
| D | 1 | 52 | 568965 | 2588.35 | 845 | 826 | 219.5 |
| D | 10 | 199 | 84540 | 381.39 | 845 | 826 | 219.5 |
| D | 2 | 136 | 68095 | 306.47 | 845 | 826 | 219.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

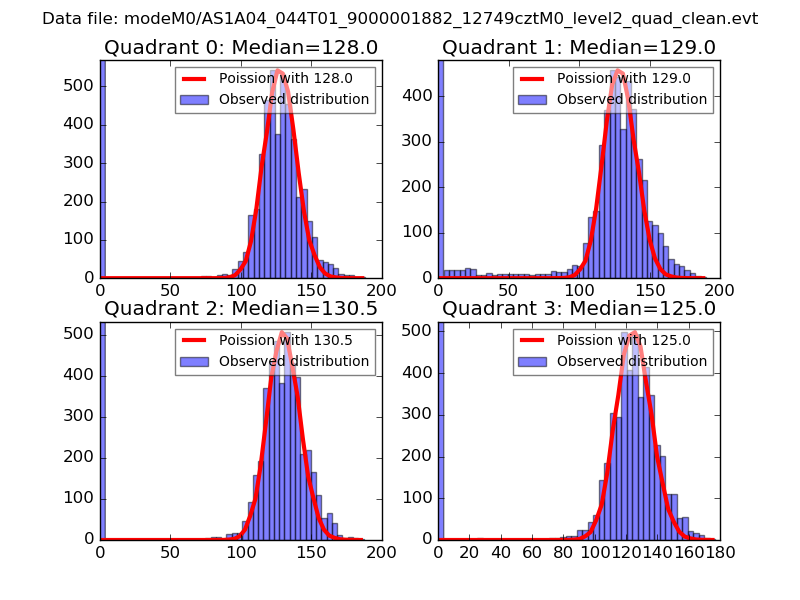

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

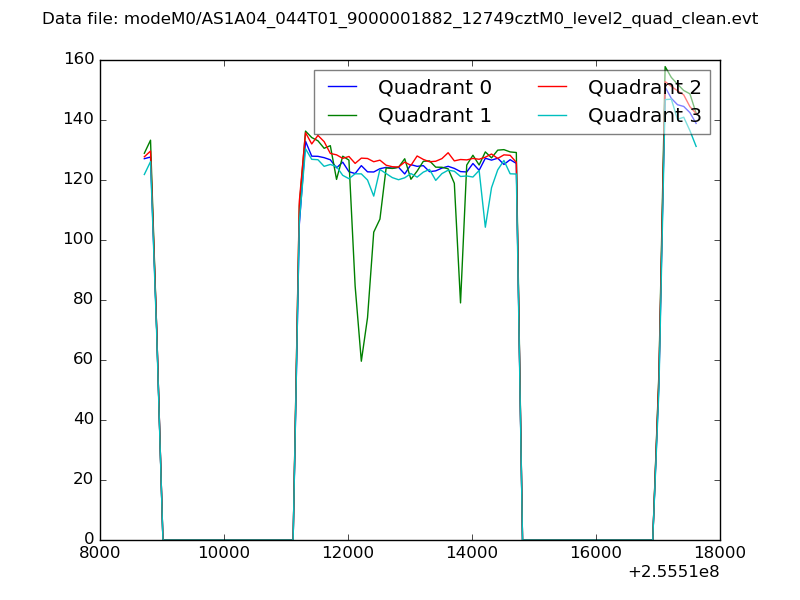

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

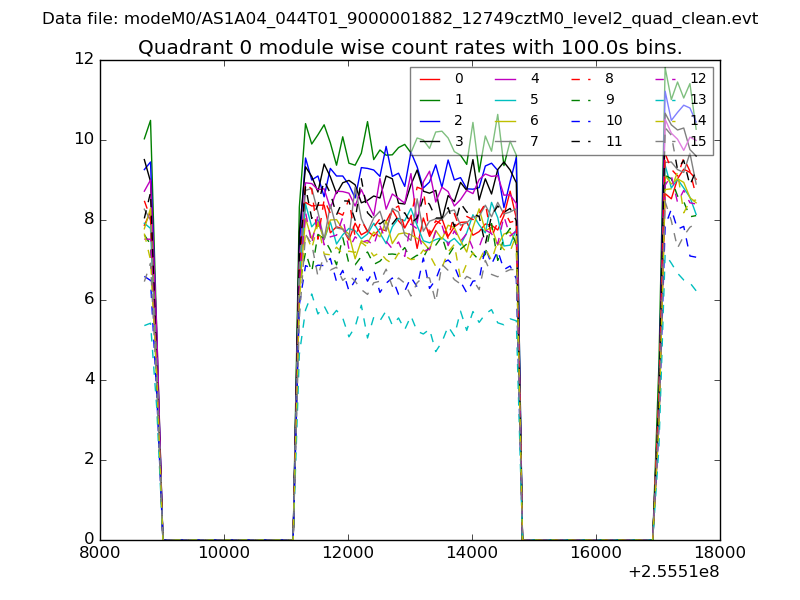

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

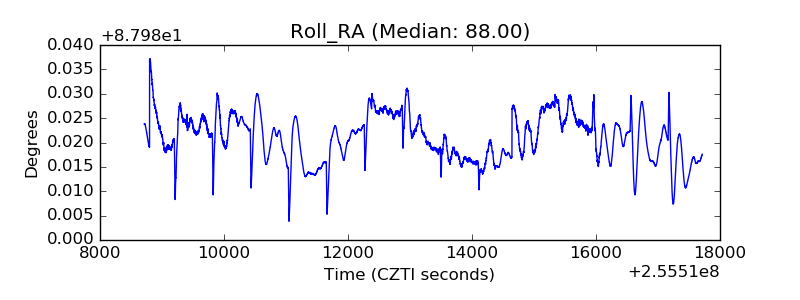

| _Roll_RA |  |

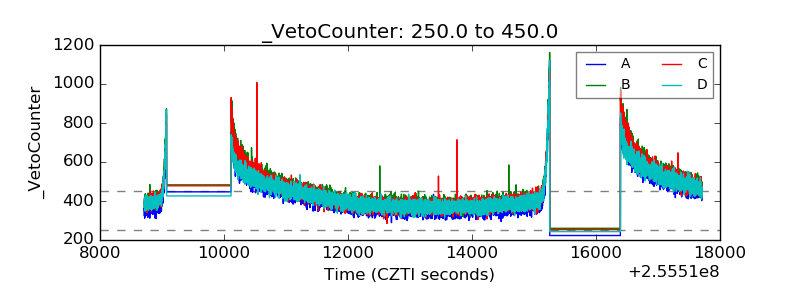

| Veto Counter |  |
