| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_044T01_9000001882_12751cztM0_level2.evt | modeM0/AS1A04_044T01_9000001882_12751cztM0_level2_quad_clean.evt |
| Size (bytes) | 532,350,720 | 107,248,320 |
| Size | 507.7 MB | 102.3 MB |
| Events in quadrant A | 3,547,939 | 713,390 |
| Events in quadrant B | 4,796,520 | 683,370 |
| Events in quadrant C | 3,337,009 | 711,639 |
| Events in quadrant D | 4,000,340 | 686,754 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14790 | 3 |
| B | 0 | 18560 | 2 |
| C | 0 | 14134 | 2 |
| D | 0 | 16080 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6484 | 203 | 3.130783% |
| B | 6484 | 610 | 9.407773% |
| C | 6484 | 144 | 2.220851% |
| D | 6484 | 185 | 2.853177% |

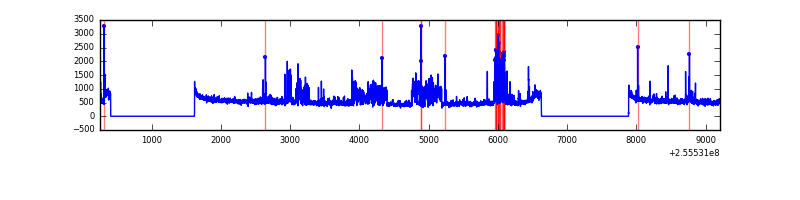

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8955 | 6486 | 2 | 2 | 0.02% | 0.03% |  |
| B | 8955 | 6486 | 331 | 331 | 3.70% | 5.10% |  |
| C | 8955 | 6486 | 4 | 4 | 0.04% | 0.06% |  |
| D | 8955 | 6486 | 28 | 28 | 0.31% | 0.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 52666 | 296.65 | 874 | 857 | 174.6 |
| A | 0 | 23 | 41254 | 231.3 | 874 | 857 | 174.6 |
| A | 15 | 239 | 40837 | 228.92 | 874 | 857 | 174.6 |
| B | 4 | 239 | 1177423 | 7416.36 | 837 | 817 | 158.7 |
| B | 15 | 32 | 137724 | 862.95 | 837 | 817 | 158.7 |
| B | 11 | 51 | 60404 | 375.59 | 837 | 817 | 158.7 |
| C | 15 | 208 | 88392 | 456.61 | 833 | 840 | 191.7 |
| C | 13 | 61 | 6153 | 27.71 | 833 | 840 | 191.7 |
| C | 3 | 202 | 2138 | 6.77 | 833 | 840 | 191.7 |
| D | 1 | 52 | 504080 | 2341.44 | 835 | 818 | 214.9 |
| D | 2 | 136 | 208033 | 964.07 | 835 | 818 | 214.9 |
| D | 13 | 172 | 41186 | 187.81 | 835 | 818 | 214.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

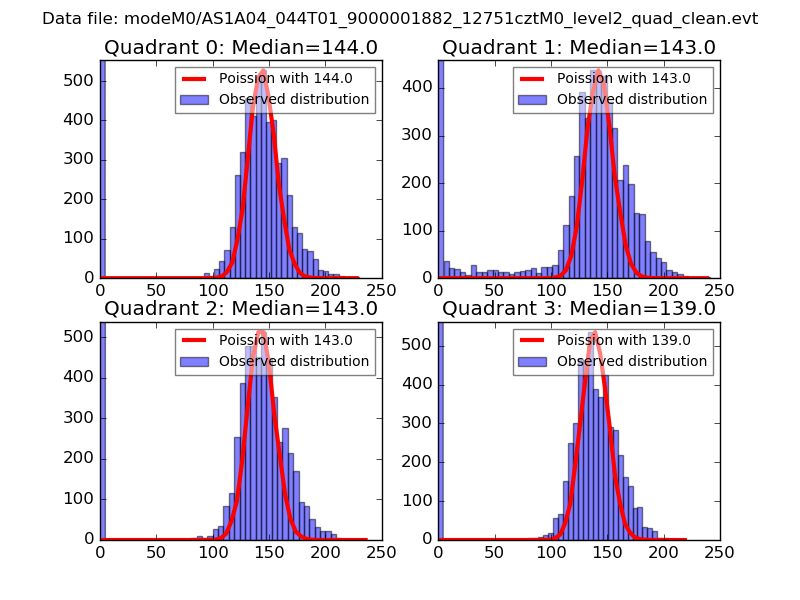

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

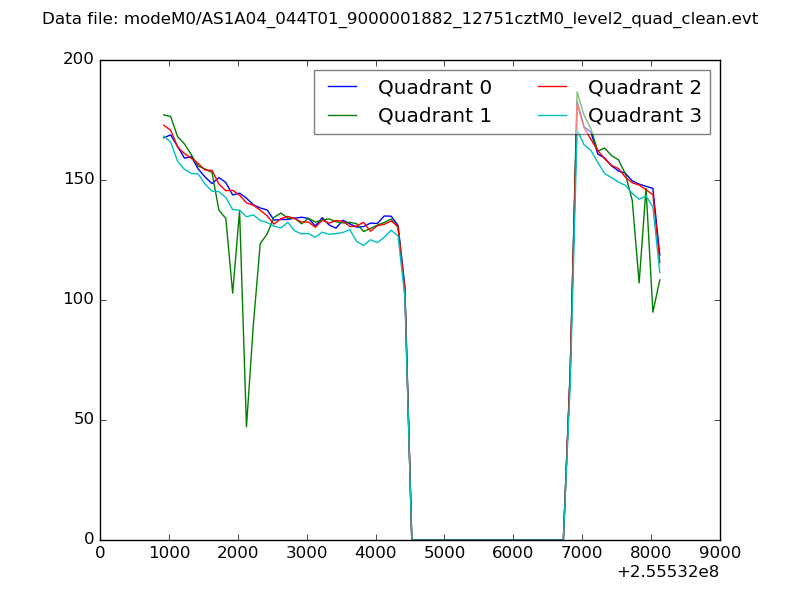

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

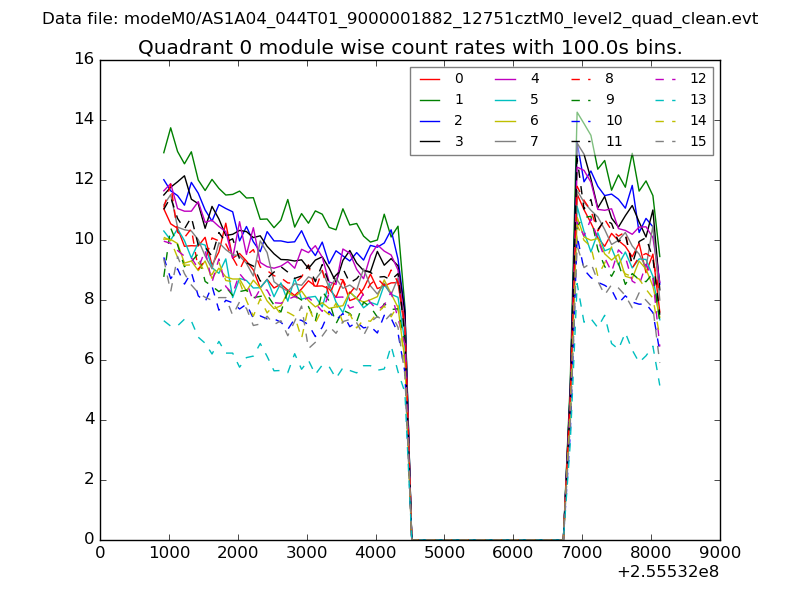

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

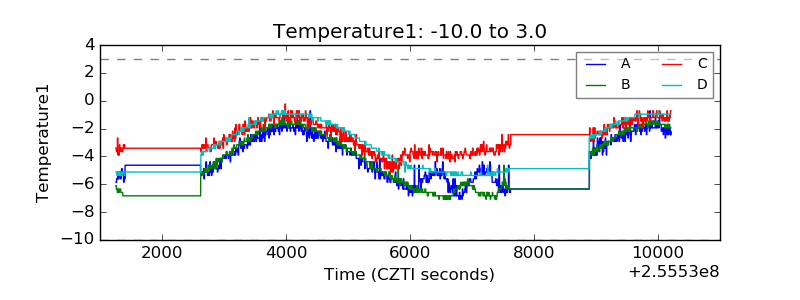

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

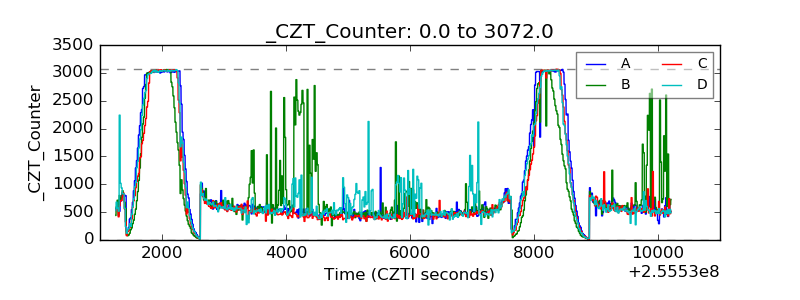

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

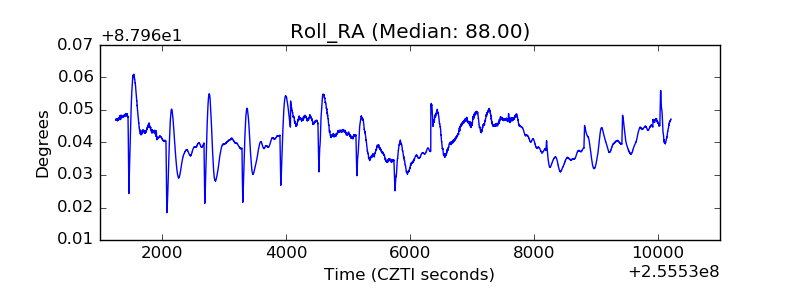

| _Roll_RA |  |
| Veto Counter |  |
