| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_110T04_9000001886_12776cztM0_level2.evt | modeM0/AS1A04_110T04_9000001886_12776cztM0_level2_quad_clean.evt |
| Size (bytes) | 481,020,480 | 115,352,640 |
| Size | 458.7 MB | 110.0 MB |
| Events in quadrant A | 3,342,327 | 781,390 |
| Events in quadrant B | 3,477,971 | 786,462 |
| Events in quadrant C | 2,868,069 | 768,874 |
| Events in quadrant D | 4,456,455 | 722,014 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13929 | 2 |
| B | 0 | 14230 | 1 |
| C | 0 | 12914 | 1 |
| D | 0 | 17334 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6230 | 75 | 1.203852% |
| B | 6230 | 181 | 2.905297% |
| C | 6230 | 49 | 0.786517% |
| D | 6230 | 329 | 5.280899% |

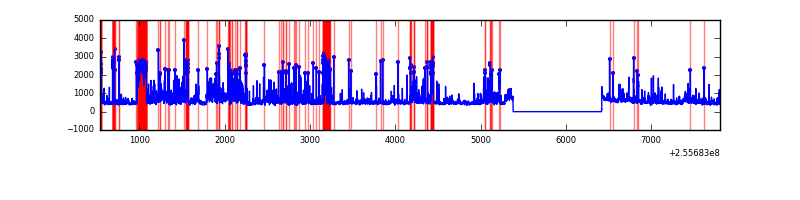

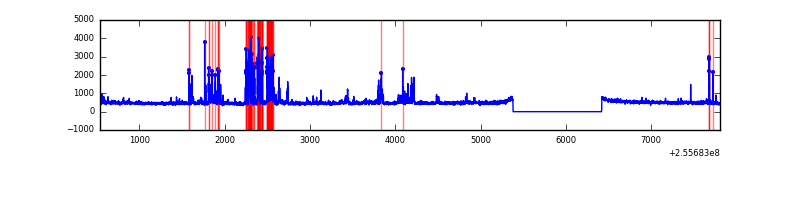

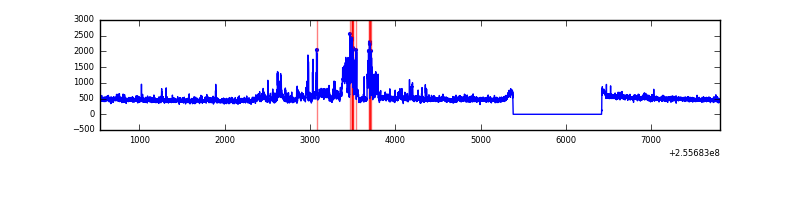

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7271 | 6232 | 16 | 16 | 0.22% | 0.26% |  |
| B | 7271 | 6232 | 107 | 107 | 1.47% | 1.72% |  |
| C | 7271 | 6232 | 18 | 18 | 0.25% | 0.29% |  |
| D | 7271 | 6232 | 278 | 278 | 3.82% | 4.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 419796 | 2826.46 | 733 | 716 | 148.3 |
| A | 12 | 189 | 88989 | 595.35 | 733 | 716 | 148.3 |
| A | 8 | 6 | 7322 | 44.55 | 733 | 716 | 148.3 |
| B | 4 | 239 | 401685 | 2940.73 | 722 | 705 | 136.4 |
| B | 3 | 64 | 150693 | 1099.99 | 722 | 705 | 136.4 |
| B | 0 | 219 | 26575 | 189.73 | 722 | 705 | 136.4 |
| C | 15 | 208 | 131365 | 816.42 | 699 | 702 | 160.0 |
| C | 14 | 234 | 10585 | 61.75 | 699 | 702 | 160.0 |
| C | 13 | 61 | 5188 | 28.03 | 699 | 702 | 160.0 |
| D | 1 | 52 | 1578979 | 9453.59 | 691 | 669 | 167.0 |
| D | 8 | 195 | 180091 | 1074.68 | 691 | 669 | 167.0 |
| D | 2 | 234 | 24615 | 143.43 | 691 | 669 | 167.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

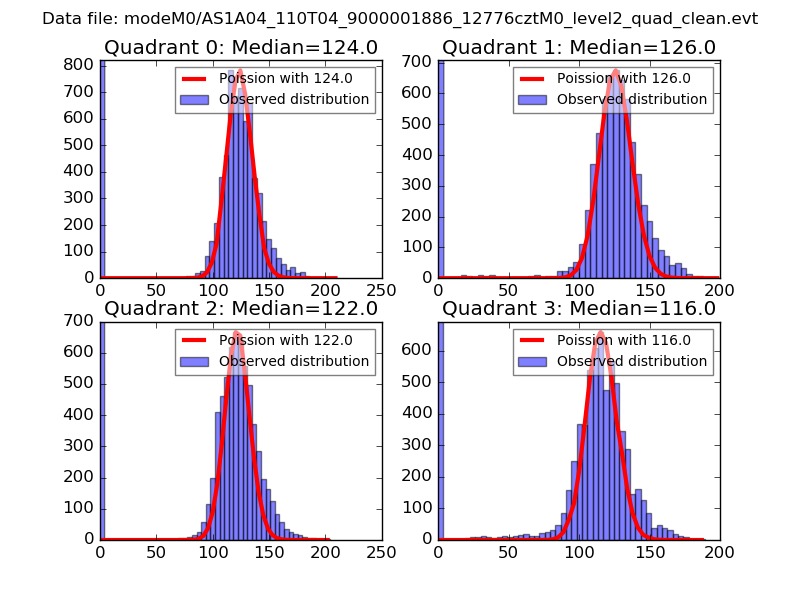

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

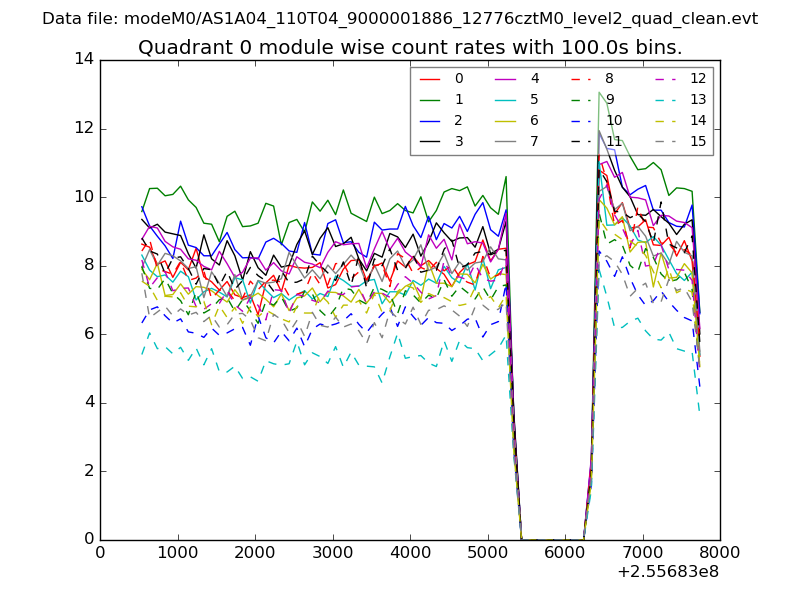

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

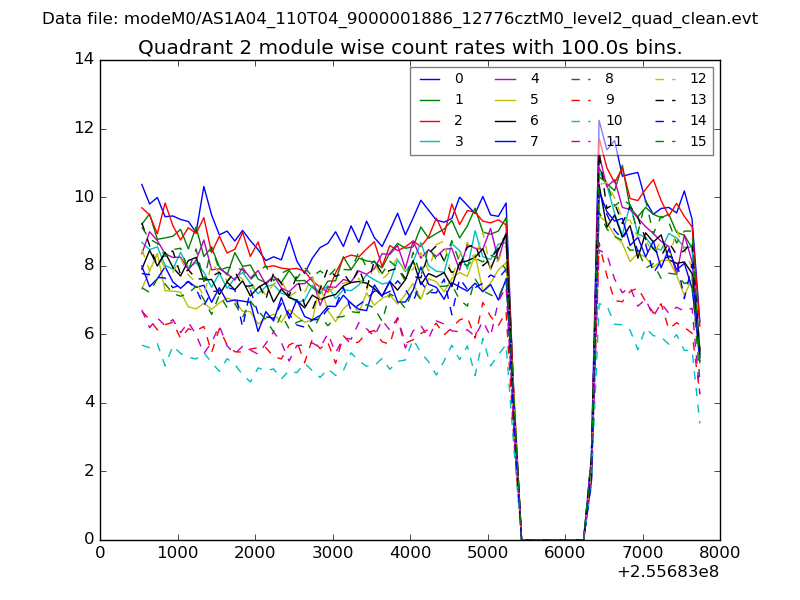

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

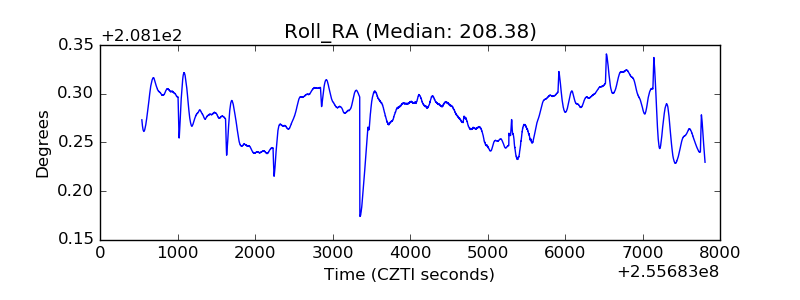

| _Roll_RA |  |

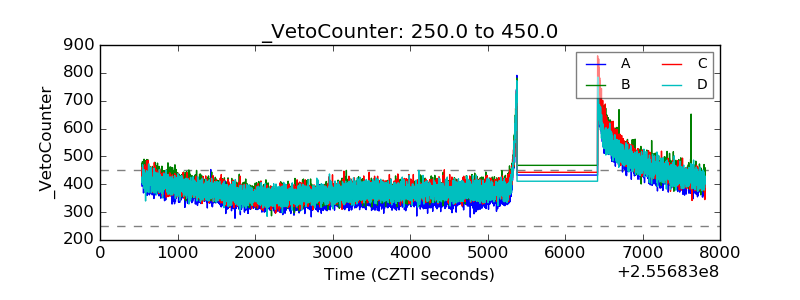

| Veto Counter |  |
