| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_110T04_9000001886_12781cztM0_level2.evt | modeM0/AS1A04_110T04_9000001886_12781cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,114,560 | 124,637,760 |
| Size | 447.4 MB | 118.9 MB |
| Events in quadrant A | 3,042,734 | 854,671 |
| Events in quadrant B | 4,151,310 | 838,201 |
| Events in quadrant C | 2,982,156 | 848,980 |
| Events in quadrant D | 3,616,768 | 807,350 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12830 | 2 |
| B | 0 | 16204 | 1 |
| C | 0 | 12719 | 1 |
| D | 0 | 14762 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6095 | 122 | 2.001641% |
| B | 6095 | 456 | 7.481542% |
| C | 6095 | 107 | 1.755537% |
| D | 6095 | 174 | 2.854799% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7366 | 6097 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7366 | 6097 | 221 | 221 | 3.00% | 3.62% |  |
| C | 7366 | 6097 | 5 | 5 | 0.07% | 0.08% |  |
| D | 7366 | 6097 | 79 | 79 | 1.07% | 1.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 68528 | 439.93 | 766 | 749 | 154.1 |
| A | 15 | 239 | 14045 | 86.3 | 766 | 749 | 154.1 |
| A | 8 | 15 | 10659 | 64.32 | 766 | 749 | 154.1 |
| B | 4 | 239 | 928091 | 6760.04 | 743 | 726 | 137.2 |
| B | 0 | 219 | 141609 | 1026.97 | 743 | 726 | 137.2 |
| B | 3 | 64 | 114767 | 831.3 | 743 | 726 | 137.2 |
| C | 15 | 208 | 50991 | 297.7 | 749 | 752 | 168.8 |
| C | 14 | 234 | 8626 | 46.66 | 749 | 752 | 168.8 |
| C | 13 | 61 | 5485 | 28.05 | 749 | 752 | 168.8 |
| D | 1 | 52 | 450692 | 2587.92 | 742 | 723 | 173.9 |
| D | 8 | 195 | 245031 | 1405.1 | 742 | 723 | 173.9 |
| D | 2 | 136 | 28753 | 161.21 | 742 | 723 | 173.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

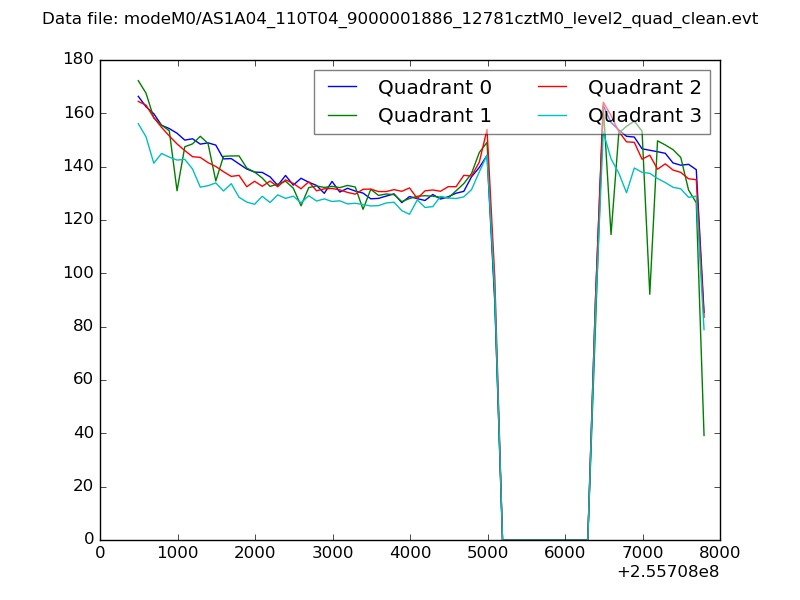

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

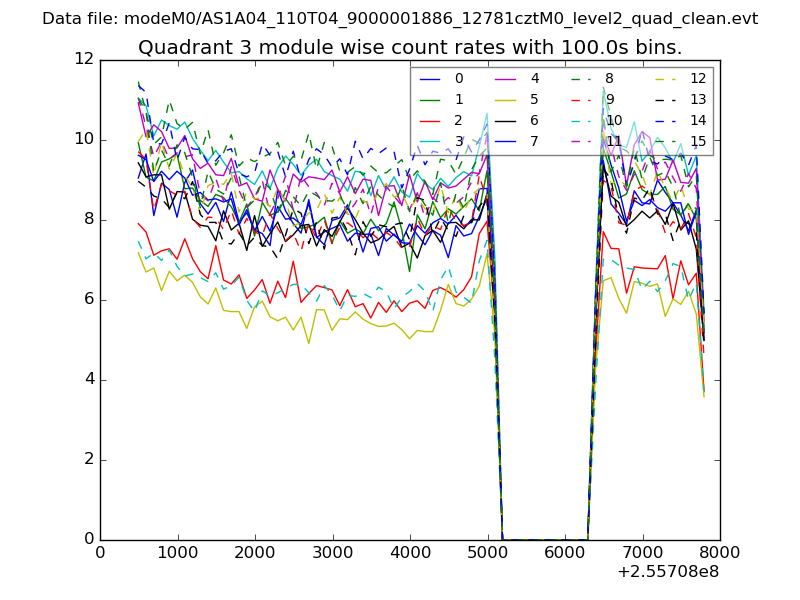

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

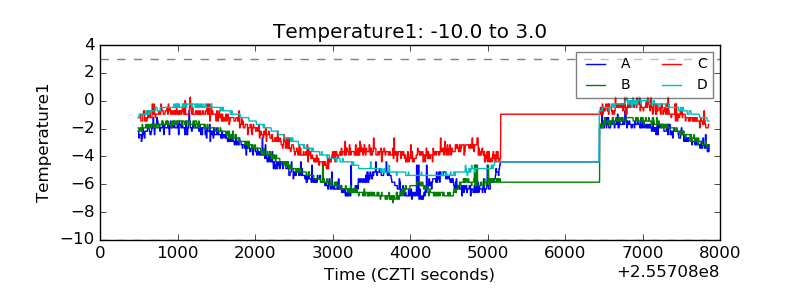

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
