| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_110T04_9000001886_12786cztM0_level2.evt | modeM0/AS1A04_110T04_9000001886_12786cztM0_level2_quad_clean.evt |
| Size (bytes) | 610,513,920 | 148,046,400 |
| Size | 582.2 MB | 141.2 MB |
| Events in quadrant A | 4,036,118 | 989,362 |
| Events in quadrant B | 5,040,226 | 983,817 |
| Events in quadrant C | 3,757,747 | 992,418 |
| Events in quadrant D | 5,096,037 | 945,419 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17818 | 3 |
| B | 0 | 20642 | 2 |
| C | 0 | 17120 | 2 |
| D | 0 | 20858 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8243 | 72 | 0.873468% |
| B | 8243 | 465 | 5.641150% |
| C | 8243 | 54 | 0.655101% |
| D | 8243 | 154 | 1.868252% |

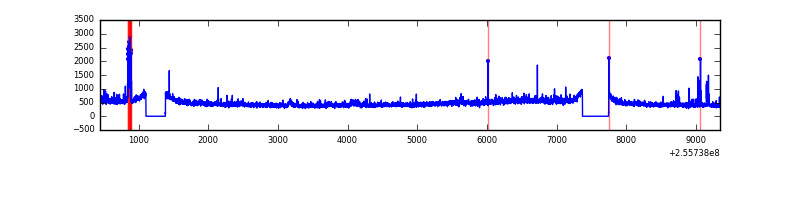

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8899 | 8245 | 20 | 20 | 0.22% | 0.24% |  |
| B | 8899 | 8244 | 243 | 243 | 2.73% | 2.95% |  |
| C | 8899 | 8245 | 6 | 6 | 0.07% | 0.07% |  |
| D | 8899 | 8245 | 172 | 172 | 1.93% | 2.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 193494 | 982.41 | 958 | 935 | 196.0 |
| A | 15 | 174 | 89691 | 452.82 | 958 | 935 | 196.0 |
| A | 8 | 15 | 44978 | 224.7 | 958 | 935 | 196.0 |
| B | 4 | 239 | 981490 | 5490.4 | 945 | 920 | 178.6 |
| B | 3 | 64 | 130018 | 722.84 | 945 | 920 | 178.6 |
| B | 0 | 219 | 123247 | 684.93 | 945 | 920 | 178.6 |
| C | 15 | 208 | 73942 | 333.55 | 940 | 941 | 218.9 |
| C | 8 | 128 | 11681 | 49.07 | 940 | 941 | 218.9 |
| C | 13 | 61 | 6687 | 26.25 | 940 | 941 | 218.9 |
| D | 1 | 52 | 1010908 | 4503.03 | 926 | 895 | 224.3 |
| D | 8 | 195 | 316405 | 1406.67 | 926 | 895 | 224.3 |
| D | 7 | 80 | 84736 | 373.8 | 926 | 895 | 224.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

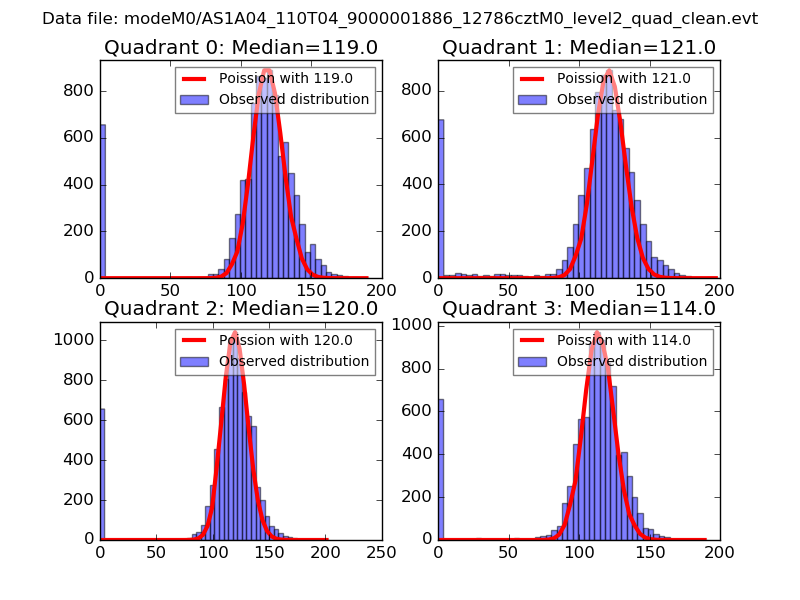

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

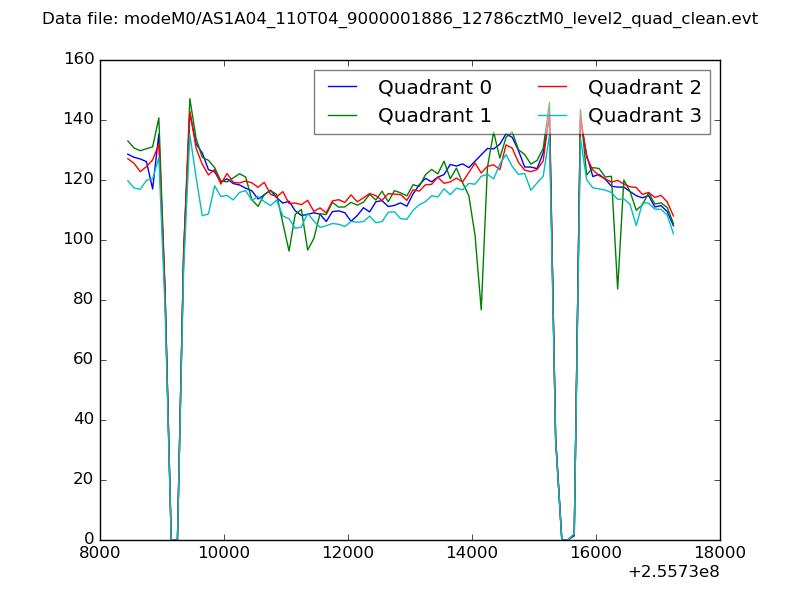

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

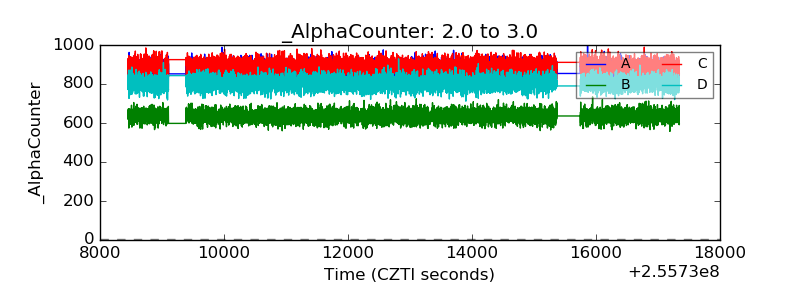

| Alpha Counter |  |

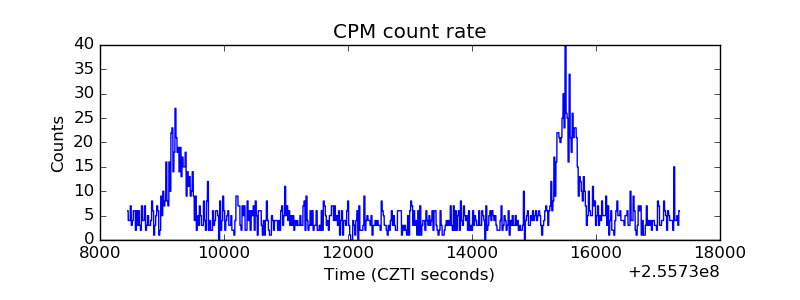

| _CPM_Rate |  |

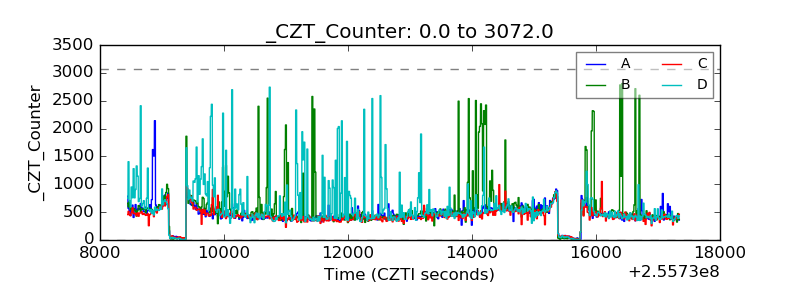

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

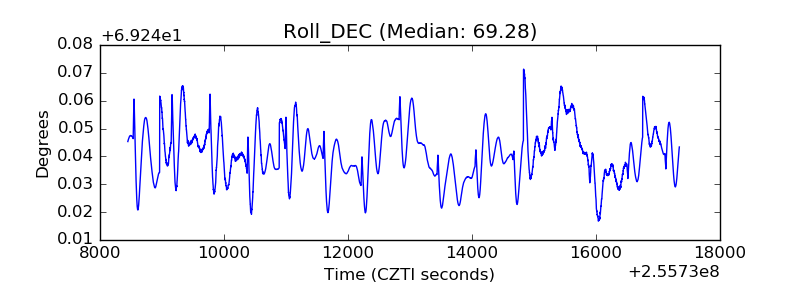

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
