| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_110T04_9000001886_12792cztM0_level2.evt | modeM0/AS1A04_110T04_9000001886_12792cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,382,400 | 117,786,240 |
| Size | 447.6 MB | 112.3 MB |
| Events in quadrant A | 3,038,473 | 806,575 |
| Events in quadrant B | 3,642,166 | 800,821 |
| Events in quadrant C | 2,759,513 | 789,991 |
| Events in quadrant D | 4,353,739 | 736,882 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12934 | 2 |
| B | 0 | 14739 | 1 |
| C | 0 | 12530 | 1 |
| D | 0 | 16863 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6203 | 49 | 0.789940% |
| B | 6203 | 258 | 4.159278% |
| C | 6203 | 21 | 0.338546% |
| D | 6203 | 404 | 6.512978% |

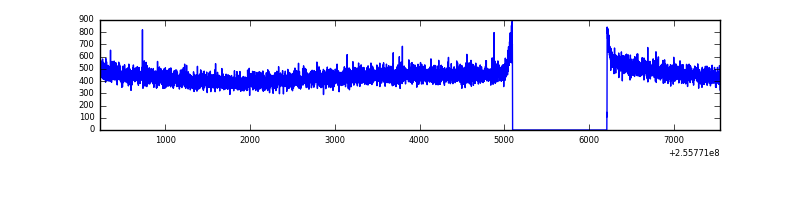

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7319 | 6205 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7319 | 6205 | 130 | 130 | 1.78% | 2.10% |  |
| C | 7319 | 6205 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7319 | 6205 | 311 | 311 | 4.25% | 5.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 152403 | 1009.82 | 742 | 727 | 150.2 |
| A | 9 | 143 | 14652 | 92.71 | 742 | 727 | 150.2 |
| A | 8 | 15 | 9118 | 55.86 | 742 | 727 | 150.2 |
| B | 4 | 239 | 662602 | 4842.43 | 725 | 709 | 136.7 |
| B | 0 | 214 | 30270 | 216.27 | 725 | 709 | 136.7 |
| B | 0 | 219 | 29237 | 208.71 | 725 | 709 | 136.7 |
| C | 13 | 61 | 5159 | 27.41 | 707 | 710 | 162.3 |
| C | 3 | 202 | 1758 | 6.45 | 707 | 710 | 162.3 |
| C | 8 | 222 | 1700 | 6.1 | 707 | 710 | 162.3 |
| D | 8 | 195 | 1064315 | 6490.73 | 692 | 675 | 163.9 |
| D | 1 | 52 | 535065 | 3261.05 | 692 | 675 | 163.9 |
| D | 10 | 253 | 35473 | 212.35 | 692 | 675 | 163.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

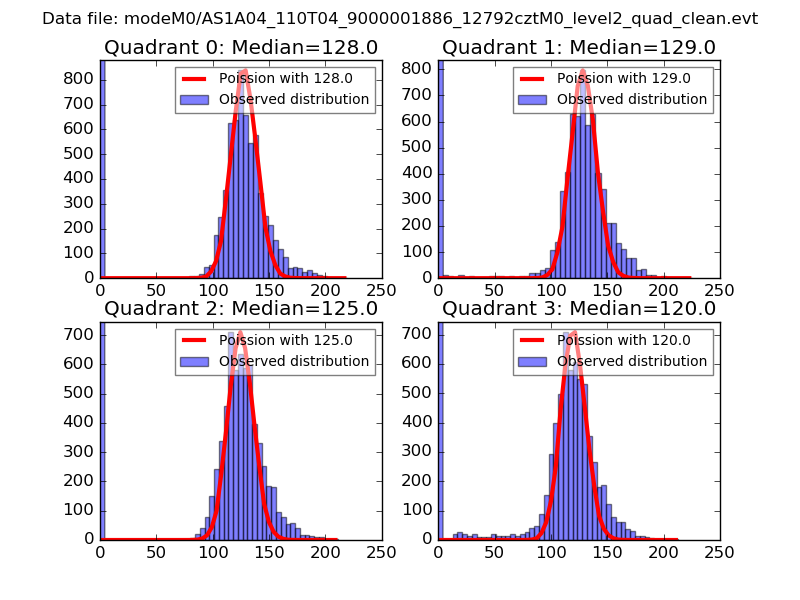

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

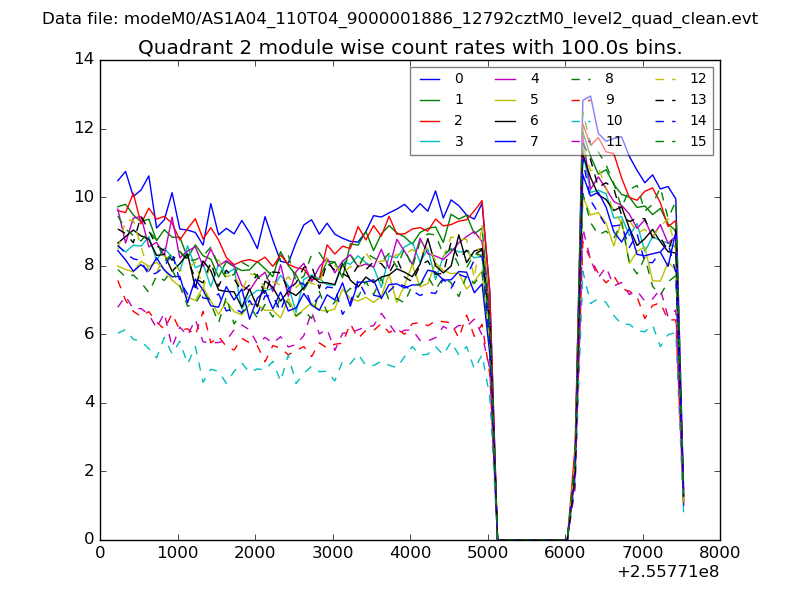

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

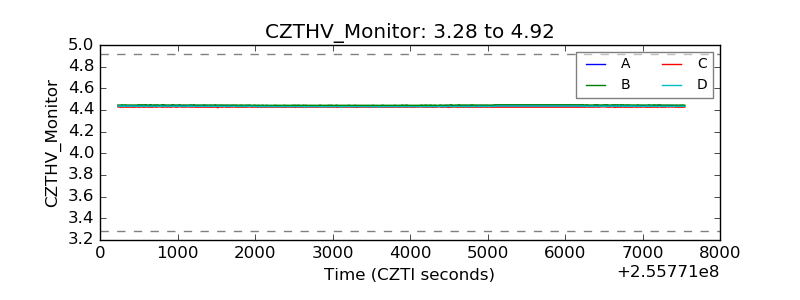

| CZT HV Monitor |  |
| D_VDD |  |

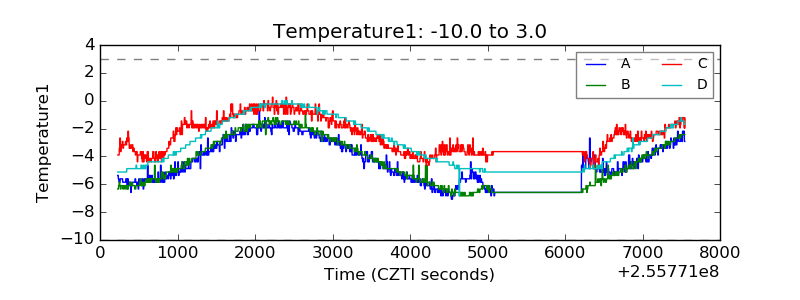

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

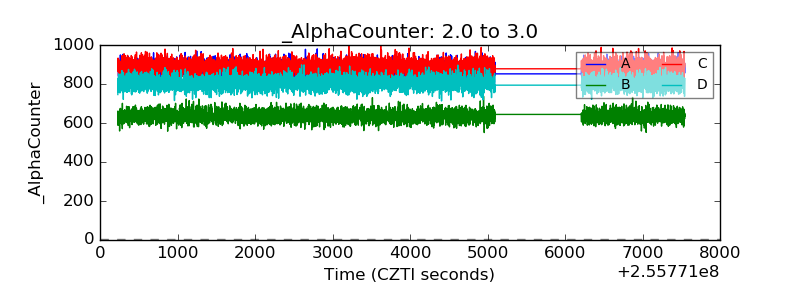

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

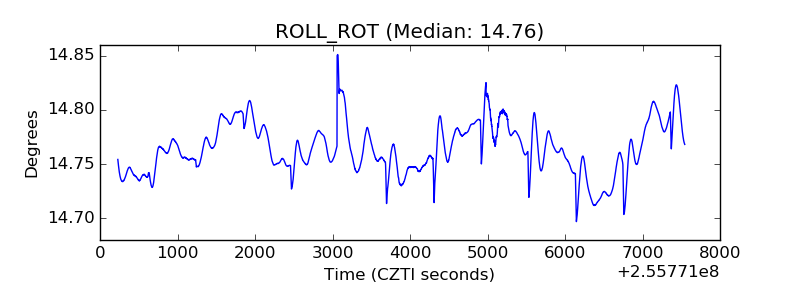

| _ROLL_ROT |  |
| _Roll_DEC |  |

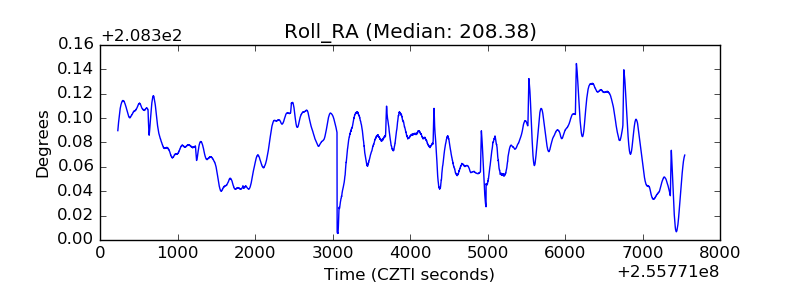

| _Roll_RA |  |
| Veto Counter |  |
