| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_112T01_9000001884_12764cztM0_level2.evt | modeM0/AS1A04_112T01_9000001884_12764cztM0_level2_quad_clean.evt |
| Size (bytes) | 531,734,400 | 127,975,680 |
| Size | 507.1 MB | 122.0 MB |
| Events in quadrant A | 3,311,260 | 884,221 |
| Events in quadrant B | 4,694,309 | 857,020 |
| Events in quadrant C | 3,429,762 | 867,076 |
| Events in quadrant D | 4,238,046 | 824,766 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13867 | 2 |
| B | 0 | 18080 | 1 |
| C | 0 | 14652 | 1 |
| D | 0 | 16819 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6342 | 74 | 1.166824% |
| B | 6342 | 556 | 8.766950% |
| C | 6342 | 96 | 1.513718% |
| D | 6342 | 222 | 3.500473% |

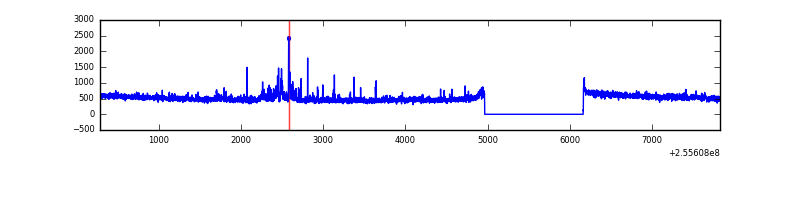

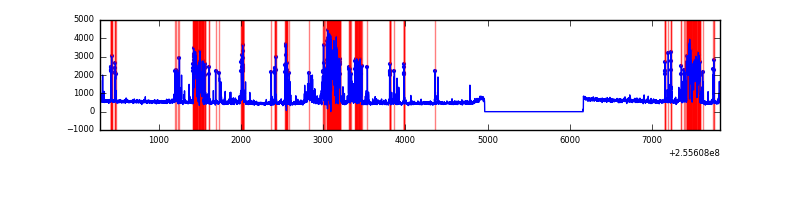

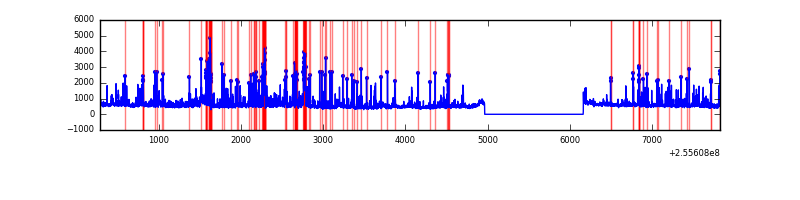

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7543 | 6344 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7543 | 6344 | 430 | 430 | 5.70% | 6.78% |  |
| C | 7543 | 6344 | 38 | 38 | 0.50% | 0.60% |  |
| D | 7543 | 6344 | 146 | 146 | 1.94% | 2.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 84867 | 528.99 | 797 | 782 | 159.0 |
| A | 8 | 15 | 84008 | 523.59 | 797 | 782 | 159.0 |
| A | 8 | 6 | 30079 | 184.31 | 797 | 782 | 159.0 |
| B | 4 | 239 | 1473707 | 10437.13 | 761 | 744 | 141.1 |
| B | 3 | 64 | 80649 | 566.19 | 761 | 744 | 141.1 |
| B | 0 | 219 | 29854 | 206.27 | 761 | 744 | 141.1 |
| C | 15 | 208 | 484276 | 2821.09 | 754 | 758 | 171.4 |
| C | 13 | 61 | 5739 | 29.06 | 754 | 758 | 171.4 |
| C | 14 | 234 | 3329 | 15.0 | 754 | 758 | 171.4 |
| D | 1 | 52 | 780249 | 4320.58 | 755 | 735 | 180.4 |
| D | 8 | 195 | 304149 | 1681.72 | 755 | 735 | 180.4 |
| D | 13 | 104 | 96127 | 528.73 | 755 | 735 | 180.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

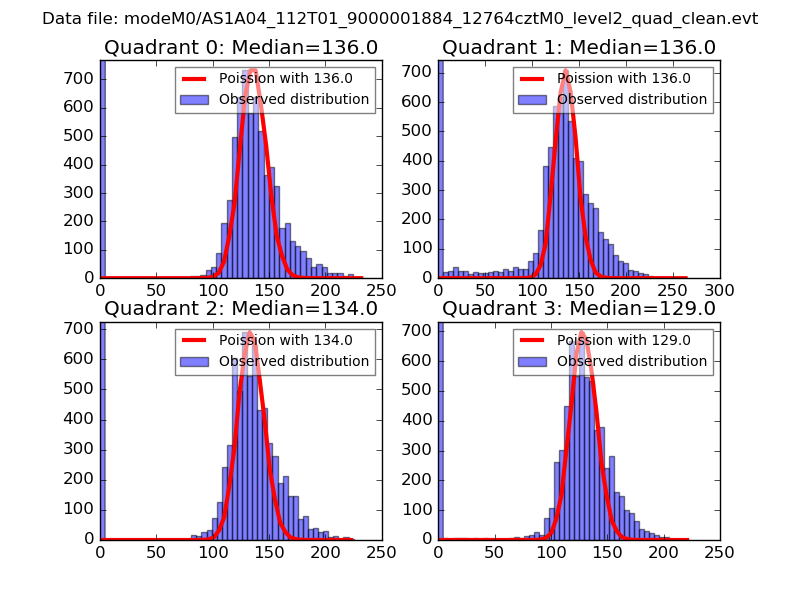

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

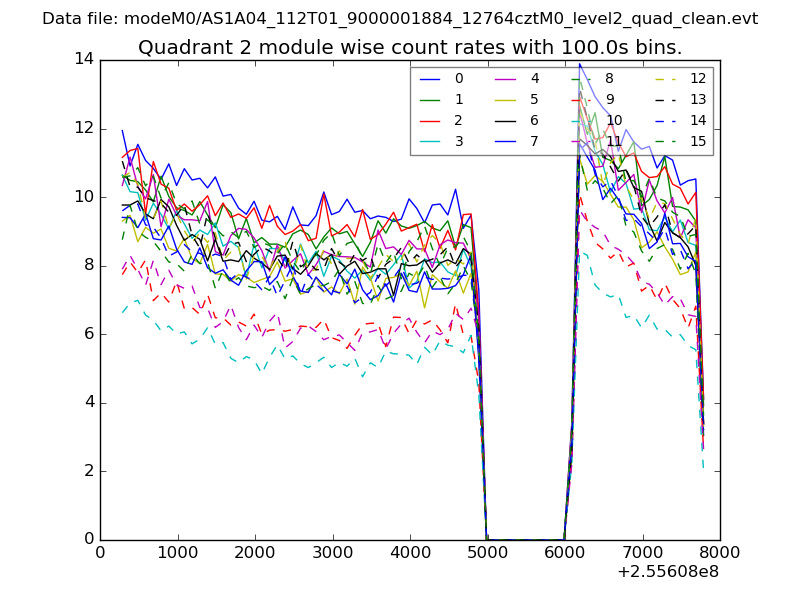

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

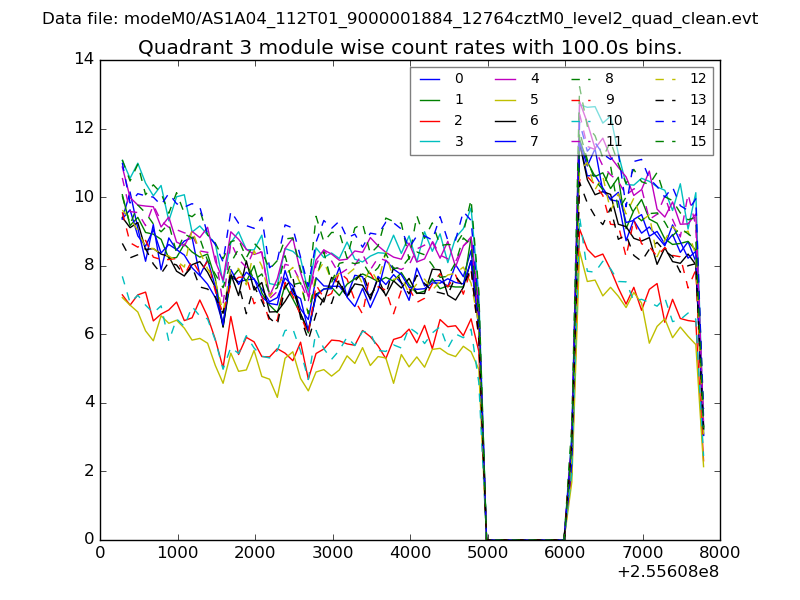

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

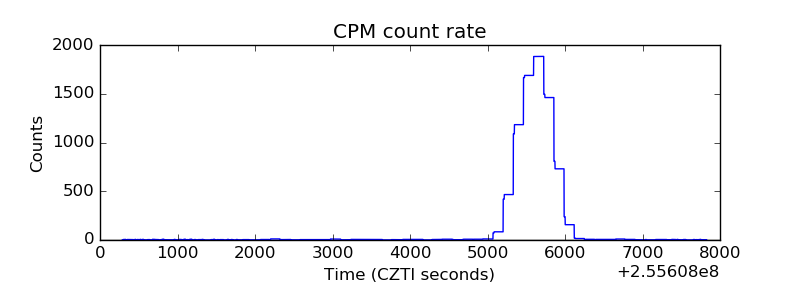

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

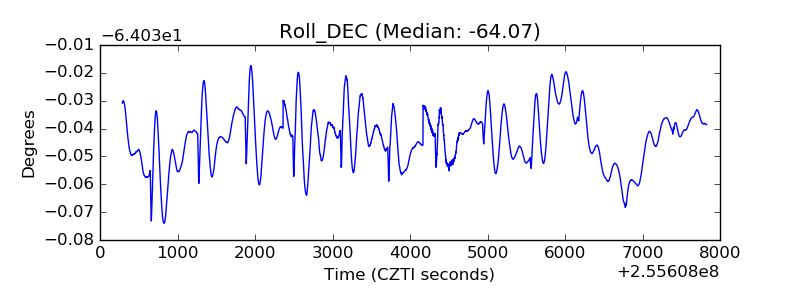

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
