| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T01_9000001888_12797cztM0_level2.evt | modeM0/AS1G08_071T01_9000001888_12797cztM0_level2_quad_clean.evt |
| Size (bytes) | 501,419,520 | 93,700,800 |
| Size | 478.2 MB | 89.4 MB |
| Events in quadrant A | 3,328,706 | 604,695 |
| Events in quadrant B | 4,346,402 | 594,897 |
| Events in quadrant C | 3,072,177 | 609,960 |
| Events in quadrant D | 3,994,062 | 571,769 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14105 | 3 |
| B | 0 | 17302 | 2 |
| C | 0 | 13466 | 2 |
| D | 0 | 16303 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6543 | 43 | 0.657191% |
| B | 6543 | 400 | 6.113404% |
| C | 6543 | 19 | 0.290387% |
| D | 6543 | 293 | 4.478068% |

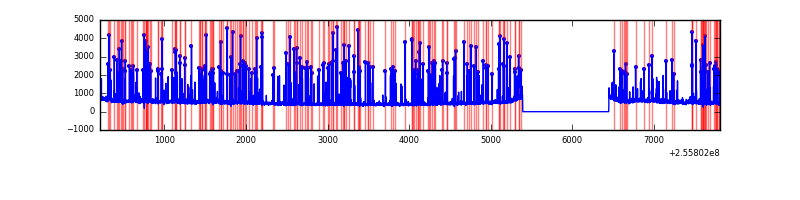

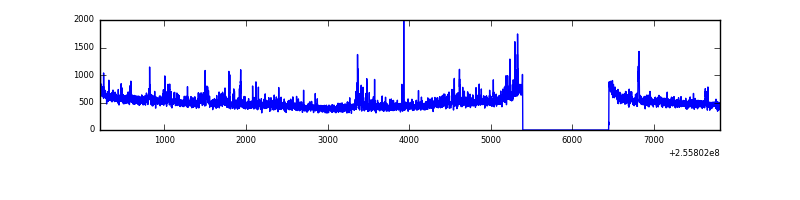

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7599 | 6545 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7599 | 6545 | 253 | 253 | 3.33% | 3.87% |  |
| C | 7599 | 6545 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7599 | 6545 | 215 | 215 | 2.83% | 3.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 116256 | 711.47 | 801 | 783 | 162.3 |
| A | 8 | 15 | 47339 | 286.85 | 801 | 783 | 162.3 |
| A | 15 | 222 | 43897 | 265.64 | 801 | 783 | 162.3 |
| B | 4 | 239 | 1091630 | 7406.15 | 787 | 768 | 147.3 |
| B | 0 | 219 | 107820 | 726.8 | 787 | 768 | 147.3 |
| B | 3 | 209 | 20002 | 130.58 | 787 | 768 | 147.3 |
| C | 13 | 61 | 5713 | 27.24 | 787 | 792 | 180.7 |
| C | 14 | 234 | 3516 | 15.08 | 787 | 792 | 180.7 |
| C | 3 | 202 | 1944 | 6.38 | 787 | 792 | 180.7 |
| D | 8 | 195 | 870044 | 4707.24 | 769 | 747 | 184.7 |
| D | 1 | 52 | 137316 | 739.52 | 769 | 747 | 184.7 |
| D | 13 | 172 | 35304 | 187.13 | 769 | 747 | 184.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

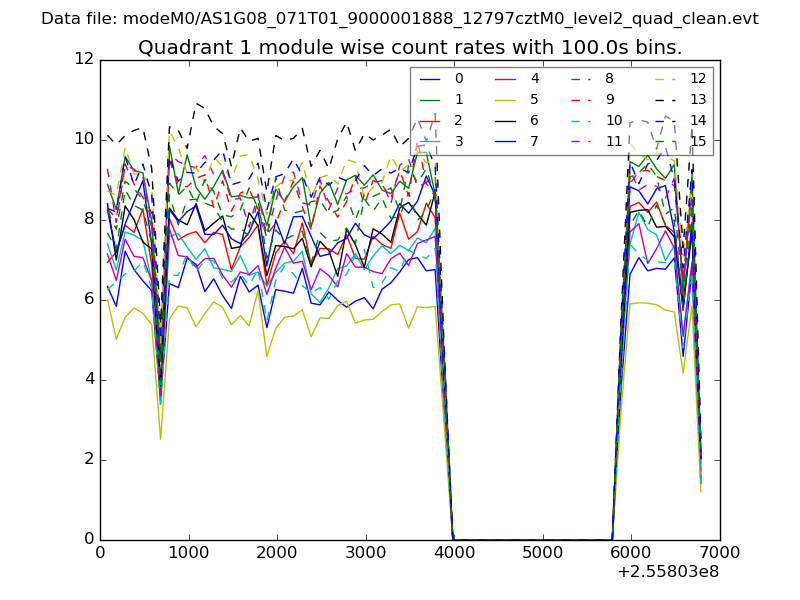

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

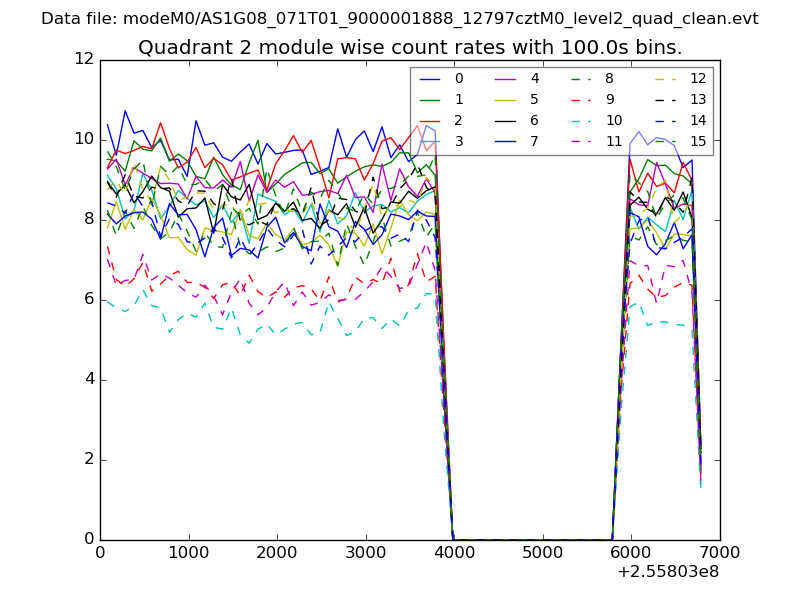

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

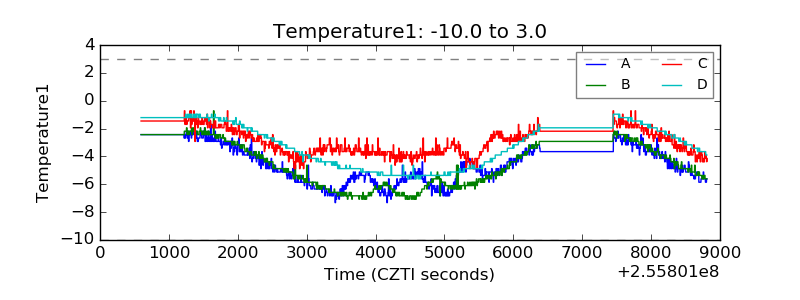

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

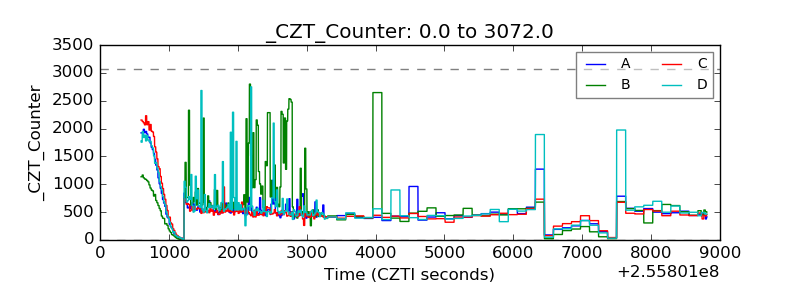

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

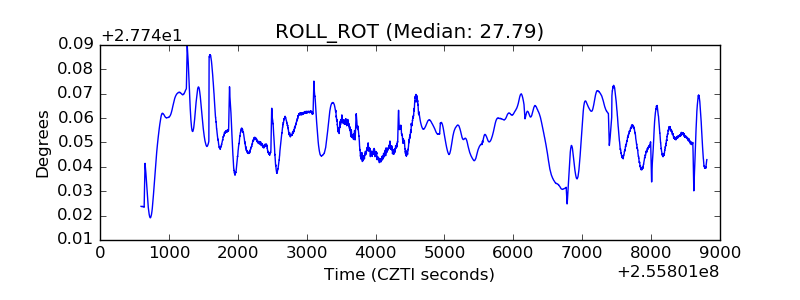

| _ROLL_ROT |  |
| _Roll_DEC |  |

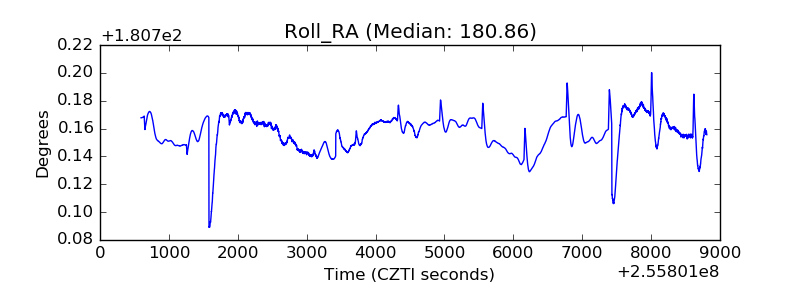

| _Roll_RA |  |
| Veto Counter |  |
