| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T01_9000001888_12799cztM0_level2.evt | modeM0/AS1G08_071T01_9000001888_12799cztM0_level2_quad_clean.evt |
| Size (bytes) | 611,798,400 | 103,809,600 |
| Size | 583.5 MB | 99.0 MB |
| Events in quadrant A | 4,241,537 | 645,598 |
| Events in quadrant B | 4,914,443 | 640,289 |
| Events in quadrant C | 3,924,813 | 649,123 |
| Events in quadrant D | 4,867,212 | 614,552 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 174 | 0 |
| B | 0 | 174 | 0 |
| C | 0 | 174 | 0 |
| D | 0 | 174 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18359 | 3 |
| B | 0 | 20197 | 2 |
| C | 0 | 17626 | 2 |
| D | 0 | 20411 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8559 | 63 | 0.736067% |
| B | 8559 | 343 | 4.007478% |
| C | 8559 | 53 | 0.619231% |
| D | 8559 | 290 | 3.388246% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

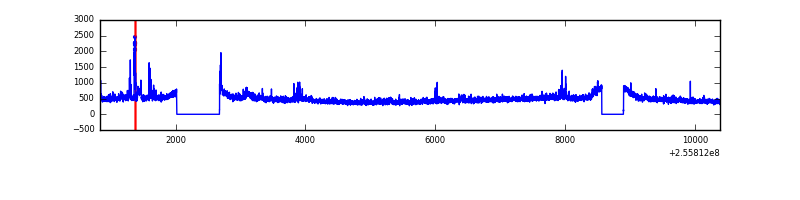

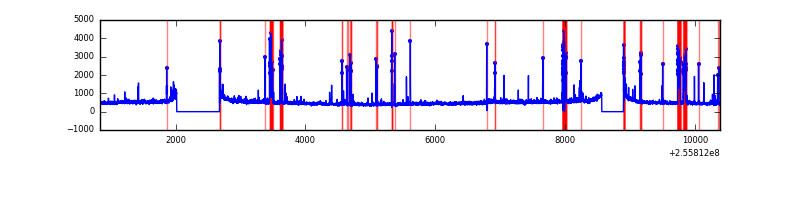

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9555 | 8562 | 9 | 9 | 0.09% | 0.11% |  |
| B | 9555 | 8562 | 175 | 175 | 1.83% | 2.04% |  |
| C | 9555 | 8562 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9555 | 8562 | 213 | 213 | 2.23% | 2.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 212892 | 1007.92 | 1031 | 1009 | 210.2 |
| A | 15 | 222 | 52614 | 245.48 | 1031 | 1009 | 210.2 |
| A | 8 | 15 | 13624 | 60.01 | 1031 | 1009 | 210.2 |
| B | 4 | 239 | 684424 | 3498.81 | 1016 | 988 | 195.3 |
| B | 0 | 219 | 136053 | 691.46 | 1016 | 988 | 195.3 |
| B | 0 | 230 | 37537 | 187.11 | 1016 | 988 | 195.3 |
| C | 13 | 61 | 7449 | 27.54 | 1006 | 1010 | 233.8 |
| C | 8 | 222 | 2740 | 7.4 | 1006 | 1010 | 233.8 |
| C | 3 | 202 | 2535 | 6.52 | 1006 | 1010 | 233.8 |
| D | 8 | 195 | 846122 | 3541.37 | 986 | 955 | 238.7 |
| D | 1 | 52 | 195497 | 815.16 | 986 | 955 | 238.7 |
| D | 2 | 234 | 32579 | 132.51 | 986 | 955 | 238.7 |

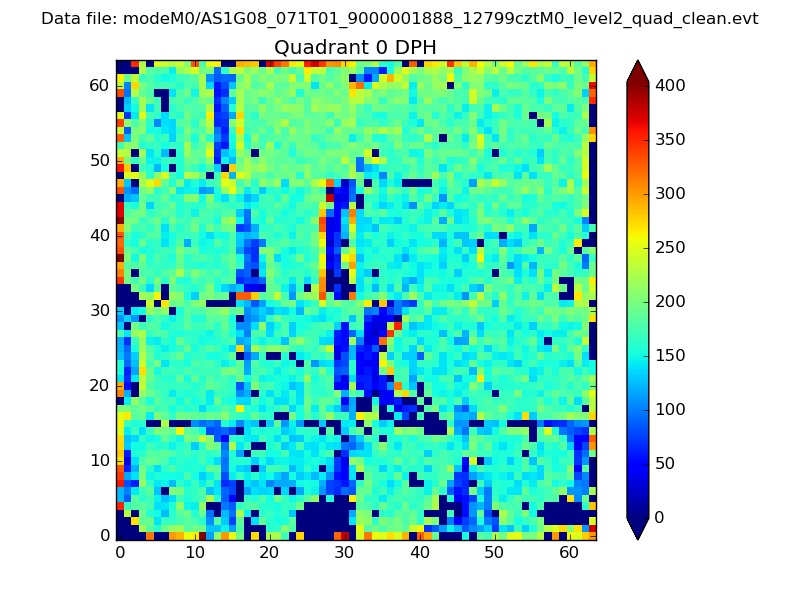

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

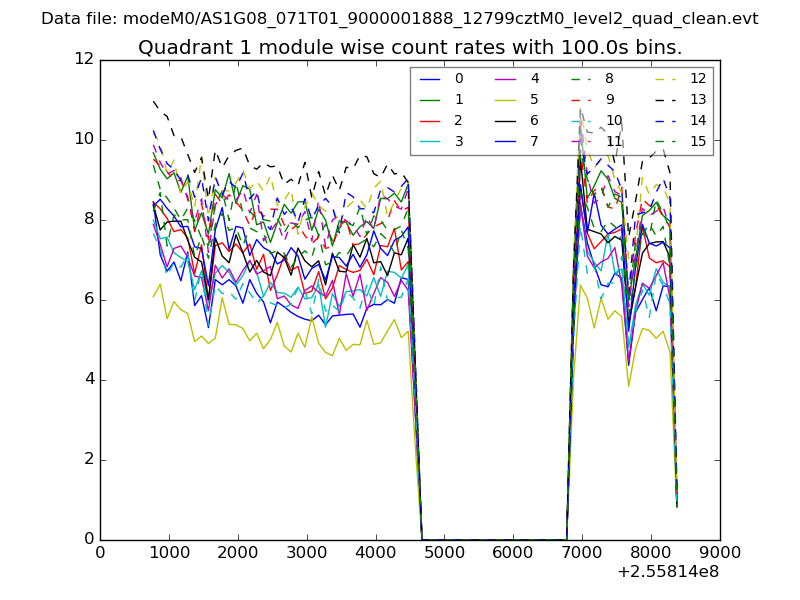

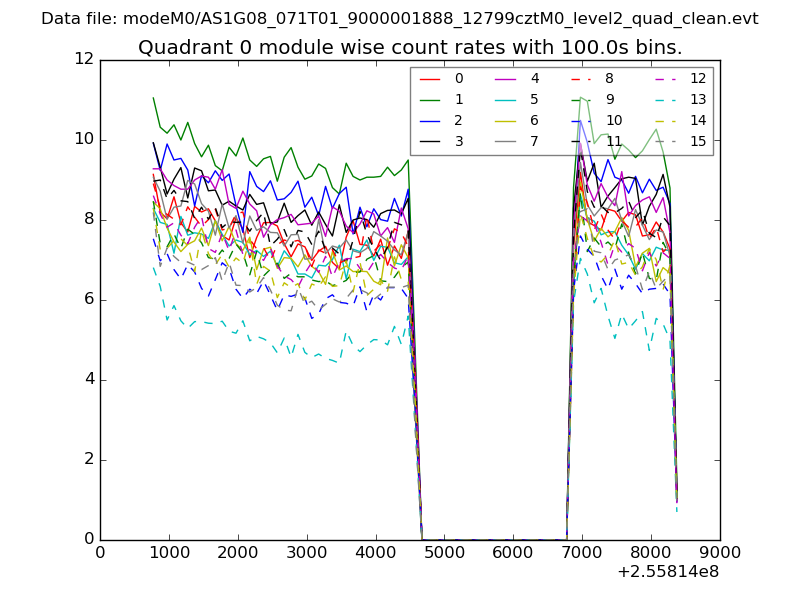

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

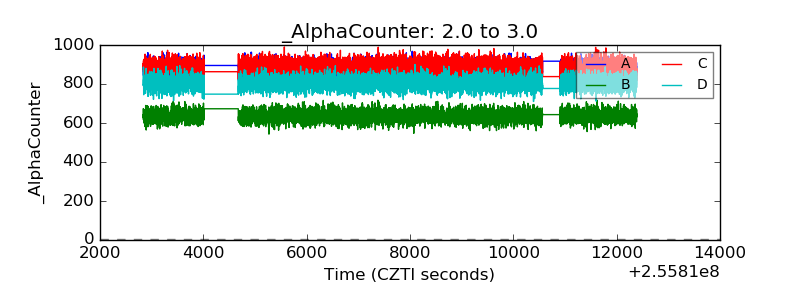

| Alpha Counter |  |

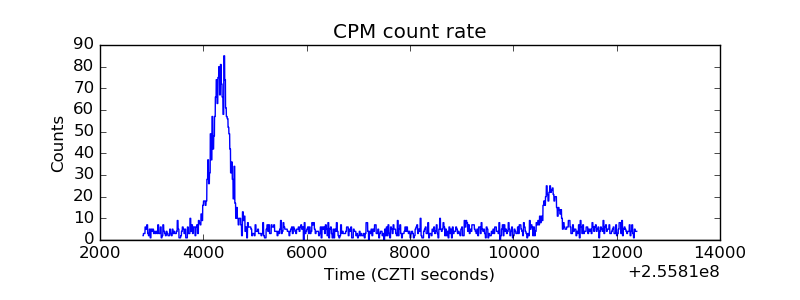

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
