| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T01_9000001888_12800cztM0_level2.evt | modeM0/AS1G08_071T01_9000001888_12800cztM0_level2_quad_clean.evt |
| Size (bytes) | 583,320,960 | 105,327,360 |
| Size | 556.3 MB | 100.4 MB |
| Events in quadrant A | 3,832,734 | 666,446 |
| Events in quadrant B | 4,508,715 | 663,929 |
| Events in quadrant C | 3,618,178 | 672,981 |
| Events in quadrant D | 5,170,302 | 637,079 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16945 | 3 |
| B | 0 | 18789 | 2 |
| C | 0 | 16425 | 2 |
| D | 0 | 20960 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7907 | 61 | 0.771468% |
| B | 7907 | 342 | 4.325281% |
| C | 7907 | 46 | 0.581763% |
| D | 7907 | 285 | 3.604401% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8528 | 7910 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8528 | 7910 | 162 | 162 | 1.90% | 2.05% |  |
| C | 8528 | 7910 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8528 | 7910 | 203 | 203 | 2.38% | 2.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 114732 | 589.66 | 942 | 920 | 193.0 |
| A | 8 | 15 | 57166 | 291.41 | 942 | 920 | 193.0 |
| A | 4 | 2 | 41027 | 207.79 | 942 | 920 | 193.0 |
| B | 4 | 239 | 649830 | 3618.01 | 931 | 907 | 179.4 |
| B | 0 | 219 | 81239 | 447.88 | 931 | 907 | 179.4 |
| B | 0 | 230 | 53155 | 291.3 | 931 | 907 | 179.4 |
| C | 14 | 234 | 11621 | 49.38 | 925 | 929 | 216.5 |
| C | 13 | 61 | 6699 | 26.65 | 925 | 929 | 216.5 |
| C | 12 | 4 | 2601 | 7.72 | 925 | 929 | 216.5 |
| D | 1 | 52 | 1053912 | 4800.71 | 902 | 873 | 219.4 |
| D | 8 | 195 | 655006 | 2982.14 | 902 | 873 | 219.4 |
| D | 2 | 234 | 28997 | 128.21 | 902 | 873 | 219.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

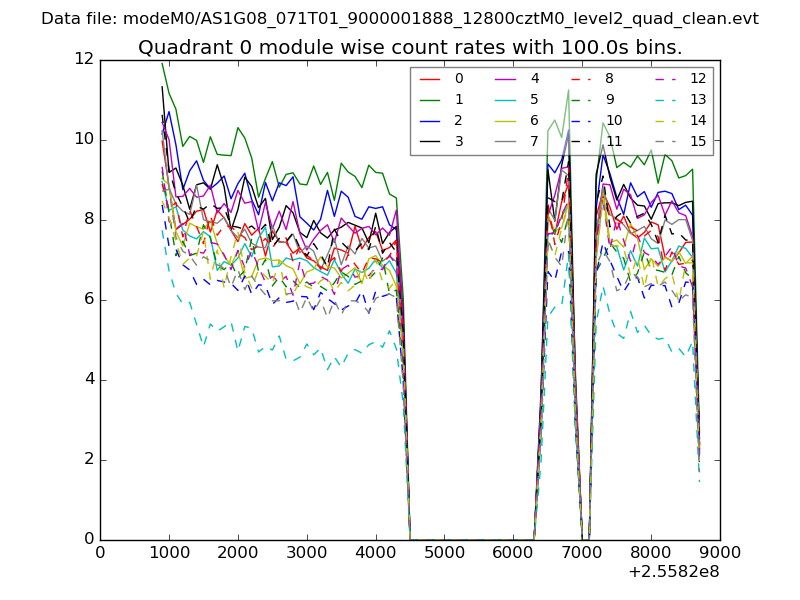

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

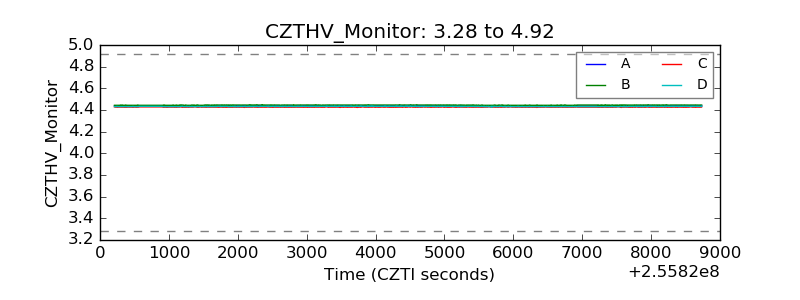

| CZT HV Monitor |  |
| D_VDD |  |

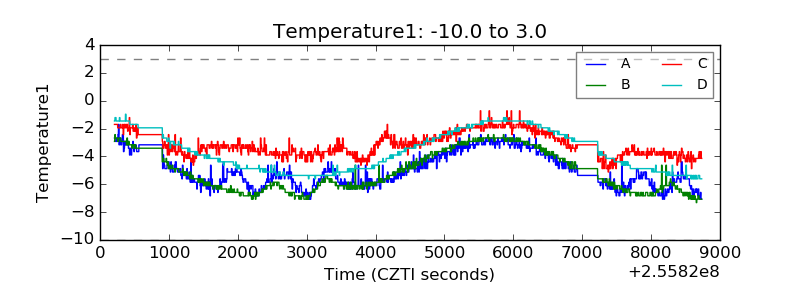

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

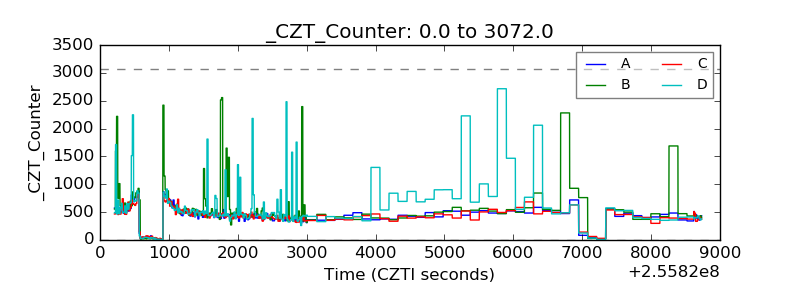

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

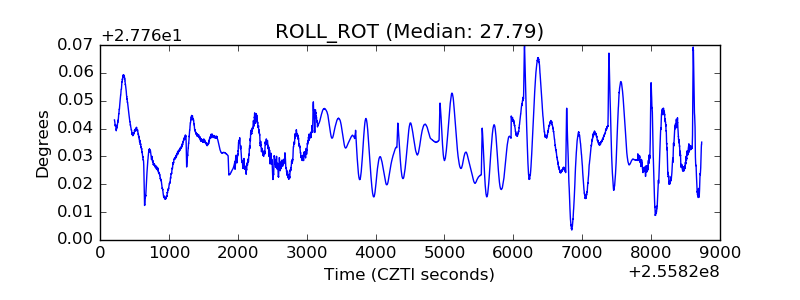

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
