| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T01_9000001888_12805cztM0_level2.evt | modeM0/AS1G08_071T01_9000001888_12805cztM0_level2_quad_clean.evt |
| Size (bytes) | 442,062,720 | 75,075,840 |
| Size | 421.6 MB | 71.6 MB |
| Events in quadrant A | 3,043,679 | 465,018 |
| Events in quadrant B | 3,906,851 | 459,801 |
| Events in quadrant C | 2,833,021 | 463,711 |
| Events in quadrant D | 3,177,274 | 446,188 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12937 | 2 |
| B | 0 | 15600 | 1 |
| C | 0 | 12694 | 1 |
| D | 0 | 13508 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6280 | 41 | 0.652866% |
| B | 6280 | 208 | 3.312102% |
| C | 6280 | 20 | 0.318471% |
| D | 6280 | 61 | 0.971338% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7366 | 6282 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7366 | 6282 | 123 | 123 | 1.67% | 1.96% |  |
| C | 7366 | 6282 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7366 | 6282 | 41 | 41 | 0.56% | 0.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 102370 | 663.63 | 758 | 741 | 153.1 |
| A | 8 | 15 | 17984 | 112.6 | 758 | 741 | 153.1 |
| A | 9 | 143 | 8414 | 50.1 | 758 | 741 | 153.1 |
| B | 4 | 239 | 448743 | 3195.41 | 740 | 724 | 140.2 |
| B | 0 | 219 | 264327 | 1880.1 | 740 | 724 | 140.2 |
| B | 10 | 245 | 196931 | 1399.41 | 740 | 724 | 140.2 |
| C | 13 | 61 | 5287 | 27.01 | 726 | 729 | 168.7 |
| C | 3 | 202 | 1771 | 6.18 | 726 | 729 | 168.7 |
| C | -1 | -1 | -1 | -1.0 | 726 | 729 | 168.7 |
| D | 8 | 195 | 203557 | 1147.19 | 727 | 706 | 176.8 |
| D | 1 | 52 | 167056 | 940.76 | 727 | 706 | 176.8 |
| D | 2 | 234 | 24763 | 136.05 | 727 | 706 | 176.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

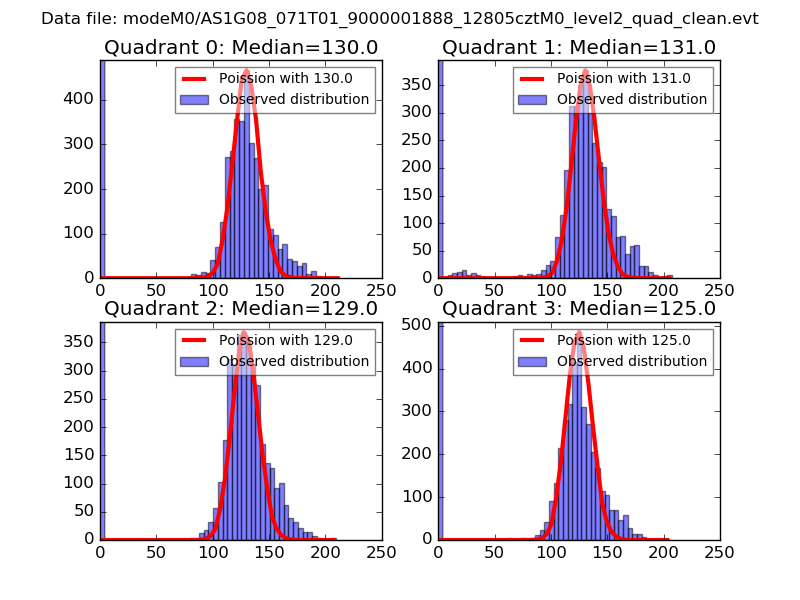

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

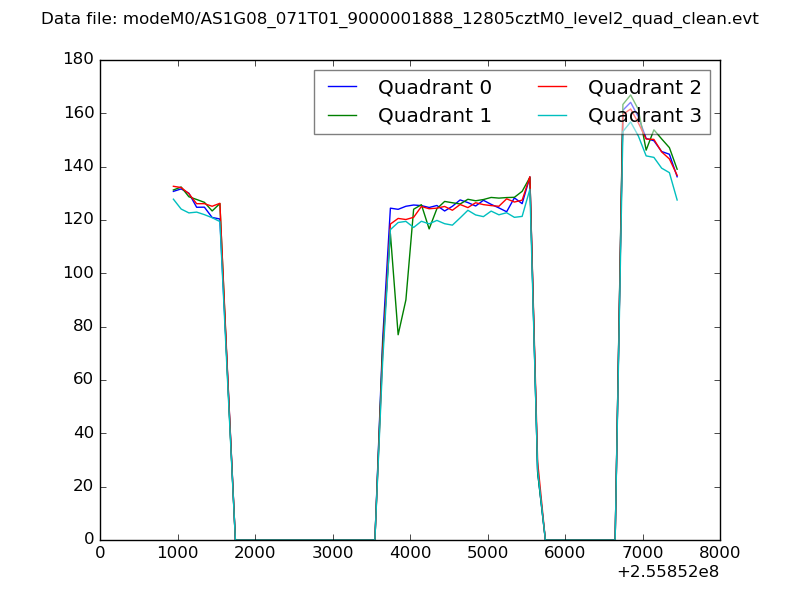

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

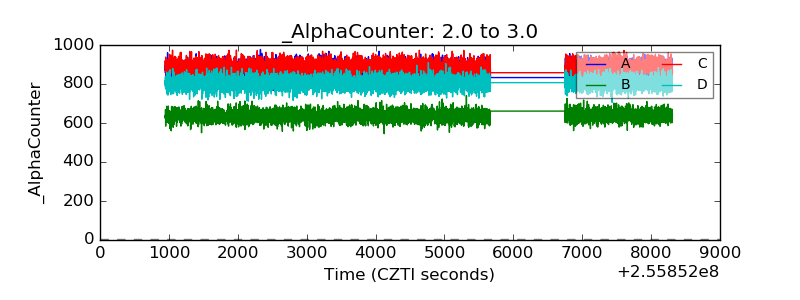

| Alpha Counter |  |
| _CPM_Rate |  |

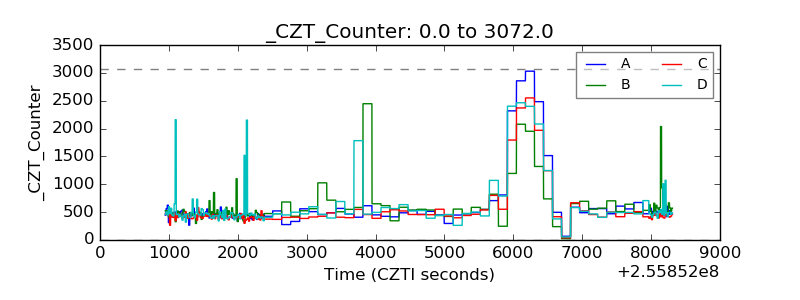

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

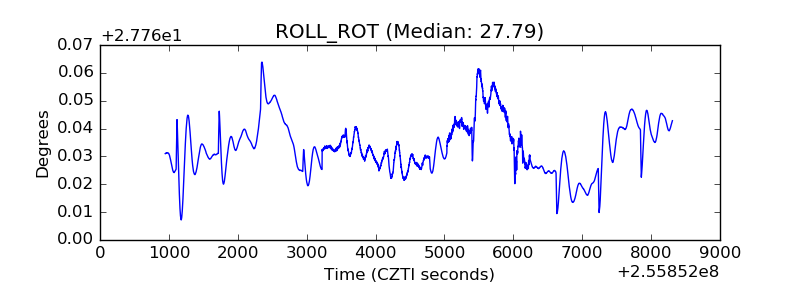

| _ROLL_ROT |  |
| _Roll_DEC |  |

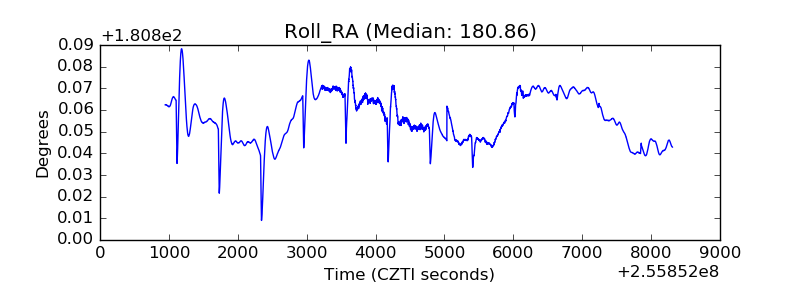

| _Roll_RA |  |
| Veto Counter |  |
