| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T01_9000001888_12810cztM0_level2.evt | modeM0/AS1G08_071T01_9000001888_12810cztM0_level2_quad_clean.evt |
| Size (bytes) | 561,939,840 | 79,248,960 |
| Size | 535.9 MB | 75.6 MB |
| Events in quadrant A | 3,290,614 | 497,934 |
| Events in quadrant B | 4,701,488 | 489,819 |
| Events in quadrant C | 3,224,465 | 498,593 |
| Events in quadrant D | 5,373,130 | 471,452 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13786 | 3 |
| B | 0 | 18322 | 2 |
| C | 0 | 13467 | 2 |
| D | 0 | 20257 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6332 | 101 | 1.595073% |
| B | 6332 | 467 | 7.375237% |
| C | 6332 | 89 | 1.405559% |
| D | 6332 | 417 | 6.585597% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

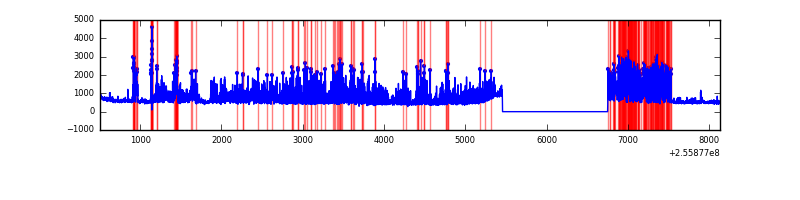

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7628 | 6334 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7628 | 6334 | 250 | 250 | 3.28% | 3.95% |  |
| C | 7628 | 6334 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7628 | 6334 | 270 | 270 | 3.54% | 4.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 37858 | 218.35 | 844 | 828 | 169.6 |
| A | 0 | 226 | 7637 | 40.15 | 844 | 828 | 169.6 |
| A | 12 | 194 | 6523 | 33.58 | 844 | 828 | 169.6 |
| B | 4 | 239 | 1006778 | 6565.21 | 823 | 804 | 153.2 |
| B | 0 | 219 | 146000 | 947.58 | 823 | 804 | 153.2 |
| B | 0 | 197 | 117397 | 760.91 | 823 | 804 | 153.2 |
| C | 13 | 61 | 6100 | 27.93 | 826 | 833 | 188.6 |
| C | 0 | 207 | 2652 | 9.64 | 826 | 833 | 188.6 |
| C | 3 | 202 | 2012 | 6.25 | 826 | 833 | 188.6 |
| D | 1 | 52 | 2013859 | 10484.07 | 811 | 787 | 192.0 |
| D | 10 | 199 | 189892 | 984.86 | 811 | 787 | 192.0 |
| D | 8 | 195 | 39621 | 202.25 | 811 | 787 | 192.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

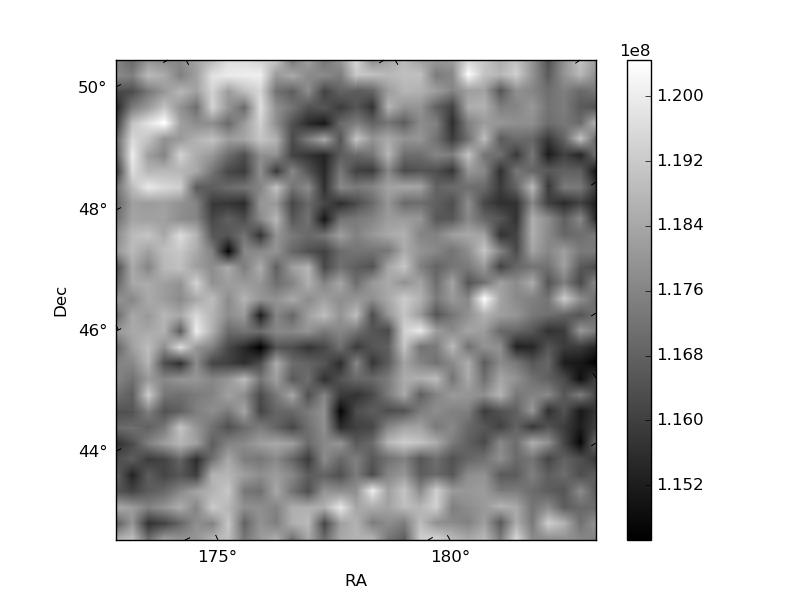

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

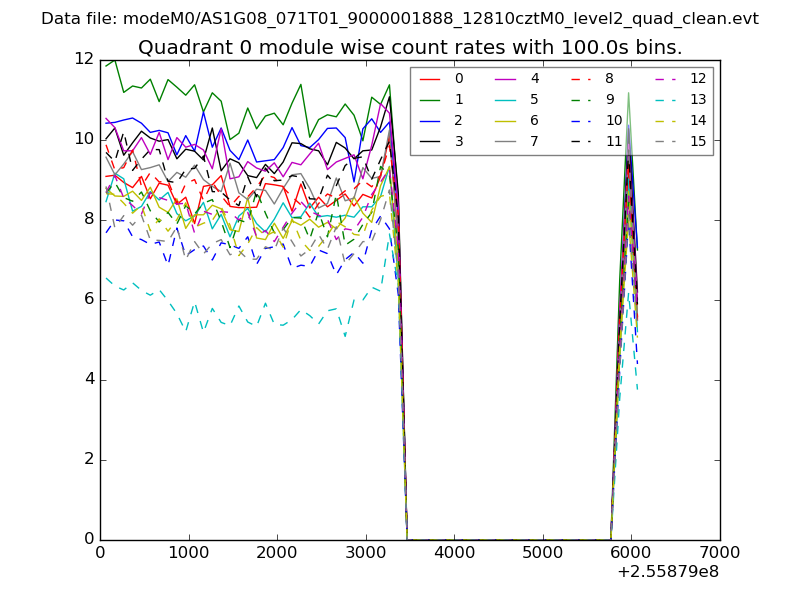

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

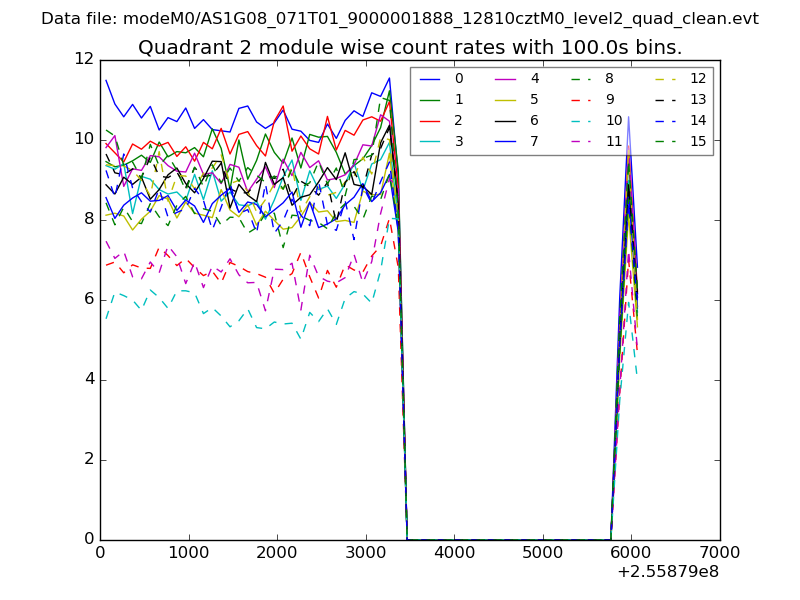

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

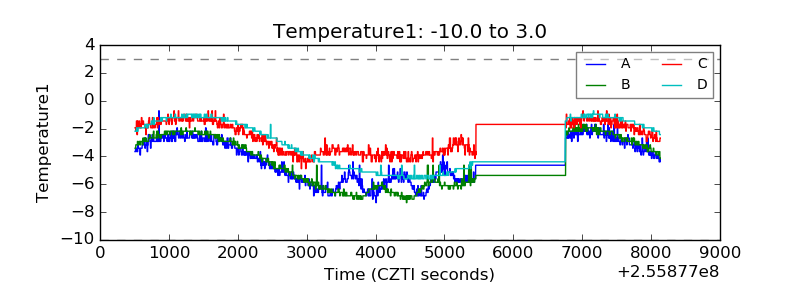

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

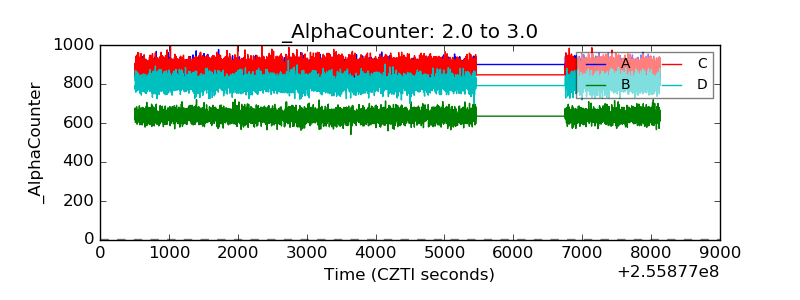

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

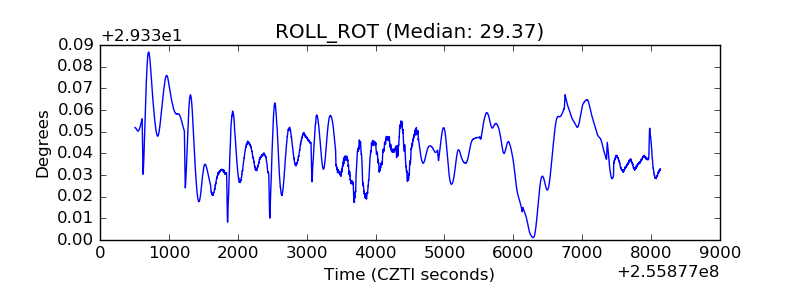

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

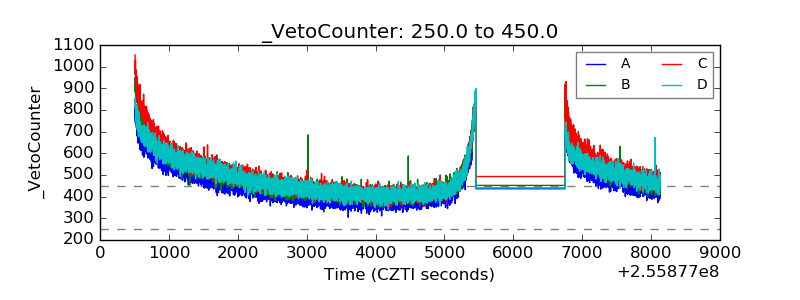

| Veto Counter |  |
