| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T01_9000001888_12811cztM0_level2.evt | modeM0/AS1G08_071T01_9000001888_12811cztM0_level2_quad_clean.evt |
| Size (bytes) | 484,272,000 | 89,714,880 |
| Size | 461.8 MB | 85.6 MB |
| Events in quadrant A | 3,134,433 | 573,716 |
| Events in quadrant B | 4,176,891 | 569,582 |
| Events in quadrant C | 3,048,449 | 577,201 |
| Events in quadrant D | 3,879,550 | 557,740 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13300 | 3 |
| B | 0 | 16733 | 2 |
| C | 0 | 13049 | 2 |
| D | 0 | 15700 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6277 | 55 | 0.876215% |
| B | 6277 | 365 | 5.814880% |
| C | 6277 | 49 | 0.780628% |
| D | 6277 | 283 | 4.508523% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

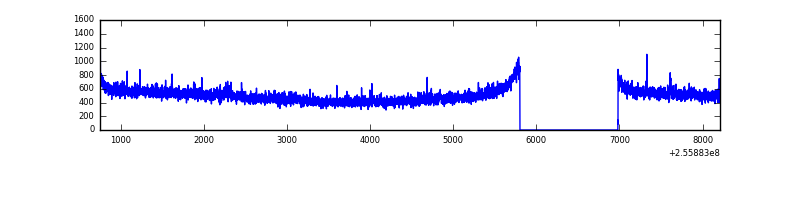

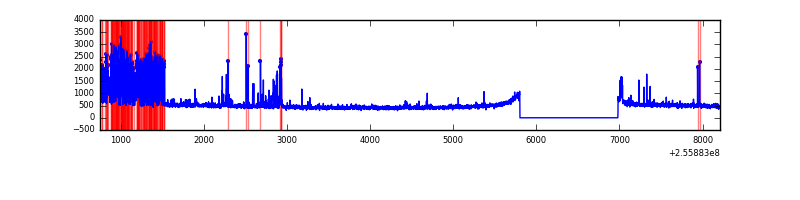

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7458 | 6279 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7458 | 6279 | 189 | 189 | 2.53% | 3.01% |  |
| C | 7458 | 6279 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7458 | 6279 | 179 | 179 | 2.40% | 2.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 64756 | 397.08 | 796 | 780 | 161.1 |
| A | 0 | 226 | 7294 | 40.43 | 796 | 780 | 161.1 |
| A | 12 | 194 | 6089 | 32.95 | 796 | 780 | 161.1 |
| B | 4 | 239 | 790007 | 5399.77 | 781 | 764 | 146.2 |
| B | 0 | 219 | 153486 | 1044.88 | 781 | 764 | 146.2 |
| B | 0 | 197 | 115079 | 782.11 | 781 | 764 | 146.2 |
| C | 13 | 61 | 5690 | 27.25 | 781 | 785 | 180.0 |
| C | 15 | 208 | 3396 | 14.51 | 781 | 785 | 180.0 |
| C | 3 | 202 | 2022 | 6.87 | 781 | 785 | 180.0 |
| D | 1 | 52 | 816573 | 4079.83 | 765 | 749 | 200.0 |
| D | 13 | 104 | 56104 | 276.82 | 765 | 749 | 200.0 |
| D | 13 | 172 | 46160 | 227.09 | 765 | 749 | 200.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

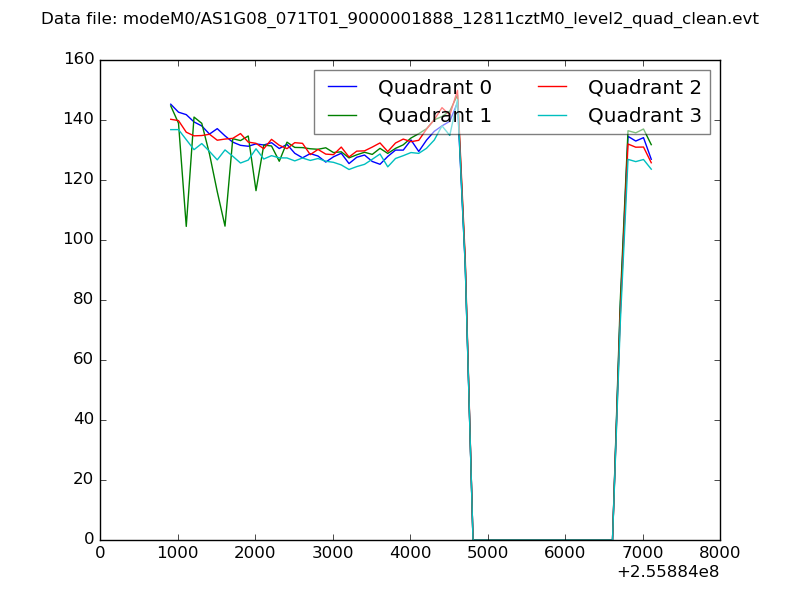

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

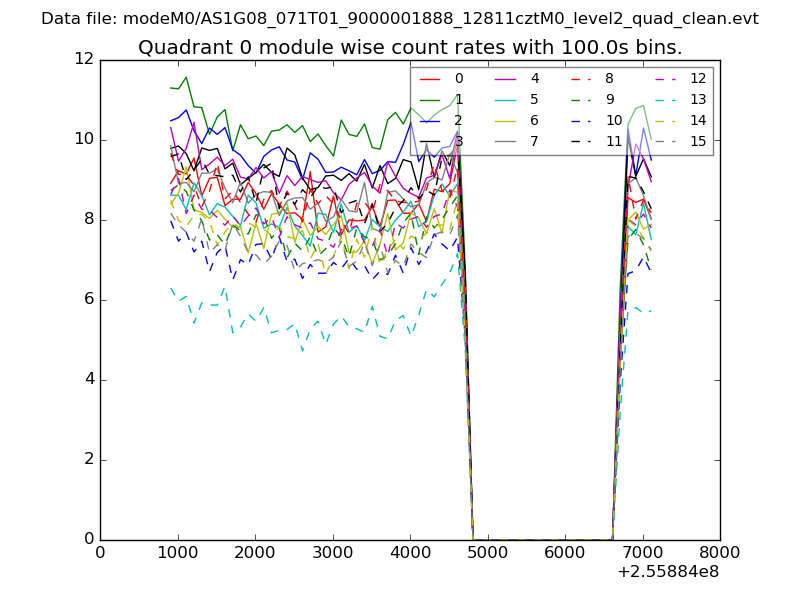

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

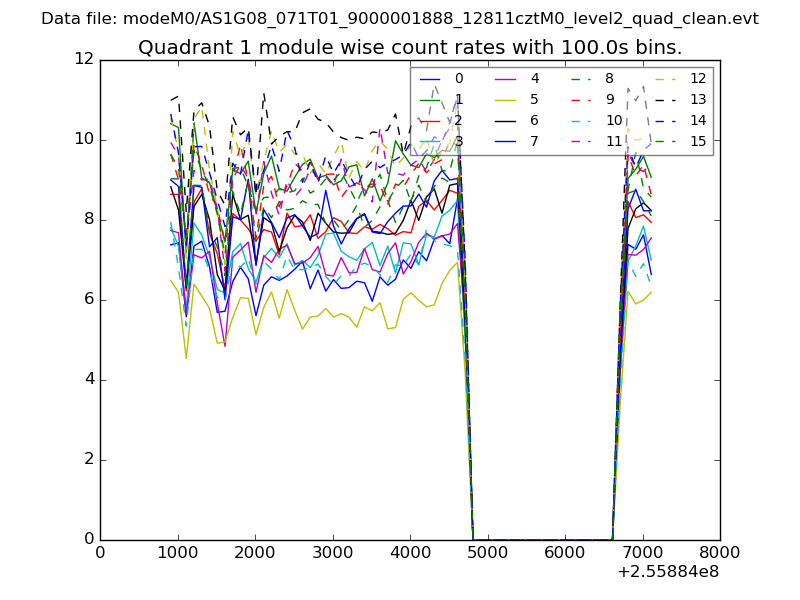

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

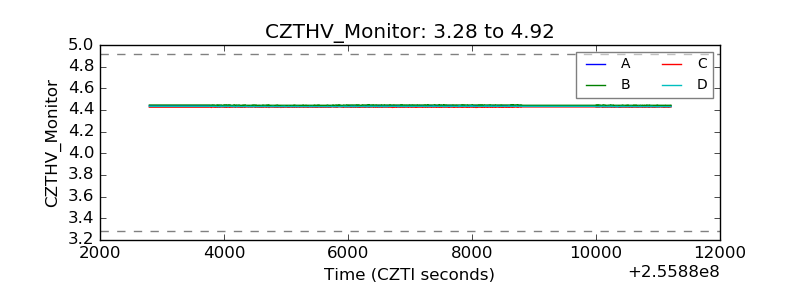

| CZT HV Monitor |  |
| D_VDD |  |

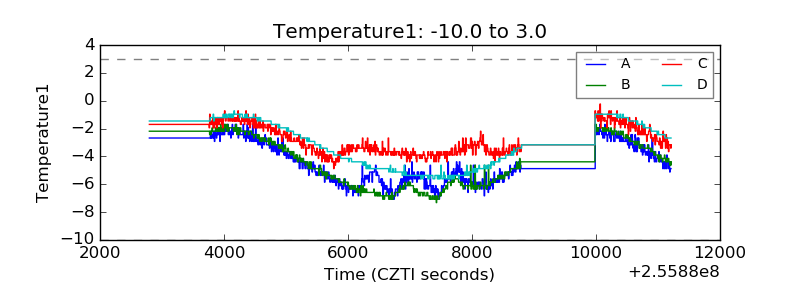

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

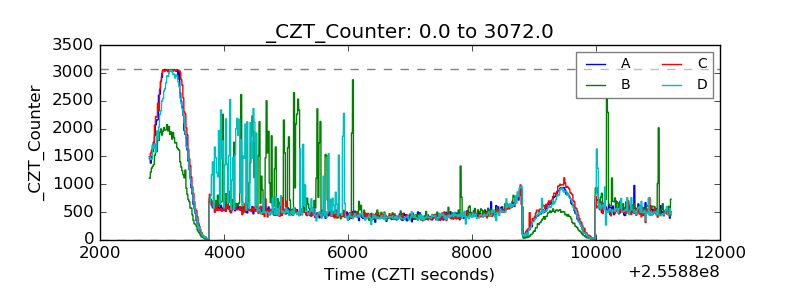

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
