| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T01_9000001888_12812cztM0_level2.evt | modeM0/AS1G08_071T01_9000001888_12812cztM0_level2_quad_clean.evt |
| Size (bytes) | 498,862,080 | 101,033,280 |
| Size | 475.8 MB | 96.4 MB |
| Events in quadrant A | 3,471,292 | 645,781 |
| Events in quadrant B | 4,313,940 | 641,998 |
| Events in quadrant C | 3,328,116 | 650,720 |
| Events in quadrant D | 3,516,055 | 630,333 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14911 | 3 |
| B | 0 | 17485 | 2 |
| C | 0 | 14629 | 2 |
| D | 0 | 15253 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7051 | 103 | 1.460786% |
| B | 7051 | 346 | 4.907105% |
| C | 7051 | 90 | 1.276415% |
| D | 7051 | 87 | 1.233868% |

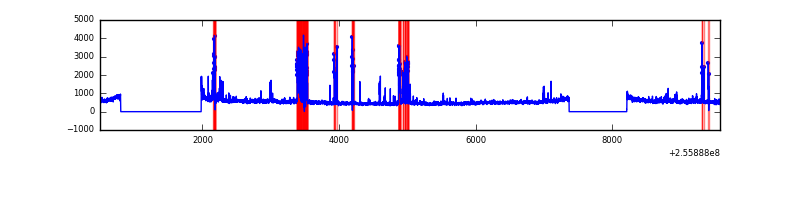

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9077 | 7054 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9077 | 7054 | 150 | 150 | 1.65% | 2.13% |  |
| C | 9077 | 7054 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9077 | 7054 | 9 | 9 | 0.10% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 104363 | 591.88 | 871 | 853 | 174.9 |
| A | 8 | 15 | 13318 | 71.28 | 871 | 853 | 174.9 |
| A | 0 | 226 | 7833 | 39.91 | 871 | 853 | 174.9 |
| B | 4 | 239 | 449161 | 2751.47 | 859 | 840 | 162.9 |
| B | 0 | 219 | 228753 | 1398.77 | 859 | 840 | 162.9 |
| B | 15 | 201 | 158729 | 969.01 | 859 | 840 | 162.9 |
| C | 13 | 61 | 6183 | 26.94 | 853 | 855 | 197.8 |
| C | 3 | 202 | 2142 | 6.5 | 853 | 855 | 197.8 |
| C | 3 | 203 | 1849 | 5.02 | 853 | 855 | 197.8 |
| D | 8 | 195 | 109655 | 514.86 | 847 | 825 | 211.4 |
| D | 1 | 52 | 101931 | 478.32 | 847 | 825 | 211.4 |
| D | 7 | 207 | 52668 | 245.26 | 847 | 825 | 211.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

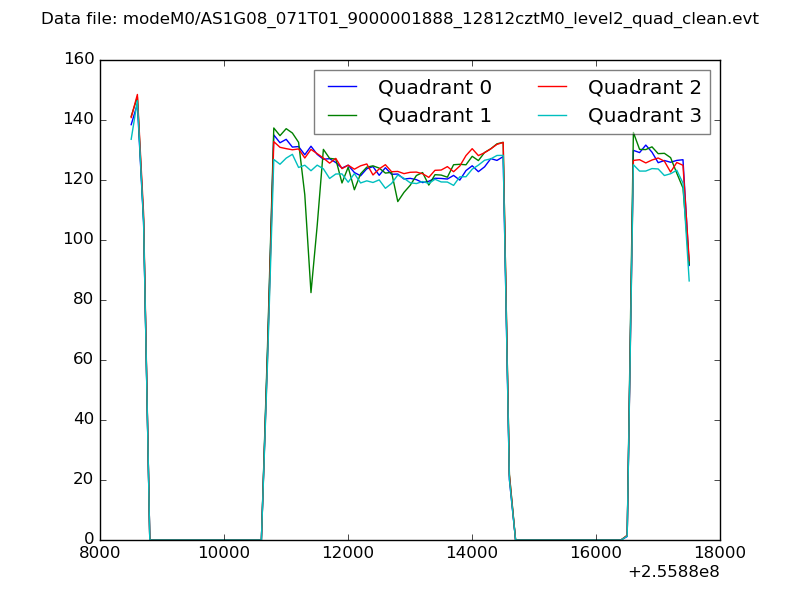

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

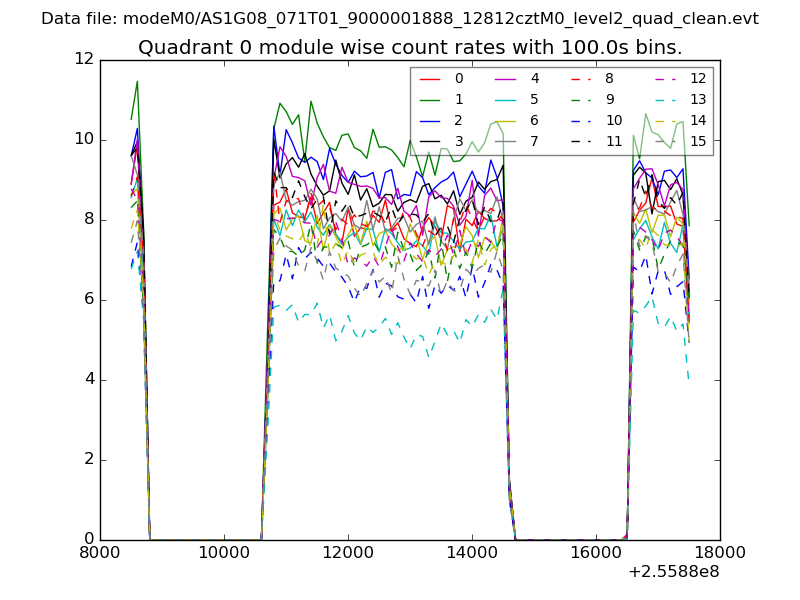

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

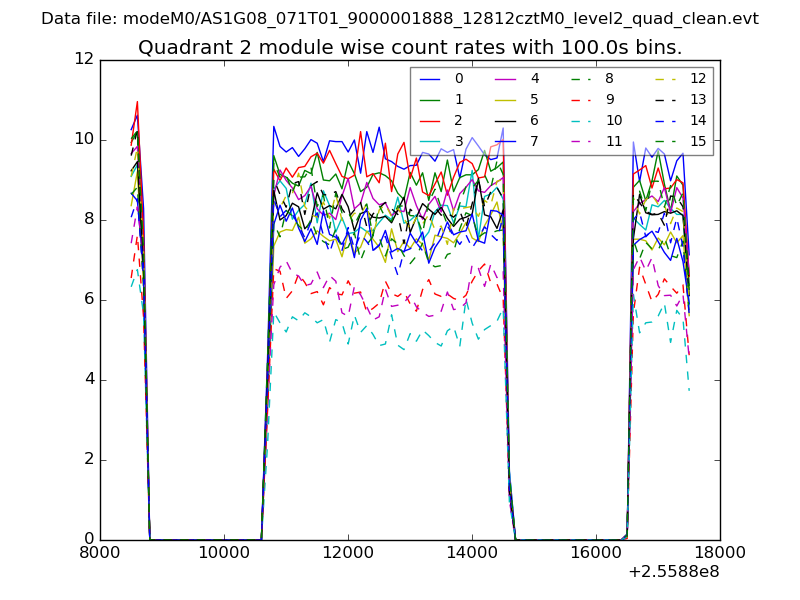

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

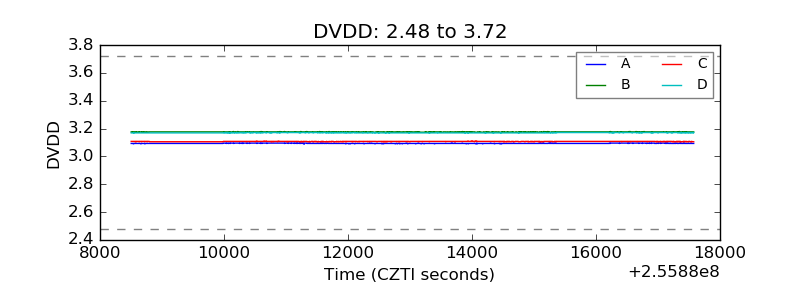

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

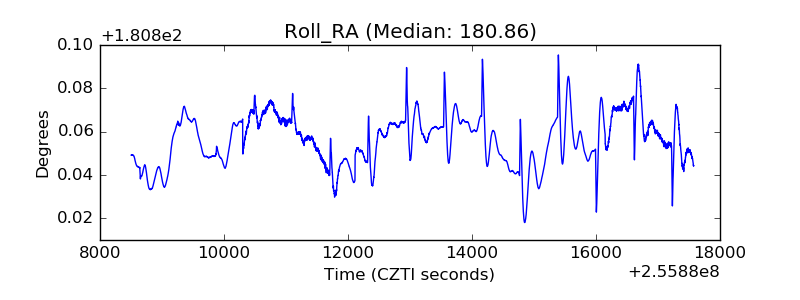

| _ROLL_ROT |  |

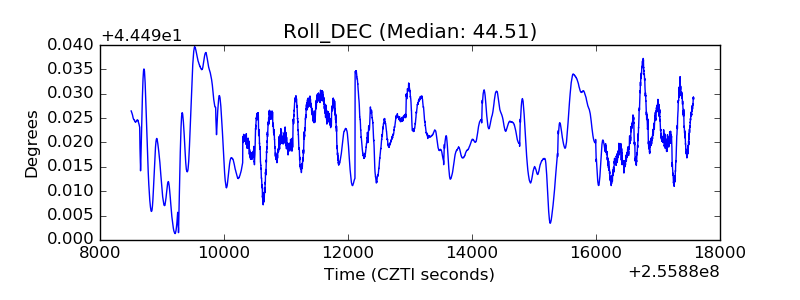

| _Roll_DEC |  |
| _Roll_RA |  |

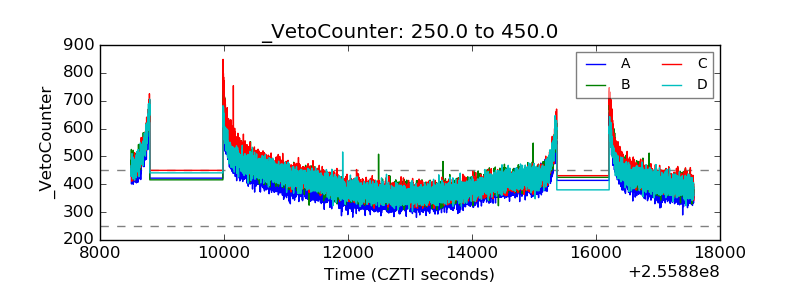

| Veto Counter |  |
