| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T01_9000001888_12818cztM0_level2.evt | modeM0/AS1G08_071T01_9000001888_12818cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,269,334,080 | 248,944,320 |
| Size | 1.2 GB | 237.4 MB |
| Events in quadrant A | 8,934,573 | 1,562,849 |
| Events in quadrant B | 10,580,882 | 1,561,635 |
| Events in quadrant C | 8,489,262 | 1,583,838 |
| Events in quadrant D | 9,146,661 | 1,517,252 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 392 | 0 |
| B | 0 | 392 | 0 |
| C | 0 | 392 | 0 |
| D | 0 | 392 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39545 | 5 |
| B | 0 | 44228 | 4 |
| C | 0 | 38916 | 4 |
| D | 0 | 41088 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19067 | 170 | 0.891593% |
| B | 19067 | 704 | 3.692243% |
| C | 19067 | 134 | 0.702785% |
| D | 19067 | 192 | 1.006975% |

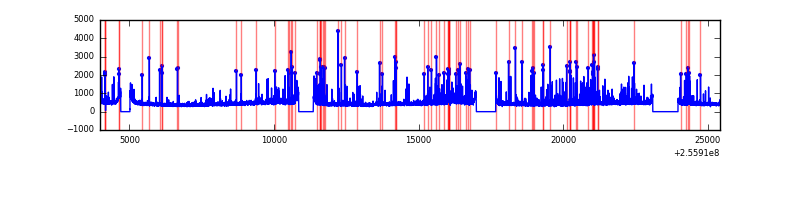

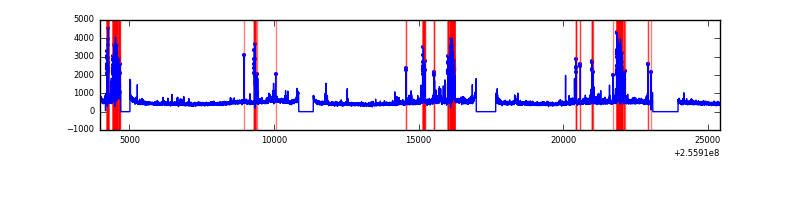

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21444 | 19073 | 0 | 0 | 0.00% | 0.00% |  |
| B | 21444 | 19073 | 303 | 303 | 1.41% | 1.59% |  |
| C | 21444 | 19073 | 0 | 0 | 0.00% | 0.00% |  |
| D | 21444 | 19073 | 87 | 87 | 0.41% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 260888 | 571.29 | 2231 | 2178 | 452.8 |
| A | 15 | 222 | 92863 | 200.25 | 2231 | 2178 | 452.8 |
| A | 0 | 226 | 19889 | 39.11 | 2231 | 2178 | 452.8 |
| B | 4 | 239 | 1294611 | 3059.75 | 2205 | 2150 | 422.4 |
| B | 0 | 219 | 416999 | 982.11 | 2205 | 2150 | 422.4 |
| B | 0 | 214 | 85540 | 197.42 | 2205 | 2150 | 422.4 |
| C | 13 | 61 | 15769 | 27.0 | 2171 | 2178 | 503.3 |
| C | 8 | 128 | 14144 | 23.78 | 2171 | 2178 | 503.3 |
| C | 14 | 234 | 8817 | 13.19 | 2171 | 2178 | 503.3 |
| D | 8 | 195 | 413785 | 788.24 | 2159 | 2096 | 522.3 |
| D | 1 | 52 | 328090 | 624.17 | 2159 | 2096 | 522.3 |
| D | 13 | 172 | 87146 | 162.84 | 2159 | 2096 | 522.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

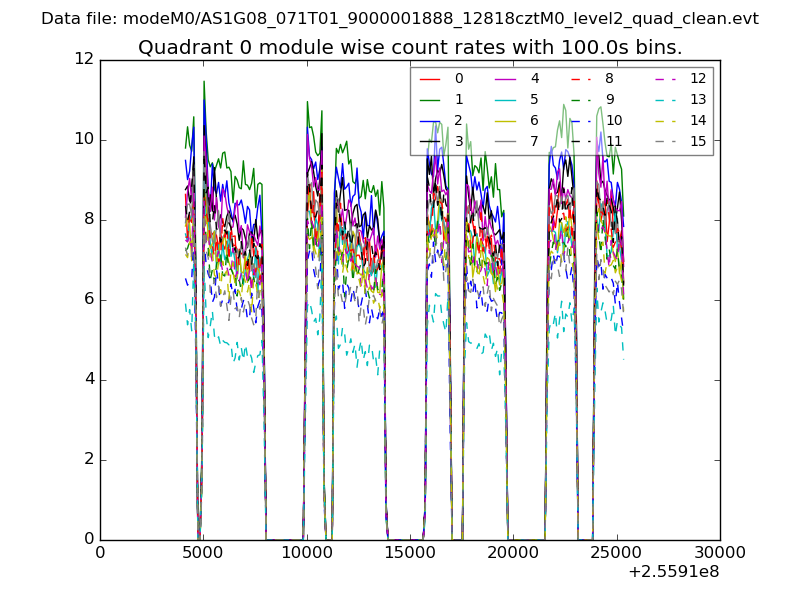

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

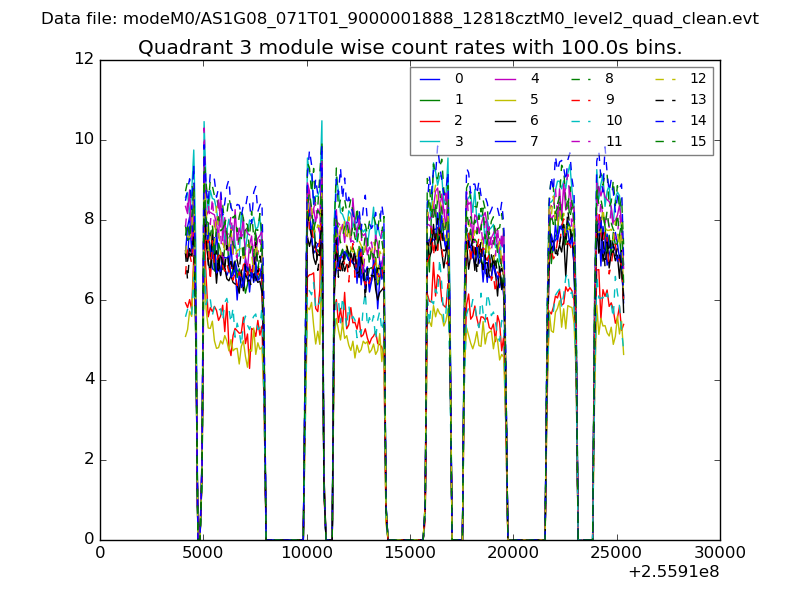

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

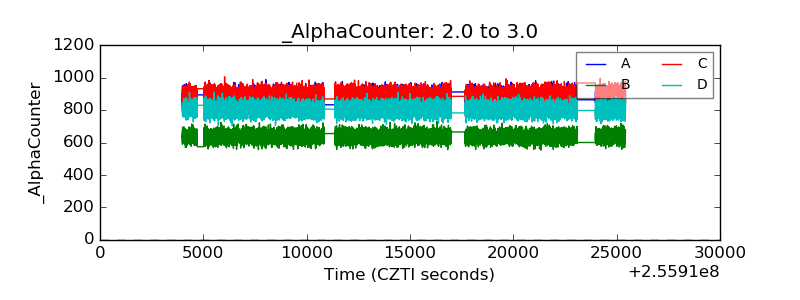

| Alpha Counter |  |
| _CPM_Rate |  |

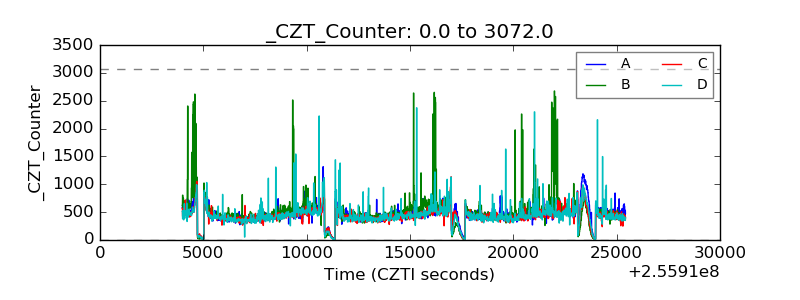

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

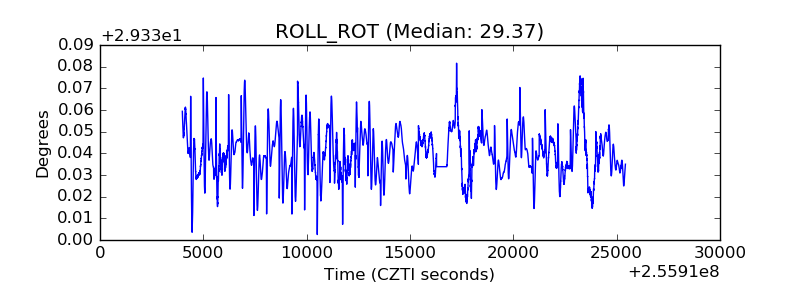

| _ROLL_ROT |  |

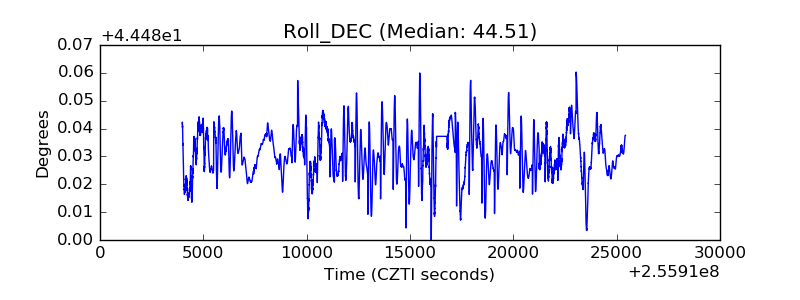

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
