| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T01_9000001888_12826cztM0_level2.evt | modeM0/AS1G08_071T01_9000001888_12826cztM0_level2_quad_clean.evt |
| Size (bytes) | 515,004,480 | 92,520,000 |
| Size | 491.1 MB | 88.2 MB |
| Events in quadrant A | 3,392,326 | 595,679 |
| Events in quadrant B | 5,061,062 | 568,047 |
| Events in quadrant C | 3,129,099 | 598,949 |
| Events in quadrant D | 3,565,496 | 577,924 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14467 | 3 |
| B | 0 | 19397 | 2 |
| C | 0 | 13580 | 2 |
| D | 0 | 14983 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6614 | 52 | 0.786211% |
| B | 6614 | 712 | 10.765044% |
| C | 6614 | 40 | 0.604778% |
| D | 6614 | 84 | 1.270033% |

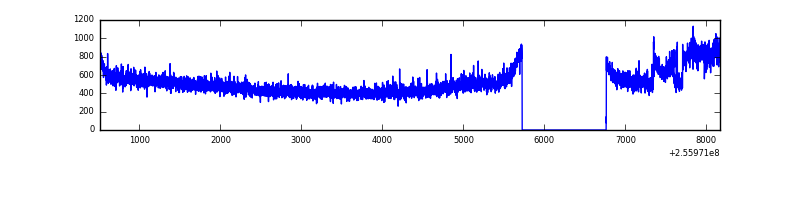

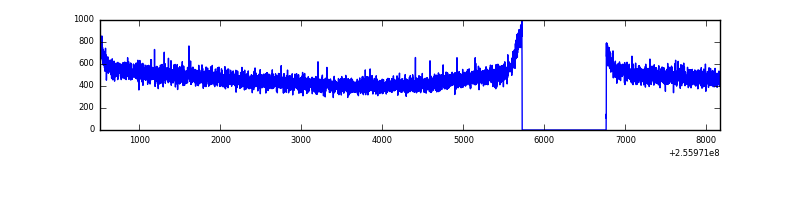

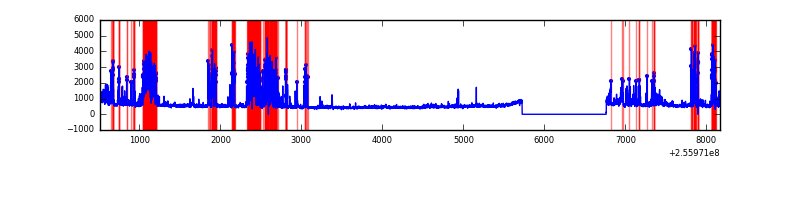

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7655 | 6617 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7655 | 6617 | 432 | 432 | 5.64% | 6.53% |  |
| C | 7655 | 6617 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7655 | 6617 | 27 | 27 | 0.35% | 0.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 212055 | 1273.41 | 819 | 800 | 165.9 |
| A | 12 | 189 | 31755 | 186.59 | 819 | 800 | 165.9 |
| A | 0 | 226 | 7405 | 39.81 | 819 | 800 | 165.9 |
| B | 4 | 239 | 1785077 | 12207.76 | 776 | 758 | 146.2 |
| B | 0 | 219 | 130749 | 889.36 | 776 | 758 | 146.2 |
| B | 0 | 214 | 45504 | 306.14 | 776 | 758 | 146.2 |
| C | 13 | 61 | 6026 | 28.37 | 802 | 803 | 184.1 |
| C | 3 | 202 | 2030 | 6.66 | 802 | 803 | 184.1 |
| C | 3 | 203 | 1812 | 5.48 | 802 | 803 | 184.1 |
| D | 1 | 52 | 315312 | 1529.5 | 792 | 774 | 205.6 |
| D | 13 | 104 | 124564 | 601.95 | 792 | 774 | 205.6 |
| D | 13 | 172 | 60867 | 292.21 | 792 | 774 | 205.6 |

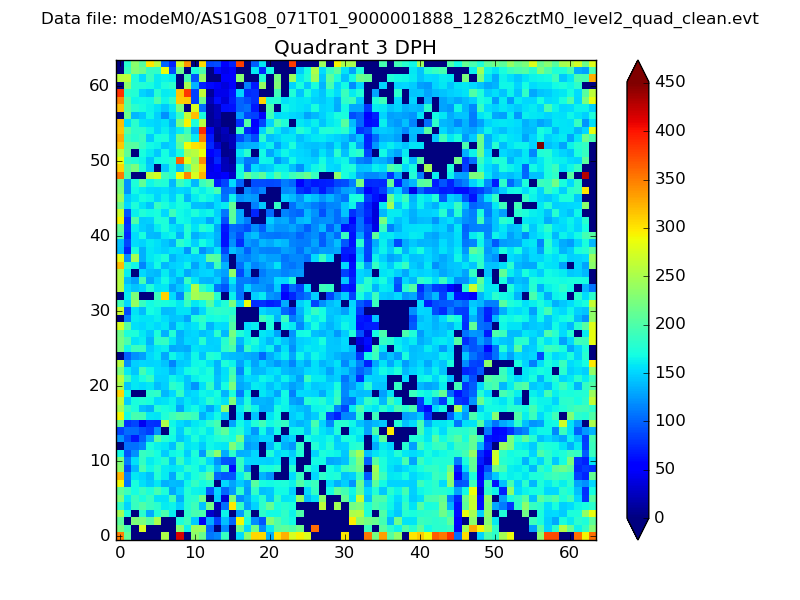

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

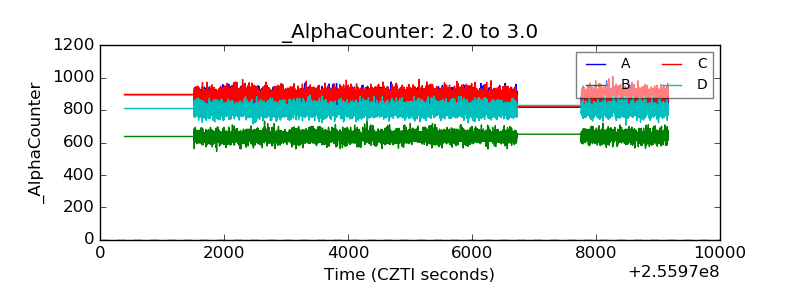

| Alpha Counter |  |

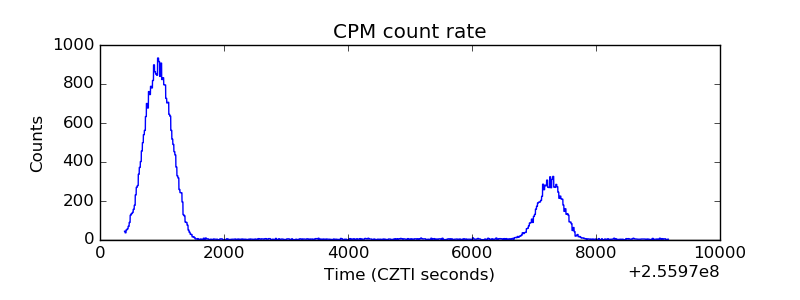

| _CPM_Rate |  |

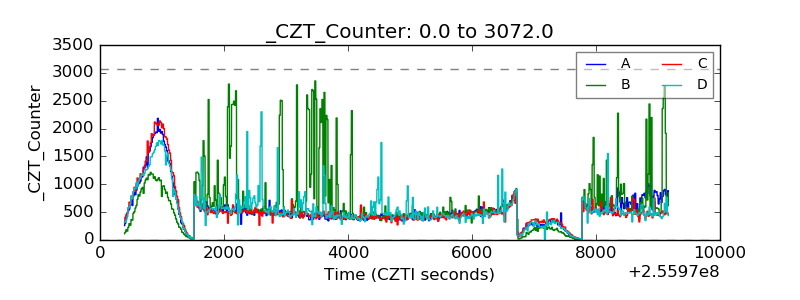

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

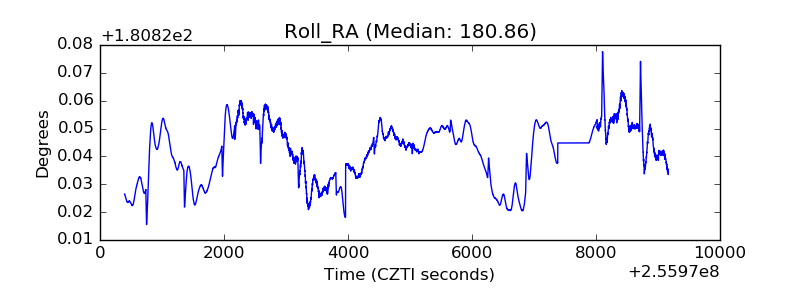

| _Roll_RA |  |
| Veto Counter |  |
