| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T01_9000001888_12834cztM0_level2.evt | modeM0/AS1G08_071T01_9000001888_12834cztM0_level2_quad_clean.evt |
| Size (bytes) | 503,308,800 | 88,548,480 |
| Size | 480.0 MB | 84.4 MB |
| Events in quadrant A | 3,482,792 | 568,011 |
| Events in quadrant B | 4,935,415 | 530,578 |
| Events in quadrant C | 3,056,555 | 566,545 |
| Events in quadrant D | 3,309,060 | 545,254 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14612 | 3 |
| B | 0 | 18927 | 2 |
| C | 0 | 13661 | 2 |
| D | 0 | 14377 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6753 | 46 | 0.681179% |
| B | 6753 | 663 | 9.817859% |
| C | 6753 | 17 | 0.251740% |
| D | 6753 | 41 | 0.607138% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

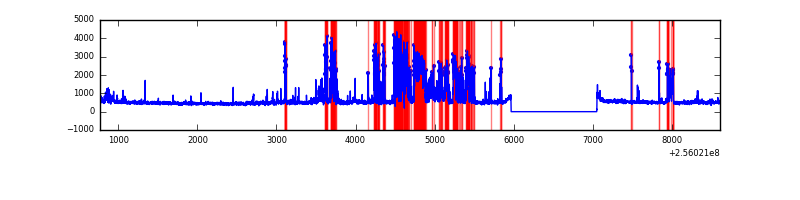

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7839 | 6755 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7839 | 6755 | 453 | 453 | 5.78% | 6.71% |  |
| C | 7839 | 6755 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7839 | 6755 | 11 | 11 | 0.14% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 252803 | 1517.79 | 820 | 801 | 166.0 |
| A | 12 | 189 | 48922 | 289.83 | 820 | 801 | 166.0 |
| A | 4 | 2 | 33795 | 198.72 | 820 | 801 | 166.0 |
| B | 4 | 239 | 1523341 | 10356.4 | 774 | 755 | 147.0 |
| B | 0 | 85 | 117843 | 796.42 | 774 | 755 | 147.0 |
| B | 10 | 245 | 82905 | 558.77 | 774 | 755 | 147.0 |
| C | 13 | 61 | 5695 | 27.14 | 783 | 787 | 180.8 |
| C | 3 | 248 | 3323 | 14.02 | 783 | 787 | 180.8 |
| C | 3 | 202 | 1850 | 5.88 | 783 | 787 | 180.8 |
| D | 2 | 136 | 122527 | 648.34 | 784 | 760 | 187.8 |
| D | 8 | 195 | 110143 | 582.4 | 784 | 760 | 187.8 |
| D | 1 | 52 | 36502 | 190.3 | 784 | 760 | 187.8 |

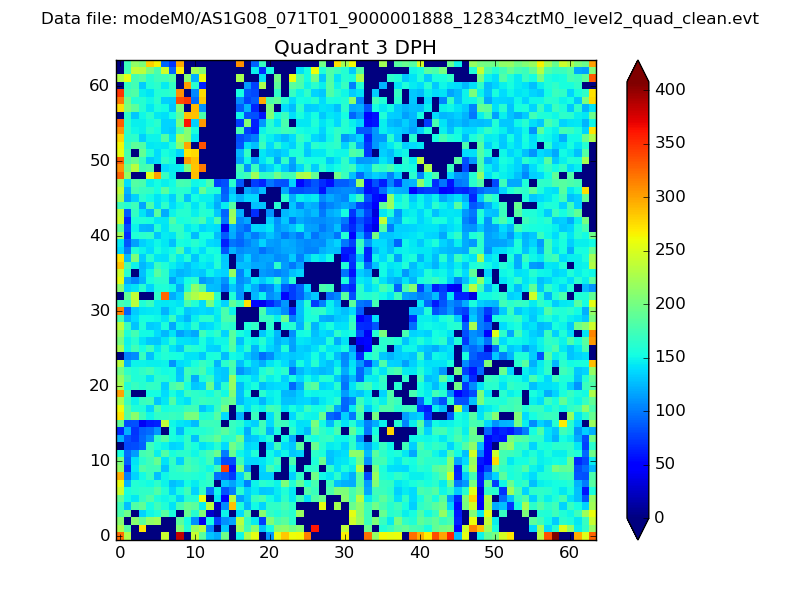

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

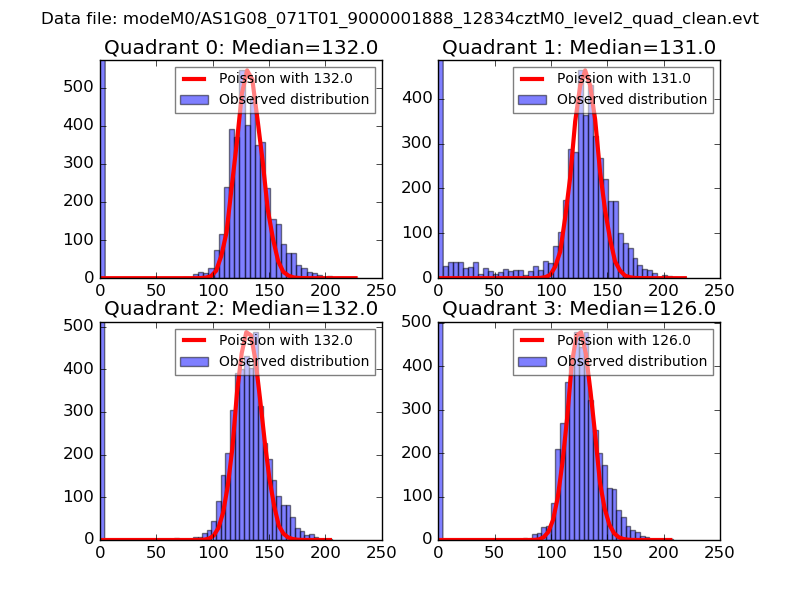

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

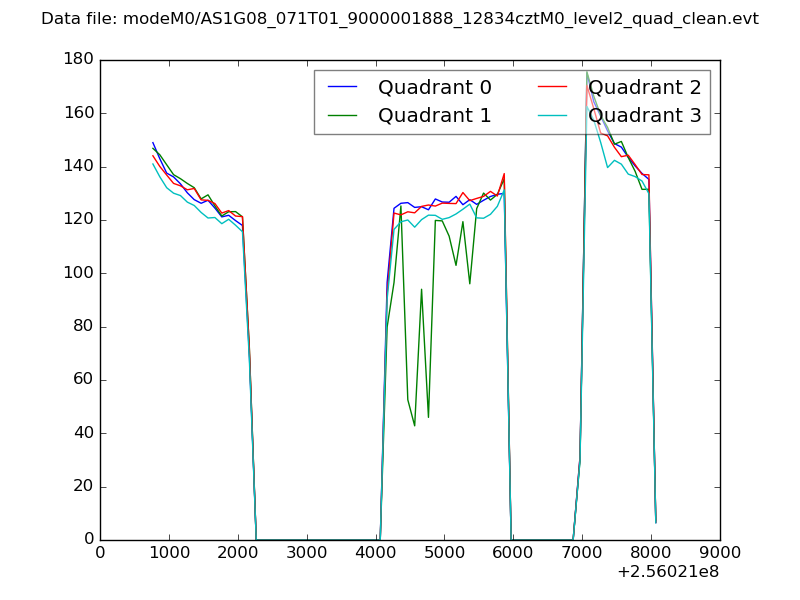

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

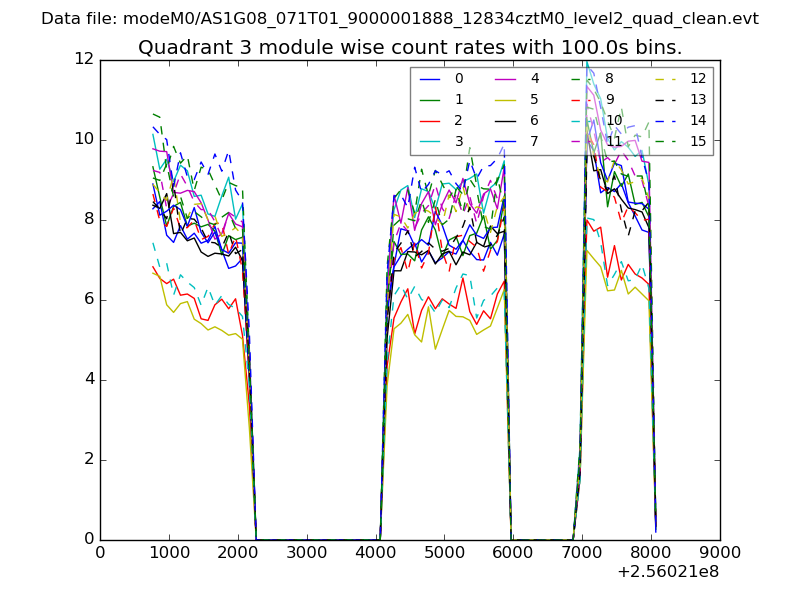

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

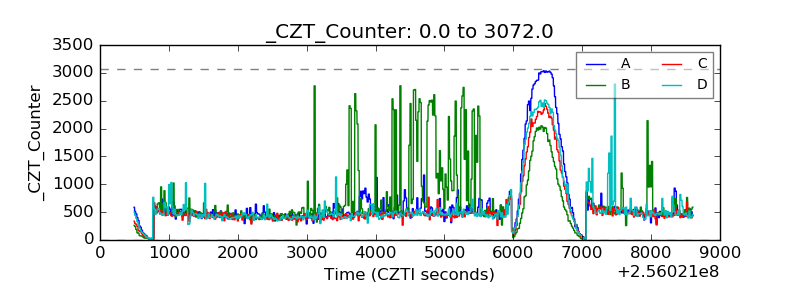

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

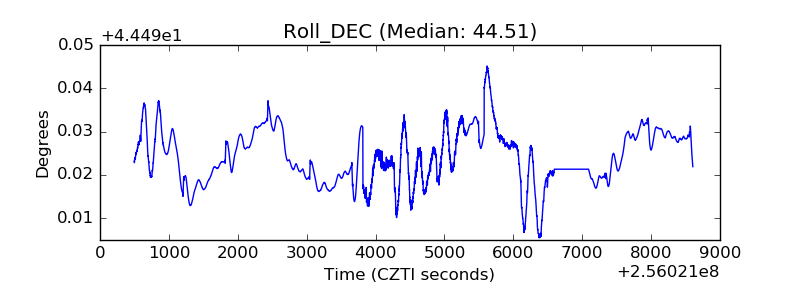

| _Roll_DEC |  |

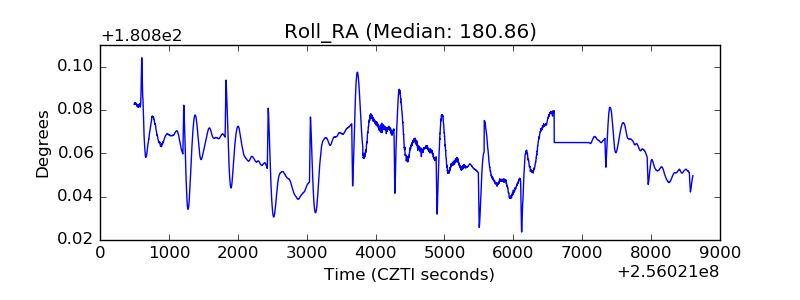

| _Roll_RA |  |
| Veto Counter |  |
