| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T01_9000001888_12837cztM0_level2.evt | modeM0/AS1G08_071T01_9000001888_12837cztM0_level2_quad_clean.evt |
| Size (bytes) | 581,840,640 | 72,311,040 |
| Size | 554.9 MB | 69.0 MB |
| Events in quadrant A | 3,316,158 | 450,948 |
| Events in quadrant B | 7,090,511 | 426,695 |
| Events in quadrant C | 3,125,598 | 447,074 |
| Events in quadrant D | 3,663,731 | 426,779 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13700 | 2 |
| B | 0 | 25364 | 1 |
| C | 0 | 13098 | 1 |
| D | 0 | 14884 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6269 | 83 | 1.323975% |
| B | 6269 | 1394 | 22.236401% |
| C | 6269 | 56 | 0.893284% |
| D | 6269 | 127 | 2.025841% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7530 | 6271 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7530 | 6271 | 1028 | 1028 | 13.65% | 16.39% |  |
| C | 7530 | 6271 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7530 | 6271 | 53 | 53 | 0.70% | 0.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 62159 | 370.72 | 836 | 822 | 165.5 |
| A | 15 | 222 | 41382 | 245.14 | 836 | 822 | 165.5 |
| A | 0 | 226 | 7556 | 40.7 | 836 | 822 | 165.5 |
| B | 4 | 206 | 3173746 | 21488.39 | 788 | 769 | 147.7 |
| B | 4 | 239 | 398328 | 2692.39 | 788 | 769 | 147.7 |
| B | 0 | 219 | 162461 | 1095.03 | 788 | 769 | 147.7 |
| C | 13 | 61 | 5822 | 27.5 | 801 | 805 | 182.4 |
| C | 3 | 233 | 2435 | 8.93 | 801 | 805 | 182.4 |
| C | 3 | 202 | 2033 | 6.73 | 801 | 805 | 182.4 |
| D | 4 | 95 | 325525 | 1713.06 | 801 | 781 | 189.6 |
| D | 8 | 195 | 124505 | 652.66 | 801 | 781 | 189.6 |
| D | 1 | 52 | 75848 | 395.99 | 801 | 781 | 189.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

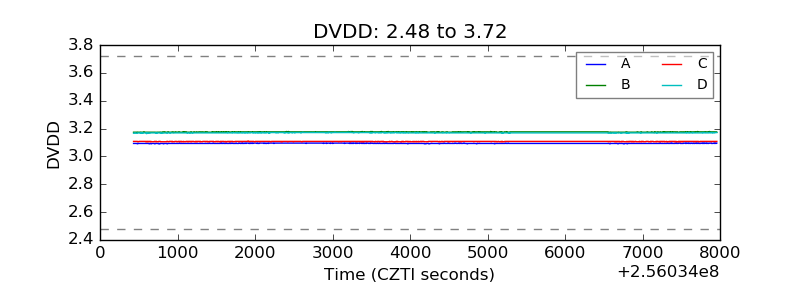

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

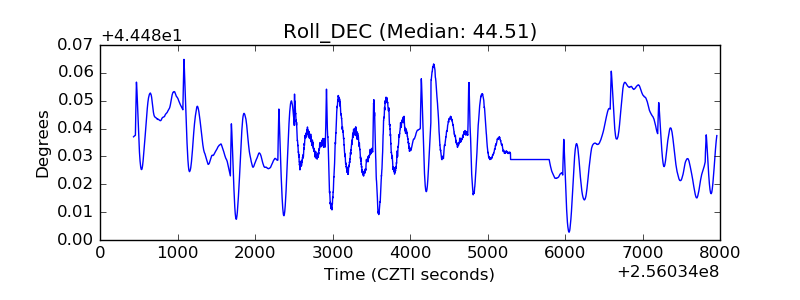

| _Roll_DEC |  |

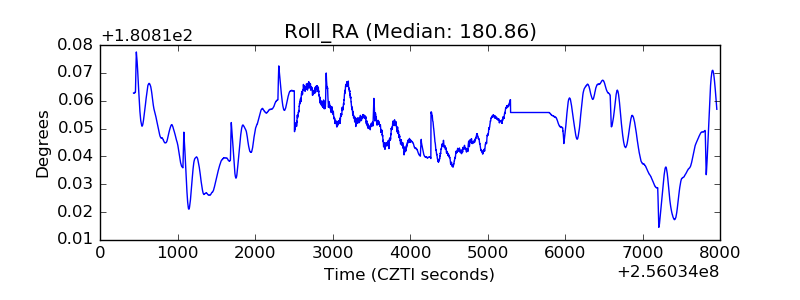

| _Roll_RA |  |
| Veto Counter |  |
