| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T01_9000001888_12838cztM0_level2.evt | modeM0/AS1G08_071T01_9000001888_12838cztM0_level2_quad_clean.evt |
| Size (bytes) | 589,651,200 | 69,557,760 |
| Size | 562.3 MB | 66.3 MB |
| Events in quadrant A | 3,550,582 | 427,728 |
| Events in quadrant B | 6,817,051 | 393,936 |
| Events in quadrant C | 3,441,404 | 424,593 |
| Events in quadrant D | 3,609,998 | 408,098 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14573 | 2 |
| B | 0 | 24849 | 1 |
| C | 0 | 13989 | 1 |
| D | 0 | 14763 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6469 | 145 | 2.241459% |
| B | 6469 | 1402 | 21.672592% |
| C | 6469 | 113 | 1.746792% |
| D | 6469 | 111 | 1.715876% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

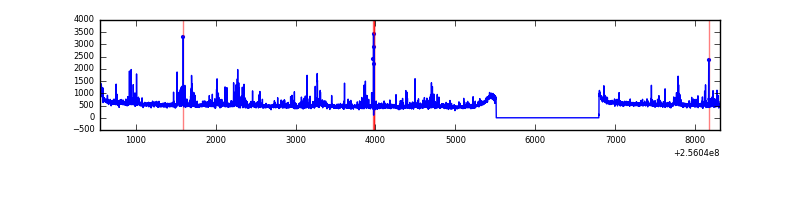

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7755 | 6471 | 5 | 5 | 0.06% | 0.08% |  |
| B | 7755 | 6471 | 986 | 986 | 12.71% | 15.24% |  |
| C | 7755 | 6471 | 7 | 7 | 0.09% | 0.11% |  |
| D | 7755 | 6471 | 6 | 6 | 0.08% | 0.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 81960 | 456.72 | 890 | 876 | 177.5 |
| A | 12 | 189 | 44129 | 243.63 | 890 | 876 | 177.5 |
| A | 9 | 143 | 8153 | 40.99 | 890 | 876 | 177.5 |
| B | 4 | 206 | 2428196 | 15809.77 | 831 | 813 | 153.5 |
| B | 4 | 239 | 678667 | 4414.93 | 831 | 813 | 153.5 |
| B | 0 | 85 | 194644 | 1262.44 | 831 | 813 | 153.5 |
| C | 3 | 233 | 48696 | 245.94 | 857 | 863 | 194.5 |
| C | 7 | 238 | 41343 | 208.13 | 857 | 863 | 194.5 |
| C | 7 | 239 | 11371 | 54.03 | 857 | 863 | 194.5 |
| D | 4 | 95 | 77790 | 378.79 | 861 | 837 | 203.2 |
| D | 13 | 104 | 77699 | 378.34 | 861 | 837 | 203.2 |
| D | 8 | 195 | 72280 | 351.67 | 861 | 837 | 203.2 |

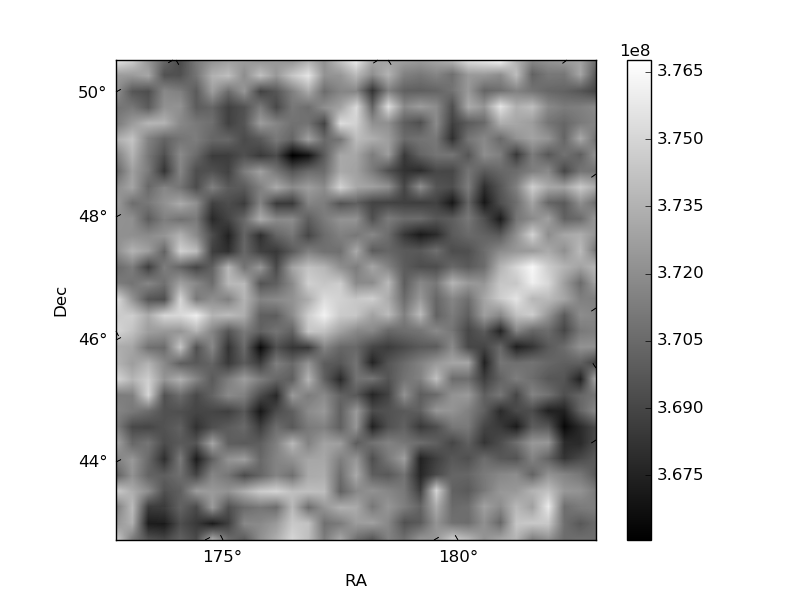

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

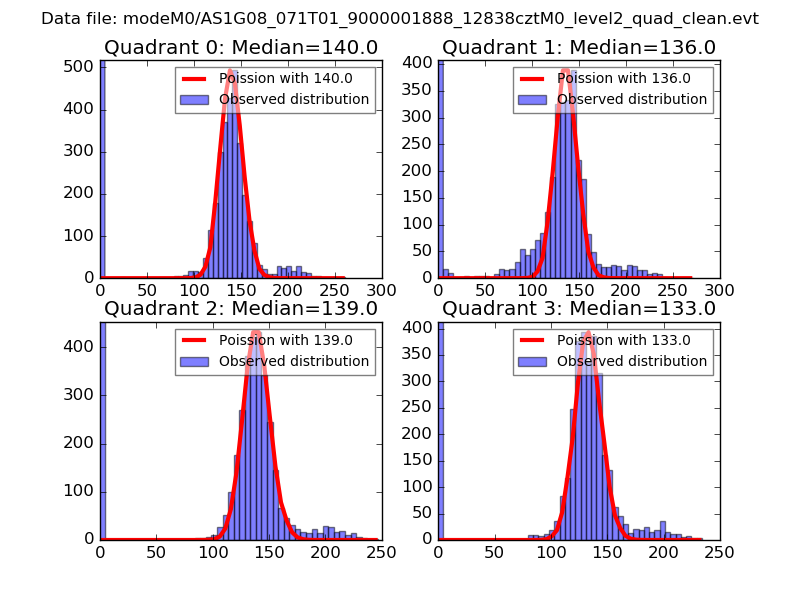

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

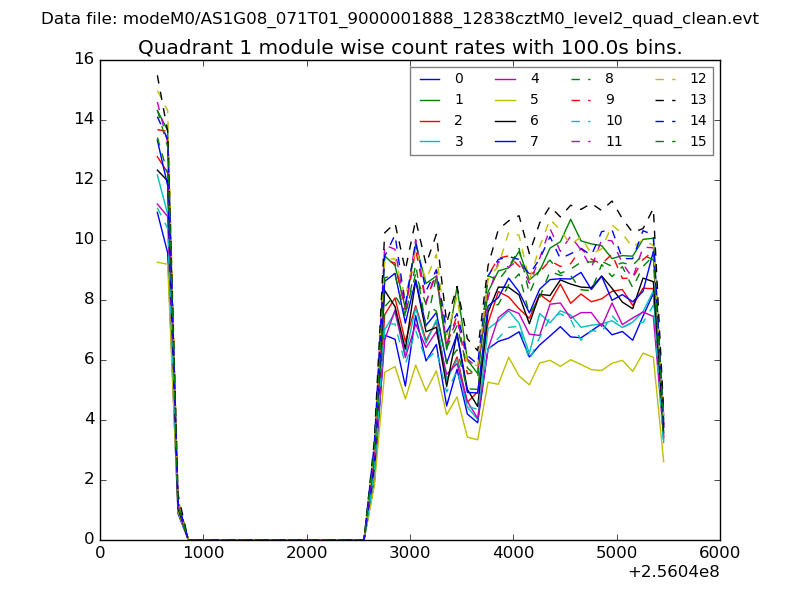

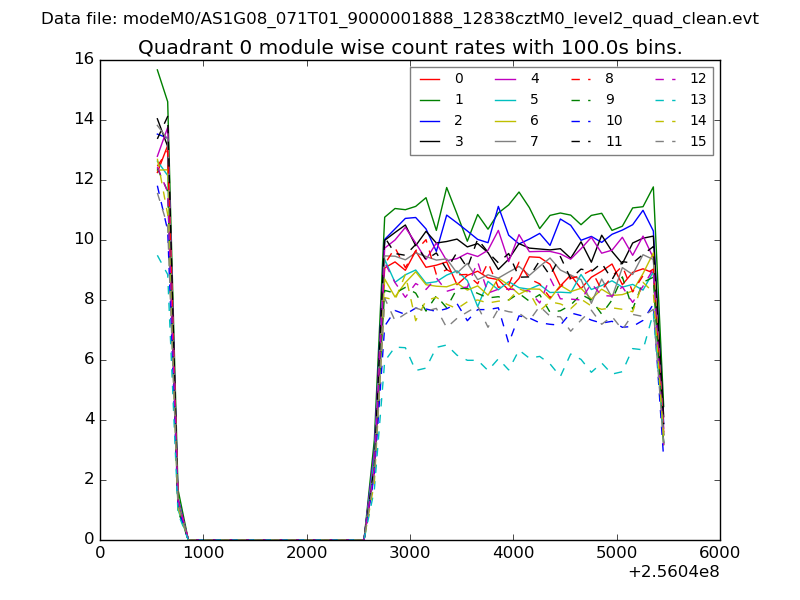

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

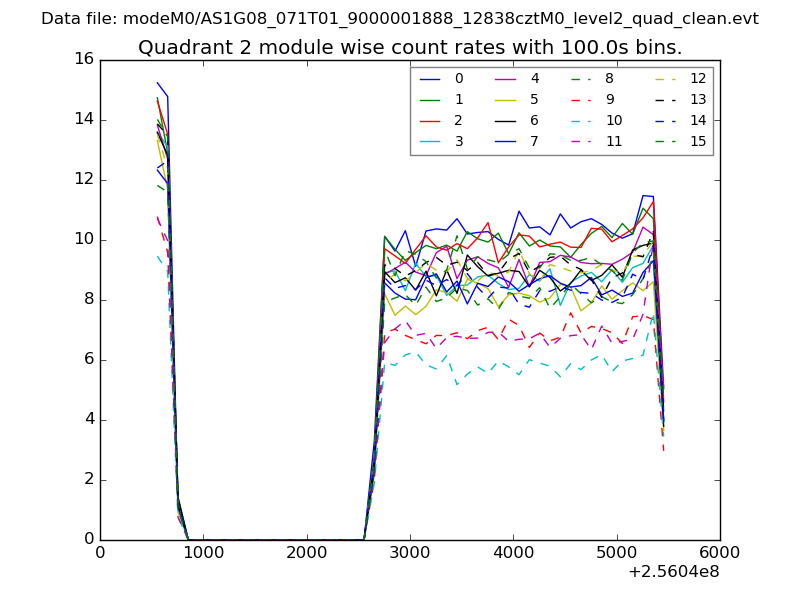

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

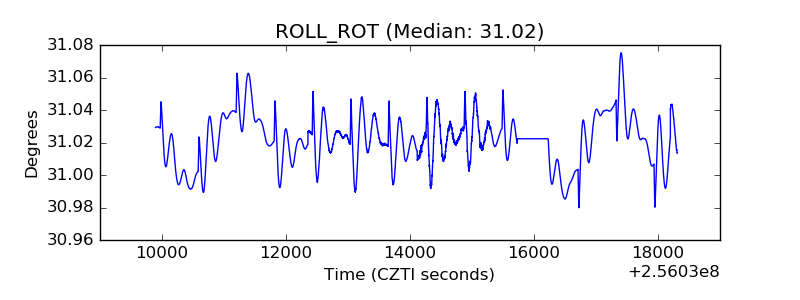

| _ROLL_ROT |  |

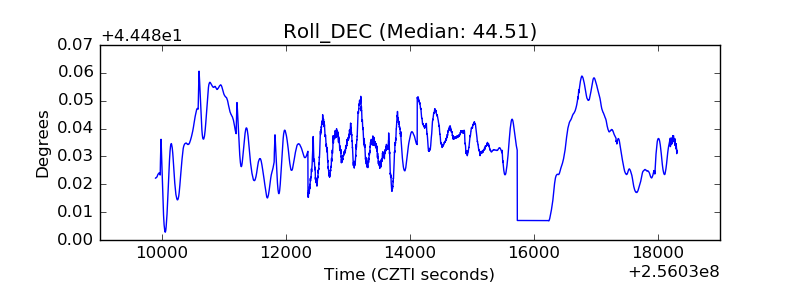

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
