| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T01_9000001888_12840cztM0_level2.evt | modeM0/AS1G08_071T01_9000001888_12840cztM0_level2_quad_clean.evt |
| Size (bytes) | 474,114,240 | 87,016,320 |
| Size | 452.2 MB | 83.0 MB |
| Events in quadrant A | 3,353,427 | 550,142 |
| Events in quadrant B | 3,914,680 | 554,016 |
| Events in quadrant C | 3,191,602 | 552,486 |
| Events in quadrant D | 3,462,249 | 529,993 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14215 | 3 |
| B | 0 | 15857 | 2 |
| C | 0 | 13522 | 2 |
| D | 0 | 14547 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6431 | 85 | 1.321723% |
| B | 6431 | 208 | 3.234334% |
| C | 6431 | 60 | 0.932981% |
| D | 6431 | 119 | 1.850412% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7612 | 6433 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7612 | 6433 | 78 | 78 | 1.02% | 1.21% |  |
| C | 7612 | 6433 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7612 | 6433 | 65 | 65 | 0.85% | 1.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 164932 | 994.55 | 825 | 808 | 165.0 |
| A | 15 | 222 | 8776 | 48.28 | 825 | 808 | 165.0 |
| A | 9 | 143 | 7869 | 42.79 | 825 | 808 | 165.0 |
| B | 4 | 239 | 305595 | 1982.16 | 813 | 793 | 153.8 |
| B | 10 | 245 | 145910 | 943.71 | 813 | 793 | 153.8 |
| B | 0 | 219 | 60103 | 385.7 | 813 | 793 | 153.8 |
| C | 7 | 238 | 36372 | 191.74 | 805 | 812 | 185.5 |
| C | 3 | 233 | 12214 | 61.48 | 805 | 812 | 185.5 |
| C | 13 | 61 | 5987 | 27.9 | 805 | 812 | 185.5 |
| D | 4 | 95 | 200447 | 1044.44 | 799 | 778 | 191.2 |
| D | 13 | 172 | 110025 | 571.45 | 799 | 778 | 191.2 |
| D | 1 | 52 | 79287 | 410.67 | 799 | 778 | 191.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

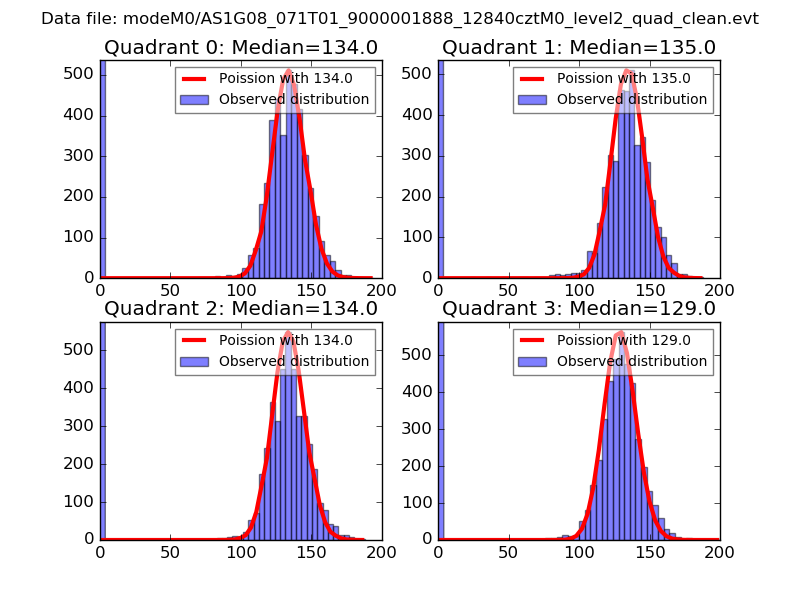

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
