| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T01_9000001888_12851cztM0_level2.evt | modeM0/AS1G08_071T01_9000001888_12851cztM0_level2_quad_clean.evt |
| Size (bytes) | 468,086,400 | 79,813,440 |
| Size | 446.4 MB | 76.1 MB |
| Events in quadrant A | 3,311,536 | 501,747 |
| Events in quadrant B | 4,025,894 | 498,236 |
| Events in quadrant C | 3,084,306 | 498,144 |
| Events in quadrant D | 3,323,592 | 476,283 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13681 | 2 |
| B | 0 | 15793 | 1 |
| C | 0 | 13100 | 1 |
| D | 0 | 13823 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6342 | 62 | 0.977610% |
| B | 6342 | 306 | 4.824976% |
| C | 6342 | 42 | 0.662252% |
| D | 6342 | 74 | 1.166824% |

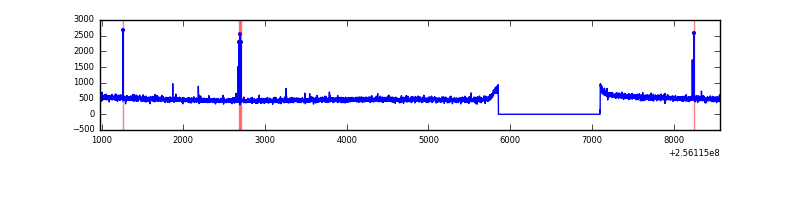

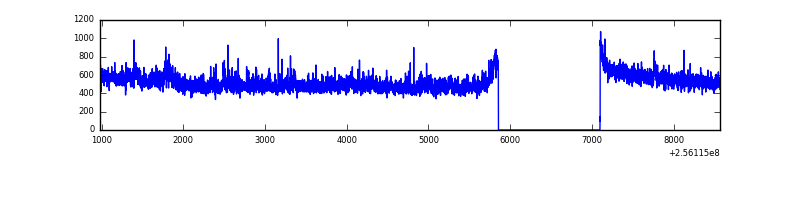

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7588 | 6344 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7588 | 6344 | 174 | 174 | 2.29% | 2.74% |  |
| C | 7588 | 6344 | 5 | 5 | 0.07% | 0.08% |  |
| D | 7588 | 6344 | 29 | 29 | 0.38% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 115263 | 692.4 | 827 | 810 | 165.3 |
| A | 15 | 222 | 18877 | 109.3 | 827 | 810 | 165.3 |
| A | 0 | 226 | 7637 | 41.3 | 827 | 810 | 165.3 |
| B | 4 | 239 | 641791 | 4260.9 | 802 | 785 | 150.4 |
| B | 4 | 173 | 61887 | 406.16 | 802 | 785 | 150.4 |
| B | 0 | 219 | 41450 | 270.31 | 802 | 785 | 150.4 |
| C | 14 | 234 | 21528 | 115.68 | 786 | 789 | 179.3 |
| C | 13 | 61 | 5652 | 27.13 | 786 | 789 | 179.3 |
| C | 3 | 202 | 1992 | 6.71 | 786 | 789 | 179.3 |
| D | 1 | 52 | 178595 | 952.5 | 788 | 767 | 186.7 |
| D | 4 | 95 | 88037 | 467.44 | 788 | 767 | 186.7 |
| D | 2 | 234 | 25663 | 133.35 | 788 | 767 | 186.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

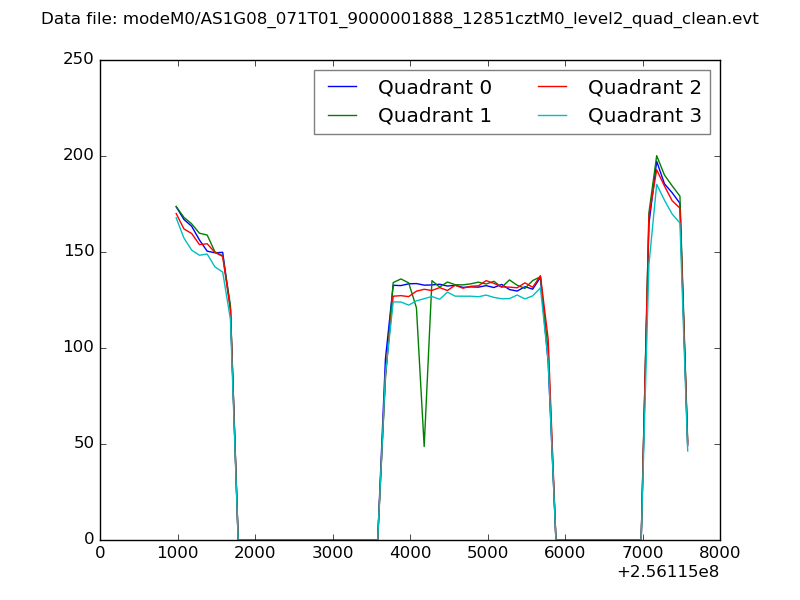

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

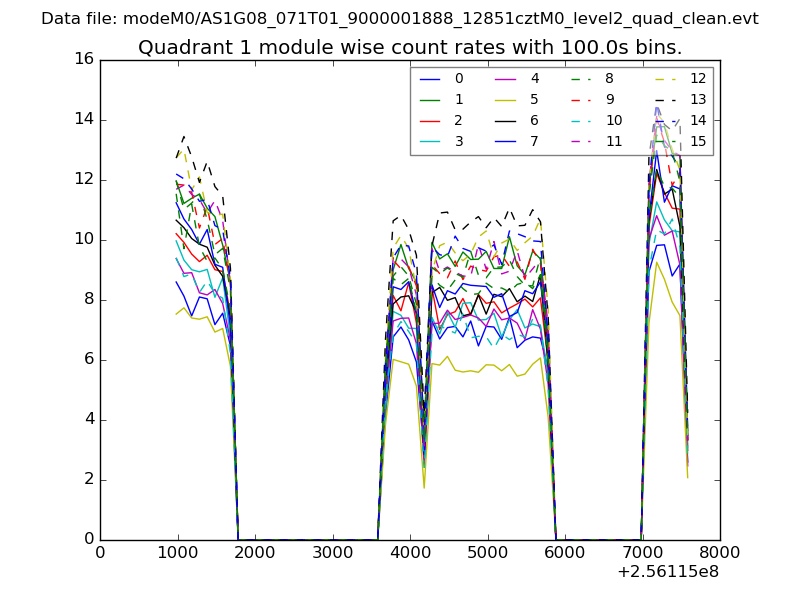

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

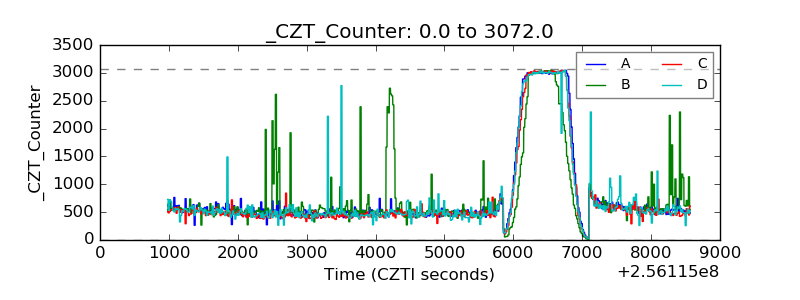

| CZT Counter |  |

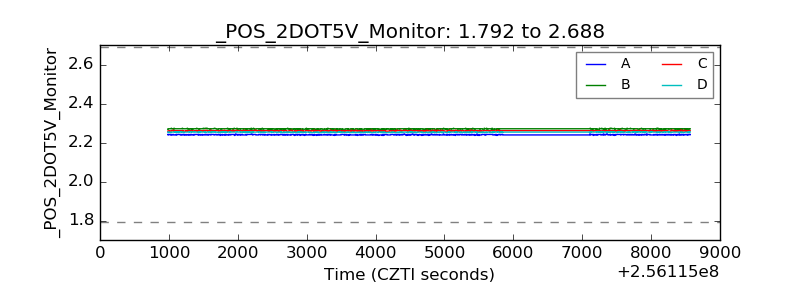

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

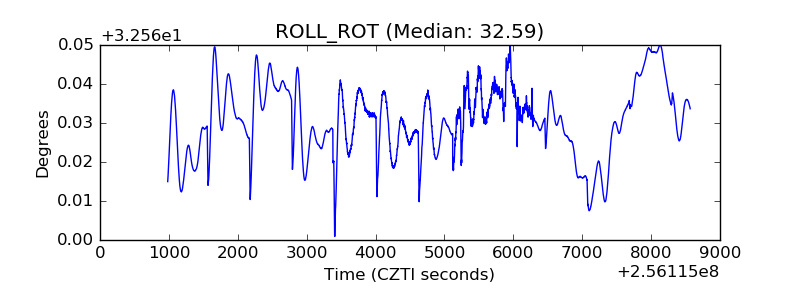

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

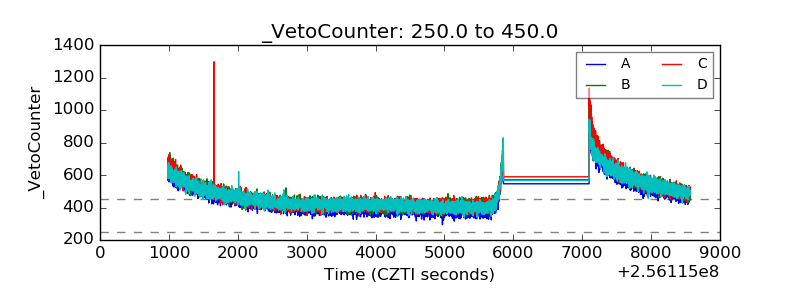

| Veto Counter |  |
