| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T01_9000001888_12854cztM0_level2.evt | modeM0/AS1G08_071T01_9000001888_12854cztM0_level2_quad_clean.evt |
| Size (bytes) | 527,509,440 | 77,912,640 |
| Size | 503.1 MB | 74.3 MB |
| Events in quadrant A | 3,665,241 | 481,088 |
| Events in quadrant B | 4,341,965 | 484,876 |
| Events in quadrant C | 3,281,706 | 481,462 |
| Events in quadrant D | 4,247,981 | 460,597 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14858 | 3 |
| B | 0 | 17058 | 2 |
| C | 0 | 13672 | 2 |
| D | 0 | 16866 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6465 | 152 | 2.351121% |
| B | 6465 | 464 | 7.177108% |
| C | 6465 | 122 | 1.887084% |
| D | 6465 | 318 | 4.918794% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

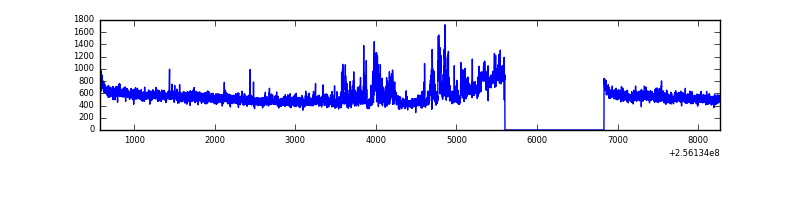

| A | 7696 | 6466 | 0 | 0 | 0.00% | 0.00% |  |

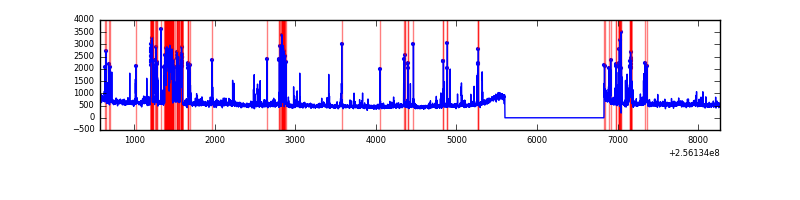

| B | 7696 | 6466 | 223 | 223 | 2.90% | 3.45% |  |

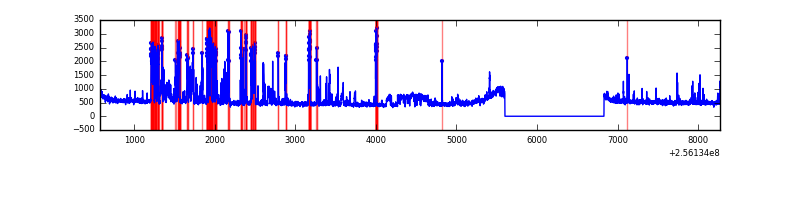

| C | 7696 | 6466 | 6 | 6 | 0.08% | 0.09% |  |
| D | 7696 | 6466 | 208 | 208 | 2.70% | 3.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 357617 | 2064.43 | 859 | 843 | 172.8 |
| A | 8 | 15 | 11052 | 59.07 | 859 | 843 | 172.8 |
| A | 0 | 226 | 7615 | 39.19 | 859 | 843 | 172.8 |
| B | 4 | 239 | 754719 | 4887.28 | 835 | 819 | 154.3 |
| B | 0 | 219 | 107169 | 689.43 | 835 | 819 | 154.3 |
| B | 3 | 64 | 105581 | 679.14 | 835 | 819 | 154.3 |
| C | 14 | 234 | 29546 | 150.78 | 834 | 839 | 190.4 |
| C | 13 | 61 | 6256 | 28.45 | 834 | 839 | 190.4 |
| C | 3 | 202 | 2061 | 6.42 | 834 | 839 | 190.4 |
| D | 1 | 52 | 1038214 | 5318.42 | 826 | 804 | 195.1 |
| D | 2 | 14 | 37808 | 189.71 | 826 | 804 | 195.1 |
| D | 2 | 234 | 20584 | 101.4 | 826 | 804 | 195.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

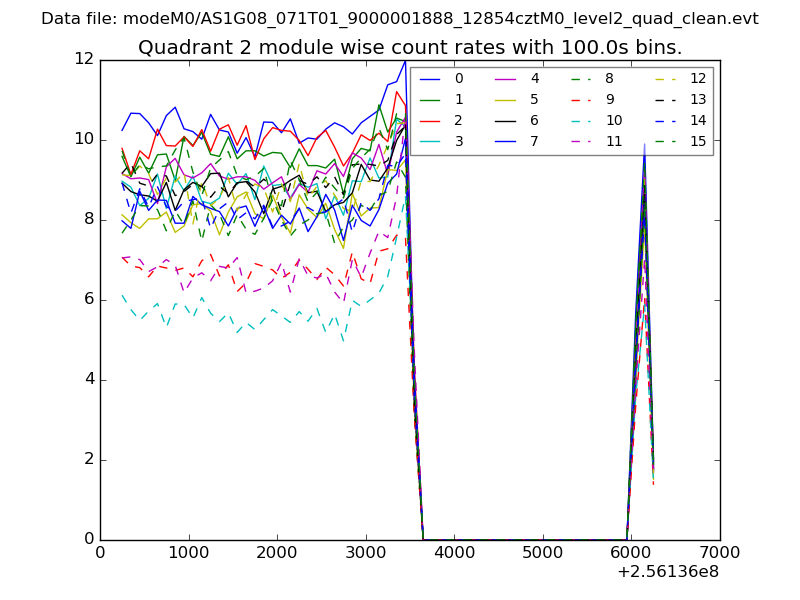

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

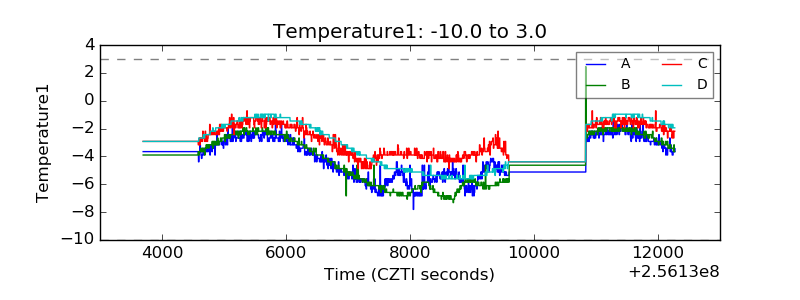

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

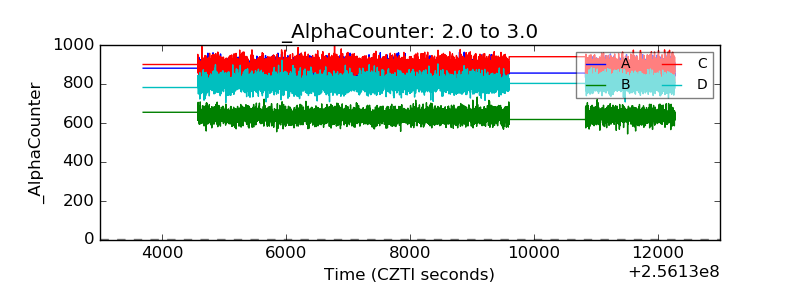

| Alpha Counter |  |
| _CPM_Rate |  |

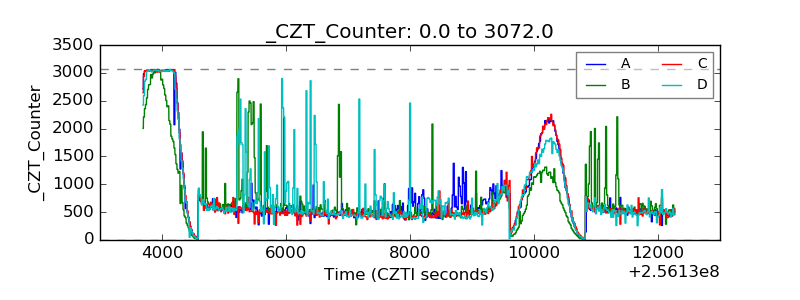

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

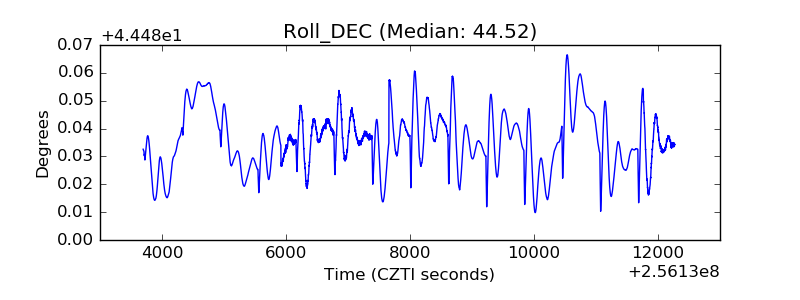

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
