| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_041T01_9000001892_12869cztM0_level2.evt | modeM0/AS1G08_041T01_9000001892_12869cztM0_level2_quad_clean.evt |
| Size (bytes) | 599,365,440 | 67,970,880 |
| Size | 571.6 MB | 64.8 MB |
| Events in quadrant A | 3,288,299 | 427,929 |
| Events in quadrant B | 7,558,224 | 360,054 |
| Events in quadrant C | 3,042,662 | 423,120 |
| Events in quadrant D | 3,834,189 | 405,478 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13498 | 2 |
| B | 0 | 26685 | 1 |
| C | 0 | 12958 | 1 |
| D | 0 | 15373 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6320 | 110 | 1.740506% |
| B | 6320 | 1919 | 30.363924% |
| C | 6320 | 70 | 1.107595% |
| D | 6320 | 269 | 4.256329% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7455 | 6321 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7455 | 6321 | 1350 | 1350 | 18.11% | 21.36% |  |
| C | 7454 | 6320 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7454 | 6320 | 189 | 189 | 2.54% | 2.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 96496 | 582.28 | 811 | 794 | 164.4 |
| A | 13 | 248 | 32895 | 195.31 | 811 | 794 | 164.4 |
| A | 15 | 222 | 15513 | 89.55 | 811 | 794 | 164.4 |
| B | 4 | 239 | 2330309 | 17958.78 | 694 | 678 | 129.7 |
| B | 0 | 85 | 2180991 | 16807.71 | 694 | 678 | 129.7 |
| B | 0 | 219 | 89537 | 685.0 | 694 | 678 | 129.7 |
| C | 4 | 112 | 7445 | 37.25 | 778 | 784 | 178.8 |
| C | 13 | 61 | 5742 | 27.72 | 778 | 784 | 178.8 |
| C | 3 | 202 | 1969 | 6.63 | 778 | 784 | 178.8 |
| D | 1 | 52 | 775668 | 4231.79 | 774 | 753 | 183.1 |
| D | 13 | 122 | 68215 | 368.41 | 774 | 753 | 183.1 |
| D | 2 | 234 | 27208 | 144.47 | 774 | 753 | 183.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

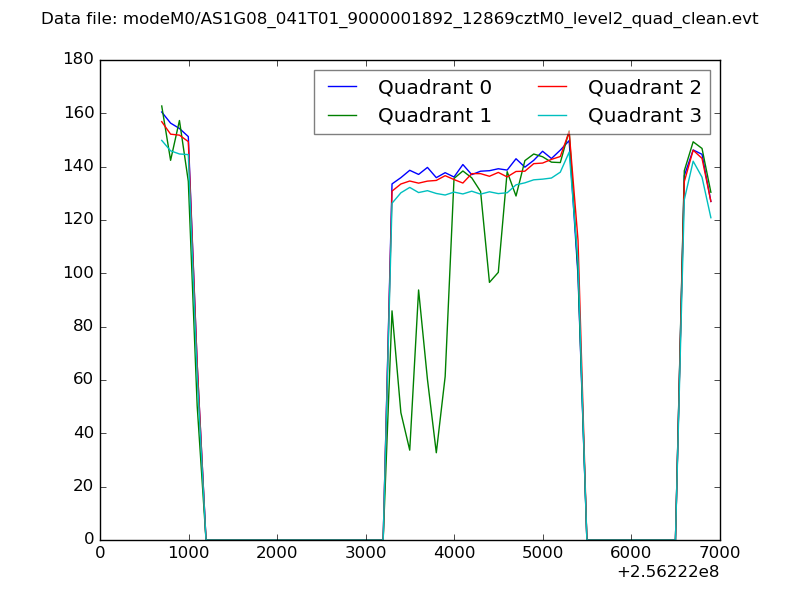

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

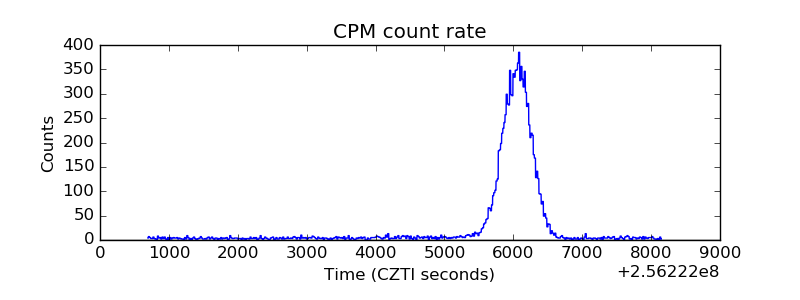

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

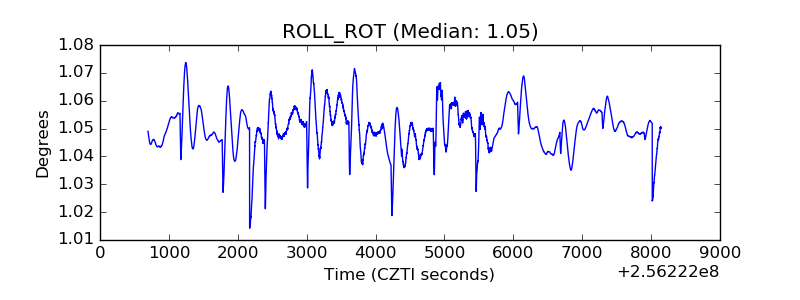

| _ROLL_ROT |  |

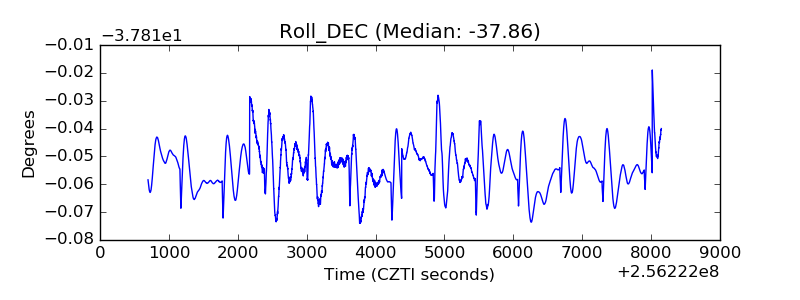

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
