| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_001T01_9000001894_12881cztM0_level2.evt | modeM0/AS1C03_001T01_9000001894_12881cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,915,840 | 114,523,200 |
| Size | 481.5 MB | 109.2 MB |
| Events in quadrant A | 2,888,694 | 820,323 |
| Events in quadrant B | 4,238,376 | 766,902 |
| Events in quadrant C | 2,663,053 | 796,820 |
| Events in quadrant D | 5,114,087 | 685,250 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11929 | 2 |
| B | 0 | 16109 | 1 |
| C | 0 | 11638 | 1 |
| D | 0 | 18869 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5704 | 64 | 1.122020% |
| B | 5704 | 588 | 10.308555% |
| C | 5704 | 26 | 0.455820% |
| D | 5704 | 848 | 14.866760% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7009 | 5705 | 4 | 4 | 0.06% | 0.07% |  |
| B | 7009 | 5705 | 318 | 318 | 4.54% | 5.57% |  |
| C | 7009 | 5705 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7009 | 5705 | 660 | 660 | 9.42% | 11.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 37339 | 255.93 | 718 | 705 | 143.1 |
| A | 1 | 178 | 19202 | 129.22 | 718 | 705 | 143.1 |
| A | 12 | 189 | 16775 | 112.27 | 718 | 705 | 143.1 |
| B | 4 | 239 | 1308513 | 10484.7 | 668 | 652 | 124.7 |
| B | 0 | 219 | 110962 | 884.32 | 668 | 652 | 124.7 |
| B | 0 | 85 | 82626 | 657.16 | 668 | 652 | 124.7 |
| C | 13 | 61 | 4967 | 27.67 | 681 | 683 | 154.8 |
| C | 3 | 233 | 3412 | 17.63 | 681 | 683 | 154.8 |
| C | 3 | 202 | 1695 | 6.54 | 681 | 683 | 154.8 |
| D | 1 | 52 | 2537129 | 17355.85 | 622 | 605 | 146.1 |
| D | 4 | 95 | 138159 | 941.2 | 622 | 605 | 146.1 |
| D | 8 | 195 | 30043 | 201.43 | 622 | 605 | 146.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

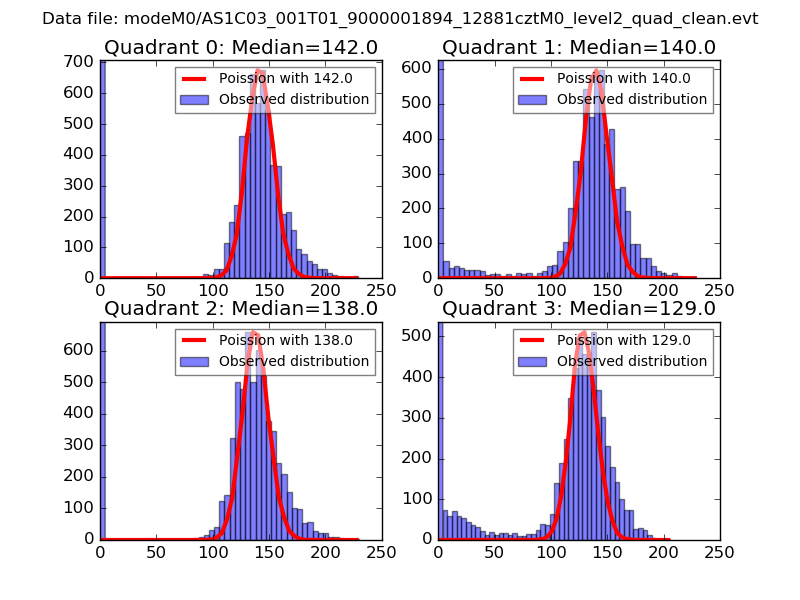

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

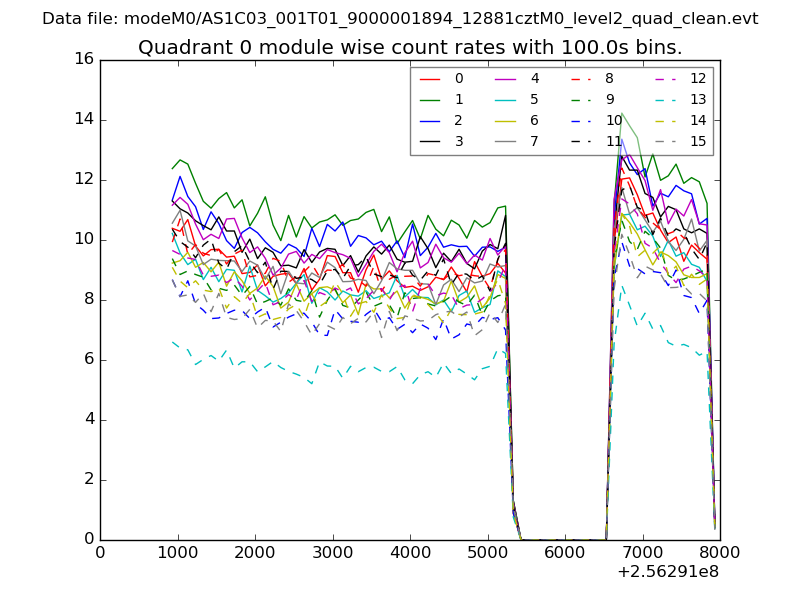

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

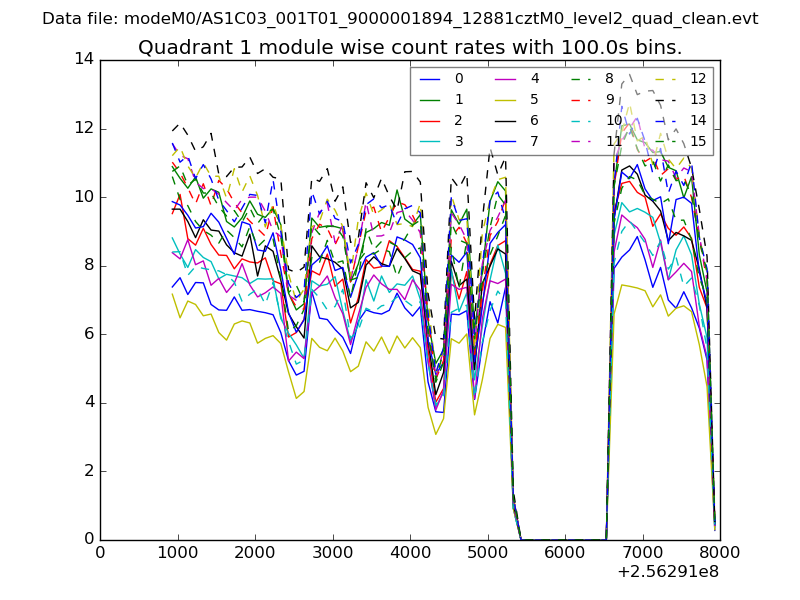

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

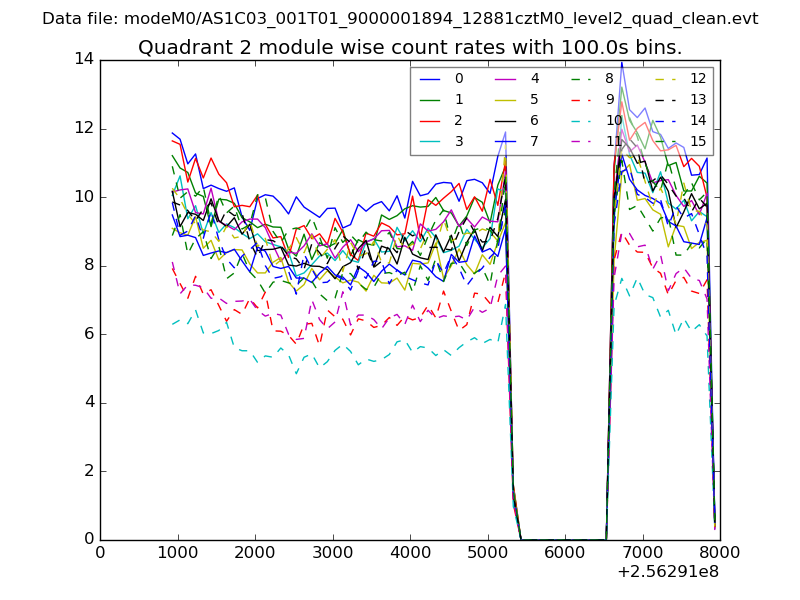

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

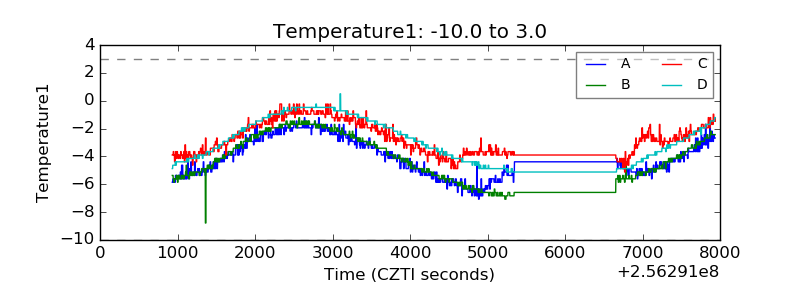

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

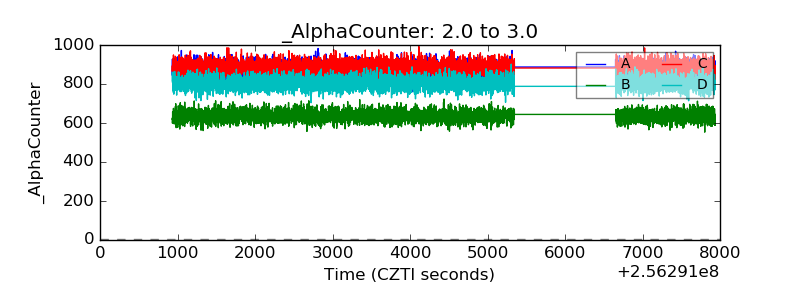

| Alpha Counter |  |
| _CPM_Rate |  |

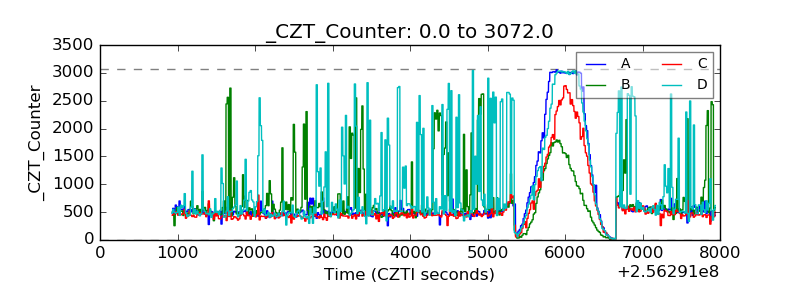

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

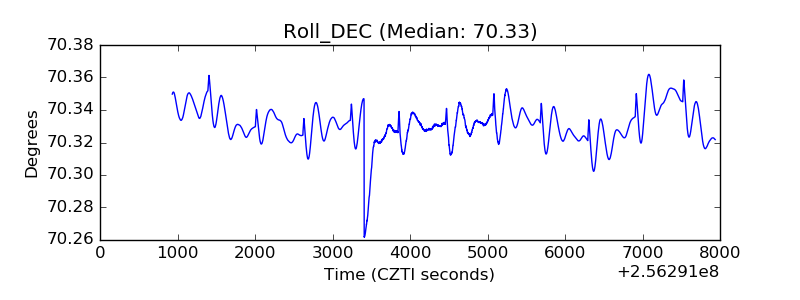

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
