| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_001T01_9000001894_12883cztM0_level2.evt | modeM0/AS1C03_001T01_9000001894_12883cztM0_level2_quad_clean.evt |
| Size (bytes) | 596,376,000 | 123,955,200 |
| Size | 568.7 MB | 118.2 MB |
| Events in quadrant A | 3,368,952 | 888,971 |
| Events in quadrant B | 4,772,880 | 839,313 |
| Events in quadrant C | 3,030,016 | 874,163 |
| Events in quadrant D | 6,450,662 | 699,699 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13907 | 2 |
| B | 0 | 18373 | 1 |
| C | 0 | 13201 | 1 |
| D | 0 | 23378 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6464 | 144 | 2.227723% |
| B | 6464 | 771 | 11.927599% |
| C | 6464 | 113 | 1.748144% |
| D | 6464 | 1496 | 23.143564% |

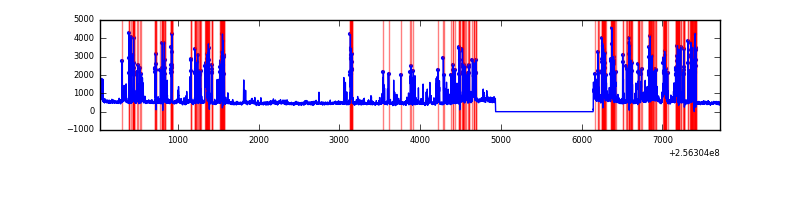

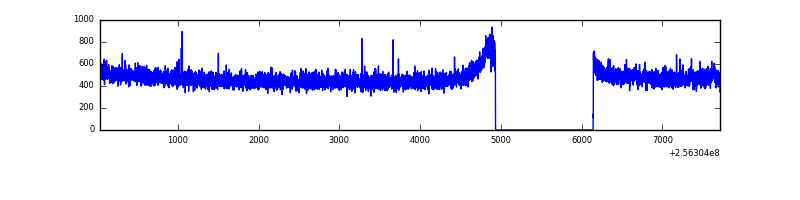

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7675 | 6466 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7675 | 6466 | 348 | 348 | 4.53% | 5.38% |  |
| C | 7675 | 6466 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7675 | 6465 | 1017 | 1017 | 13.25% | 15.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 90895 | 561.25 | 801 | 786 | 160.6 |
| A | 1 | 178 | 51156 | 313.73 | 801 | 786 | 160.6 |
| A | 1 | 161 | 42871 | 262.13 | 801 | 786 | 160.6 |
| B | 4 | 239 | 1492016 | 10646.63 | 750 | 734 | 140.1 |
| B | 0 | 85 | 141758 | 1006.8 | 750 | 734 | 140.1 |
| B | 3 | 209 | 45381 | 318.75 | 750 | 734 | 140.1 |
| C | 3 | 233 | 12649 | 67.65 | 771 | 773 | 175.6 |
| C | 4 | 112 | 7439 | 37.97 | 771 | 773 | 175.6 |
| C | 13 | 61 | 5635 | 27.69 | 771 | 773 | 175.6 |
| D | 1 | 52 | 3791692 | 24208.91 | 658 | 639 | 156.6 |
| D | 8 | 195 | 80670 | 511.06 | 658 | 639 | 156.6 |
| D | 13 | 104 | 33913 | 212.48 | 658 | 639 | 156.6 |

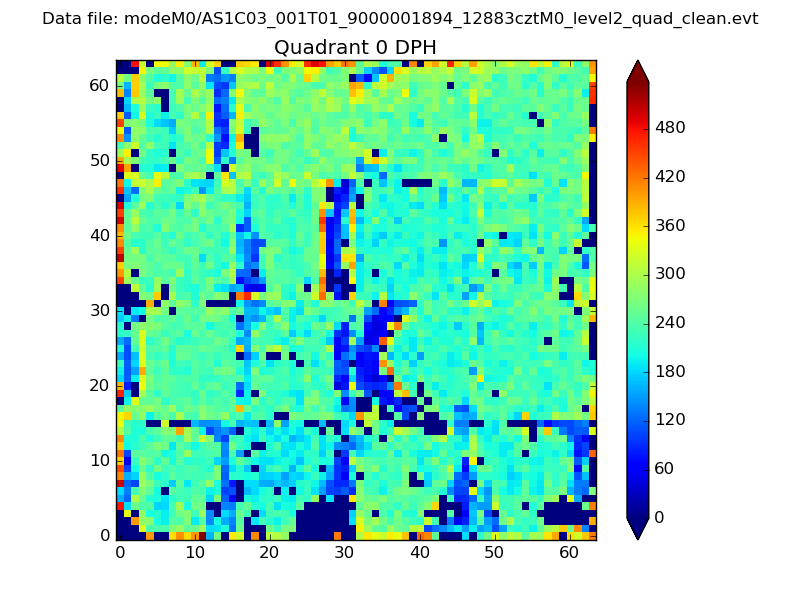

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

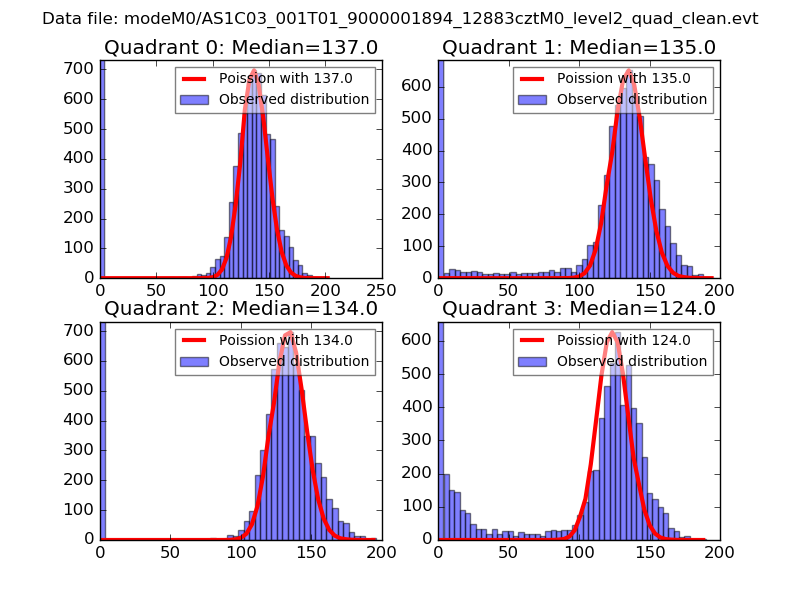

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

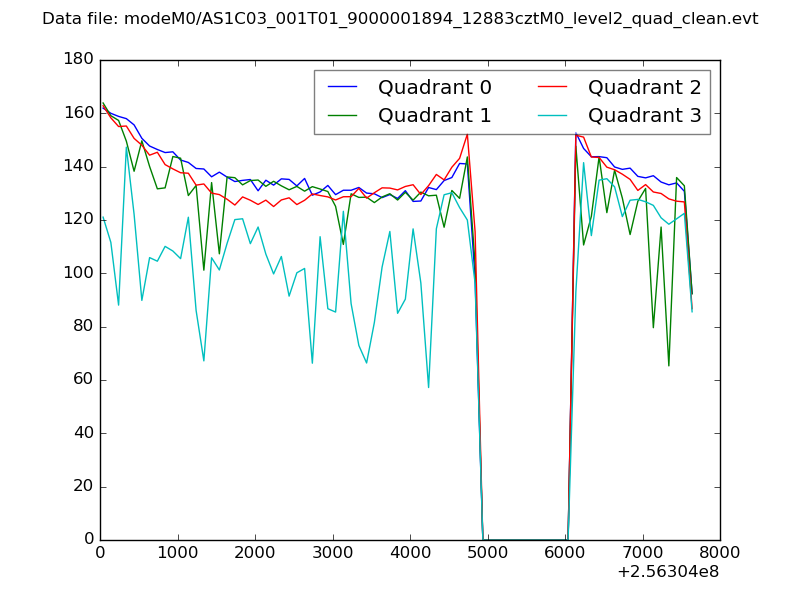

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

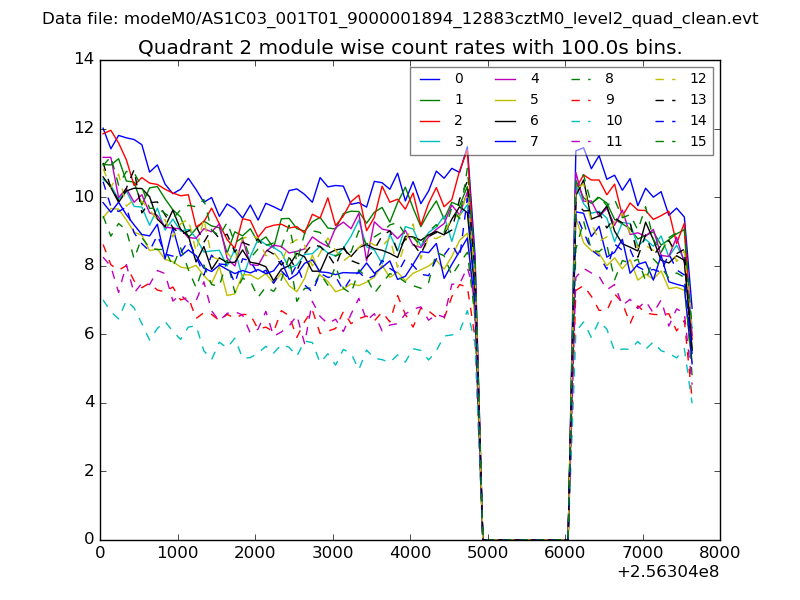

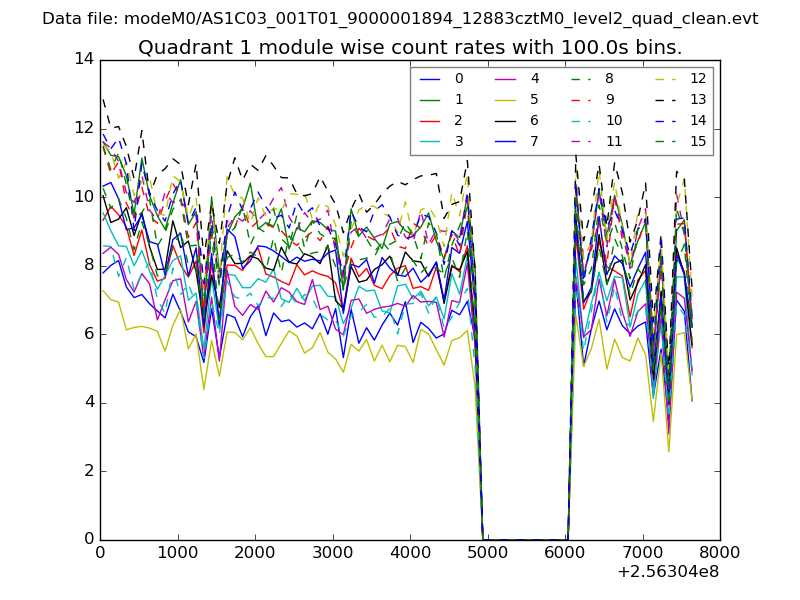

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

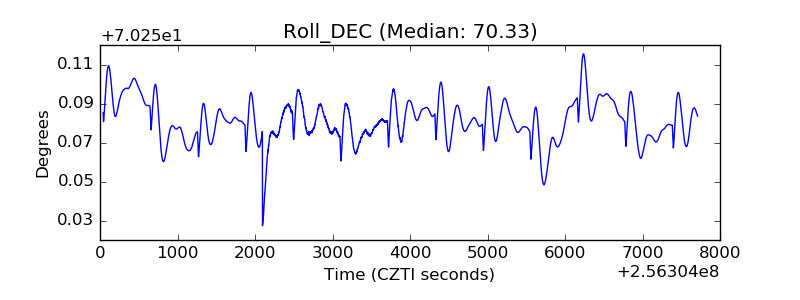

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
