| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_001T01_9000001894_12886cztM0_level2.evt | modeM0/AS1C03_001T01_9000001894_12886cztM0_level2_quad_clean.evt |
| Size (bytes) | 591,494,400 | 136,275,840 |
| Size | 564.1 MB | 130.0 MB |
| Events in quadrant A | 3,796,022 | 928,466 |
| Events in quadrant B | 4,707,452 | 901,443 |
| Events in quadrant C | 3,393,844 | 920,971 |
| Events in quadrant D | 5,503,373 | 850,387 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16145 | 3 |
| B | 0 | 18982 | 2 |
| C | 0 | 15431 | 2 |
| D | 0 | 21501 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7556 | 55 | 0.727898% |
| B | 7556 | 514 | 6.802541% |
| C | 7556 | 26 | 0.344097% |
| D | 7556 | 553 | 7.318687% |

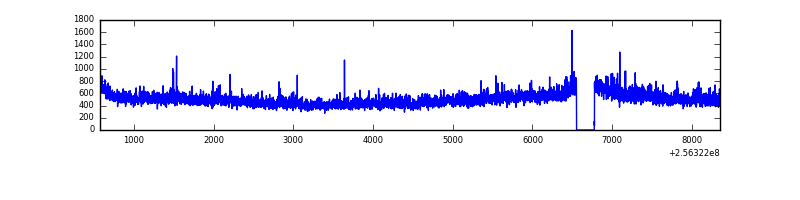

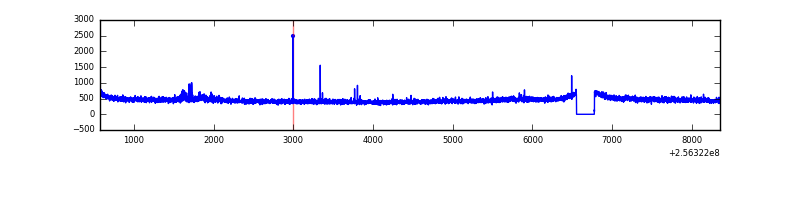

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7782 | 7558 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7782 | 7557 | 250 | 250 | 3.21% | 3.31% |  |
| C | 7782 | 7558 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7781 | 7557 | 377 | 377 | 4.85% | 4.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 148492 | 817.91 | 884 | 866 | 180.5 |
| A | 1 | 178 | 85168 | 467.07 | 884 | 866 | 180.5 |
| A | 1 | 161 | 71450 | 391.06 | 884 | 866 | 180.5 |
| B | 4 | 239 | 961600 | 6038.66 | 849 | 827 | 159.1 |
| B | 0 | 85 | 130365 | 814.17 | 849 | 827 | 159.1 |
| B | 3 | 209 | 71223 | 442.45 | 849 | 827 | 159.1 |
| C | 3 | 233 | 37305 | 185.16 | 859 | 862 | 196.8 |
| C | 13 | 61 | 6335 | 27.81 | 859 | 862 | 196.8 |
| C | 14 | 234 | 5026 | 21.16 | 859 | 862 | 196.8 |
| D | 1 | 52 | 1832828 | 9200.85 | 833 | 808 | 199.1 |
| D | 13 | 122 | 226424 | 1133.1 | 833 | 808 | 199.1 |
| D | 4 | 95 | 103716 | 516.83 | 833 | 808 | 199.1 |

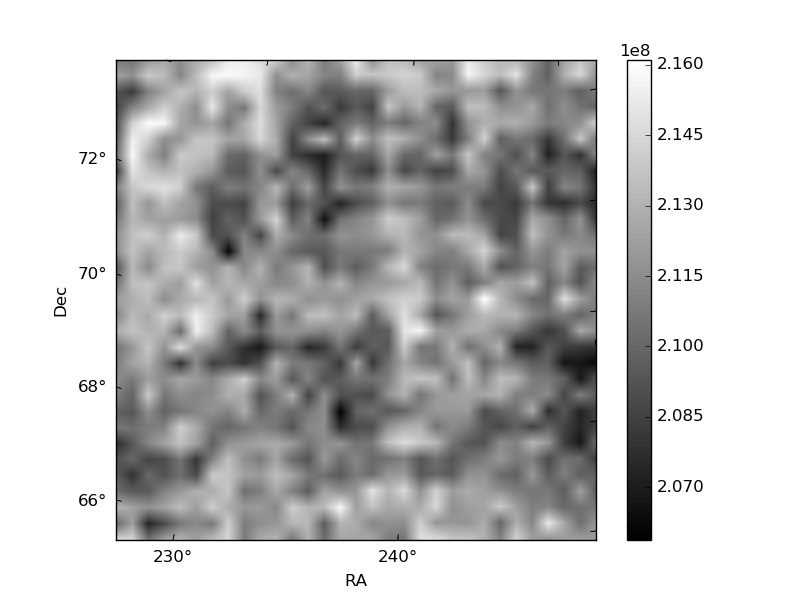

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

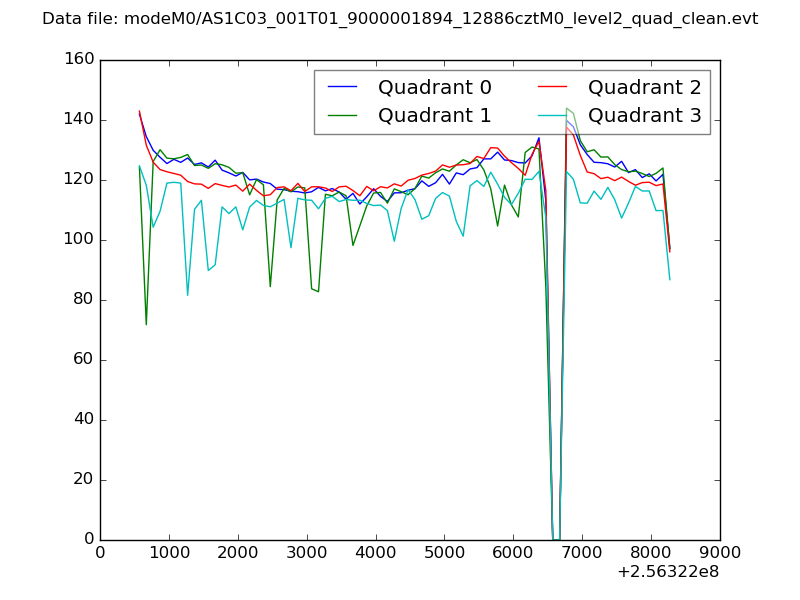

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

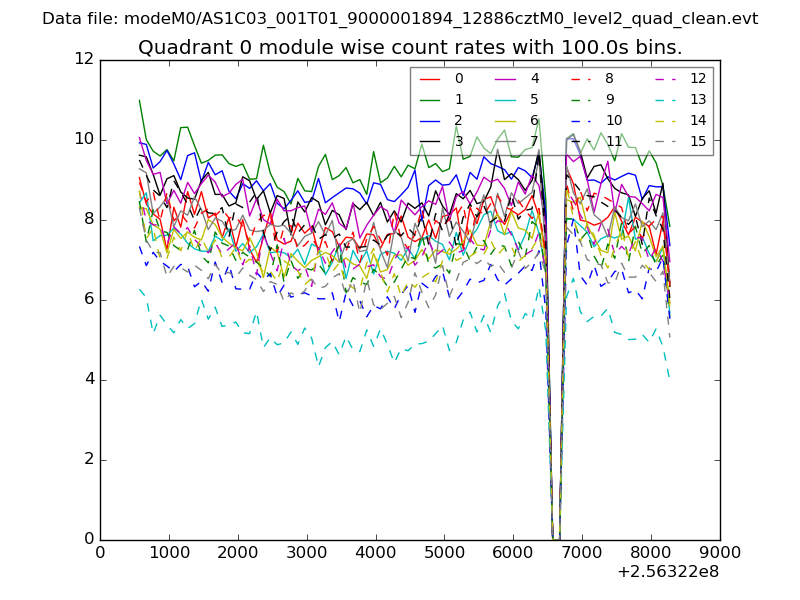

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

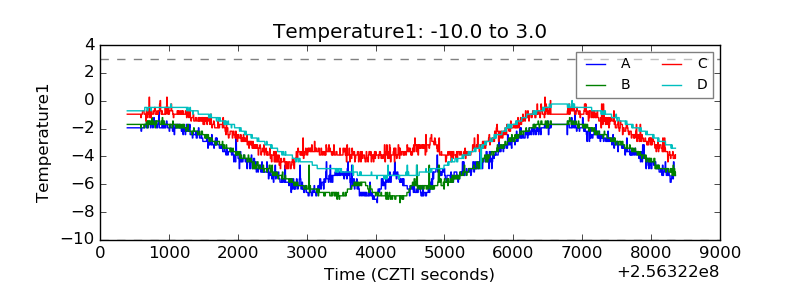

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

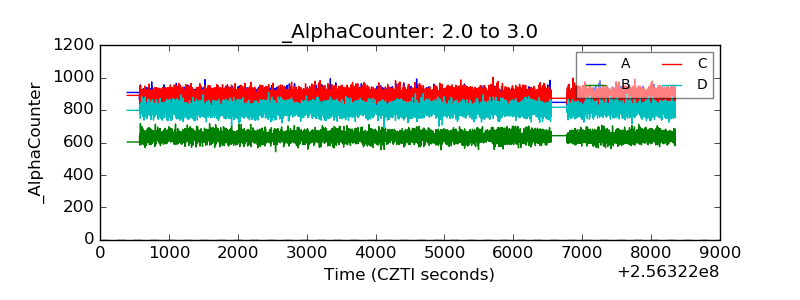

| Alpha Counter |  |
| _CPM_Rate |  |

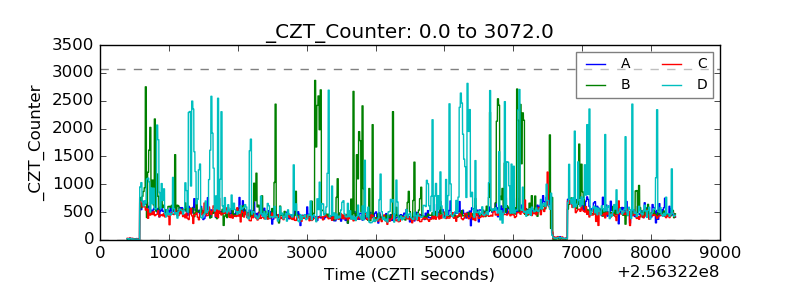

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
