| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_001T01_9000001894_12890cztM0_level2.evt | modeM0/AS1C03_001T01_9000001894_12890cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,387,402,560 | 329,112,000 |
| Size | 1.3 GB | 313.9 MB |
| Events in quadrant A | 9,111,979 | 2,218,681 |
| Events in quadrant B | 12,686,548 | 2,113,106 |
| Events in quadrant C | 8,126,792 | 2,234,830 |
| Events in quadrant D | 10,834,242 | 2,119,290 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39520 | 4 |
| B | 0 | 50460 | 3 |
| C | 0 | 37707 | 3 |
| D | 0 | 45790 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 380 | 0 |
| B | 0 | 380 | 0 |
| C | 0 | 380 | 0 |
| D | 0 | 380 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18603 | 80 | 0.430038% |
| B | 18603 | 1848 | 9.933882% |
| C | 18603 | 44 | 0.236521% |
| D | 18603 | 581 | 3.123152% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

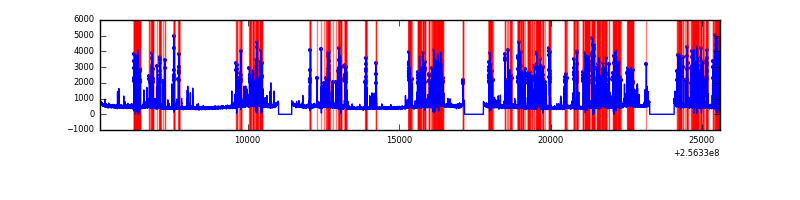

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20474 | 18607 | 1 | 1 | 0.00% | 0.01% |  |
| B | 20474 | 18606 | 943 | 943 | 4.61% | 5.07% |  |
| C | 20474 | 18607 | 0 | 0 | 0.00% | 0.00% |  |
| D | 20474 | 18607 | 428 | 428 | 2.09% | 2.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 336073 | 775.01 | 2127 | 2079 | 431.0 |
| A | 1 | 178 | 181410 | 416.12 | 2127 | 2079 | 431.0 |
| A | 1 | 161 | 152916 | 350.01 | 2127 | 2079 | 431.0 |
| B | 4 | 239 | 3582460 | 9456.59 | 2013 | 1960 | 378.6 |
| B | 3 | 64 | 474632 | 1248.39 | 2013 | 1960 | 378.6 |
| B | 4 | 173 | 333897 | 876.69 | 2013 | 1960 | 378.6 |
| C | 13 | 61 | 15435 | 27.96 | 2081 | 2088 | 477.4 |
| C | 4 | 112 | 11174 | 19.03 | 2081 | 2088 | 477.4 |
| C | 14 | 234 | 6403 | 9.04 | 2081 | 2088 | 477.4 |
| D | 1 | 52 | 2477884 | 5046.75 | 2046 | 1982 | 490.6 |
| D | 4 | 95 | 213259 | 430.66 | 2046 | 1982 | 490.6 |
| D | 10 | 253 | 120117 | 240.8 | 2046 | 1982 | 490.6 |

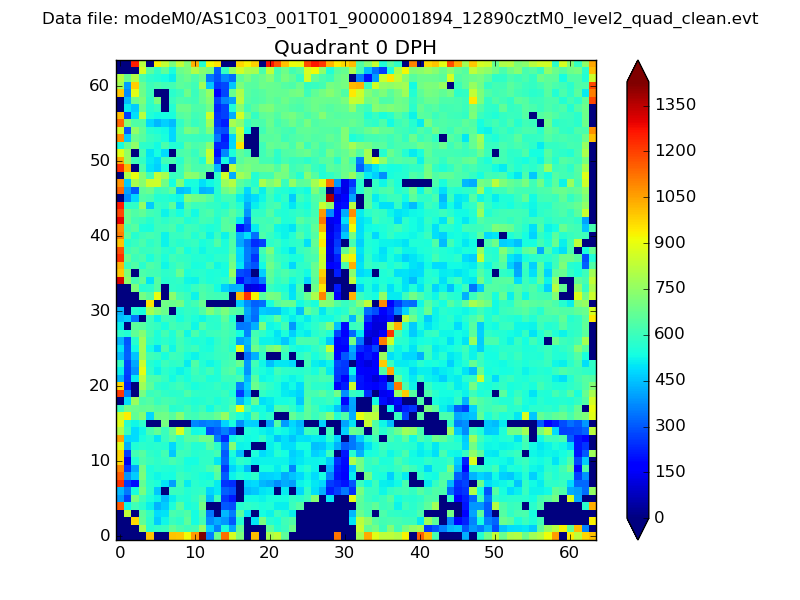

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

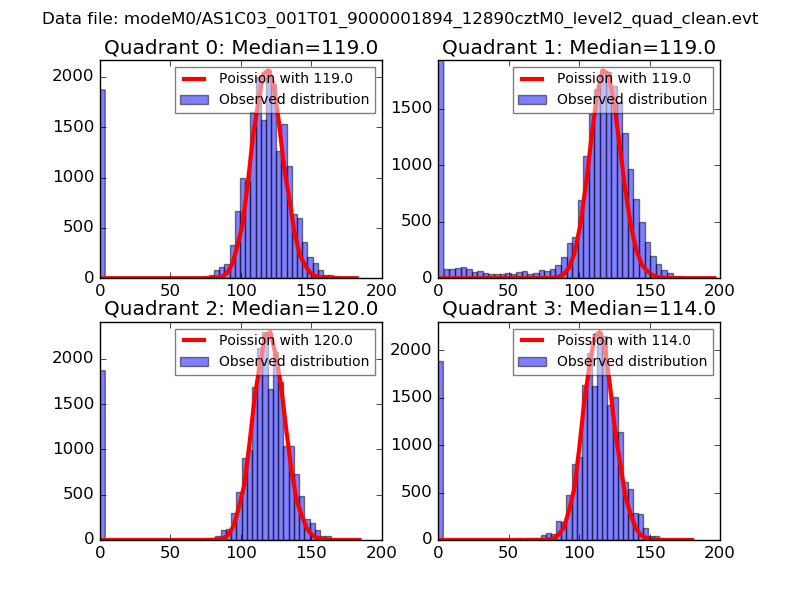

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

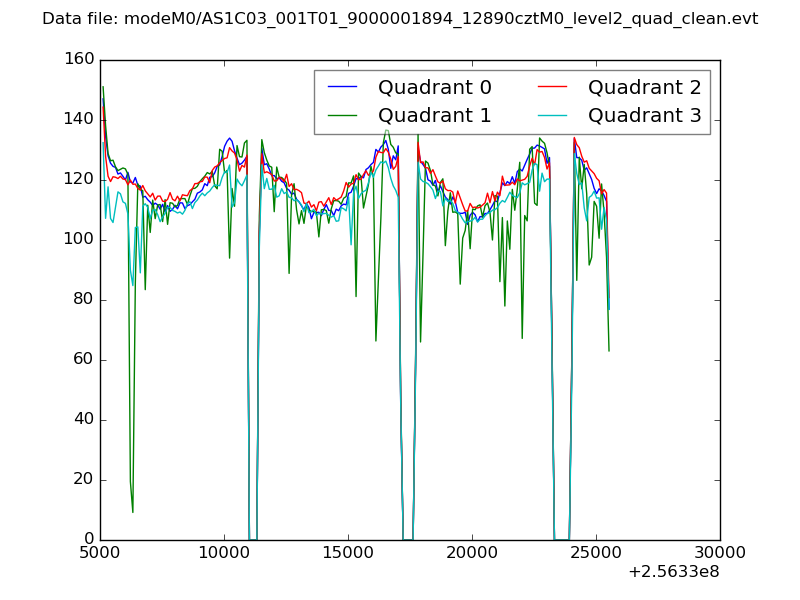

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

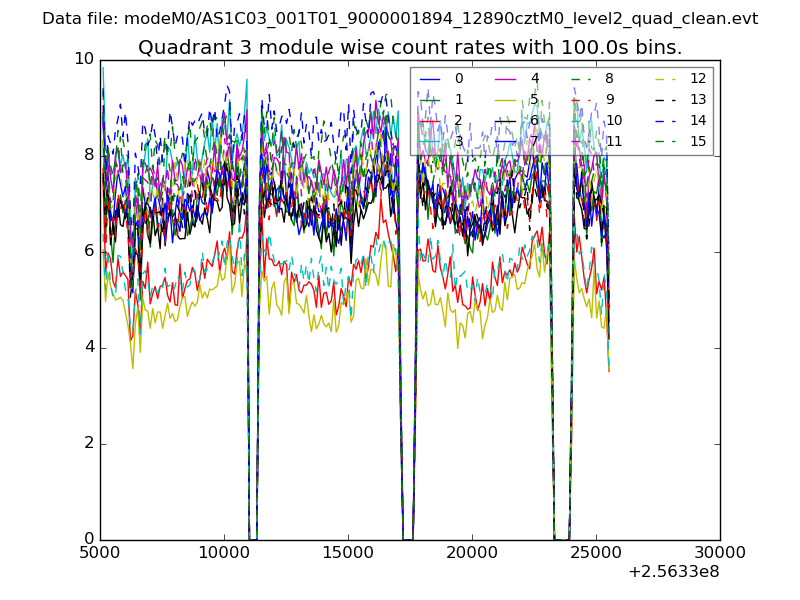

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

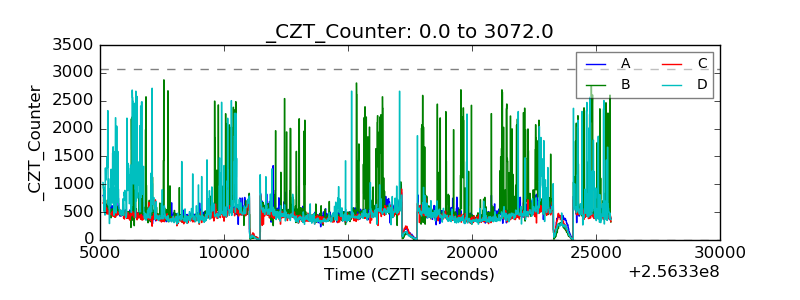

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

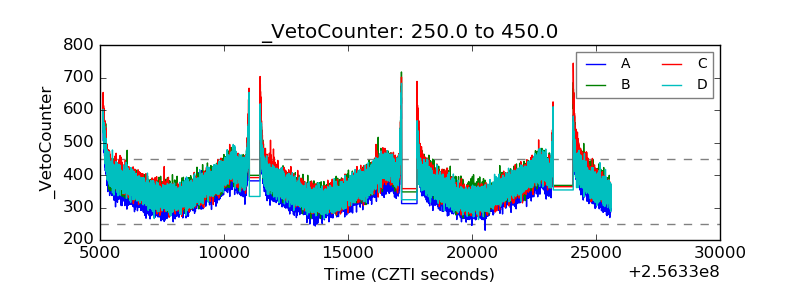

| Veto Counter |  |
