| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_116T01_9000001896_12895cztM0_level2.evt | modeM0/AS1A04_116T01_9000001896_12895cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,364,480 | 98,953,920 |
| Size | 448.6 MB | 94.4 MB |
| Events in quadrant A | 3,211,880 | 659,037 |
| Events in quadrant B | 4,376,050 | 623,775 |
| Events in quadrant C | 2,995,556 | 660,921 |
| Events in quadrant D | 3,253,072 | 632,962 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13250 | 2 |
| B | 0 | 16724 | 1 |
| C | 0 | 12850 | 1 |
| D | 0 | 13561 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6012 | 92 | 1.530273% |
| B | 6012 | 636 | 10.578842% |
| C | 6012 | 89 | 1.480373% |
| D | 6012 | 135 | 2.245509% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7278 | 6014 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7278 | 6014 | 338 | 338 | 4.64% | 5.62% |  |
| C | 7278 | 6014 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7278 | 6014 | 59 | 59 | 0.81% | 0.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 61228 | 381.3 | 793 | 779 | 158.5 |
| A | 1 | 162 | 36164 | 223.2 | 793 | 779 | 158.5 |
| A | 1 | 178 | 17424 | 104.99 | 793 | 779 | 158.5 |
| B | 4 | 239 | 1156344 | 8448.28 | 751 | 734 | 136.8 |
| B | 3 | 209 | 87655 | 635.45 | 751 | 734 | 136.8 |
| B | 3 | 64 | 52523 | 378.61 | 751 | 734 | 136.8 |
| C | 13 | 61 | 5595 | 27.79 | 767 | 772 | 173.5 |
| C | 4 | 112 | 2352 | 9.11 | 767 | 772 | 173.5 |
| C | 3 | 202 | 1989 | 7.01 | 767 | 772 | 173.5 |
| D | 10 | 253 | 166972 | 928.82 | 766 | 745 | 179.0 |
| D | 1 | 52 | 85806 | 475.29 | 766 | 745 | 179.0 |
| D | 2 | 14 | 56613 | 312.17 | 766 | 745 | 179.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

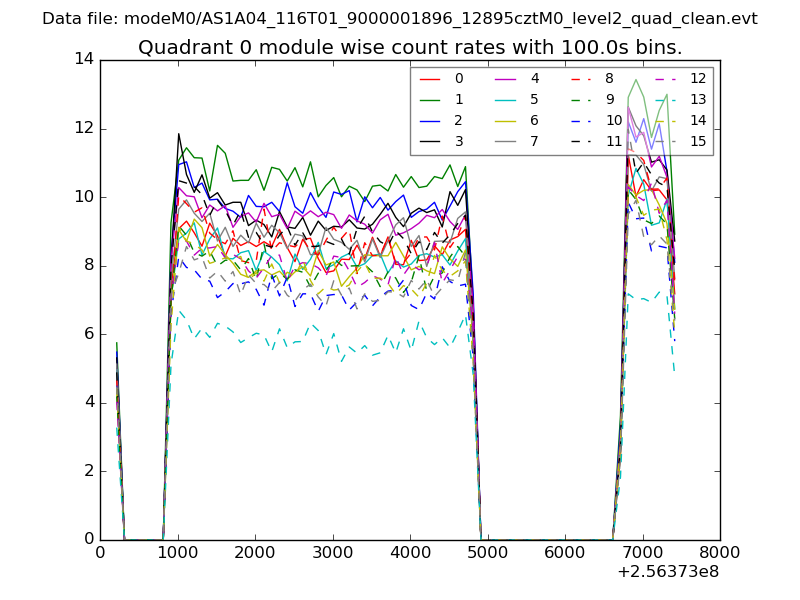

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

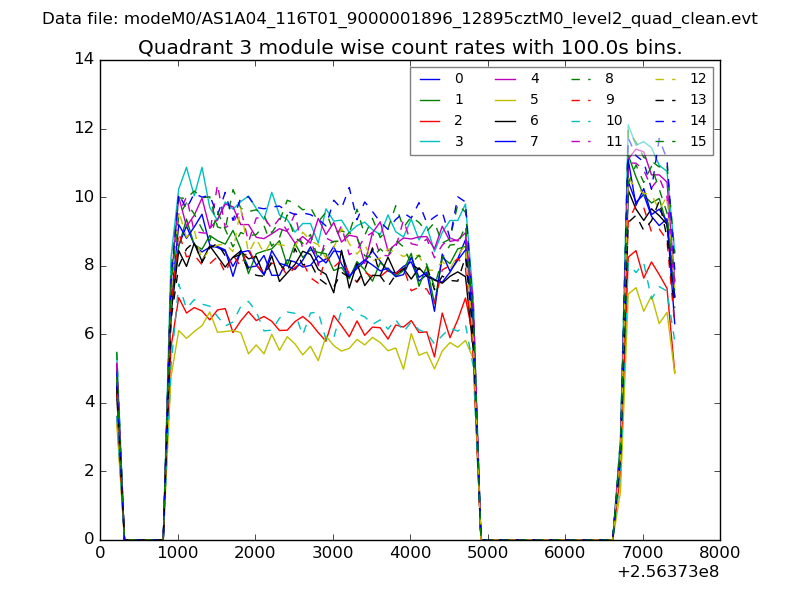

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

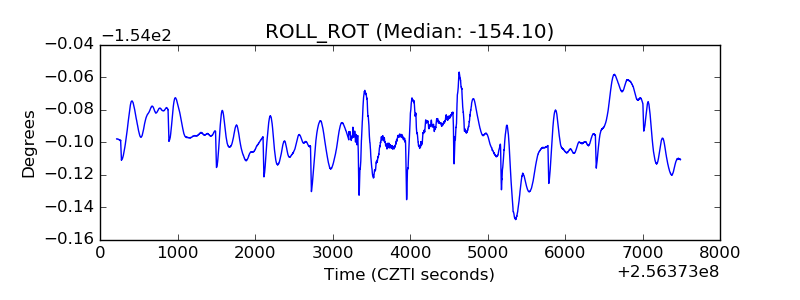

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

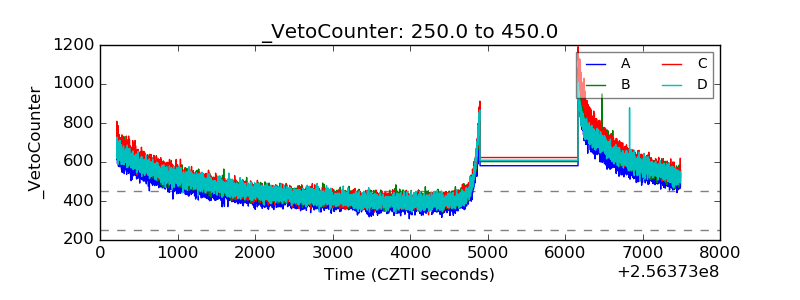

| Veto Counter |  |
