| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_116T01_9000001896_12898cztM0_level2.evt | modeM0/AS1A04_116T01_9000001896_12898cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,459,840 | 117,210,240 |
| Size | 461.1 MB | 111.8 MB |
| Events in quadrant A | 3,141,664 | 803,883 |
| Events in quadrant B | 4,316,851 | 770,232 |
| Events in quadrant C | 2,798,342 | 797,196 |
| Events in quadrant D | 3,967,857 | 750,082 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13125 | 2 |
| B | 0 | 16854 | 1 |
| C | 0 | 12559 | 1 |
| D | 0 | 15873 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6144 | 104 | 1.692708% |
| B | 6144 | 588 | 9.570312% |
| C | 6144 | 55 | 0.895182% |
| D | 6144 | 315 | 5.126953% |

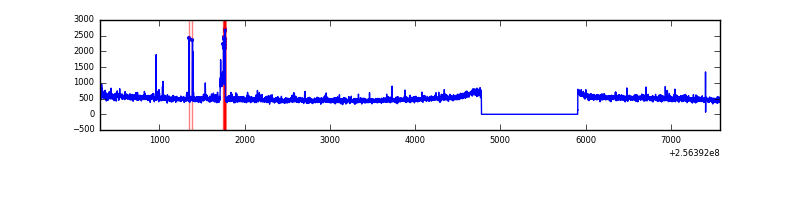

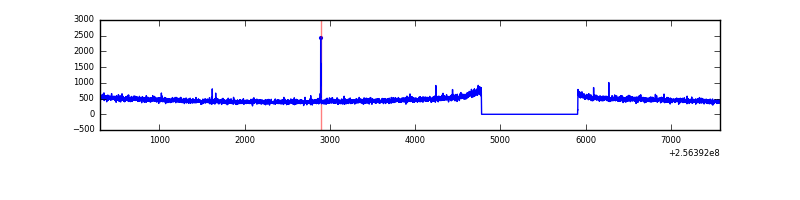

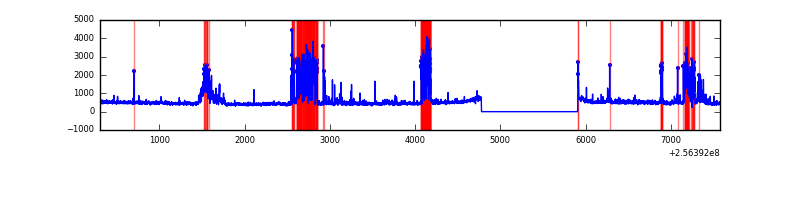

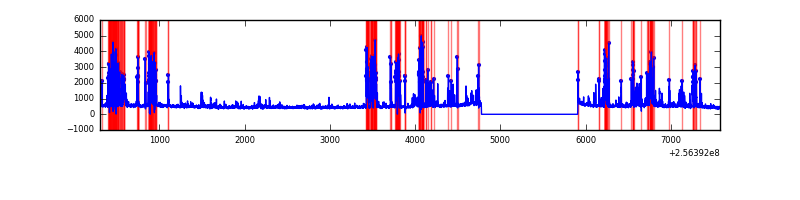

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7275 | 6146 | 15 | 15 | 0.21% | 0.24% |  |
| B | 7275 | 6146 | 295 | 295 | 4.05% | 4.80% |  |
| C | 7275 | 6146 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7275 | 6146 | 253 | 253 | 3.48% | 4.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 67029 | 438.41 | 749 | 733 | 151.2 |
| A | 1 | 162 | 52311 | 341.08 | 749 | 733 | 151.2 |
| A | 8 | 15 | 35508 | 229.97 | 749 | 733 | 151.2 |
| B | 4 | 239 | 1208373 | 9155.13 | 709 | 692 | 131.9 |
| B | 0 | 85 | 171868 | 1297.64 | 709 | 692 | 131.9 |
| B | 3 | 209 | 73139 | 549.2 | 709 | 692 | 131.9 |
| C | 14 | 234 | 6780 | 37.22 | 715 | 719 | 162.8 |
| C | 13 | 61 | 5351 | 28.45 | 715 | 719 | 162.8 |
| C | 12 | 4 | 2998 | 14.0 | 715 | 719 | 162.8 |
| D | 1 | 52 | 718947 | 4254.71 | 707 | 686 | 168.8 |
| D | 4 | 95 | 181371 | 1070.31 | 707 | 686 | 168.8 |
| D | 13 | 122 | 169811 | 1001.83 | 707 | 686 | 168.8 |

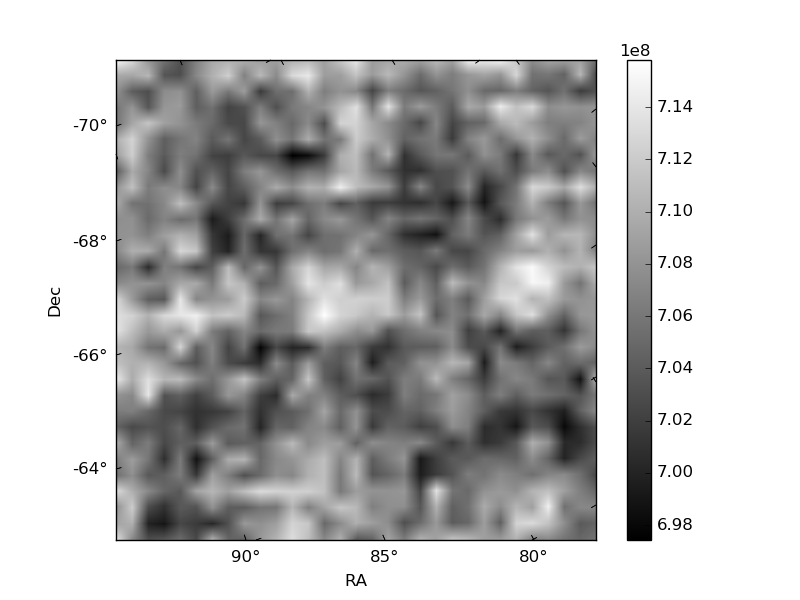

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

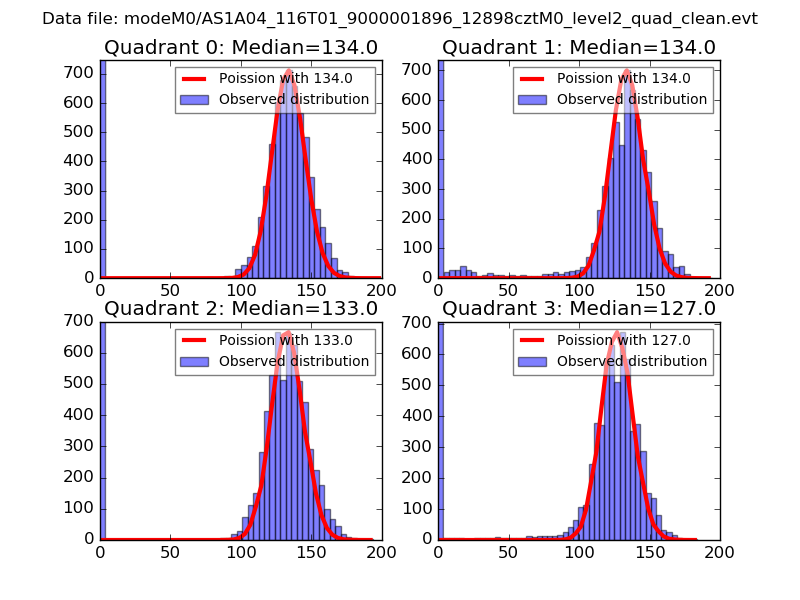

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

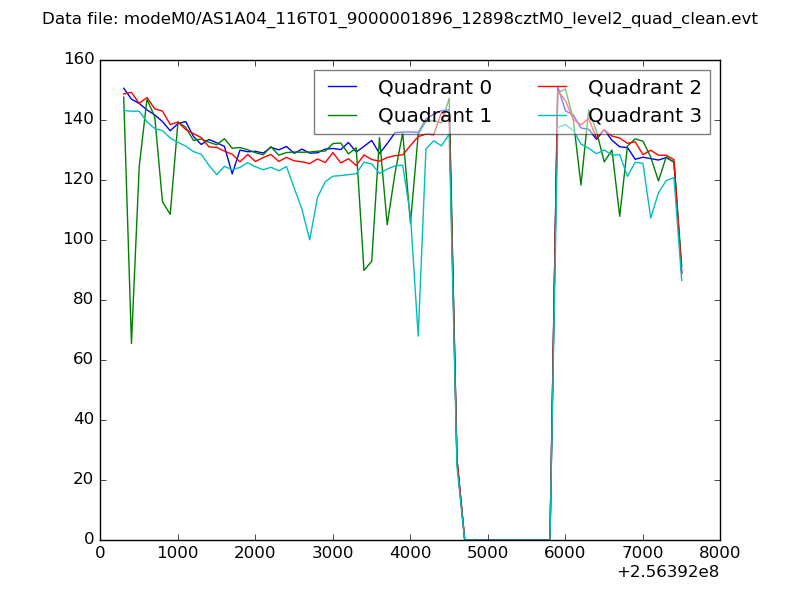

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

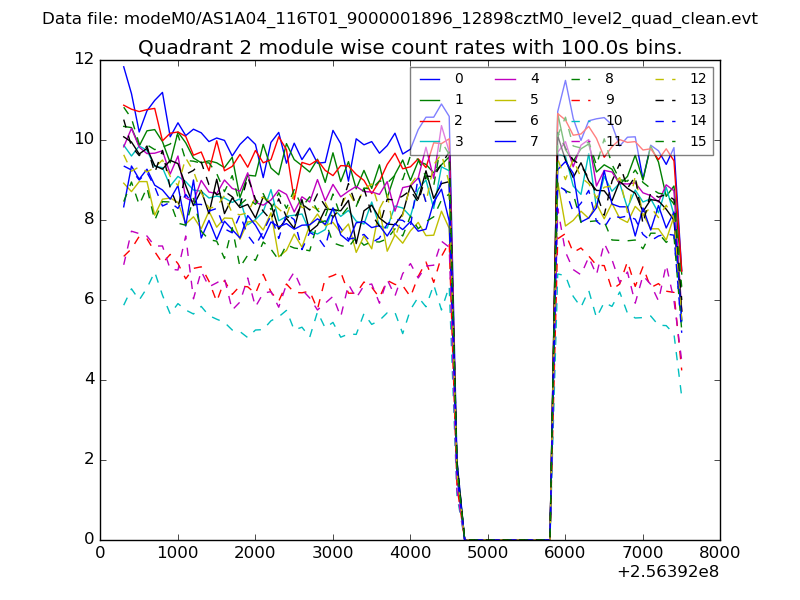

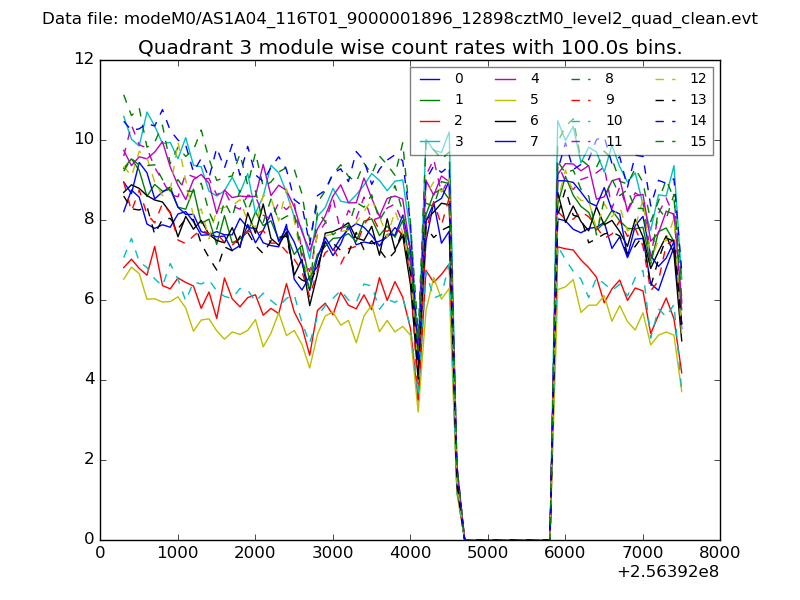

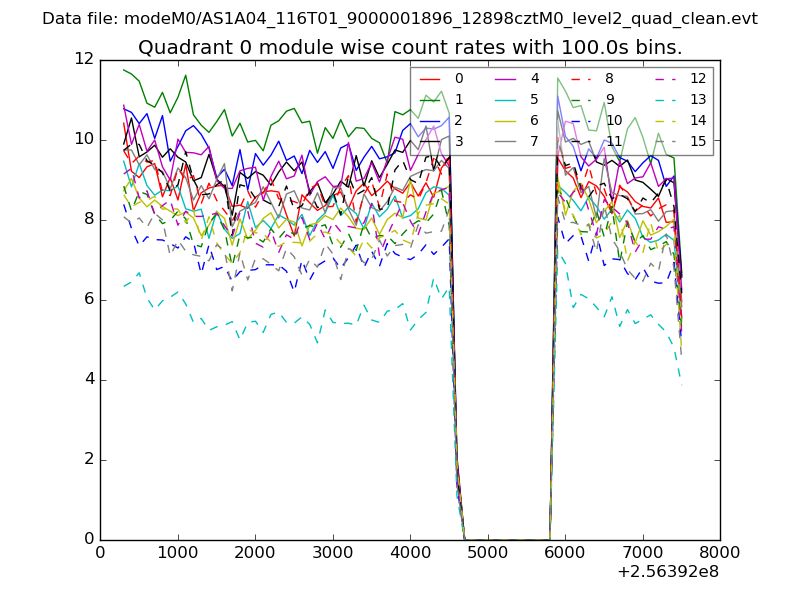

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

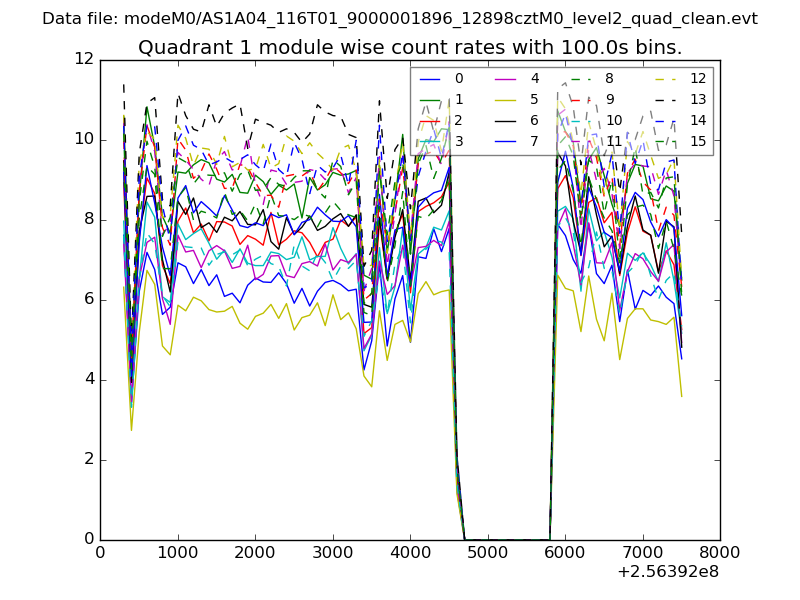

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

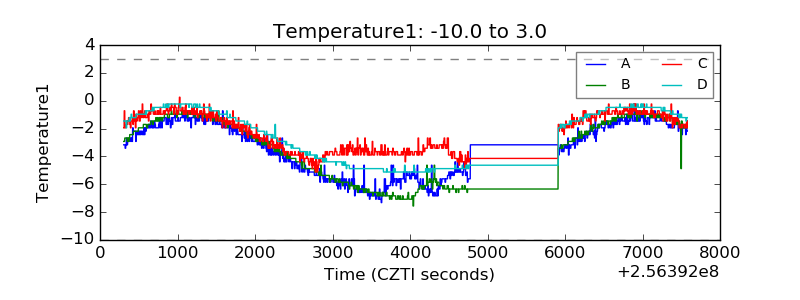

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

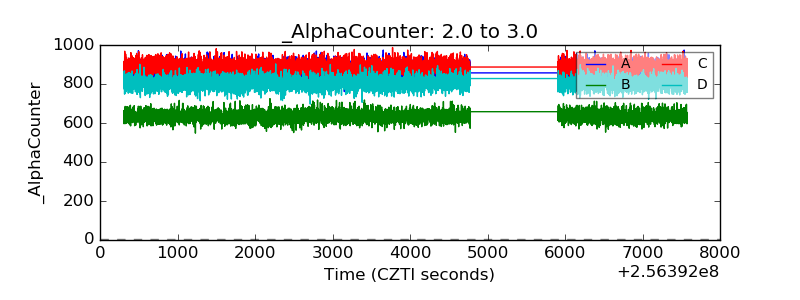

| Alpha Counter |  |

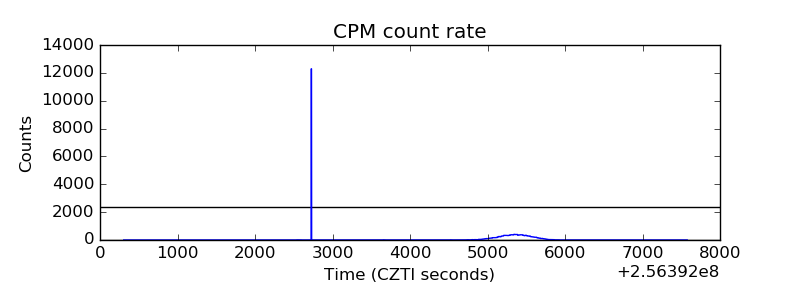

| _CPM_Rate |  |

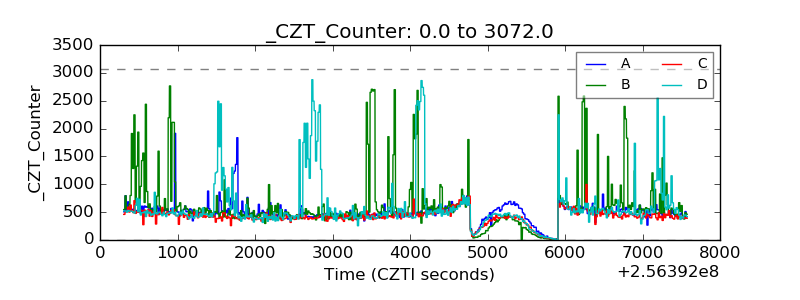

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

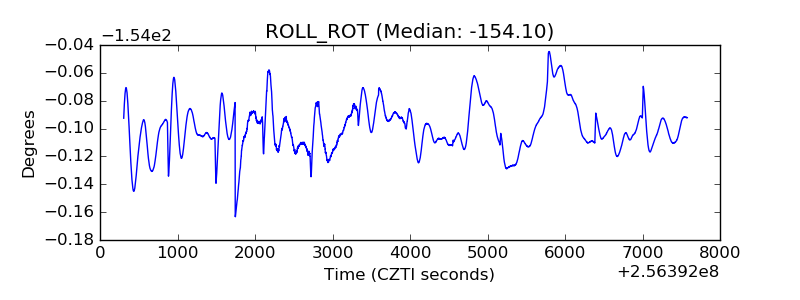

| _ROLL_ROT |  |

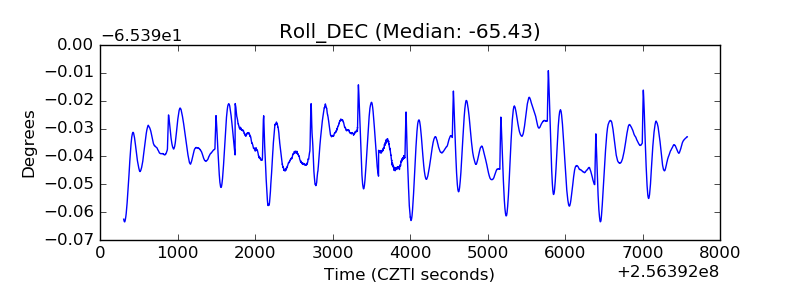

| _Roll_DEC |  |

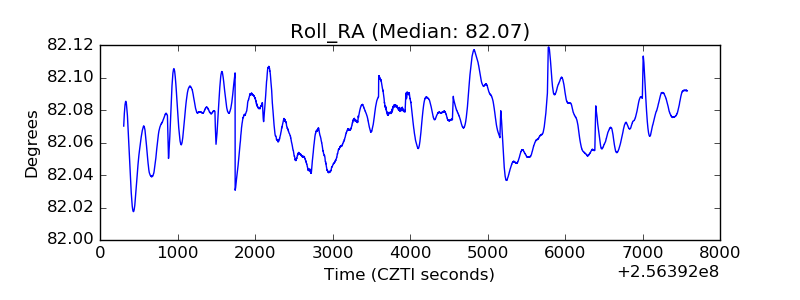

| _Roll_RA |  |

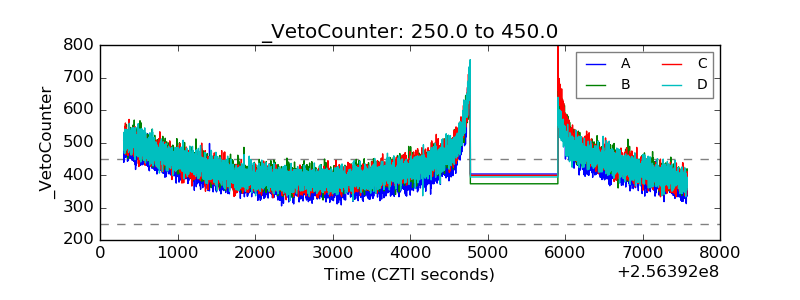

| Veto Counter |  |
