| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_116T01_9000001896_12899cztM0_level2.evt | modeM0/AS1A04_116T01_9000001896_12899cztM0_level2_quad_clean.evt |
| Size (bytes) | 485,472,960 | 109,722,240 |
| Size | 463.0 MB | 104.6 MB |
| Events in quadrant A | 3,189,913 | 735,849 |
| Events in quadrant B | 4,351,552 | 715,293 |
| Events in quadrant C | 2,868,071 | 727,177 |
| Events in quadrant D | 3,849,586 | 689,205 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13679 | 2 |
| B | 0 | 17307 | 1 |
| C | 0 | 13257 | 1 |
| D | 0 | 15950 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6529 | 41 | 0.627968% |
| B | 6529 | 402 | 6.157145% |
| C | 6529 | 9 | 0.137847% |
| D | 6529 | 198 | 3.032624% |

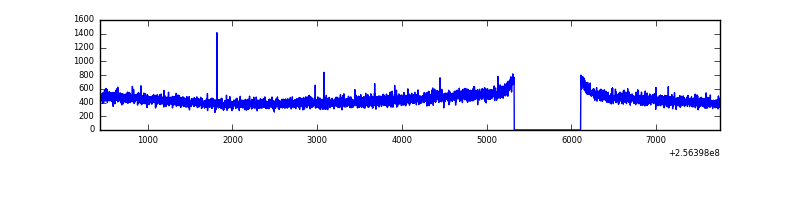

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7315 | 6531 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7315 | 6531 | 198 | 198 | 2.71% | 3.03% |  |
| C | 7315 | 6531 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7315 | 6531 | 179 | 179 | 2.45% | 2.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 68058 | 430.61 | 769 | 753 | 156.3 |
| A | 8 | 15 | 49067 | 309.11 | 769 | 753 | 156.3 |
| A | 1 | 178 | 37606 | 235.78 | 769 | 753 | 156.3 |
| B | 4 | 239 | 882025 | 6327.3 | 743 | 725 | 139.3 |
| B | 0 | 85 | 441352 | 3163.48 | 743 | 725 | 139.3 |
| B | 3 | 209 | 46755 | 330.47 | 743 | 725 | 139.3 |
| C | 13 | 61 | 5569 | 28.47 | 735 | 737 | 169.7 |
| C | 12 | 4 | 1797 | 6.24 | 735 | 737 | 169.7 |
| C | 3 | 202 | 1763 | 6.04 | 735 | 737 | 169.7 |
| D | 4 | 95 | 636818 | 3647.74 | 727 | 705 | 174.4 |
| D | 1 | 52 | 284875 | 1629.55 | 727 | 705 | 174.4 |
| D | 10 | 157 | 74973 | 425.88 | 727 | 705 | 174.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

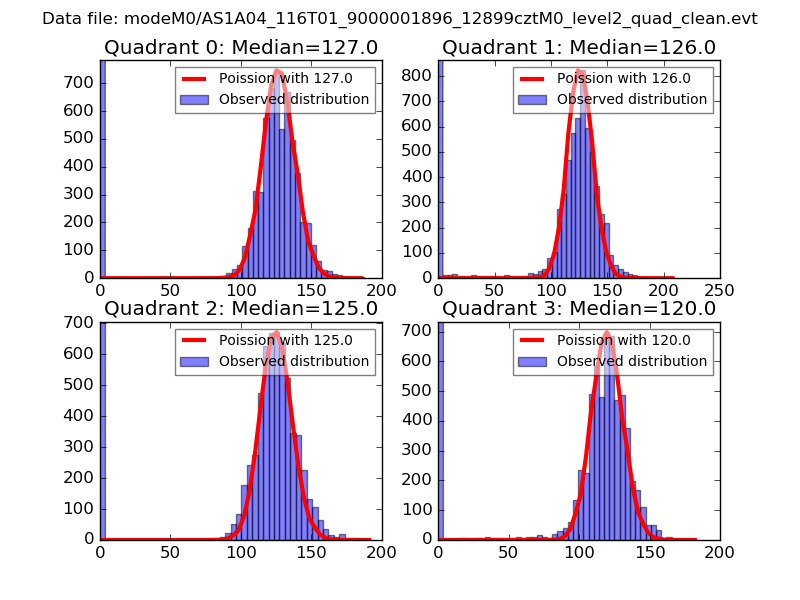

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

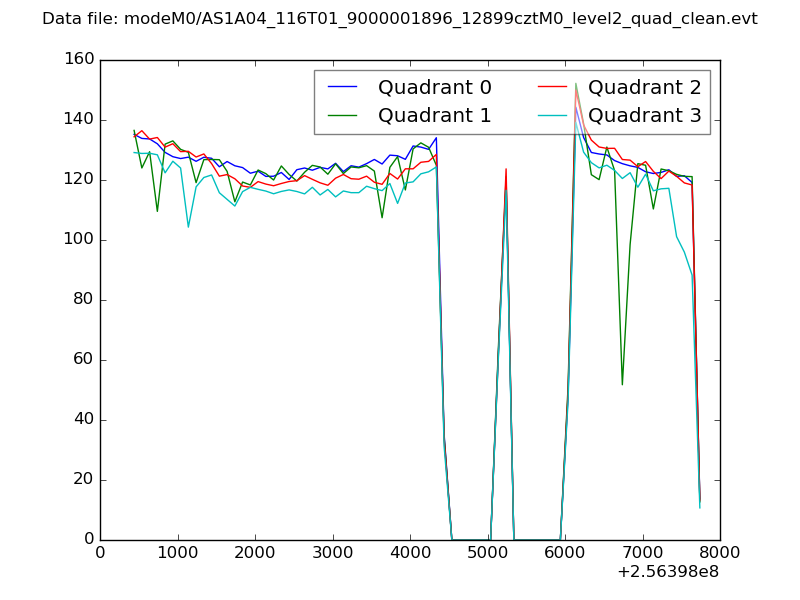

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

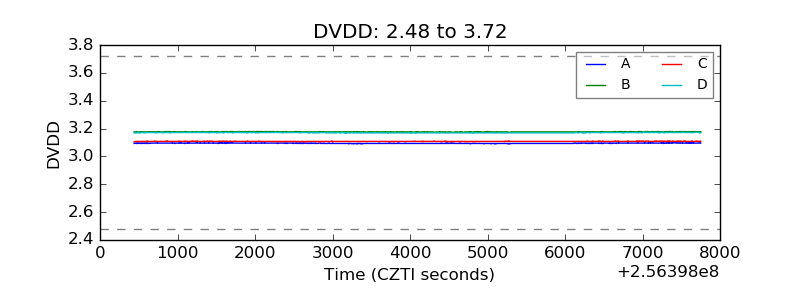

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

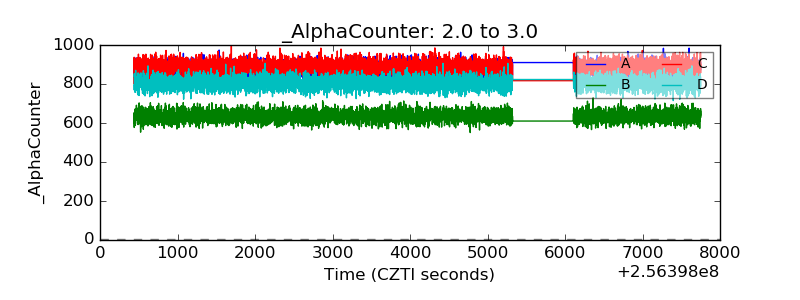

| Alpha Counter |  |
| _CPM_Rate |  |

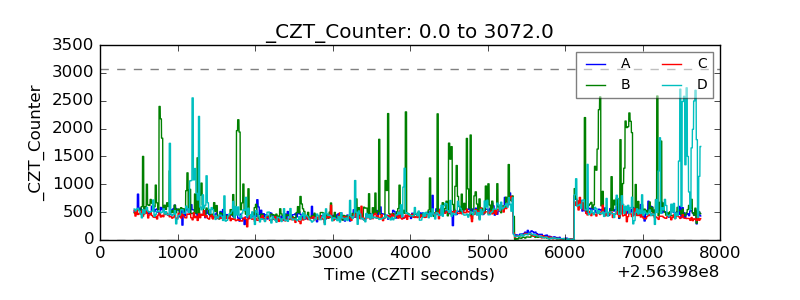

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

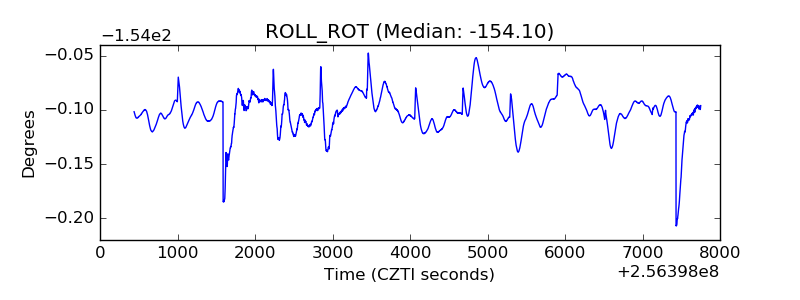

| _ROLL_ROT |  |
| _Roll_DEC |  |

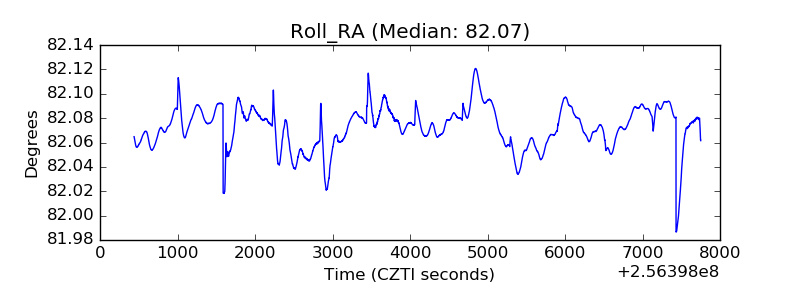

| _Roll_RA |  |
| Veto Counter |  |
