| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_116T01_9000001896_12902cztM0_level2.evt | modeM0/AS1A04_116T01_9000001896_12902cztM0_level2_quad_clean.evt |
| Size (bytes) | 620,665,920 | 128,796,480 |
| Size | 591.9 MB | 122.8 MB |
| Events in quadrant A | 3,872,437 | 875,451 |
| Events in quadrant B | 6,239,964 | 781,416 |
| Events in quadrant C | 3,523,097 | 870,411 |
| Events in quadrant D | 4,624,318 | 822,561 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16990 | 3 |
| B | 0 | 23837 | 2 |
| C | 0 | 16240 | 2 |
| D | 0 | 19396 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7919 | 89 | 1.123879% |
| B | 7919 | 1263 | 15.948983% |
| C | 7919 | 32 | 0.404091% |
| D | 7919 | 259 | 3.270615% |

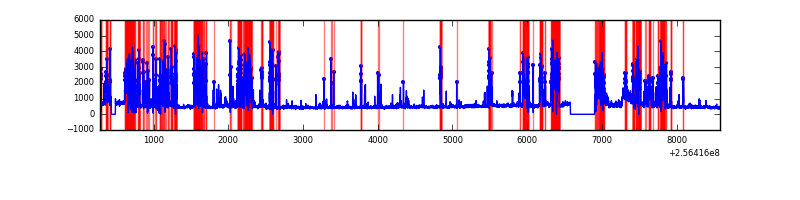

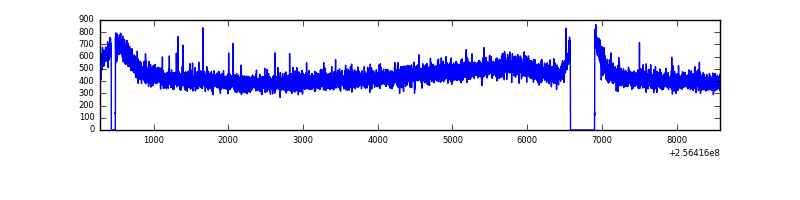

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8300 | 7922 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8300 | 7922 | 623 | 623 | 7.51% | 7.86% |  |
| C | 8300 | 7922 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8300 | 7922 | 189 | 189 | 2.28% | 2.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 166618 | 863.67 | 934 | 911 | 191.9 |
| A | 1 | 162 | 37870 | 192.63 | 934 | 911 | 191.9 |
| A | 1 | 178 | 19784 | 98.37 | 934 | 911 | 191.9 |
| B | 4 | 239 | 2282265 | 14177.04 | 843 | 823 | 160.9 |
| B | 3 | 64 | 250375 | 1550.73 | 843 | 823 | 160.9 |
| B | 0 | 85 | 246378 | 1525.9 | 843 | 823 | 160.9 |
| C | 8 | 128 | 9061 | 39.36 | 898 | 899 | 207.4 |
| C | 13 | 61 | 6615 | 27.56 | 898 | 899 | 207.4 |
| C | 8 | 112 | 5362 | 21.52 | 898 | 899 | 207.4 |
| D | 1 | 52 | 1019825 | 4730.75 | 885 | 857 | 215.4 |
| D | 8 | 195 | 113433 | 522.65 | 885 | 857 | 215.4 |
| D | 2 | 234 | 37942 | 172.17 | 885 | 857 | 215.4 |

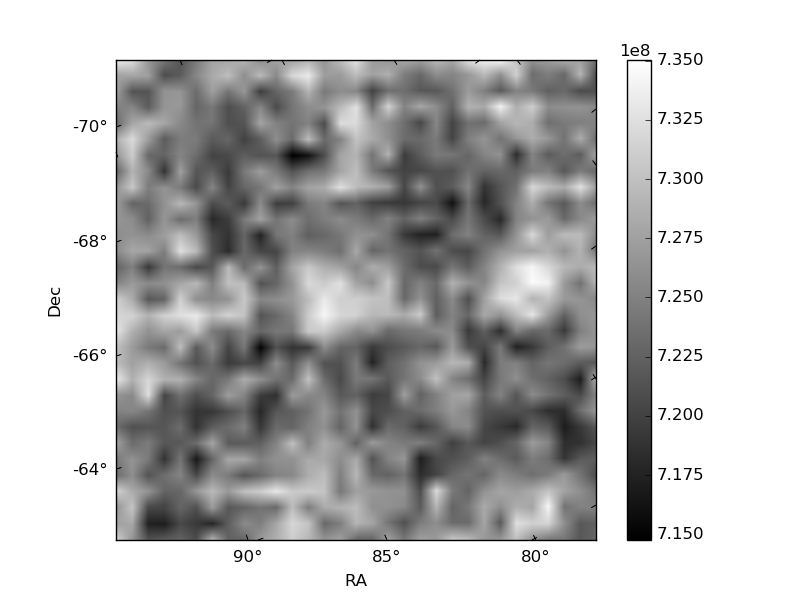

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

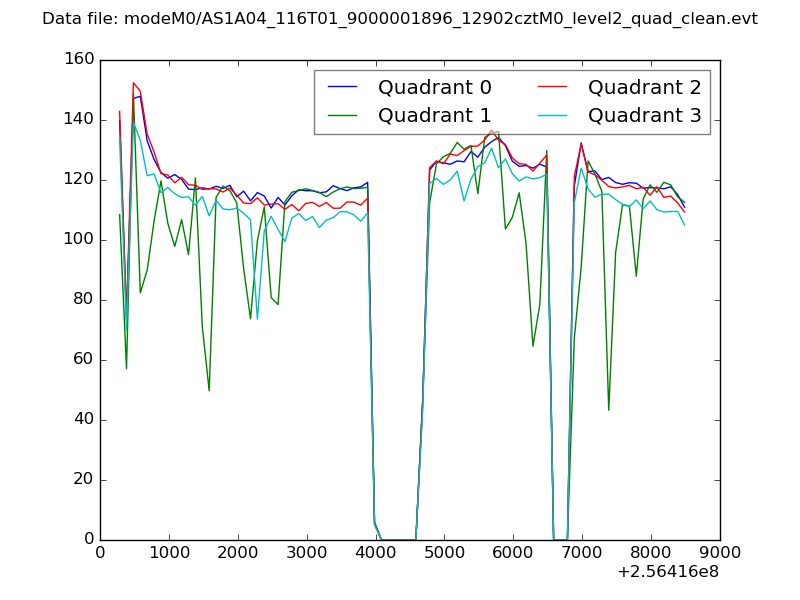

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

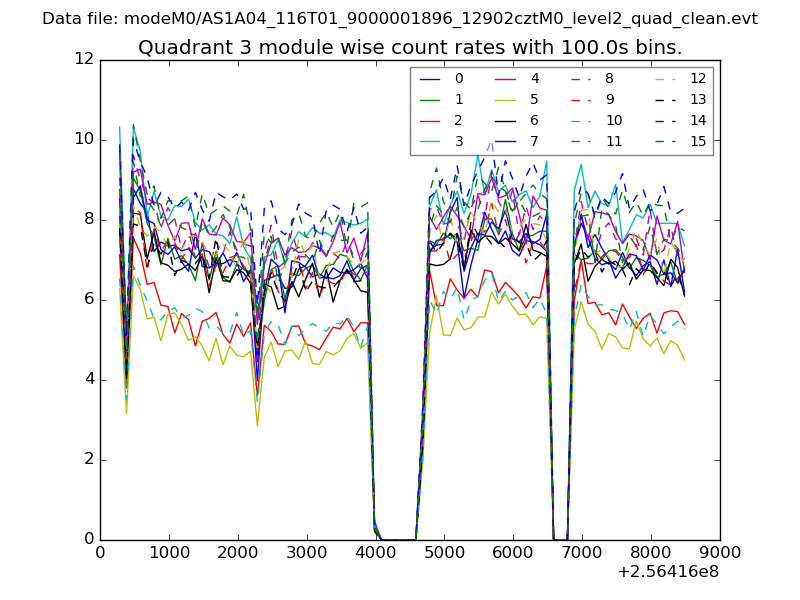

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

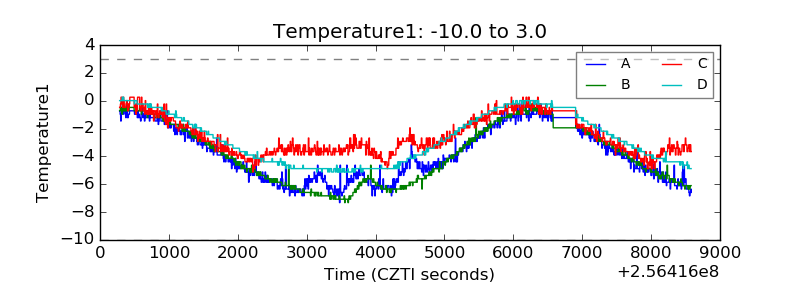

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

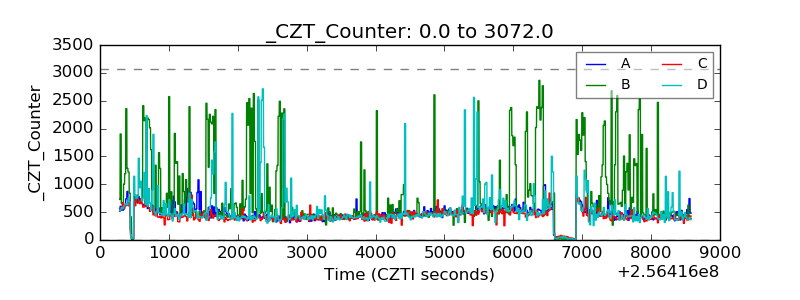

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

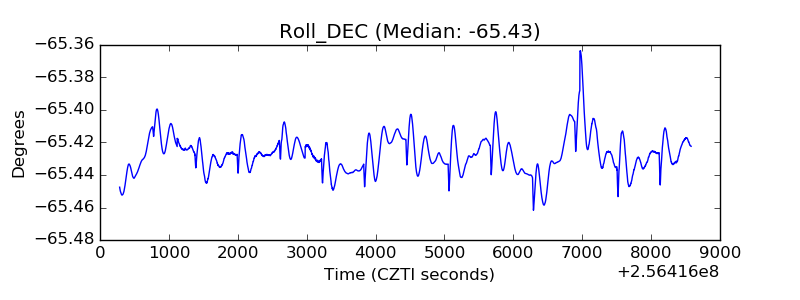

| _Roll_DEC |  |
